15-inch I-Series 5 Steel for Android
Elo 15-inch I-Series 5 Steel for Android Touchscreen Computer
- Screen size
- 15.6'' diagonal
- Resolution
- 1920 x 1080 @ 60Hz
- Brightness
- LCD Panel: 250 nits
- System
- Android 14 with Google Play…
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Elo 15-inch I-Series 5 Steel is an Android touch computer in a stainless-steel chassis, with a 1920 x 1080 display that registers up to 10 touches. It runs Android 14 on a Qualcomm QCS6490 processor with 8GB RAM and 64GB storage. IP65 front protection and a 0°C to 45°C operating range suit kiosks and digital signage in industrial sites and commercial kitchens. Request a quote from SmartRooms Qatar.
What the I-Series 5 Steel is built for
The Elo 15-inch I-Series 5 Steel is an all-in-one touch computer. The display, the Android 14 system and the processor sit in one stainless-steel housing measuring 383 mm x 231.5 mm x 30.9 mm. It is designed for interactive signage, self-service points and control screens rather than desk use. The front face is rated IP65 and the back is rated IP54.
Specifications that matter when you compare models
- Display: 15.6-inch active matrix LCD, 1920 x 1080 at 60Hz, 250 nits LCD panel brightness and a 700:1 contrast ratio.
- Touch: Projected capacitive touch with 10 simultaneous touches, working through up to 6 mm glass or 3 mm plastic.
- Processing: Qualcomm QCS6490 processor, 8GB RAM, 64GB storage and combined AI performance of up to 12 TOPS.
- Connectivity: Gigabit Ethernet RJ45, USB-A 3.0 at 900mA, USB-C output, 802.11a/b/g/n/ac/ax Wi-Fi and Bluetooth 5.2.
- Power: 100-240 VAC, 50-60 Hz input. Typical draw is 9.2W when on and 2.0W in sleep. PoE supplies up to 51W on the PoE model.
Operating environment, power and mounting
The operating range is 0°C to 45°C with 20% to 80% humidity, and storage is rated from -20°C to 50°C. Summer temperatures in Qatar can exceed 45°C, so the unit should sit in an air-conditioned or shaded, ventilated location rather than in direct sun or a sealed enclosure. The screen mounts to VESA 75 mm or 100 mm patterns in landscape or portrait, on a wall, pole, arm or compatible third-party bracket. A free site survey helps confirm the mounting height and cable route before installation.
Where it fits in Qatar
- A hotel kitchen in West Bay using a wall-mounted screen as a recipe and order station, where the stainless-steel chassis suits a busy food environment.
- A food production unit in the Industrial Area of Doha using a pole-mounted screen for batch instructions and quality checks.
- A logistics yard office in Mesaieed or Al Wakrah using a screen at the dispatch desk, with the PoE model powered over the building network.
Choosing the right version and planning the install
Part number E176245 is the PoE model, which draws power from a PoE-capable network through its Ethernet port with up to 51W available. Part number E176451 is the model without PoE, which uses the included power brick. The standard brick is rated for USB-C output up to 15W, and the optional 90W brick raises that to 27W. Mounting accessories such as pole mounts, a floor stand and a rear-facing pole kit are listed by Elo. Extended warranty coverage and OS 360 security packages are also available. Request a quote from SmartRooms Qatar, and we will confirm the version, accessories and delivery timing for your site, with purchase orders and tenders accepted.
Highlights
- 15.6-inch 1920 x 1080 touch display with 10 simultaneous touches
- Stainless-steel chassis with IP65 front and IP54 back ratings
- Android 14 on Qualcomm QCS6490 with 8GB RAM and 64GB storage
- PoE up to 51W on part number E176245; E176451 has no PoE
- VESA 75mm and 100mm mounting in landscape or portrait
- 2-year warranty, with extended warranty and OS 360 options
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
45 specifications · Source: manufacturer · checked Oct 2026
Technical45
- Part Number(s)
- With PoE - E176245 Without PoE - E176451
- Enclosure Color
- Stainless Steel
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Touch Thru
- Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
- Processor
- Qualcomm QCS6490
- Memory (RAM)
- 8GB
- Storage
- 64GB
- OS
- Android 14 with Google Play Services (AOSP capable)
- Diagonal Size
- 15.6'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 13.55" x 7.62" / 344 mm x 194 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 8-bit (16.7 million)
- Brightness (typical)
- LCD Panel: 250 nits TouchPro PCAP: 215 nits
- Response Time-total (typical)
- 25 msec
- Contrast Ratio
- 700:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- Surface Treatment
- Clear
- I/O Ports
- 1x USB-A 3.0 support (900mA) 1x RJ45 Ethernet Giga-LAN (with optional PoE 51W) 1x USB-C output* 1x DC input * When using the standard 65W power brick, USB-C can support up to 15W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details
- Webcam
- 8MP, Max Resolution: 3264x2448 30fps, Auto Focus
- Wireless
- 802.11a/b/g/n/ac/ax + Bluetooth 5.2
- Audio Ports
- 2x built-in Digital Microphones
- Speakers
- 2x 1.5W
- Power Supply
- AC input voltage: 100-240 VAC Input frequency: 50-60 Hz
- Power Consumption (Typical)
- On: 9.2W Off: 0.2W Sleep: 2.0W
- Power Over Ethernet (PoE)
- Max 51W (for PoE models)
- Dimensions
- 15.08" x 9.11" x 1.22" / 383 mm x 231.5 mm x 30.9 mm
- Shipping Box Dimensions
- 18.83" x 6.61" x 12.6" / 453 mm x 168 mm x 320 mm
- Weight (Unpackaged)
- 5.28 lbs / 2.4 kg
- Weight (Packaged)
- Without PoE: 9.24 lbs / 4.2 kg With PoE: 8.14 lbs / 3.7 kg
- Operating Temperature
- 0°C to 45°C / 32°F to 113°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% to 80% Storage: 5% to 95%
- Ingress Protection
- Front side IP65 Back side IP54
- Regulatory approvals and declarations
- UL/cUL, FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)
- Supported Countries
- Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil
- Real-Time Clock
- lithium coin cell battery
- MTBF
- 50,000 hours demonstrated

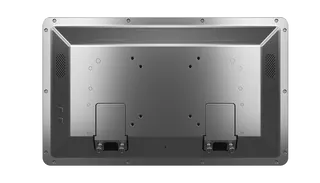

- Mounting Options
- VESA 75mm and 100mm
- Warranty
- 2-year
- Extended Service Options
- 3 year OS 360 - Elo P/N: E897877 4 year OS 360 - Elo P/N: E898079 5 year OS 360 - Elo P/N: E898282 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Cov
- OS Support
- Bi-monthly Android security updates available with Elo OS 360 package
- Sealability
- Touchscreen sealed to LCD
- What's in the Box
- Without PoE: I-Series 5 Steel North American Power Cable European Power Cable Power Brick Quick Install Guide 2x Cable tie With PoE: I-Series 5 Steel Quick Install Guide 2x Cable tie
- Stands, Mounts & Kits
- Rear Facing display Pole Mount Kit – Elo P/N: E038989 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E557815
Downloads
0 files from the manufacturerNo downloadable files are listed for this model yet. Ask us and we will send the datasheet.
Questions about 15-inch I-Series 5 Steel for Android
Which version should I order, the PoE model or the non-PoE model?
Choose the PoE model, part number E176245, where a PoE-capable network port is available at the screen position, since it takes power through its Ethernet port with up to 51W. Choose part number E176451 if you prefer the included power brick and a nearby mains socket. Both versions share the same screen, processor and enclosure, so the decision mainly comes down to your cabling and power plan.
Can I use this screen in an outdoor kiosk in Doha?
Not on its own. The front is rated IP65, but the operating range is 0°C to 45°C with 20% to 80% humidity. Qatari summers can push ambient temperatures above 45°C, so an outdoor installation needs a protected, cooled enclosure designed for the heat. Ask the SmartRooms Qatar team to review the exact site before you request a quote.
Is it suitable for a commercial kitchen in a hotel?
Elo designed the I-Series Steel for demanding environments, including commercial kitchens, and the stainless-steel chassis with a front IP65 rating suits a busy food setting. A hotel kitchen in West Bay could mount it at an order or recipe station. Keep the back, which is rated IP54, away from splashes, and check that the room temperature stays within the 0°C to 45°C operating range.
What processor, memory and storage does it have?
The unit uses a Qualcomm QCS6490 octa-core processor with 8GB RAM and 64GB storage. It runs Android 14 with Google Play Services and is AOSP capable. The processor includes an AI accelerator that Elo rates at up to 12 TOPS combined AI performance. These specifications suit digital signage playback, self-service apps and light edge processing at a single screen.
Does the touch screen work through glass or a protective panel?
Yes. The projected capacitive touch layer supports 10 simultaneous touches. It works through up to 6 mm of glass or 3 mm of plastic, with up to 2 touches through those materials. This matters for a reception counter, a pharmacy hatch or a bank teller area where the screen sits behind a protective panel, so confirm the glass thickness when you request a quote.
How is the screen mounted and how much space does it need?
The unit has VESA 75mm and 100mm mounting patterns and can be mounted in landscape or portrait on a wall, pole, arm or compatible third-party VESA mount. Its dimensions are 383 mm x 231.5 mm x 30.9 mm. Elo lists pole mounts, a floor stand and a rear-facing pole kit. Measure the VESA pattern and plan the cable route before ordering, and book a free site survey for heavy wall fixings.
Does it include a camera and microphones for video calls?
It has an 8MP webcam with autofocus, rated at a maximum of 3264 x 2448 at 30fps, plus two built-in digital microphones and two 1.5W speakers. This suits a visitor check-in point in a government office or a reception where staff need quick video contact with a colleague abroad. For a full meeting room, pair it with a dedicated conferencing system instead.
Which wireless and network options does it support?
It supports 802.11a/b/g/n/ac/ax Wi-Fi and Bluetooth 5.2, with one Gigabit Ethernet RJ45 port. The Ethernet port is the route to PoE on the E176245 model. A bank branch in Al Sadd or a school in Al Rayyan can use the wired connection for a stable link to the content server and Wi-Fi as a backup, depending on the building's network design.
How do we manage several units across different sites?
Elo's EloView lets you deploy and manage a fleet of Android-powered Elo devices remotely, from anywhere. Remote settings, app deployment and updates reduce site visits. For security updates, Elo lists bi-monthly Android security updates with the OS 360 package. A multi-site school or retail group in Doha can manage every screen from one console.
What warranty and extended support is available?
The standard warranty is 2 years. Elo also lists extended options, including 3, 4 and 5 year warranty coverage and OS 360 packages, with some options adding advance unit replacement or accidental damage protection. The available option depends on the model and the period you need, so ask for the specific part numbers in your quotation.
Can a government ministry or school order several units through an LPO or tender?
Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. For a school ordering several units, list the version for each location, PoE for the points with network ports and non-PoE for the rest, so the quotation matches your installation plan.
Will it work with Qatar's 240 V power supply?
The power input is 100-240 VAC at 50-60 Hz, which covers Qatar's 240 V, 50 Hz mains. The non-PoE model ships with North American and European power cables, so the team will confirm the correct plug adapter for BS 1363 Type G sockets when you request a quote. The PoE model removes the need for a socket at the screen by drawing power over the Ethernet cable.
