Elo 15-inch I-Series with Linux Touchscreen Computer

Overview

The Elo 15-inch I-Series is a 15.6-inch Linux touchscreen computer with a 1920 x 1080 display, 10-point PCAP touch, Rockchip RK3399 processor, 4GB RAM and 32GB storage running Debian 10. It suits self-service kiosks, point-of-sale counters and visitor check-in desks in Doha, Lusail and Al Sadd. Gigabit Ethernet, 802.11a/b/g/n/ac Wi-Fi and four Edge Connect ports let you add card readers or cameras. Request a quote from SmartRooms Qatar.

What the Elo 15-inch I-Series with Linux is

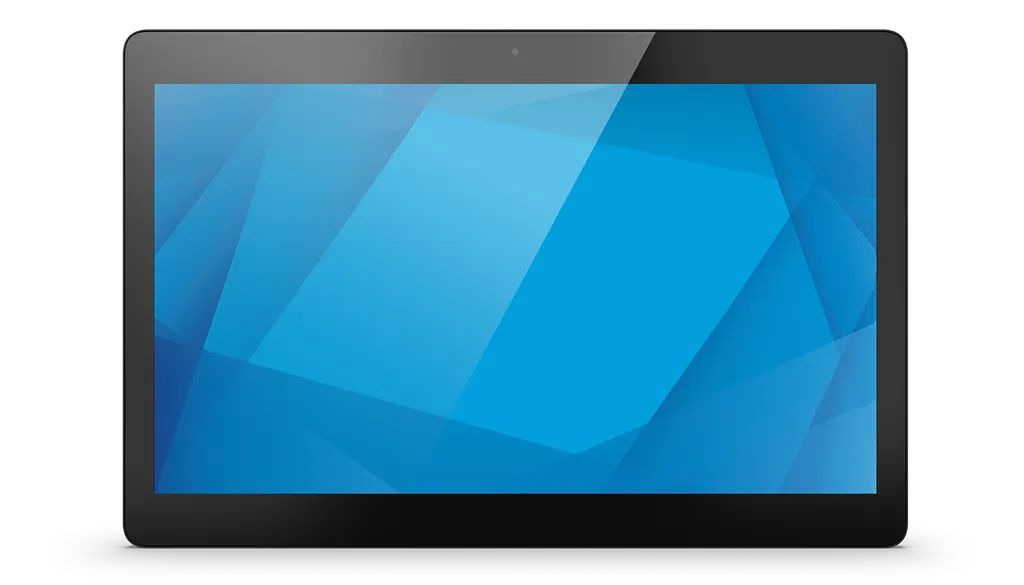

The Elo 15-inch I-Series is a touchscreen computer rather than a display that needs a separate PC behind it. The processor, memory, storage, wireless networking and a 5MP webcam are built into the same unit as a 15.6-inch Active matrix TFT LCD. It runs Linux Debian 10 and is supported by Elo's Linux device drivers and SDKs, which suits teams that already build or maintain Linux applications.

Specifications that shape the purchase

The 1920 x 1080 panel runs at 60Hz in a 16:9 aspect ratio, giving an active area of 344 mm by 194 mm. Brightness is rated at 250 nits for the LCD and 215 nits through the PCAP touch layer, with a contrast ratio of 700:1. The 10-point projected capacitive touch works through up to 6 mm of glass or 3 mm of plastic.

Rockchip RK3399 processor with 4GB RAM and 32GB storage
Gigabit Ethernet, USB 3.0, USB-C output, micro SD slot and GPIO
Four micro-USB 2.0 Edge Connect ports for card readers, cameras and scanners
Wireless networking with 802.11a/b/g/n/ac and Bluetooth 5.0
Two 2W speakers, a built-in microphone and a 5MP autofocus webcam

The Edge Connect ports determine what each one can power. The first port supports 1.2A and the other three support 500mA each, so check the power draw of every add-on before deciding which port it goes on.

Where it fits in Qatar

At a government service centre in Msheireb, the unit can run visitor check-in and wayfinding on a tabletop stand, with a card reader attached through Edge Connect. In a café or retail counter in The Pearl or West Bay, it works as a point-of-sale terminal, with an optional magnetic stripe reader or EMV cradle attached as an add-on. A private clinic reception in Al Sadd can add the optional fingerprint scanner for staff sign-in. A hotel check-in desk in Lusail can use it as a self-check-in terminal on a self-service stand.

Heat matters here. The operating range is 0°C to 40°C at 20% to 80% humidity. Summer temperatures in Qatar can pass 45°C, so place the unit in an air-conditioned area, away from direct sunlight, glass frontages and open entrances where dust storms reach. For a desk in Mesaieed or Ras Laffan that sits near a loading door, a site survey should confirm the location before installation.

What to plan before ordering

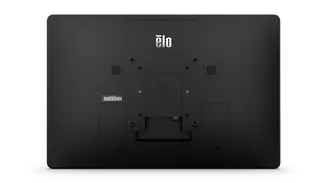

Start with the mounting position. The unit supports VESA 75mm and 100mm patterns, and the accessory range includes a wall mount kit, shelf bracket, floor stand, pole mounts and tabletop stands. Plan the cable route before installation, because the cable cover door is secured with screws supplied in the box.

Power comes from the supplied adapter, which accepts 100 to 240 VAC at 50 to 60 Hz, and the box includes North American and European power cables. If you want to avoid separate power points, the optional PoE module (Elo P/N E413396) lets the unit run over a PoE-capable network. Confirm the plug type and PoE setup with the SmartRooms Qatar team before ordering.

Extended service options run from 2 to 5 years, with accidental damage protection and advance unit replacement available as add-ons. Every unit is covered by the manufacturer's warranty.

SmartRooms Qatar supplies the unit and delivers it to all eight municipalities of Qatar, and professional installation can follow a free site survey. For a school or ministry ordering several units, we accept purchase orders (LPOs) and government tenders, including Monaqasat. Request a quote with your mounting locations, software requirements and quantity, and we will issue it usually within one working day.

Highlights

15.6-inch 1920 x 1080 touchscreen with 10-point PCAP touch
Rockchip RK3399 processor, 4GB RAM and 32GB storage
Linux Debian 10 operating system
Four Edge Connect ports for card readers and cameras
Gigabit Ethernet and 802.11a/b/g/n/ac Wi-Fi with Bluetooth 5.0
Operating range 0°C to 40°C; VESA 75mm and 100mm mounts

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

42 specifications · Source: manufacturer · checked Oct 2026

Technical42

Part Number(s): E131747
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru: Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor: Rockchip RK3399
Memory (RAM): 4GB
Storage: 32GB
OS: Linux Debian 10
Diagonal Size: 15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 13.55" x 7.62" / 344 mm x 194 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 8-bit (16.7 million)
Brightness (typical): LCD Panel: 250 nits TouchPro PCAP: 215 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 700:1
Viewing Angle: Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Peripheral Mounting: 4x micro-USB 2.0 Elo Edge Connect ports Support for 1.2A on one port and 500mA for the remaining three ports
I/O Ports: 1x USB 3.0 support (900mA) Type C USB output Micro SD slot GPIO Ethernet 1x LAN (Gigabit) DC in
Webcam: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus
Wireless: 802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports: 1x built-in Analog Microphone
Speakers: 2x 2W
Power Supply: AC input voltage: 100-240 VAC Input frequency: 50-60 Hz power adapter (included in accessory box)
Power Consumption (Typical): On: 8.91W Off: 0.37W Sleep: 3.71W
Power Over Ethernet (PoE): Supported via Elo PoE Device PN: E413396 Reference the I-Series user guide for details.
Dimensions: 15.34" x 9.83" x 0.88" / 389.7 mm x 249.7 mm x 22.3 mm
Shipping Box Dimensions: 18.3" x 6.3" x 13.0" / 465 mm x 160 mm x 330 mm
Weight (Unpackaged): 3.5 lbs / 1.6 kg
Weight (Packaged): 7.2 lbs / 3.3 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 50°C / -4°F to 122°F
Humidity: Operating: 20% to 80% Storage: 5% to 95%
Regulatory approvals and declarations: UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) ANATEL (Brazil)
Real-Time Clock: lithium coin cell battery
MTBF: 50,000 hours demonstrated
Mounting Options: VESA 75mm and 100mm
Extended Service Options: 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674 4 year
Sealability: Touchscreen sealed to LCD
What's in the Box: I-Series North American Power Cable European Power Cable 1x Power Brick Quick Install Guide Screws for cable cover door (located in the power/Ethernet bay)
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 GPIO Cable - Elo P/N: E211544 POE Module Kit - Elo P/N: E413396 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 3D Camera - Elo P/N: E134699 Webcam - Elo P/N: E201494
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162 Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 Expansion Module - Long Cable Kit - Mounted under the flip stand - Elo P/N:

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about 15-inch I-Series with Linux

What operating system and software does it run?

The listed operating system is Linux Debian 10, and Elo provides Linux device drivers and uniform SDKs for the platform. Before ordering, confirm that your application is built for Debian 10 and fits within 4GB RAM and 32GB storage. Send your software requirements to the SmartRooms Qatar team so they can check them against these specifications.

Will it cope with summer heat at a site in Mesaieed or Ras Laffan?

The operating range is 0°C to 40°C with 20% to 80% humidity. Summer temperatures in Mesaieed and Ras Laffan can exceed 45°C, so the unit should be installed in an air-conditioned space, away from direct sun and dust-exposed doors. Ask for a site survey to confirm the location before fixing a unit near a loading bay or external entrance.

How would a government service centre in Msheireb use it?

A visitor check-in or wayfinding desk is a good fit. Place the unit on a tabletop or floor stand, with a fingerprint scanner or card reader connected through an Edge Connect port. The 5MP webcam with autofocus supports video calls to back-office staff, and the two 2W speakers with a built-in microphone handle audio prompts and calls at the desk.

What works for a café or retail counter in The Pearl or West Bay?

A point-of-sale counter is a common fit. Connect a magnetic stripe reader, or an EMV cradle for MagTek eDynamo or Ingenico RP457c, through Edge Connect. The Z20 Stand for 10 and 15-inch I-Series is listed for the unit. Check the power draw of each add-on against the Edge Connect port ratings, with 1.2A on one port and 500mA on the other three.

Is it suitable for a private clinic reception in Al Sadd?

It suits check-in and queue management. The optional fingerprint scanner can be added for staff sign-in, and the screen supports 10-point touch for direct interaction. Choose a tabletop stand or a Z20 stand depending on counter height, and request a site survey to plan where cables and power points will run.

Can it work as a self-check-in terminal at a hotel in Lusail?

Yes, when paired with a Wallaby or Slim self-service stand, both listed as compatible with the I-Series. Connect a card reader through Edge Connect and use the 15.6-inch 1920 x 1080 display for guest instructions. Both self-service stand types use VESA 75mm or 100mm mounting, so confirm the pattern before ordering.

What connectivity does it have?

It has Gigabit Ethernet, a USB 3.0 port supporting 900mA, a USB-C output, a micro SD slot, GPIO, and 802.11a/b/g/n/ac Wi-Fi with Bluetooth 5.0. Four micro-USB 2.0 Edge Connect ports take add-on peripherals. For a school or ministry that wants a stable wired connection, the Gigabit port is the one to specify.

Can it be powered over Ethernet?

Yes, through the optional POE Module Kit (Elo P/N E413396). With the PoE adapter, the unit no longer needs its own power adapter and runs over a PoE-capable network. The Elo I-Series user guide gives details for this setup, which helps when a kiosk is placed away from a power outlet.

What power does it need?

The supplied power adapter accepts 100 to 240 VAC at 50 to 60 Hz, and the box includes North American and European power cables. Typical consumption is 8.91W when on, 3.71W in sleep and 0.37W when off. Confirm the plug type with the SmartRooms Qatar team before ordering, since Qatar sockets follow the BS 1363 standard.

How is it mounted and how much space does it need?

The unit measures 389.7 mm by 249.7 mm by 22.3 mm and weighs 1.6 kg without packaging. It supports VESA 75mm and 100mm mounts, and the accessory range includes a wall mount kit, shelf bracket, floor stand and pole mounts. Plan the cable route and book a site survey to confirm the mount type before ordering several units.

Is it covered by warranty, and what extended support is available?

Every unit is covered by the manufacturer's warranty. Elo lists extended service options from 2 to 5 years, with accidental damage protection and advance unit replacement available as add-ons. Ask SmartRooms Qatar which extended option suits your number of units and how you plan to use them.

Can we order several units through a purchase order (LPO)?

Yes. SmartRooms Qatar accepts purchase orders and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and we deliver to all eight municipalities of Qatar. Send your quantity, mounting locations and software requirements with the request.
