22-inch I-Series 3 with Intel

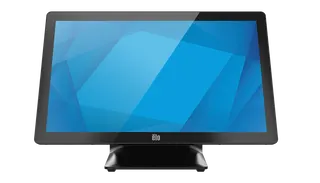

Elo I-Series 3 22-inch Interactive Touch Computer with Intel
- Screen size
- 21.5'' diagonal
- Resolution
- 1920 x 1080 @ 60Hz
- Brightness
- LCD panel: 250 nits
- System
- No OS
The Elo I-Series 3 with Intel is an all-in-one touch computer with a 21.5-inch diagonal, 1920 x 1080 PCAP touchscreen and Intel Celeron, Core i3, i5 or i7 processors. It suits point-of-sale counters, self-order points and interactive information kiosks in Doha's malls, hotels and government service centres. Options include no-OS, Windows 10 or 11 IoT and ChromeOS Flex. Request a quote for your exact configuration.
What the I-Series 3 is designed to do
The I-Series 3 places a touchscreen and a complete computer in one housing, so a counter, kiosk or information point needs one unit and one power connection rather than a monitor, a separate tower and a tangle of cables. The model is marketed as a 22-inch unit, but the panel itself measures 21.5 inches diagonally. It is a 16:9 LCD running at 1920 x 1080 resolution and 60Hz, with a projected capacitive touch layer that supports 10 touch points. Typical panel brightness is 250 nits, with a contrast ratio of 1000:1.
Processor, memory and storage options
Configurations run from an Intel Celeron 7305L through Intel Core i3-1215UL and i5-1245UL to an Intel Core i7-1265UL. Celeron and i3 units carry 8GB of DDR5 memory, while selected i5 and i7 units carry 16GB, and memory can be expanded to 64GB across two slots. Storage is a 128GB or 256GB M.2 NVMe SSD. Intel vPro support and Active Management Technology come with the i5 and i7 processors, which helps IT teams that look after several units at once. Only one configuration, the i7 model with 32GB of memory and a 1TB SSD, includes the optional Hailo 8 AI module, which Elo rates at 20 TOPS.
Connectivity for counters and kiosks
Every unit includes gigabit Ethernet, a full-function USB-C port rated up to 27W with display output, four USB 3.0 ports and four micro USB 2.0 ports for Elo Edge Connect peripherals. Units with the stand add a 24V powered USB port, two 12V powered USB ports and a cash drawer port whose voltage can be set to 12V or 24V in the BIOS. Wireless covers 802.11 a/b/g/n/ac/ax on 2.4GHz, 5GHz and 6GHz, alongside Bluetooth 5.3. Edge Connect accessories such as a magnetic stripe reader, an EMV cradle, a 2D barcode scanner, a customer display and a fingerprint scanner attach to the edge of the touchscreen.
Where it fits in Qatar
In West Bay or The Pearl, a retail or hospitality team can use the I-Series 3 as a self-order point at a restaurant counter, a wayfinding screen in a mall lobby or a check-in terminal at a serviced apartment building. The stand models suit a fixed cashier position that needs a cash drawer and extra powered USB ports. In Education City or Al Sadd, a university or clinic can mount an unstanded unit on a wall bracket for visitor sign-in. The operating range is 0°C to 35°C, so the unit belongs in air-conditioned indoor spaces. Summer temperatures above 45°C and dust storms make an outdoor kiosk, a sun-facing window or an unconditioned storeroom in Mesaieed or the Industrial Area unsuitable without a proper enclosure and climate control. Share the site conditions with SmartRooms Qatar before quotation.
Planning the installation
Without the stand, the unit measures 525.8 mm by 321.1 mm and 39.6 mm deep, and weighs 6 kg. With the stand, it weighs 10.02 kg and is 204.6 mm deep. The built-in 100mm VESA mount accepts wall mount kits in 75mm or 100mm, and tabletop, slim countertop and floor stands are listed in the accessory range. Before fixing a unit to a wall or glass partition during a fit-out in Lusail or Msheireb, SmartRooms Qatar carries out a free site survey to confirm the bracket, the load and the cable route.
The external 180W power adapter accepts 100 to 240 VAC at 50 to 60 Hz, and the box includes North American and European power cords. Confirm the plug arrangement for BS 1363 sockets with the team before ordering. Operating system choices are no operating system, Windows 10 or Windows 11 IoT Enterprise LTSC 64-bit, or ChromeOS Flex. No-OS models are pretested with SuSE, Ubuntu and Red Hat Linux. If you plan to move a fleet to Android later, Elo Bridge is the migration route the manufacturer describes. The chassis includes a TPM 2.0 module, a Kensington lock and an IP54 rating, and Energy Star 8.0 configurations are available. The base warranty is three years, and Elo lists 4-year and 5-year extended coverage options.
The I-Series 3 suits organisations that need one touch point per counter or kiosk and want to specify the processor, memory and operating system before buying. Tell SmartRooms Qatar the location, the peripherals and the number of units, and request a quote for the exact part number you need.
Highlights
- 21.5-inch diagonal 1920 x 1080 PCAP touchscreen with 10 touch points
- Intel Celeron, Core i3, i5 and i7 processor options
- Optional Hailo 8 AI module rated at 20 TOPS in one configuration
- Gigabit Ethernet, 27W USB-C and Edge Connect ports for peripherals
- Operating range 0°C to 35°C for indoor, air-conditioned spaces
- 3-year manufacturer warranty with 4- and 5-year extension options
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Technical49
- Part Number(s)
- Celeron, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand* - E428276 (Quick Ship Ready)** Celeron, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand* - E706811 (Quick Ship Ready)** Celeron, Win10/Win11, 8GB RAM, 256GB SSD, Clear, Without Stand - E431802 Celeron, ChromeOS Flex, 8GB RAM, 128GB SSD, Clear, Without Stand - E274899 Celeron, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E606708 i3, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand* - E428473 i3, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand* - E707193 i3, ChromeOS Flex, 8GB RAM, 128GB SSD, Clear, Without Stand -
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Processor
- Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz) i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support i7: Intel Core i7-1265UL Processor (12M Smart Cache, up to 4.80 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support
- Graphics
- Intel UHD Graphics For i5 & i7 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.
- BIOS
- AMI
- Memory (RAM)
- Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots) i5 & i7: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots) NOTE: Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.
- Storage
- 128GB M.2 PCIe (NVMe) SSD 80 TBW 256GB M.2 PCIe (NVMe) SSD 160 TBW GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
- TPM
- 2.0
- Active Management Technology (AMT)
- Celeron & i3: N/A i5 & i7: Intel Active Management Technology
- Diagonal Size
- 21.5'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 18.74" x 10.54" / 476.1 mm x 267.8 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 16.7 million
- Brightness (typical)
- LCD panel: 250 nits TouchPro PCAP: 212.5 nits
- Response Time-total (typical)
- 14 msec
- Contrast Ratio
- 1000:1
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- I/O Ports
- With stand: 1x RJ45 LAN (Gigabit) Port 4x USB 3.0 Ports 4x Micro USB 2.0 Ports for Elo Edge Connect peripherals 1x 24V Powered USB Port 2x 12V Powered USB Ports 1x RJ50 Powered Serial Port 1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting) 1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out) 1x Audio Port (3.5 mm headset jack) Without stand: 1x RJ45 LAN (Gigabit) Port 4x USB 3.0 Ports 4x Micro USB 2.0 Ports for Elo Edge Connect peripherals 1x RJ50 Powered Serial Port 1x Full-function USB-C Port (Power up to 27W, USB 3.0, Di
- Wireless
- 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
- Bluetooth
- Bluetooth 5.3
- Speakers
- 2 x 2W internal speakers
- OS
- No OS Windows 10 IoT Enterprise LTSC 64-bit Windows 11 IoT Enterprise LTSC 64-bit ChromeOS Flex
- Languages
- Windows 10 - 36 Language groups
- Power Supply
- External 24VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 180W
- Power Consumption (Typical)
- Without Peripherals* On Celeron: 39W On i3: 51W On i5: 57W On i7: 56W Sleep: < 5W Off: < 0.5W *Condition for i5 and i7 models with 16GB DIMM/256GB SSD, others with 8GB DIMM/128GB SSD
- Dimensions
- With stand: 20.70" x 14.52" x 8.06" / 525.8 mm x 368.7 mm x 204.6 mm Without stand: 20.70" x 12.64" x 1.56" / 525.8 mm x 321.1 mm x 39.6 mm
- Shipping Box Dimensions
- With stand: 25.4" x 20.2" x 12.5" / 645 mm x 513 mm x 318 mm Without stand: 25.3" x 8.4" x 17.3" / 643 mm x 214 mm x 439 mm
- Weight (Unpackaged)
- With stand: 22.09 lbs / 10.02 kg Without stand: 13.23 lbs / 6 kg
- Weight (Packaged)
- With stand: 29.19 lbs / 13.24 kg Without stand: 19 lbs / 8.62 kg
- Operating Temperature
- 0°C to 35°C / 32°F to 95°F Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80% Storage: 5% to 95% (38.7°C max wet bulb temperature)
- Energy Star
- Energy Star 8.0 certified configurations available
- Regulatory approvals and declarations
- Canada cUL, IC United States UL, FCC Germany TUV Europe CE Australia RCM United Kingdom UKCA International CB Argentina S-Mark Brazil ANATEL Japan VCCI, MIC China CCC, SRRC Mexico NOM RoHS CoC New Zealand R-NZ
- Real-Time Clock
- CR2450 lithium metal battery
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- 100mm VESA mount
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E819598 5 year warranty coverage - Elo P/N: E819795 3 year warranty coverage + AUR - Elo P/N: E820186 4 year warranty coverage + AUR - Elo P/N: E820388 5 year warranty coverage + AUR - Elo P/N: E820582
- Ingress Protection
- IP54
- Sealability
- Touchscreen sealed to sub-bezel Touchscreen sealed to LCD
- Power Cables
- North American and European power cables included
- Other Features
- Serviceable internal components Kensington lock
- What's in the Box
- With stand: I-Series North America Power Cord European Power Cord Power Adapter – 180W Cable RJ-50 to DB-9 Quick Installation Guide (QIG) Cable tie CFD mounting screw VESA mounting screw VESA cover and mounting Screw Without stand: I-Series North America Power Cord European Power Cord Power Adapter – 180W Cable RJ-50 to DB-9 Quick Installation Guide (QIG) Cable tie VESA mounting screw
- Upgrade Options
- 8GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466053 16GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466237 32GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466430 M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613 M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803 Changing SO-DIMM or SSD requires opening the back cover. Special care must be taken when removing and replacing the back cover to prevent losing the IP rating or possibly damaging the touch computer. Please contact Elo technical support or product manag
- Optional Peripherals
- Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 Customer Display (2x20 VFD) – Elo P/N: E001003 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 3D Camera - Elo P/N: E134699 Webcam - Elo P/N: E201494 RFID - Elo P/N: E673037 Speaker Bar (Black) - E
- Stands, Mounts & Kits
- Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Tabletop Stand for 17"/21.5" Displays - Elo P/N: E467190 Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693 Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260 Power Brick Kit, 24V 180W - Elo P/N: E845269 1002L - Elo P/N: E155834 1002L - Elo P/N: E324341 1302L - Elo P/N: E683595 Elo 2ft authorized USB-C cable - Elo P/N: E969524 Wallaby™ Pro countertop stand – Elo P/N: E989127 Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512 Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E
