22-inch I-Series 5 Steel for Android
Elo 22-inch I-Series 5 Steel for Android Touch Computer
- Screen size
- 21.5'' diagonal
- Resolution
- 1920 x 1080 @ 60Hz
- Brightness
- LCD Panel: 250 nits
- System
- Android 14 with Google Play…
The Elo 22-inch I-Series 5 Steel is an Android 14 touch computer in a stainless-steel chassis, with a 21.5-inch Full HD panel supporting 10 touch points, integrated PoE on the E176640 model and IP65 front protection. It suits Qatari hotels, food-service kitchens, industrial sites and interactive kiosks that need a rugged display running Android apps. Request a quote for installation across Qatar.

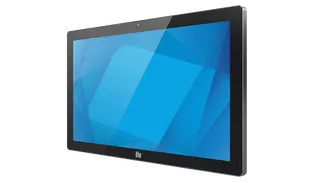

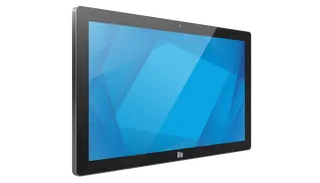

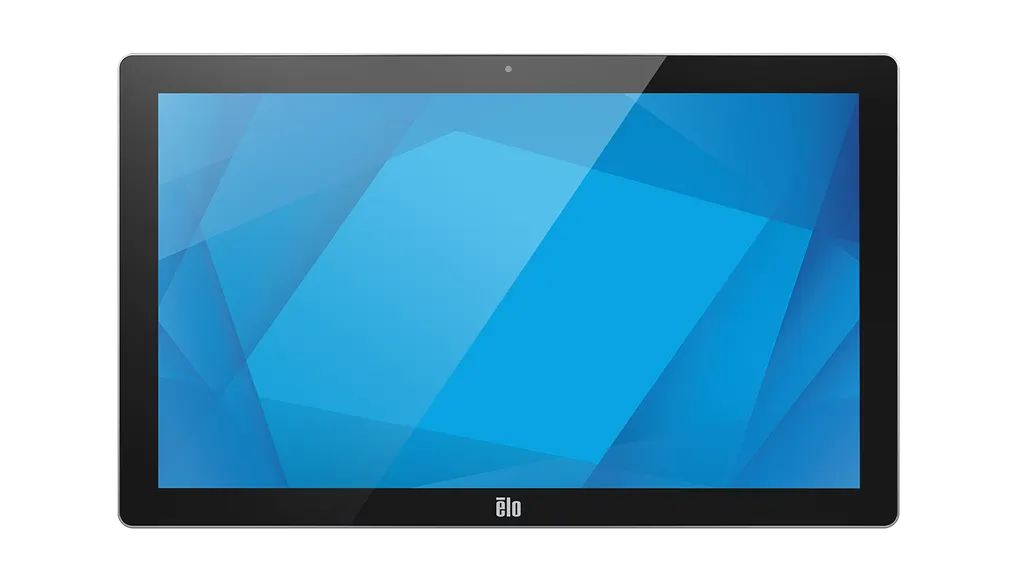

A stainless-steel Android touch computer for public-facing screens
The Elo 22-inch I-Series 5 Steel is an all-in-one touch computer. The display, processor, memory, storage and speakers sit in one stainless-steel housing that runs Android 14. It suits organisations that want a screen to show content and take input without a separate media player or PC behind it. The 21.5-inch active area offers 1920 x 1080 resolution at 60Hz on a 16:9 panel.
Specifications that shape the purchase
The Qualcomm QCS6490 processor is paired with 8GB of RAM and 64GB of storage. The projected capacitive touch layer handles 10 touch points. The manufacturer rates the LCD at 250 nits typical brightness, so compare that figure with the brightness of the room before deciding. Power consumption is 15.2W typical when on and 0.2W when off. The unit accepts 100-240 VAC input and carries a 2-year warranty.
Choosing between the PoE and non-PoE versions
Two part numbers exist. The E176640 supports integrated Power over Ethernet with a maximum of 51W, so a single Ethernet cable can power and connect the unit where no nearby socket exists. The E176840 has no PoE and ships with a power brick. Match your choice to whether your network switch can supply PoE.
Where it fits in Qatar
A hotel in West Bay might place one in a restaurant to show menus, order status or wayfinding. A food-service operator in the Industrial Area could use it at a serving counter, where the IP65 front rating handles dust and water splashes better than a standard screen. A clinic in Al Sadd could show check-in and appointment information in a waiting area, with a wired connection keeping the network steady.
- Restaurant menu and order screens in a hotel dining room
- Counter-side ordering in a food-service kitchen or cafeteria
- Check-in and information screens in a clinic waiting area
What to plan before ordering
Plan the room temperature first. The operating range is 0°C to 45°C, and Qatar summer temperatures can exceed 45°C, so the unit must stay in air-conditioned space or a ventilated enclosure. Check the wall or pole, the VESA pattern (75mm or 100mm) and the cable route. For power, the non-PoE version includes North American and European cables, and Qatar uses BS 1363 (Type G) sockets, so a suitable lead may be needed. Also check that the apps you plan to run work on Android 14.
SmartRooms Qatar offers free site surveys before wall or pole mounting, supply across all eight municipalities of Qatar and professional installation. Quotations are usually issued within one working day. Request a quote with your room layout, network arrangement and intended software, and we will confirm the right part number and accessories.
Highlights
- 21.5-inch active area, 1920 x 1080 resolution, 16:9 ratio
- Projected capacitive touch with 10 simultaneous touch points
- Android 14 with Google Play Services, AOSP capable
- Qualcomm QCS6490 processor, 8GB RAM, 64GB storage
- Stainless-steel enclosure, front IP65, back IP54
- E176640 model includes PoE with a maximum of 51W
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Technical45
- Part Number(s)
- With PoE - E176640 Without PoE - E176840
- Enclosure Color
- Stainless Steel
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Touch Thru
- Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
- Processor
- Qualcomm QCS6490
- Memory (RAM)
- 8GB
- Storage
- 64GB
- OS
- Android 14 with Google Play Services (AOSP capable)
- Diagonal Size
- 21.5'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 18.74" x 10.54" / 476 mm x 268 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 8-bit (16.7 million)
- Brightness (typical)
- LCD Panel: 250 nits TouchPro PCAP: 215 nits
- Response Time-total (typical)
- 14 msec
- Contrast Ratio
- 1000:1
- Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Surface Treatment
- Clear
- I/O Ports
- 1x USB-A 3.0 support (900mA) 1x RJ45 Ethernet Giga-LAN (with optional PoE 51W) 1x USB-C output* 1x DC input * When using the standard 65W power brick, USB-C can support up to 15W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details
- Webcam
- 8MP, Max Resolution: 3264x2448 30fps, Auto Focus
- Wireless
- 802.11a/b/g/n/ac/ax + Bluetooth 5.2
- Audio Ports
- 2x built-in Digital Microphones
- Speakers
- 2x 1.5W
- Power Supply
- AC input voltage: 100-240 VAC Input frequency: 50-60 Hz
- Power Consumption (Typical)
- On: 15.2W Off: 0.2W Sleep: 2.0W
- Power Over Ethernet (PoE)
- Max 51W (for PoE models)

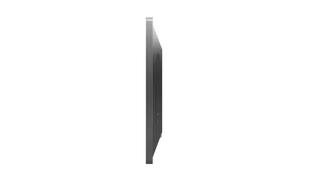

- Dimensions
- 20.98" x 12.75" x 1.52" / 533 mm x 324 mm x 38.68 mm
- Shipping Box Dimensions
- 24.13" x 6.81" x 16.34" / 613 mm x 173 mm x 415 mm
- Weight (Unpackaged)
- 11.44 lbs / 5.2 kg
- Weight (Packaged)
- Without PoE: 18.04 lbs / 8.2 kg With PoE: 16.5 lbs / 7.5 kg
- Operating Temperature
- 0°C to 45°C / 32°F to 113°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% to 80% Storage: 5% to 95%
- Ingress Protection
- Front side IP65 Back side IP54
- Regulatory approvals and declarations
- UL/cUL, FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)
- Supported Countries
- Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil
- Real-Time Clock
- lithium coin cell battery
- MTBF
- 50,000 hours demonstrated

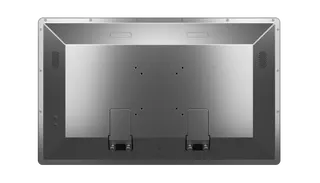

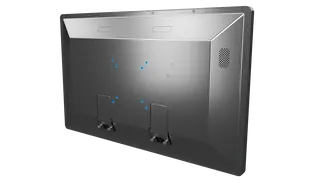

- Mounting Options
- VESA 75mm and 100mm
- Warranty
- 2-year
- Extended Service Options
- 3 year OS 360 - Elo P/N: E897877 4 year OS 360 - Elo P/N: E898079 5 year OS 360 - Elo P/N: E898282 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Cov
- OS Support
- Bi-monthly Android security updates available with Elo OS 360 package
- Sealability
- Touchscreen sealed to LCD
- What's in the Box
- Without PoE: I-Series 5 Steel North American Power Cable European Power Cable Power Brick Quick Install Guide 2x Cable tie With PoE: I-Series 5 Steel Quick Install Guide 2x Cable tie
- Stands, Mounts & Kits
- Rear Facing display Pole Mount Kit – Elo P/N: E038989 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E557815
