Elo 24-inch I-Series 3 with Intel

Overview

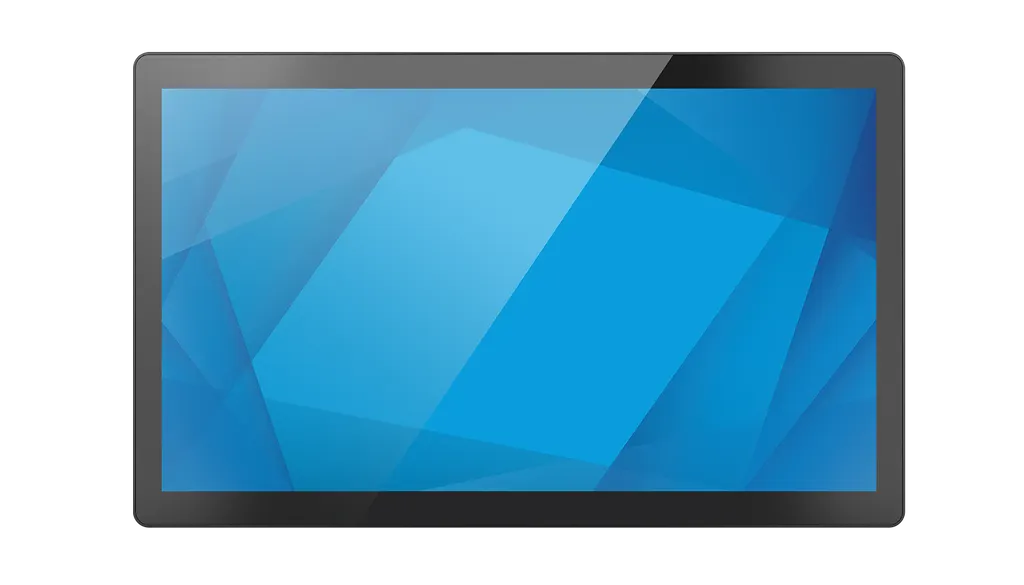

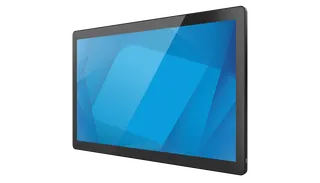

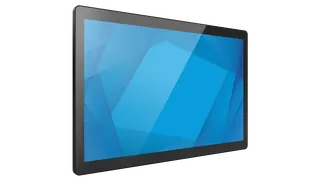

The Elo 24-inch I-Series 3 with Intel is an all-in-one touch computer with a 23.8-inch 1920 x 1080 panel, 10-point touch and Intel Celeron, Core i3 or Core i5 processors, with an optional Hailo AI module on i7 models. It suits point-of-sale counters, self-service kiosks and interactive signage in Qatar's retail, hotel and government sectors. Request a quote from SmartRooms Qatar.

What the 24-inch I-Series 3 with Intel is

The Elo 24-inch I-Series 3 with Intel is an all-in-one touch computer. The processor, memory, storage and a 23.8-inch touchscreen sit in one enclosure, so there is no separate PC to mount or hide behind the display. The 16:9 LCD panel runs at 1920 x 1080 with a 60Hz refresh rate, uses projected capacitive touch that registers 10 points, and is rated for viewing angles of 178 degrees both horizontally and vertically.

Configurations and computing options

Part numbers cover Intel Celeron 7305L, Core i3-1215UL and Core i5-1245UL models with 8GB or 16GB of DDR5 memory and 128GB or 256GB of NVMe storage. The i5 range supports Intel vPro and Active Management Technology. The i7 configuration (part number E165341) includes 32GB of memory, 1TB of SSD storage and a Hailo 8 AI module rated at 20 TOPS. Operating system options are No OS, Windows 10 IoT Enterprise LTSC, Windows 11 IoT Enterprise LTSC or ChromeOS Flex.

Where it fits in Qatar

Retail and malls: a checkout or pick-up counter in West Bay or Al Sadd, with a magnetic stripe reader or barcode scanner attached at the edge.
Hotels and serviced apartments: a self-check-in station in The Pearl or Lusail, with a webcam or speaker bar added through Edge Connect.
Government offices and banks: a service or queue point in Msheireb, where the screen also works as an interactive information display.

What to plan before you order

The operating range is 0°C to 35°C, with humidity between 20 and 80 percent. Qatar summer temperatures regularly exceed 45°C, so place the unit in an air-conditioned interior away from direct sunlight and window glare. The IP54 rating does not change the temperature limit. Power comes from an external 24V brick with 100-240 VAC input at 50-60 Hz, which covers Qatar's 240 V supply, but the box includes North American and European cords, so confirm the plug arrangement for BS 1363 sockets when you request your quote. The unit weighs 7.1 kg and measures 571.2 mm x 352.0 mm x 39.0 mm, so plan the stand or VESA mount first, and book a free site survey for any wall-mounted position. Typical draw is 40W on Celeron, 52W on i3 and 56W on i5, and under 5W in sleep. Memory and storage upgrades require opening the back cover, so a qualified technician should handle them to protect the IP rating.

Request a quote

Tell us the number of units, the configuration, the operating system and any peripherals or stands you need, and whether you want the standard 3-year warranty or an extended option. SmartRooms Qatar supplies, delivers to all eight municipalities of Qatar, installs the units and accepts LPOs, cheques and bank transfers. Request a quote and we will usually reply within one working day.

Highlights

23.8-inch 16:9 panel at 1920 x 1080 resolution and 60Hz
10-point projected capacitive touch with 178-degree viewing angles
Intel Celeron, Core i3 and Core i5 configurations; i7 adds Hailo AI
Optional Hailo 8 AI module rated at 20 TOPS on i7 model
Built-in 100mm VESA mount and Kensington lock slot
Operating range 0°C to 35°C; IP54 ingress protection rating
3-year manufacturer warranty with extended coverage options

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

49 specifications · Source: manufacturer · checked Oct 2026

Technical49

Part Number(s): Celeron, Win10/Win11, 8GB RAM, 256GB SSD, Clear, Without Stand - E432375 Celeron, ChromeOS Flex, 8GB RAM, 128GB SSD, Clear, Without Stand - E275486 Celeron, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E607901 i3, ChromeOS Flex, 8GB RAM, 128GB SSD, Clear, Without Stand - E275675 i3, Win10/Win11, 8GB RAM, 256GB SSD, Clear, Without Stand - E432576 i3, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E608275 i5, No OS, 8GB RAM, 128GB SSD, Clear, Without Stand - E608662 i5, Win10/Win11, 8GB RAM, 256GB SSD, Clear, Without Stand - E432771 i5, ChromeOS Flex, 8GB RAM, 128GB SSD, Clear, Without S
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor: Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz) i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support
Graphics: Intel UHD Graphics For i5 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.
BIOS: AMI
Memory (RAM): Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots) i5 & i7: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots) NOTE: Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.
Storage: 128GB M.2 PCIe (NVMe) SSD 80 TBW GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
TPM: 2.0
Active Management Technology (AMT): Celeron & i3: N/A i5: Intel Active Management Technology
Diagonal Size: 23.8'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 20.75" x 11.67" / 527.04 mm x 296.46 mm
Resolution: 1920 x 1080 @ 60Hz
Number of Colors: 16.7 million
Brightness (typical): LCD panel: 250 nits TouchPro PCAP: 212.5 nits
Response Time-total (typical): 16 msec
Contrast Ratio: 1000:1
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
I/O Ports: 1x RJ45 LAN (Gigabit) Port 4x USB 3.0 Ports 4x Micro USB 2.0 Ports for Elo Edge Connect peripherals 1x RJ50 Powered Serial Port 1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out) 1x Audio Port (3.5 mm headset jack)
Wireless: 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
Bluetooth: Bluetooth 5.3
Speakers: 2 x 2W internal speakers
OS: No OS Windows 10 IoT Enterprise LTSC 64-bit Windows 11 IoT Enterprise LTSC 64-bit ChromeOS Flex
Languages: Windows 10 - 36 Language groups
Power Supply: External 24VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 180W
Power Consumption (Typical): Without Peripherals* On Celeron: 40W On i3: 52W On i5: 56W Sleep: < 5W Off: < 0.5W *Condition for i7 models with 16GB DIMM/256GB SSD, others with 8GB DIMM/128GB SSD

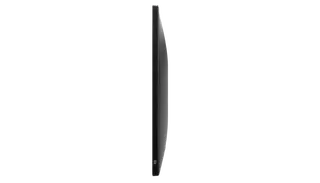

Dimensions: 22.49" x 13.86" x 1.54" / 571.2 mm x 352.0 mm x 39.0 mm
Shipping Box Dimensions: 27.4" x 20.8" x 7.4" / 697 mm x 529 mm x 188 mm
Weight (Unpackaged): 15.65 lbs / 7.1 kg
Weight (Packaged): 21.38 lbs / 9.7 kg
Operating Temperature: 0°C to 35°C / 32°F to 95°F Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80% Storage: 5% to 95% (38.7°C max wet bulb temperature)
Energy Star: Energy Star 8.0 certified configurations available
Regulatory approvals and declarations: Canada cUL, IC United States UL, FCC Germany TUV Europe CE Australia RCM United Kingdom UKCA International CB Argentina S-Mark Brazil ANATEL Japan VCCI, MIC China CCC, SRRC Mexico NOM RoHS CoC New Zealand R-NZ Thailand NBTC - i3 only
Real-Time Clock: CR2450 lithium metal battery
MTBF: 50,000 hours demonstrated

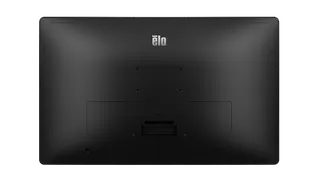

Mounting Options: 100mm VESA mount
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E819598 5 year warranty coverage - Elo P/N: E819795 3 year warranty coverage + AUR - Elo P/N: E820186 4 year warranty coverage + AUR - Elo P/N: E820388 5 year warranty coverage + AUR - Elo P/N: E820582
Ingress Protection: IP54
Sealability: Touchscreen sealed to sub-bezel Touchscreen sealed to LCD
Power Cables: North American and European power cables included
Other Features: Serviceable internal components Kensington lock
What's in the Box: I-Series North America Power Cord European Power Cord Power Adapter – 180W Cable RJ-50 to DB-9 Quick Installation Guide (QIG) Cable tie VESA mounting screw
Upgrade Options: 8GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466053 16GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466237 32GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466430 M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613 M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803 Changing SO-DIMM or SSD requires opening the back cover. Special care must be taken when removing and replacing the back cover to prevent losing the IP rating or possibly damaging the touch computer. Please contact Elo technical support or product manag
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 Customer Display (2x20 VFD) – Elo P/N: E001003 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 3D Camera - Elo P/N: E134699 Webcam - Elo P/N: E201494 RFID - Elo P/N: E673037 Speaker Bar (Black) - E
Stands, Mounts & Kits: Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693 Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260 Power Brick Kit, 24V 180W - Elo P/N: E845269 1002L - Elo P/N: E155834 1002L - Elo P/N: E324341 1302L - Elo P/N: E683595 Elo 2ft authorized USB-C cable - Elo P/N: E969524 Wallaby™ Pro countertop stand – Elo P/N: E989127 Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512 Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705 Wallaby™ Pro wall-mounted stand – Elo P/

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about 24-inch I-Series 3 with Intel

What is the Elo 24-inch I-Series 3 with Intel used for?

It is an all-in-one touch computer built for point-of-sale, self-service, self-ordering and interactive signage. The 23.8-inch 16:9 panel shows 1920 x 1080 resolution and accepts 10-point touch, so one unit can run a checkout screen in a West Bay shop or a self-order menu in a Lusail restaurant without a separate PC.

Which configuration should I choose for my project?

Options run from Intel Celeron 7305L to Core i3-1215UL and Core i5-1245UL, and the i7 model (E165341) adds 32GB of memory, a 1TB SSD and the Hailo AI module. Choose i5 if you need Intel vPro support. Share your application with SmartRooms Qatar and we will recommend a part number in the quotation.

Does it ship with an operating system?

It is available with No OS, Windows 10 IoT Enterprise LTSC, Windows 11 IoT Enterprise LTSC or ChromeOS Flex, depending on the part number. No-OS units suit organisations that install their own software, and the manufacturer states those models are pretested with Linux SuSE, Ubuntu and Red Hat. Confirm the exact OS for each part number before ordering a fleet.

What does the optional Hailo AI module add?

The Hailo Neural Processing Engine is an optional add-in offered only on i7 models, and it is rated at 20 TOPS, meaning 20 trillion operations per second. The E165341 configuration includes the Hailo 8 AI module. It is useful where a project needs on-device AI processing, while Celeron, i3 and i5 configurations are not offered with it.

Can it be installed outdoors or near a window during Qatar's summer?

No. The operating range is 0°C to 35°C with 20 to 80 percent humidity, and Qatar summer temperatures often pass 45°C. Install it inside an air-conditioned area, away from direct sunlight and glare from windows. The IP54 rating does not change this temperature limit. For a semi-covered lobby or shaded entrance, ask the SmartRooms Qatar team to confirm suitability before you request a quote.

Will it run on Qatar's 240 V mains supply?

The external 24VDC power brick accepts 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply, and its maximum output is 180W. The box includes North American and European power cords. Confirm the plug arrangement for BS 1363 Type G sockets when you request a quote, and ask about the Elo 24V 180W power brick kit if you need a spare.

How do I mount it at a reception counter or on a wall?

The unit has a built-in 100mm VESA mount. The manufacturer also lists a wall mount kit in 75mm or 100mm, slim countertop and floor stands, and Wallaby Pro stands, including a wall-mounted option. Because the unit weighs 7.1 kg, plan the mounting height and cable routing first. SmartRooms Qatar offers a free site survey before wall-mounting and professional installation.

Which peripherals connect through the edge?

Four micro USB 2.0 ports are dedicated to Elo Edge Connect peripherals. Listed compatible accessories include a magnetic stripe reader, fingerprint scanner, VFD customer display, 2D barcode scanners, EMV cradles, status light, 3D camera, webcam, RFID reader and speaker bar. A pharmacy counter in Al Rayyan could add a barcode scanner, while a hotel desk could add a webcam for guest verification.

What connectivity does it offer?

The port set includes one Gigabit RJ45 LAN port, four USB 3.0 ports, a full-function USB-C port supplying up to 27W with DisplayPort, an RJ50 powered serial port and a 3.5 mm headset jack. Wireless supports 802.11 a/b/g/n/ac/ax on 2.4GHz, 5GHz and 6GHz, Bluetooth 5.3 is built in, and two 2W internal speakers are fitted.

How much power does a fleet of these units use?

Typical consumption without peripherals is 40W for Celeron, 52W for i3 and 56W for i5, and below 5W in sleep mode. A bank deploying several queue units in Msheireb can estimate its power load from these figures before adding circuits. Energy Star 8.0 certified configurations are available, so ask for those part numbers in your quotation.

Can memory and storage be upgraded later?

Yes. Upgrade options include DDR5 SO-DIMM modules of 8GB, 16GB and 32GB at 5600MHz, and M.2 NVMe SSDs of 128GB and 256GB, each with its own Elo part number. Changing memory or storage requires opening the back cover, and the manufacturer warns that careless removal can cost the IP rating or damage the unit, so have a qualified technician do the work.

What warranty applies, and can a school or ministry order several units on an LPO?

The unit carries a 3-year manufacturer warranty. The manufacturer also lists 4-year and 5-year extended coverage options, some including AUR coverage, under separate Elo part numbers. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, so schools and ministries can order several units against a single purchase order.
