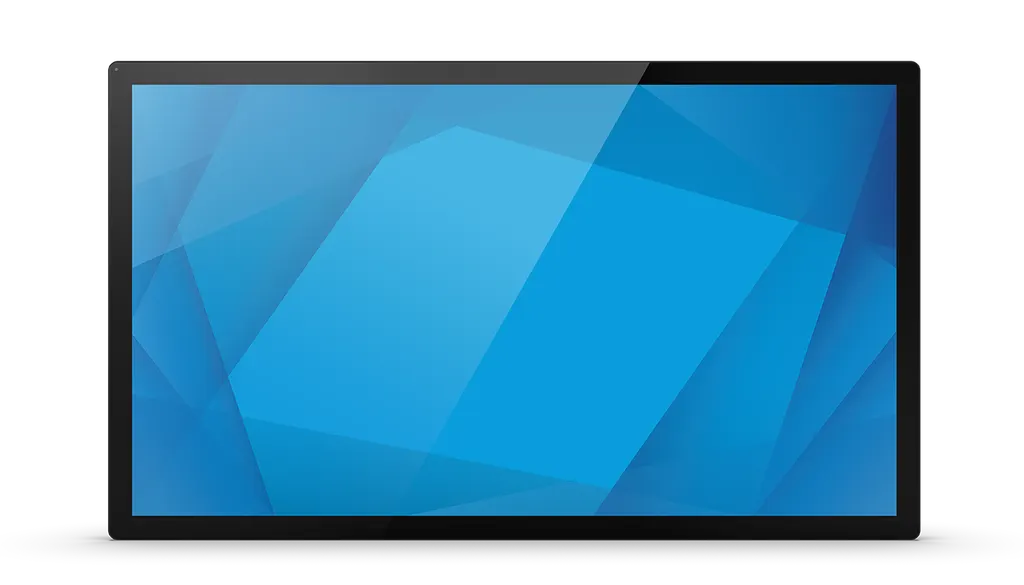

Elo 4363L 43-inch Open-Frame Touchscreen

Overview

The Elo 4363L is a 43-inch open-frame touchscreen with a 42.5-inch diagonal, Full HD resolution and 40-point projected capacitive touch. Built for enclosures rather than standalone desks, its touch layer works through up to 6 mm of front glass, and the unit is only 66.4 mm deep. It suits self-order kiosks, check-in counters and industrial control panels across Qatar.

What the Elo 4363L is built for

The Elo 4363L is an open-frame touchscreen, supplied without a housing so it can be fitted into a kiosk, counter, control cabinet or custom enclosure. It belongs to the IDS 63-Series and has a 42.5-inch diagonal, a 16:9 active area of 940.9 mm x 529.25 mm and a Full HD resolution of 1920 x 1080 at 60 Hz. It suits buyers who need touch built into a finished piece of equipment rather than a freestanding monitor.

The specifications that matter in kiosk design

Typical brightness is 500 nits for the LCD panel and 425 nits for the TouchPro PCAP layer, with a 4000:1 contrast ratio and a 178-degree viewing angle both horizontally and vertically. Touch is projected capacitive, supports 40 simultaneous touches and rejects palms. The touch layer can work through a front layer of glass up to 6 mm or plastic up to 3 mm, which lets a designer close the front of a kiosk completely. Two variants exist: E344056 with a clear, anti-friction surface and E344260 with an anti-glare surface.

Depth of 66.4 mm and weight of 17.17 kg unpackaged
Touch through up to 6 mm glass or 3 mm plastic, with up to two touches
Gloved touch supported up to 1.4 mm glove thickness
Ambient light sensor adjusts the panel colour to the room
Auto wake, with the touchscreen sealed to the bezel and LCD

Where it fits across Qatar

In a shopping mall in Doha, a self-order kiosk in a food court can be built around the 4363L, with the panel set into a counter in landscape or portrait orientation to suit the menu layout. A government service centre in West Bay or Msheireb could use a wayfinding or check-in unit at the entrance, where a visitor taps a screen to choose a service. In the Industrial Area or at Mesaieed, the panel can serve as an operator interface inside a control cabinet. In each case the enclosure must keep the panel within its 0°C to 40°C operating range. That matters in Qatar, where summer temperatures can exceed 45°C and a cabinet near direct sun or an unconditioned space can heat up quickly.

What to plan before you order

Settle three things before ordering: the orientation (landscape, portrait or upward facing), the mounting method and the internal temperature of the enclosure. The panel supports VESA 400 mm x 400 mm mounting. The box includes eight sets of flush-mount brackets, 48 screws and a foam gasket, and Elo lists a 43-inch Wide Flush-mount Bracket (E848336) as an option. At 17.17 kg unpackaged, the panel is best installed by two people. The power input is 100-240 VAC at 50/60 Hz through an IEC 60320-C14 inlet, and the box includes a UK plug power cable, so the correct lead for your socket should be confirmed with your quotation.

Connecting a PC or an Android backpack

The panel has two HDMI 1.4 inputs with HDCP support, a VGA input, a USB 2.0 Type B port for touch data and an RJ45 connector for the optional wired OSD remote. The listed compatible accessory is the Elo Backpack 4 for Android, a compact Android compute unit that mounts inside the kiosk using its built-in VESA mount. This combination suits enclosures too tight for a separate PC. Your application software determines the final configuration, so the team will confirm the setup when they quote.

Ready to specify the 4363L for your project? Request a quote from SmartRooms Qatar with the variant, enclosure type, orientation and quantity, and we will confirm the right accessories. A free site survey lets us check cut-out size, ventilation and cable routing before you commit to a design.

Highlights

43-inch open-frame touchscreen with 42.5-inch diagonal and Full HD 1920 x 1080
40 simultaneous touches with palm rejection
Touch through up to 6 mm glass or 3 mm plastic
500 nits LCD brightness and 4000:1 contrast ratio
66.4 mm depth with VESA 400 x 400 mm mounting
Two variants: clear anti-friction (E344056) or anti-glare (E344260)
3-year manufacturer warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

37 specifications · Source: manufacturer · checked Oct 2026

Technical37

Part Number(s): TouchPro PCAP (clear with anti-friction) - E344056 TouchPro PCAP (anti-glare) - E344260
Enclosure Color: Black
Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability
Touch Thru: Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
Touch Interface: USB
Diagonal Size: 42.5'' diagonal, Active matrix TFT LCD (LED)
On Screen Display: Accessible through switches on the OSD Control Remote accessory. Controls (side): Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source, Touch, RTC, MDC, Touch Through Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will
Aspect Ratio: 16:9
Active Area: 37.04" x 20.84" / 940.9 mm x 529.25 mm
Resolution: 1920 x 1080 @ 60hz
Other Supported Resolutions: 640x480 @ 60Hz 800x600 @ 56/60Hz 1024x768 @ 60Hz 1280x720 @ 60Hz 1280x800 @ 60Hz RB 1280x960 @ 60Hz 1280x1024 @ 60Hz 1366x768 @ 60Hz 1366x768 @ 60Hz RB 1440x900 @ 60Hz 1440x900 @ 60Hz RB 1680x1050 @ 60Hz 1680x1050 @ 60Hz RB 1920x1080 @ 60Hz
Viewing Angle: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors: 8-bit (16.7 million)
Brightness (typical): LCD panel: 500 nits TouchPro PCAP: 425 nits
Response Time-total (typical): 8 msec
Contrast Ratio: 4000:1
I/O Ports: HDMI 1.4 x2 USB 2.0 Type B (for Touch) RJ45 (for optional OSD remote) VGA
Video: 2x HDCP-capable HDMI on Type A connector Female DE-15 VGA connector Input Video Horizontal Sync frequency range: 31.5 – 80 KHz Input Video Vertical Sync (frame rate) frequency range: 47 – 63 KHz
Power: Input connector (power): IEC 60320-C14 Input signal specifications (power): 100-240VAC 50/60Hz
Maximum Operating Time: 24 hours/day
Power Consumption (Typical): ON: 56.62 W SLEEP: 0.58 W OFF: 0.20 W
Dimensions: 39.34" x 23.13" x 2.61" / 999.28 mm x 587.5 mm x 66.4 mm
Shipping Box Dimensions: 48.06" x 9.85" x 31.12" / 1220 mm x 250 mm x 790 mm
Weight (Unpackaged): 37.77 lbs / 17.17 Kg
Weight (Packaged): 50.79 lbs / 23.09 Kg
Operating Temperature: Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F Tabletop Mode: 0° C to 35° C / 32°F to 95°F
Storage Temperature: Portrait/Landscape Mode: -20°C to 60°C / -4°F to 140°F Tabletop Mode: -20° C to 60° C / -4° F to 140° F
Humidity: Operating: 20% to 80% Storage: 10% to 90% (38.7°C max wet bulb temperature)
Sealability: Touchscreen sealed to bezel Touchscreen sealed to LCD
MTBF: 50,000 hours demonstrated
Warranty: 3-year
Extended Service Options: 4 year warranty coverage + AUR - Elo P/N: E740135 5 year warranty coverage + AUR - Elo P/N: E740330
Regulatory approvals and declarations: Argentina S-Mark Australia RCM Canada CUL, IC China CCC Europe CE Japan VCCI Korea KCC e-Standby Mexico CoC Russia EAC Taiwan BSMI United States UL, FCC International CB Mexico NOM RoHS, China RoHS, WEEE Energy Star 8.0 UL 60950 ball-drop compliant IK07 impact compliant CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)
Mounting Options: VESA 400mm x 400mm See dimensional drawings for details
Other Features: Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
What's in the Box: Quick Install Guide HDMI 1.4 cable (Type A plug to Type A plug) VGA cable (DB-15 male to DB-15 male) USB cable (Type A plug to Type B plug) RJ45 Wired OSD remote Power cable, IEC 60320-C13 to NA plug Power cable, IEC 60320-C13 to EU/KR plug Power cable, IEC 60320-C13 to UK plug Energy label according to EU Regulation 2019/2013 8 sets Flushmount Brackets 48 pcs Screws Foam Gasket
Options / Peripherals / Upgrades: Elo 43-inch Wide Flush-mount Bracket - Elo P/N: E848336

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about 4363L

What is the Elo 4363L best used for?

The Elo 4363L is intended for installation inside a kiosk, counter, control cabinet or wayfinding unit, where a user touches a display built into the equipment. Typical uses include self-order kiosks and industrial operator panels. In Qatar, a food ordering kiosk in a Doha shopping mall or an operator panel in an Industrial Area plant are realistic examples. Because the panel is supplied open-frame, the housing, glazing and cabling are designed around it.

Which variant should I choose, E344056 or E344260?

E344056 is the TouchPro PCAP with a clear, anti-friction surface, while E344260 has an anti-glare surface. Both share the 1920 x 1080 resolution, 40-point touch, 16:9 format and ambient light sensor. Choose the anti-glare version for a counter facing a bright atrium or a window, where reflections from daylight reduce readability. Choose the clear version when lighting glare is not an issue at the installation point. Ask for both in your quotation if you are unsure.

Can the touchscreen work behind the glass of a sealed kiosk?

Yes. The touch layer works through a front layer of glass up to 6 mm or plastic up to 3 mm, with up to two touches through the barrier. The manufacturer describes this as suited to fully enclosed kiosks, which helps where dust or vandalism is a concern. The touchscreen is also sealed to the bezel and to the LCD, and gloved touch is supported up to 1.4 mm glove thickness. Confirm your glass thickness before ordering.

What is the operating temperature, and can it cope with a Qatar summer?

The 4363L operates from 0°C to 40°C in portrait or landscape mode and from 0°C to 35°C in tabletop mode, with operating humidity of 20% to 80%. Summer temperatures in Qatar can exceed 45°C, so the panel should not sit in an unventilated outdoor kiosk or an uncooled lobby. Keep the internal temperature of the enclosure within these limits, and the SmartRooms Qatar team can review your enclosure plan during a free site survey.

Is it suitable for outdoor kiosks in Qatar?

The source data does not give an IP protection rating, so this panel should not be treated as weatherproof. It carries an IK07 impact rating, but direct sun and dust storms require an enclosure designed for that environment, and the panel's 0°C to 40°C operating range still applies. Ask SmartRooms Qatar to confirm the protection requirements for your exact location when you request a quote.

How many touches does it support, and does it reject palms?

The PCAP touch layer supports up to 40 simultaneous touches with palm rejection, so several users or multi-finger gestures can be handled at once. This suits a zoomable wayfinding map at a government service counter or a queue ticket interface in a clinic in Doha. For touch through glass, the stated limit is two touches, so plan the interface accordingly.

What connections does it have?

The panel has two HDMI 1.4 inputs with HDCP support, a VGA input, a USB 2.0 Type B port for touch data and an RJ45 connector for the optional wired OSD remote. Supported inputs include 1920 x 1080 at 60 Hz, along with several lower resolutions. A standard HDMI media player can drive the image while a USB cable carries touch data back to the host device.

Is it compatible with the Elo Backpack 4 for Android?

Yes, the Elo Backpack 4 for Android is the compatible accessory listed for this model. It is a compact Android compute unit that can be secured inside the kiosk using its built-in VESA mount, which suits small enclosures where a separate PC will not fit. Confirm the connection method and the software for your application when you request a quote, since the application determines the final configuration.

What mounting options are available, and do I need a site survey?

The panel supports VESA 400 mm x 400 mm mounting and is 66.4 mm deep. The box contains eight sets of flush-mount brackets, 48 screws and a foam gasket, and Elo also lists a 43-inch Wide Flush-mount Bracket (E848336). Before cutting a counter or cabinet, a free site survey lets our team check the cut-out size, ventilation and cable routing against the drawings for this model.

Can a school or government office buy several units under one order?

Yes. Multi-unit projects are common, for example a wayfinding system across a university campus in Education City or check-in units for a ministry office. Several 4363L panels can be specified on one purchase order (LPO) or government tender, with the same variant across all units so that enclosures and spares match. Payment can be made by bank transfer, cheque or purchase order, and the quotation lists each variant and accessory separately.

What are the power requirements and consumption?

The power input is 100 to 240 VAC at 50 or 60 Hz through an IEC 60320-C14 inlet. Typical consumption is 56.62 W when on, 0.58 W in sleep and 0.20 W when off, and the panel is rated for up to 24 hours of operation per day. Qatar mains of 240 V at 50 Hz falls within this input range. The box includes a UK plug cable among its power leads, so specify the lead that suits your socket when you request a quote.

What warranty and support come with the 4363L?

The 4363L carries a 3-year manufacturer warranty. Elo also lists extended service options of 4 years (E740135) and 5 years (E740330), both including AUR, which can be added to your quotation alongside the panel. The unit has a demonstrated MTBF of 50,000 hours, which is relevant for kiosks running around the clock. Products are covered by the manufacturer's warranty, and SmartRooms Qatar can include the extended option when you request a quote.
