24WP30FE

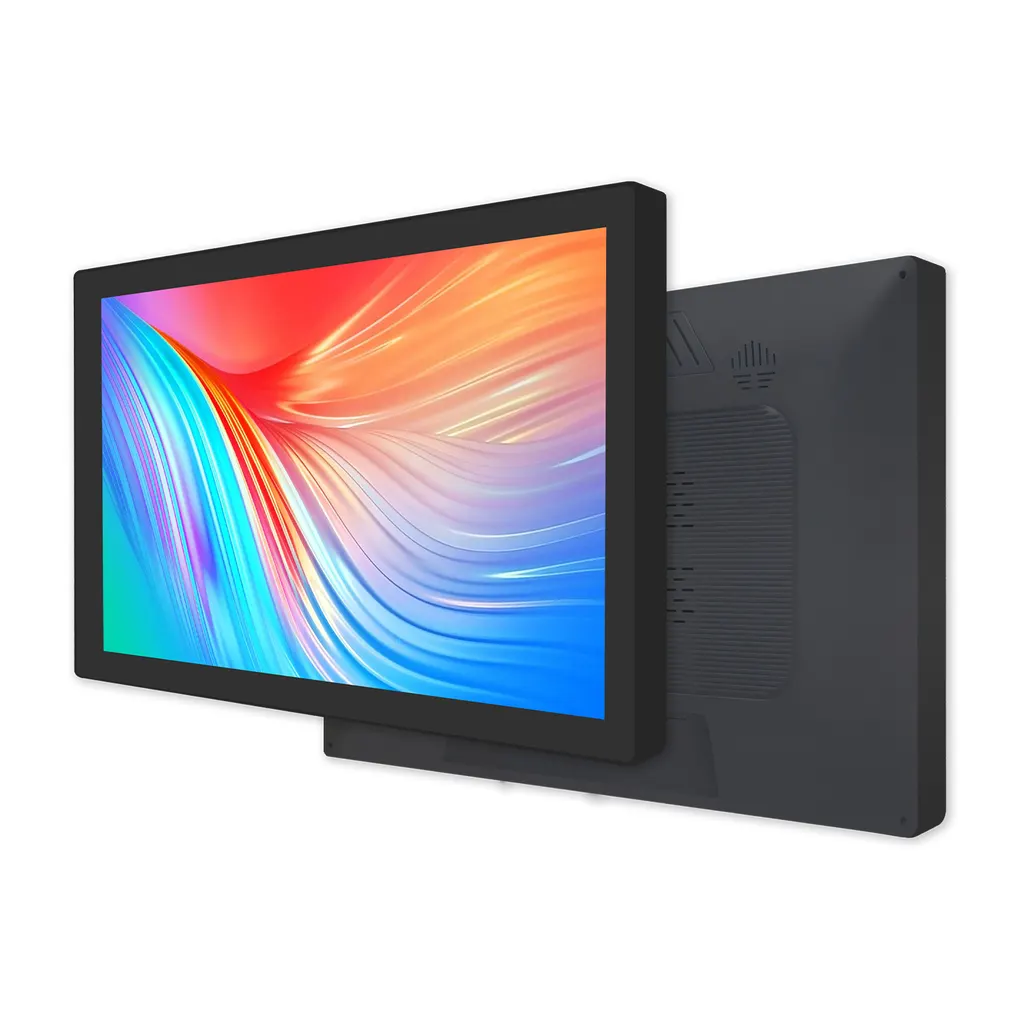

Hisense 24WP30FE 24-inch Touch Signage Display
- Screen size
- 23.8” / 16:9
- Resolution
- 1920 x 1080
- Brightness
- 250 nits
- Operation
- 7Day x 24Hour
The Hisense 24WP30FE is a 24-inch touch signage display for ordering points, information enquiries and reception counters. It pairs a 1920 x 1080 panel with 10-point touch, Android 14, 4GB RAM and 32GB storage, and supports landscape or portrait use. Built for 24/7 operation and weighing 4.5 kg, it suits clinics, banks and malls in Doha, Lusail and Al Sadd.
What the 24WP30FE is built to do

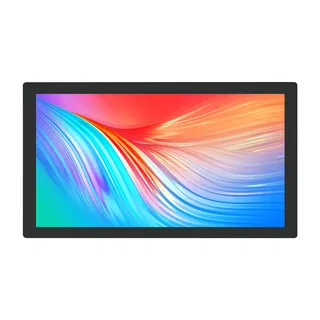

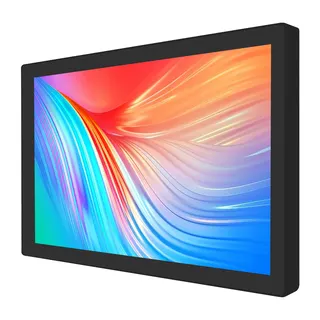

The Hisense 24WP30FE is a 24-inch touch signage display with a 23.8-inch, 16:9 panel, made for self-service ordering, queue-side information and wayfinding at counters and reception desks. Its 1920 x 1080 resolution, 250 nits typical brightness and 178-degree minimum viewing angles keep menus and directories readable from the side as well as from the front. The 25.7 mm bezel is even on every edge, so the frame stays consistent when several units sit side by side.
Touch, processing and connections

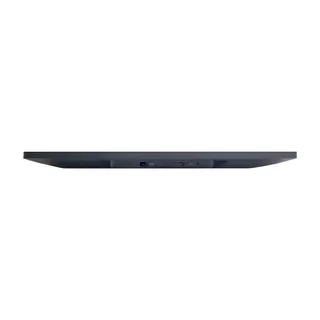

The projected capacitive touch layer supports 10 points at once, so two people can work the screen together. The specification lists fingers as the touch method and connects touch over USB. Android 14 runs on the display itself, with a quad-core Cortex-A55 processor, Mali G52 graphics, 4GB memory and 32GB storage. Connections include one HDMI input, a USB 3.0 port, a USB 2.0 port for touch, a 100M LAN port, a TF card slot, one audio output and 2.4G Wi-Fi with Bluetooth 5.2. Two 3 W speakers are built in.
Where it fits in Qatar
In a clinic in West Bay, a single unit at reception can show queue numbers and department directions while running around the clock, as the specification lists 7 days by 24 hours of operation. In a mall in Lusail, a portrait-mounted unit beside a lift lobby can serve as a store directory. At a bank branch in Al Sadd, a counter-side enquiry screen lets customers check products while waiting for a teller. Each of these sites is air-conditioned and indoors, which matters given the operating range below.
Planning the installation
- Environment: operating temperature 0 to 40 °C and humidity 10% to 80% RH. Keep it indoors, away from direct sun and entrances open to outdoor heat, since Qatar summer temperatures outside regularly pass 45°C.

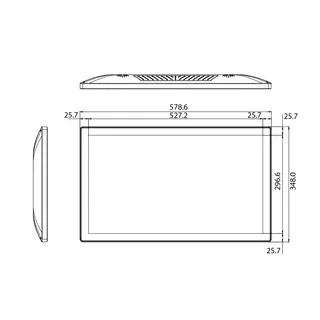

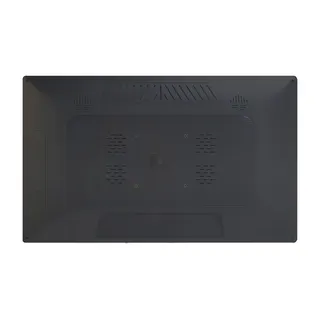

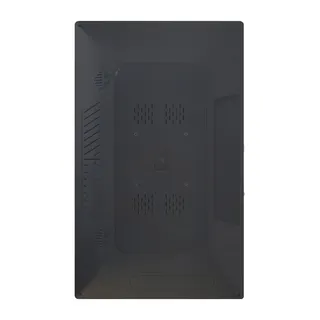

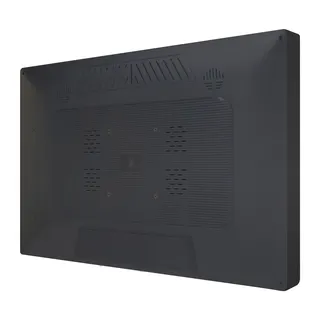

- Size and mounting: 578.6 x 348 x 43.1 mm, net weight 4.5 kg, VESA 100 x 100 mm. A wall hanging bracket is included.
- Power: supplied DC 12 V, 3 A adaptor, maximum consumption 36 W. Confirm how the adaptor connects to 240 V, 50 Hz mains with BS 1363 sockets before installation.
The data sheet lists regional availability as Australia only, so the SmartRooms Qatar team will confirm supply of this exact model to Qatar within your quotation. A free site survey is worth booking to check wall construction and counter height before drilling. The unit is covered by the manufacturer's warranty.
Send your site location, the number of units and your mounting plan to SmartRooms Qatar and request a quote. Quotations are usually returned within one working day.
Highlights
- 10-point projected capacitive touch over USB

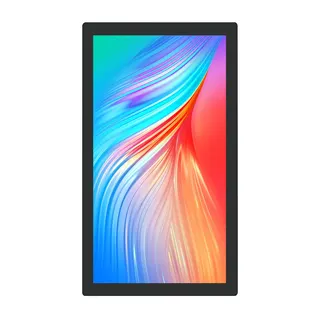

- Landscape and portrait orientation support
- Android 14 with 4GB RAM and 32GB storage
- 1920 x 1080 panel with 250 nits typical brightness

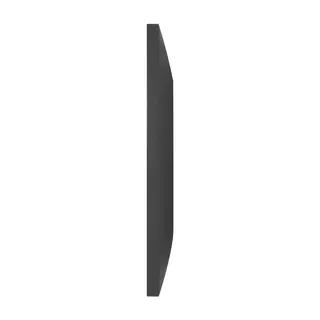

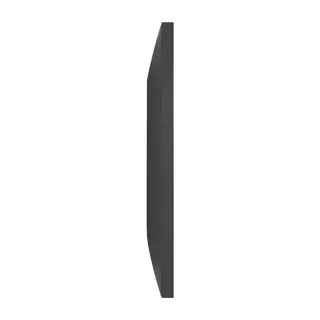

- 43.1 mm depth and 4.5 kg net weight
- 100 x 100 mm VESA mount with wall bracket included
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Digital Display Panel13
- Backlight Type
- E-LED
- Type
- ADS
- Size
- 23.8” / 16:9
- Resolution
- 1920 x 1080
- Refresh rate
- 60 Hz
- Color Depth
- 16.7M (6-bit+FRC)
- Brightness(Typ.)
- 250 nits
- Contrast Ratio(Typ.)
- 1000:1
- Response Time(Typ.)
- 14 ms
- Viewing Angle(Min.)
- 178°(H)/178°(V)
- Color Gamut(Typ.)
- 72% NTSC
- Orientation
- Landscape & Portrait
- Operation Hours
- 7Day x 24Hour
Touch4
- Touch Points (Max)
- 10 Points
- Touch Type
- P-Cap (G+G)
- Click on the way
- Fingers
- Touch Interface
- USB
System5
- CPU
- Quad-core CortexA55
- GPU
- Mali G52
- Memory
- 4G
- Storage
- 32G
- Operating System
- Android 14
Input Interface5
- HDMI In
- 1
- USB3.0
- 1
- USB2.0 (For touch)
- 1
- LAN
- 1
- TF Card Slot
- 1
Output Interface1
- Audio Out
- 1
Audio1
- Built-in Speakers
- 3W x2
Network3
- LAN
- 100M
- WiFi
- 2.4G
- Bluetooth
- BT 5.2
Environment2
- Operating Temperature
- 0~40 °C
- Operating Humidity
- 10%~80% RH
Power2
- Power Supply
- Adaptor DC 12V / 3A
- Power Consumption (Max.)
- 36 W
Physical7
- Color
- Black
- Set Dimension (W x H x D)
- 578.6 x 348 x 43.1 mm
- Packed Weight
- 5.8 kg
- Package Dimension
- 609 x 438 x 114 mm
- Net Weight
- 4.5 kg
- VESA Mount
- 100 x 100 mm
- Bezel Width
- 25.7 mm (Even)
Accessories5
- Wall Hanging
- 1
- User Manual
- 1
- Power Adaptor
- 1
- HDMI Cable
- 1
- USB Touch Cable
- 1
Region Availability1
- Value
- APAC (Australia Only)
