XDS-2288

A 22-inch touch signboard that plays its own content

The IAdea XDS-2288 pairs a 21.5-inch IPS touch panel with a built-in quad-core media player, so one unit can show room schedules, directions or announcements without a separate computer behind it. It belongs to the IAdea Smart Workplace range and is designed for touch interaction combined with remote content management.

Panel and player facts that matter on site

The panel delivers 1920 x 1080 Full HD resolution, 250 nits maximum brightness and a viewing angle of 178 degrees horizontally and vertically. Its capacitive surface accepts 10-point multi-touch, which lets a user browse and tap through a booking screen quickly. The player uses a quad-core Cortex-A55 processor at 1.8 GHz with 2.0 GB of system memory and 16 GB of eMMC flash storage.

The player decodes H.264, H.265, MPEG-4, MPEG-2, MPEG-1 and VC-1 video up to 1080p, along with JPEG and PNG images and MP3 audio up to 320 kbps. Content can be built with HTML5, JavaScript and CSS, and the built-in Chromium-based browser engine handles widgets for clocks, calendars, news and web pages.

Continuity features are important for unattended screens. StrongCache keeps content playing when the network is unavailable, AlwaysOn and AppLock limit what visitors can reach, and auto-play resumes scheduled content after power is restored. A watchdog timer handles automatic error recovery, and a real-time clock with backup battery keeps schedules accurate.

Where it fits in Qatar

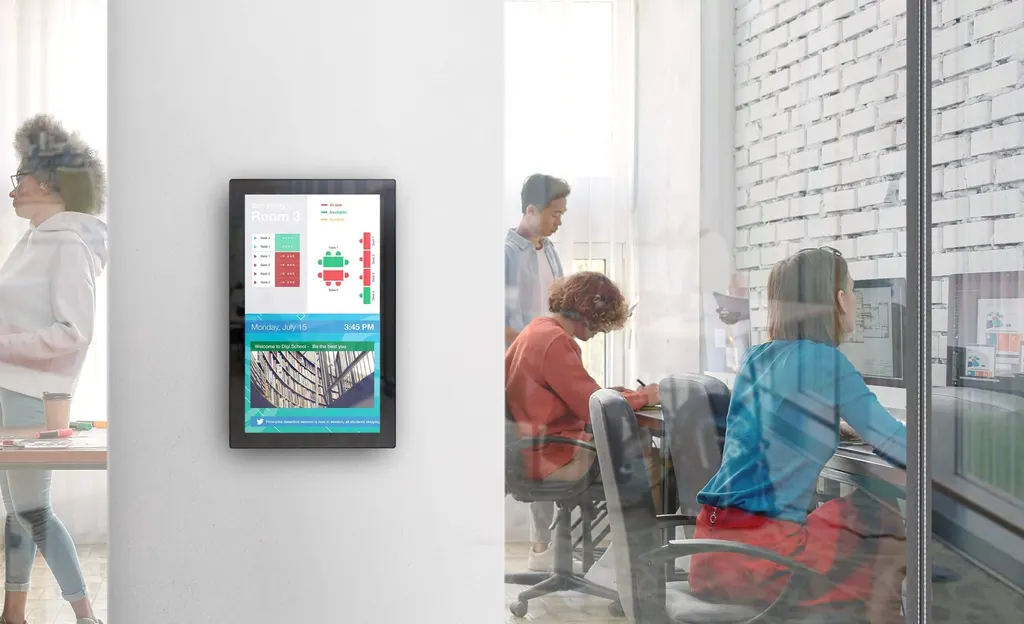

• Meeting-room booking in an office tower: mounted beside a meeting room in a West Bay or Msheireb office, staff can check availability and book a slot in person at the panel.
• Wayfinding in a clinic lobby: placed in an air-conditioned waiting area in Al Sadd or Doha, it can show department directions, opening hours and visitor information.
• Campus notices in Education City: used in a university or training centre corridor, it can display timetables, event listings and room bookings, with the portrait mode suiting narrow walls.

What to plan before ordering

The operating range is 0 to 40 degrees Celsius with 10 to 85 percent humidity non-condensing at 40 degrees Celsius. Qatar summers regularly exceed 45 degrees, so plan for an air-conditioned indoor location rather than a window-facing or outdoor position. The unit measures 538 x 331 x 37 mm, weighs 3.83 kg, and ships in a package weighing 5.8 kg.

Mounting uses built-in VESA 100 x 100 mm posts, and the optional PVK-302 Adjustable Table Stand suits reception desks. Ports include Ethernet RJ45, Wi-Fi 802.11 a/b/g/n/ac/ax, three USB 2.0 ports, a 3.5 mm stereo audio output and an SD card slot that expands storage to 64 GB and replaces the internal memory when used. The power input is AC 100 to 240 V, 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply; confirm the plug type with your quotation. The product carries CE, FCC and RoHS marks, and its power supply is UL/CB certified. The manufacturer provides a one-year limited parts and labour warranty, which varies by region.

Request a quote from SmartRooms Qatar for the XDS-2288, and tell us the location, mounting height and number of units. Our team will confirm the configuration and mounting options for your space.
