TF3239AS-B1AG
iiyama ProLite TF3239AS-B1AG 32-inch All-in-One PCAP Interactive Display
- Screen size
- 31.5" / 80cm
- Resolution
- 1920 x 1080 @60Hz (2.1…
- Brightness
- 500 cd/m²
- Contrast
- 1200:1
The iiyama ProLite TF3239AS-B1AG is a 31.5-inch Full HD all-in-one touch display with bonded PCAP glass, 40 touch points and built-in Android 11. It runs iiSignage² content management, EShare wireless sharing and FailOver input switching, with kiosk mode for unattended use. It suits Doha offices, retail counters, lobbies and schools that need a touch screen running its own apps.

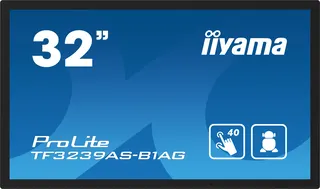

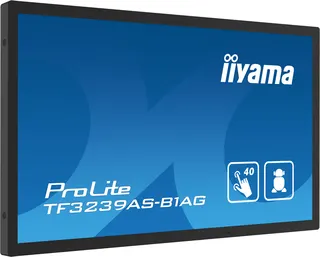

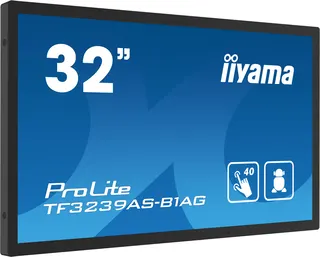

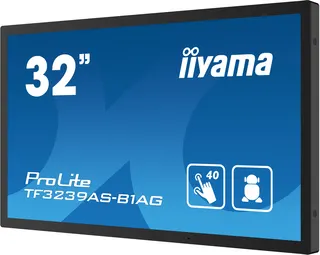

A 32-inch touch panel with its own Android computer
The iiyama ProLite TF3239AS-B1AG combines a touch panel, an Android 11 computer and content software in one enclosure. Its 31.5-inch (80 cm) IPS panel runs at Full HD 1920 x 1080 with a 16:9 ratio, and its bonded PCAP touch layer registers up to 40 touch points, so several people can annotate or tap at once. With 4GB of RAM and 32GB of storage, the screen can run installed apps without a separate media PC.
Specifications that matter for procurement
- Brightness and contrast: 500 cd/m² panel brightness, 435 cd/m² with touch, and 1200:1 static contrast.
- Inputs: two HDMI 2.0 and one DisplayPort 1.2, each up to 3840 x 2160 at 60Hz.
- Control: RS-232c, RJ45 LAN, two USB 2.0 Type-A ports and a remote control.
- Build: 3mm glass rated 7H, IP65 front protection, 24/7 operation and anti image retention.
iiSignage² manages content remotely, FailOver switches to the next priority input when a signal drops, and EShare supports wireless sharing.
Where it fits in Qatar
In a Doha office such as one in West Bay, the 31.5-inch screen suits a huddle room for a small team. Staff can share a laptop over HDMI or use EShare, and write on the glass directly.
A retail counter or hotel lobby in Msheireb or The Pearl can run in kiosk mode with touch lock and remote control lock, so visitors cannot change settings. FailOver keeps a promotional playlist showing if a cable is unplugged.
A school in Al Wakrah or a training centre in Education City can use it in a collaborative classroom, where two USB ports and the Android system support group learning apps.
Planning the room, power and mounting
The operating range is 0°C to 40°C, and Doha summer afternoons can exceed 45°C. Install it in an air-conditioned room, away from direct sun, not in an open lobby or outdoor kiosk. The IP65 rating covers the front only and is not a substitute for climate control.

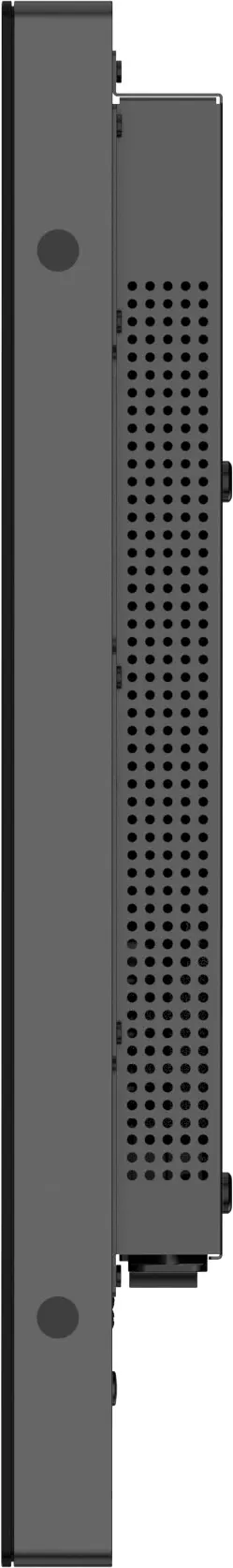

The panel measures 746.2 x 440.7 x 62.4mm, weighs 13.2kg without its box and uses a 200 x 200mm VESA pattern. The optional OMK4-4 bracket is listed as compatible. The internal power supply accepts 100 to 240V at 50/60Hz. A free SmartRooms Qatar site survey can confirm the wall, power point and cable route before delivery.
Request a quotation
For one screen or a batch for a school or government office, request a quote from SmartRooms Qatar. We deliver to all eight municipalities of Qatar, arrange professional installation, and accept purchase orders (LPOs) and government tenders, including Monaqasat. Share the room, quantity and mounting plan, and we will return a quotation, usually within one working day.
Highlights
- 31.5-inch IPS panel with Full HD 1920 x 1080 resolution
- Bonded PCAP touch with 40 touch points and palm rejection
- Built-in Android 11 with 4GB RAM and 32GB storage
- Two HDMI 2.0 and one DisplayPort 1.2 inputs up to 4K at 60Hz
- IP65 front protection with 3mm, 7H-rated glass
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
DISPLAY CHARACTERISTICS17
- Design
- Edge to edge glass, Open Frame
- Diagonal
- 31.5", 80cm
- Panel
- IPS LED, AG coated glass, matte finish
- Native resolution
- 1920 x 1080 @60Hz (2.1 megapixel Full HD)
- Aspect ratio
- 16:9
- Panel brightness
- 500 cd/m²
- Brightness
- 435 cd/m² with touch
- Light transmittance
- 87%
- Static contrast
- 1200:1
- Response time (GTG)
- 8ms
- Viewing zone
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Colour support
- 16.7mln 8bit (72% NTSC)
- Horizontal Sync
- 28 - 160kHz
- Viewable area W x H
- 698.4 x 392.8mm, 27.5 x 15.5"
- Bezel width (sides, top, bottom)
- 22mm, 22mm, 22mm
- Pixel pitch
- 0.363mm
- Bezel colour and finish
- black, matte
TOUCH8
- Touch technology
- bonded PCAP
- Touch points
- 40
- Touch accuracy
- +- 2.5mm
- Touch method
- stylus, finger, glove (latex)
- Touch interface
- USB
- Supported operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Through-Glass
- 6mm
- Palm rejection
- yes
INTERFACES / CONNECTORS / CONTROLS5
- Digital signal input
- HDMI x2 (2.0, max. 3840x2160 @60Hz) DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
- Monitor control input
- RS-232c x1 (Get/Set Command) RJ45 (LAN) x1 (Control and Internet)
- Audio output
- Mini jack x1 Speakers 2 x 10W
- HDCP
- 2.2
- USB ports
- x2 (2.0 x2 (Type A))
FEATURES13
- Integrated software
- Android 11 OS, iiSignage², EShare, FailOver
- Hardware
- CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
- Extra
- handles, Touch Through-Glass
- Kiosk mode
- yes
- Max. non-stop operating time
- 24/7
- Anti image retention
- yes
- Glass thickness
- 3mm
- Glass hardness
- 7H
- 60950 Ball drop test
- yes
- Water and dust protection
- IP65 (front)
- Housing (bezel)
- metal
- OSD key lock
- yes
- Remote control lock
- yes
GENERAL4
- OSD languages
- EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
- Control buttons
- Power
- User controls
- picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rot
- Plug&Play
- DDC2B
MECHANICAL5
- Orientation

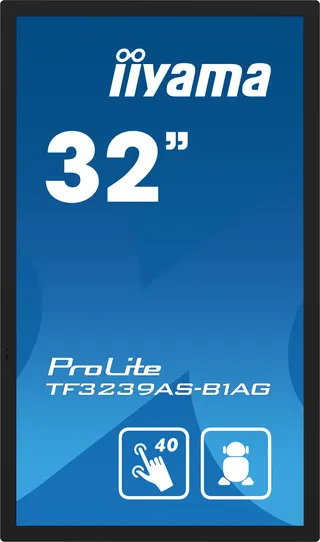

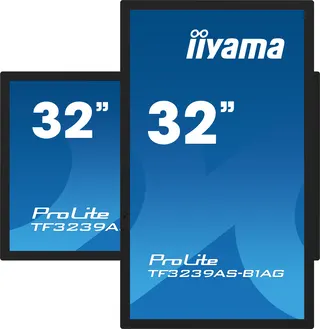

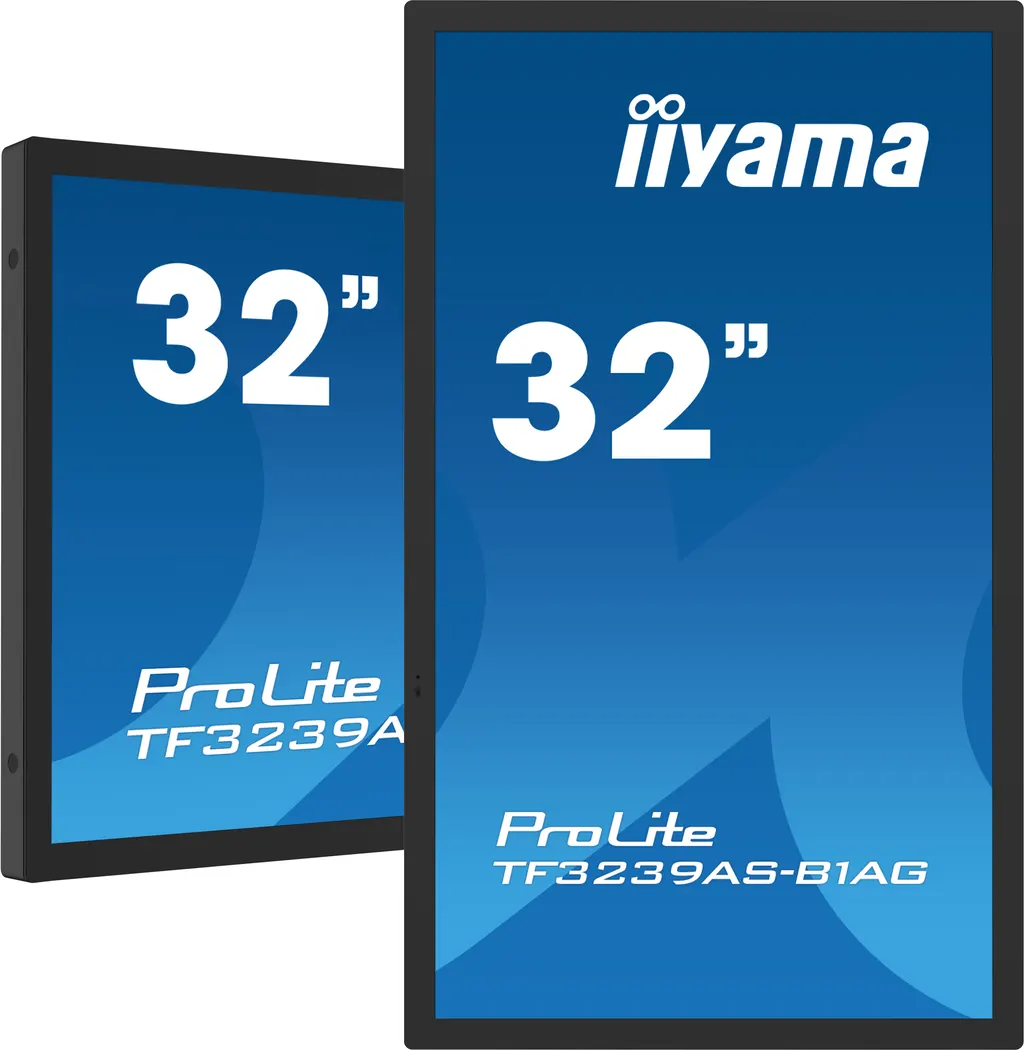

- landscape, portrait, face-up
- VESA mounting
- 200 x 200mm
- Operation temperature range
- 0°C - 40°C
- Storage temperature range
- - 20°C - 60°C
- MTBF
- 50000 hours (excluding backlight)
ACCESSORIES INCLUDED4
- Cables
- power (1.8m), USB (1.8m), HDMI (1.8m)
- Guides
- quick start guide, safety guide
- Cable cover
- yes
- Remote control
- yes (batteries included)
POWER MANAGEMENT3
- Power supply unit
- internal
- Power supply
- AC 100 - 240V, 50/60Hz
- Power usage
- 50W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY3
- Regulations
- CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
- Energy efficiency class (Regulation (EU) 2017/1369)
- F
- REACH SVHC
- above 0.1%: Lead
DIMENSIONS / WEIGHT5
- Product dimensions W x H x D
- 746.2 x 440.7 x 62.4mm
- Box dimensions W x H x D
- 840 x 560 x 149mm
- Weight (without box)
- 13.2kg
- Weight (with box)
- 16.6kg
- EAN code
- 4948570123865
COMPATIBLE ACCESSORIES1
- Mounts / Stands / Brackets
- OMK4-4 , MD-WLIFT2031-W1 , MD-CAR2031-B1
