TF5039AS-B1AG

An all-in-one touch display with its own Android computer

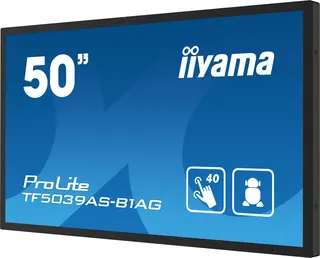

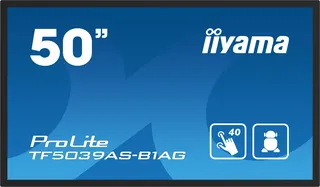

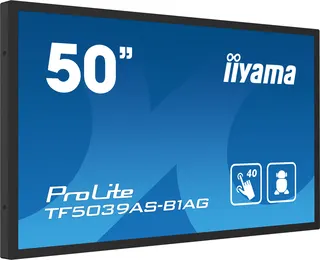

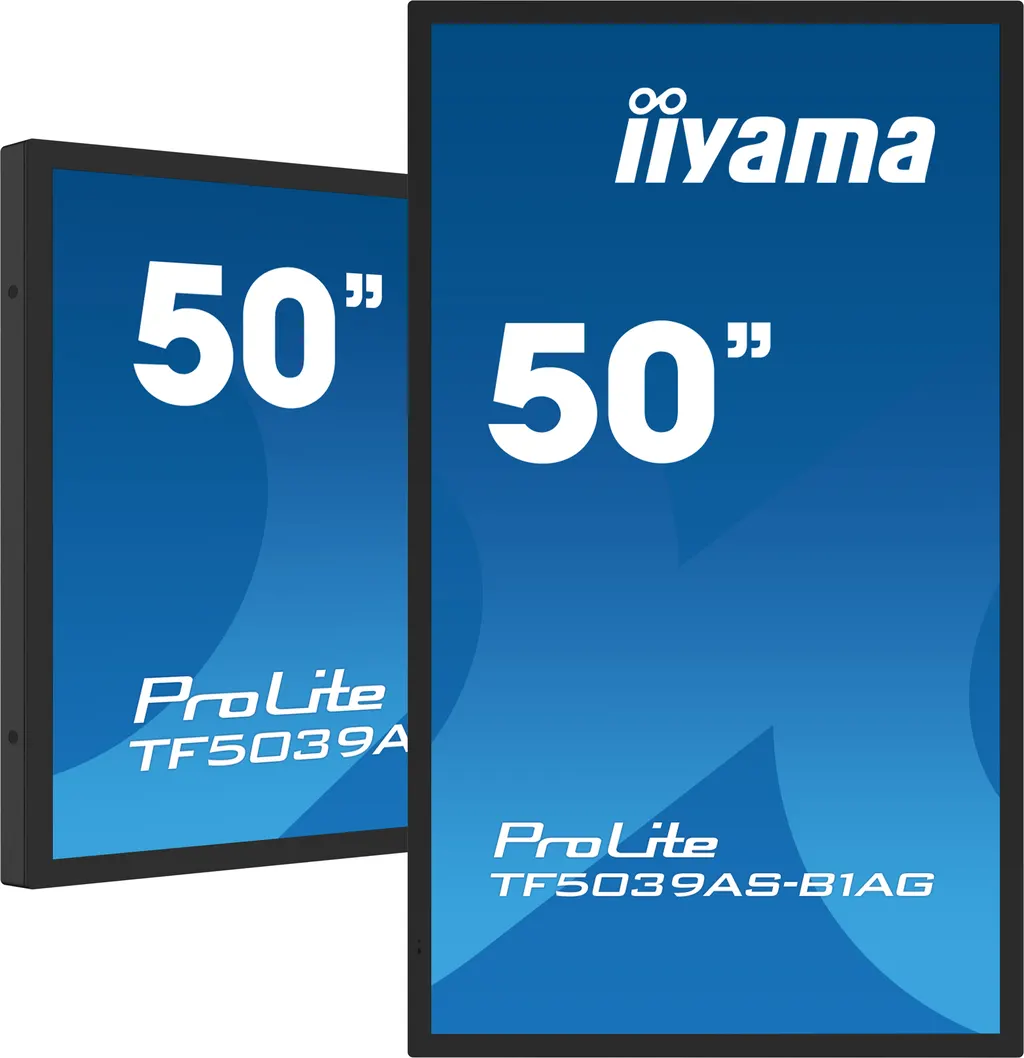

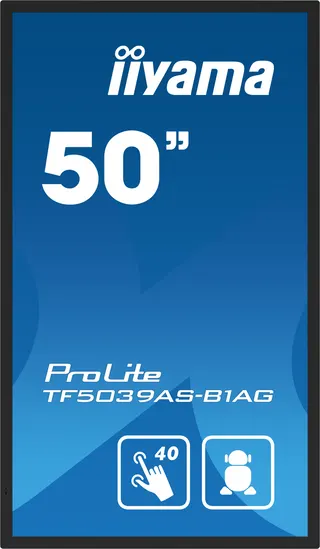

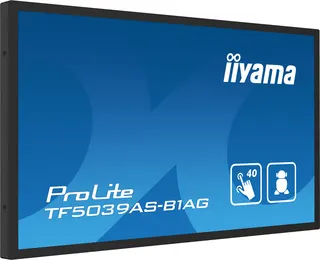

The TF5039AS-B1AG pairs a 49.5-inch 4K UHD panel with a computing unit inside the housing, so there is no separate media player or PC to hide behind the screen. Android 11 runs on a quad-core processor with 4GB of RAM and 32GB of storage, and applications can be installed directly on the display. Two HDMI 2.0 inputs and one DisplayPort 1.2 input accept 3840 x 2160 signals at 60Hz, and the 500 cd/m² panel brightness holds up in lit meeting rooms and shop fronts.

Touch, glass and the front of the screen

A bonded PCAP layer recognises up to 40 touch points and responds to fingers, a stylus and latex gloves, with palm rejection so a resting hand does not trigger input. The 3mm glass carries a 7H hardness rating, and touch works through up to 6mm of glass, which is what makes window-mounted use possible. The front is rated IP65 for dust and water, and the 24mm matte black bezel on each side gives a clean edge-to-edge look in a boardroom or retail fit-out.

Software for signage, sharing and unattended use

The on-board iiSignage² CMS lets you manage messages and advertising remotely, which matters when a screen sits in a school corridor in Al Wakrah or a store in Msheireb and needs updating without a site visit. FailOver watches the inputs and moves to the next priority source when the default signal drops, so the screen keeps showing content. Kiosk mode, a 24/7 non-stop operating rating, anti image retention and a remote control lock suit screens that run all day. The EShare app supports wireless sharing for meetings and lessons.

Where it fits across Qatar

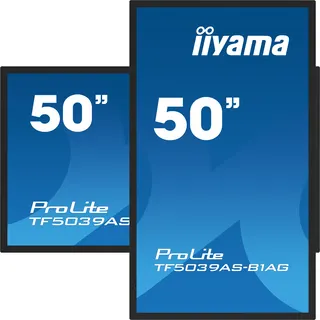

• Office huddle room in Lusail or West Bay: a 50-inch screen suits small teams, with EShare letting staff share from their laptops and touch used to interact with shared content.
• Shop front in The Pearl or Msheireb: through-glass touch lets passers-by browse a catalogue or promotion, while iiSignage² keeps the content current.
• Hotel lobby or clinic reception in Doha: kiosk mode and FailOver keep wayfinding or check-in content on screen through long operating hours.

Planning the installation and power

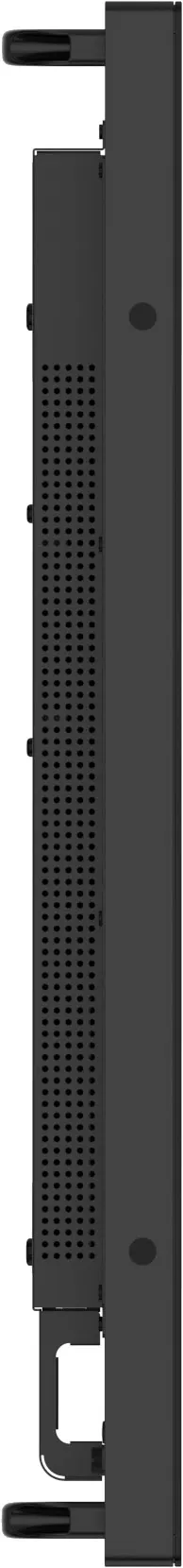

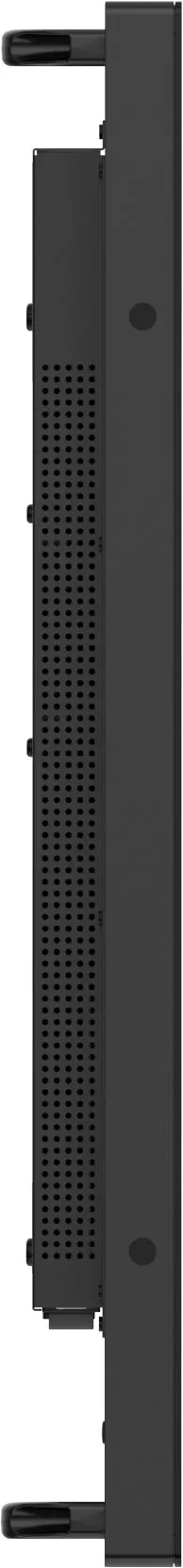

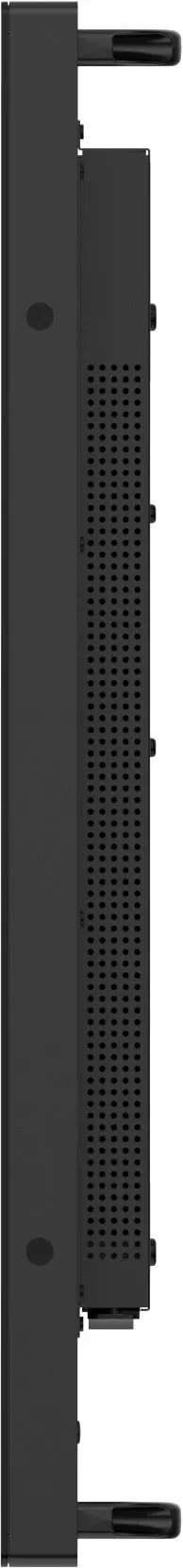

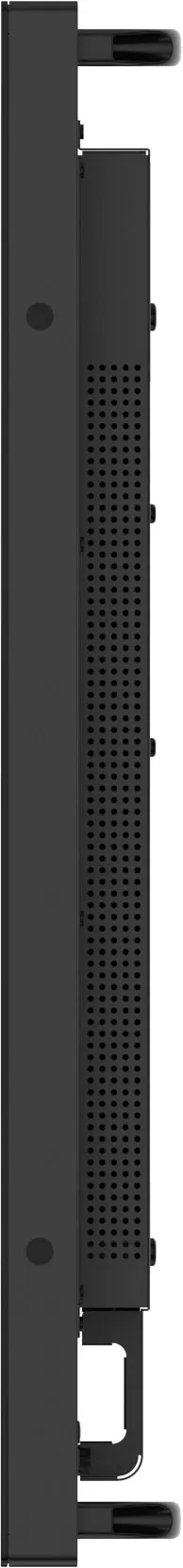

The panel weighs 28.6kg without its box and measures 1149.4 x 670 x 64mm, so a wall mount needs solid fixing into a structure that can carry it. The VESA pattern is 400 x 400mm, and the data lists MD-WLIFT2031-W1 and MD-CAR2031-B1 as compatible mounts. The OMK4-2 bracket is marked end of life in the data, so we will confirm the bracket for your wall at quotation. A free site survey from SmartRooms Qatar checks wall structure, cable routes and the position of the screen relative to windows and air-conditioning.

Power input is 100-240V at 50/60Hz, which covers Qatar's 240V, 50Hz supply. Typical consumption is 137W, with 0.5W on standby. The operating range is 0°C to 40°C, well below Qatar's summer outdoor temperatures, so install it in air-conditioned rooms with clear airflow around the housing and keep direct sun off the glass. The data does not list an outdoor rating, so this is not an outdoor product. Storage range is -20°C to 60°C.

The box includes a 1.8m power cable, a 1.8m USB cable, a 1.8m HDMI cable, a remote control with batteries, an IR extender and guides. For multi-unit orders, such as a school fitting out several rooms or a company placing screens on several floors, SmartRooms Qatar supplies on purchase orders (LPOs) and government tenders, and can arrange professional installation. Request a quote and our team will confirm availability, the right mount and the setup for your site.
