iiyama TW1625LASC-B3PNR · Price in Qatar

Name: iiyama ProLite TW1625LASC-B3PNR 15.6-inch Android Touch Panel PC
Brand: iiyama
SKU: iiyama-tw1625lasc-b3pnr
Availability: InStock

Overview

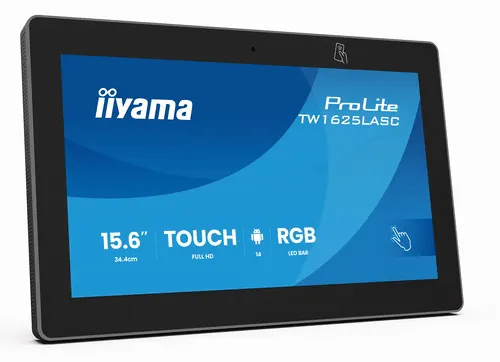

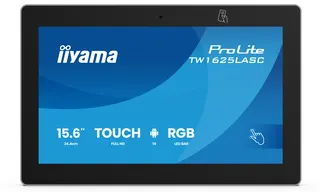

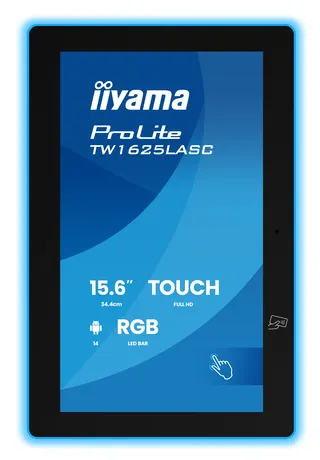

The iiyama TW1625LASC-B3PNR is a 15.6-inch touch panel PC running Android 14, built for meeting room doors and lobby info points. It pairs a 10-point PCAP touchscreen with an RGB LED bar that shows room availability, an NFC/RFID reader for check-in, and power and data over a single PoE cable. It suits offices, schools and hotels across Qatar.

What the TW1625LASC-B3PNR is

The iiyama TW1625LASC-B3PNR combines a 15.6-inch touchscreen with a full Android 14 computer in one housing. It is designed for places where a screen must show information, accept taps and handle a second task, such as reading a badge or displaying room status. The 16:9 IPS panel runs at 1920 x 1080 and has a black matte bezel.

Display and processing facts that matter on site

The panel is rated at 450 cd/m² panel brightness and 390 cd/m² with touch active, with 1000:1 static contrast and viewing angles of 178 degrees horizontally and vertically. The 10-point projected capacitive touch responds to fingers, latex gloves and capacitive styluses. Optical bonding and an anti-glare coating reduce reflections, while an anti-fingerprint coating keeps the glass cleaner between wipes. A Rockchip RK3576 processor, 4GB DDR4 memory and 32GB eMMC storage run Android 14 and the apps you choose to install.

Connectivity centres on one RJ45 port that supports PoE under IEEE 802.3at at 30W, so a single network cable can carry both power and data to the unit. The unit also offers three USB ports (one USB 3.2 Gen 1, one USB 2.0 and one USB-C), a mini jack, an SD card slot, Wi-Fi 802.11ax/ac/a/b/g/n and Bluetooth 5.3.

Check-in, room status and visitor features

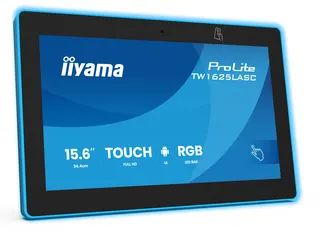

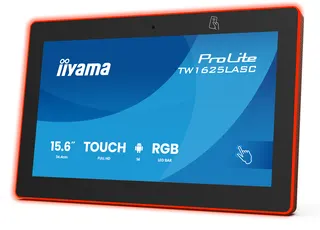

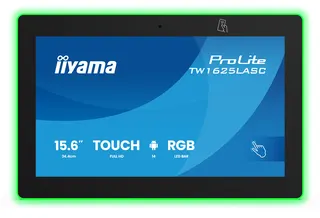

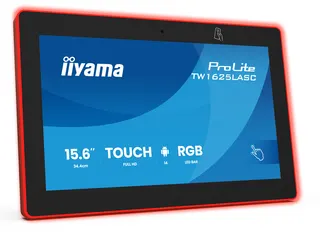

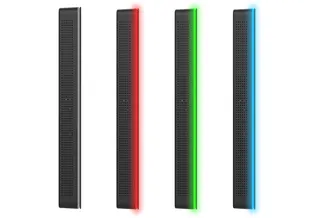

The NFC reader (NXP PN7160) and the 125kHz RFID reader work with EM4100, TK4100 and GK4100 tags and with ISO/IEC 11784/11785 formats, so staff badges or room tags can trigger an action at the door. The RGB LED bar around the bezel can show a wide range of colours, which lets people judge room availability from down a corridor. A 5-megapixel webcam, a microphone and two 2W speakers support visitor interaction at the front desk.

Where it fits in Qatar

Meeting rooms in West Bay or Lusail: a booking panel beside each door that shows whether the room is free, with NFC tags for quick check-in.
Hotel and serviced apartment lobbies in The Pearl or Msheireb: a reception-side info point that can be set to landscape, portrait or face-up to suit the counter layout.
Schools and training centres in Education City or Al Rayyan: a staff and visitor sign-in point at a reception desk, managed remotely from a central content system.

What to plan before ordering

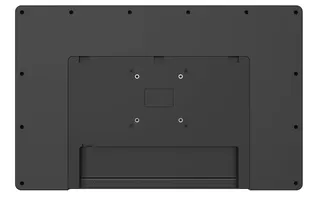

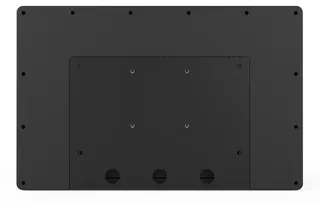

Plan the mounting around the 75 x 75mm VESA pattern, the included wall mount and cable cover, and the 397 x 256 x 28.5mm footprint. The unit weighs 2kg without its box. The source data does not give an operating temperature range, so ask the SmartRooms Qatar team to confirm the environment before placing it near a window, in a sun-exposed lobby or outdoors. Power comes from the included external DC 12 V adapter, which ships with EU and UK plugs, so confirm the plug arrangement for Qatar sockets at quotation. The unit is listed with CE, EAC, RoHS, ErP, WEEE, REACH and UKCA compliance and is covered by the manufacturer's warranty. SmartRooms Qatar offers a free site survey before wall-mounting.

Send us your room layout and the number of units you need, and request a quote from SmartRooms Qatar. Quotations are usually issued within one working day, and we deliver to all eight municipalities of Qatar.

Highlights

15.6-inch 1920 x 1080 IPS panel, 450 cd/m² panel brightness
10-point projected capacitive touch with optical bonding
Android 14 on Rockchip RK3576 with 4GB RAM and 32GB storage
PoE under IEEE 802.3at at 30W: power and data on one RJ45 cable
NFC and 125kHz RFID reader for contactless check-in
RGB LED bar, 5MP webcam, microphone and 2 x 2W speakers

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

53 specifications · Source: manufacturer · checked Oct 2026

DISPLAY CHARACTERISTICS15

Design: Edge to edge glass
Diagonal: 15.6", 34.4cm
Panel: IPS Panel Technology, LED
Native resolution: 1920 x 1080 (1 megapixel HD)
Aspect ratio: 16:9
Panel brightness: 450 cd/m²
Brightness: 390 cd/m² with touch
Light transmittance: 86%
Static contrast: 1000:1 with touch
Response time (GTG): 20ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support: 16.7mln 8bit
Viewable area W x H: 344.16 x 193.5mm, 13.5 x 7.6"
Pixel pitch: 0.1792mm
Bezel colour and finish: black, matte

TOUCH4

Touch technology: projective capacitive
Touch points: 10 (HID, only with supported OS)
Touch method: finger, glove (latex), capacitive stylus
Touch interface: USB

INTERFACES / CONNECTORS / CONTROLS4

Audio output: Mini jack x1 Speakers 2 x 2W
USB ports: x3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA), 1 x USB-C (DC5V, 900mA))
RJ45 (LAN): x1 (PoE - IEEE802.3at/30W)
Microphone: x1

FEATURES12

Integrated software: Android 14
CPU: Rockchip RK3576 Octo-core A53*4 + A72*4 up to 2.2GHz
Storage: 32GB eMMC
Memory: 4GB DDR4
WiFi: IEEE802.11ax/ac/a/b/g/n
Bluetooth: 5.3
Hardware: NFC (NXP PN7160), RFID (125kHZ,ISO/IEC 11784/11785,EM4100, TK4100/GK4100)
Extra: Auto-rotation, webcam (5 megapixel), SD card slot, anti-fingerprint coating, anti-glare coating, PoE, NFC/RFID reader, RGB Led lightbar, wall mount
Kiosk mode: yes
Max. non-stop operating time: 24/7
Glass thickness: 2.05mm
Glass hardness: 6H

GENERAL2

Control buttons: Power switch
Applications: Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, camera, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, led light bar, play audio files, Play store, system peferences, sound recorder, play video

MECHANICAL3

Orientation: landscape, portrait, face-up
VESA mounting: 75 x 75mm
Cable management system: yes

ACCESSORIES INCLUDED3

Guides: quick start guide, safety guide
Other: AC adapter, interchangeable plugs (EU/UK), cable cover/wall mount
Cable cover: yes

POWER MANAGEMENT3

Power supply unit: external
Power supply: DC 12 V
Power usage: 11W typical, 0.5W stand by, 0.5W off mode

SUSTAINABILITY2

Regulations: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC: above 0.1%: Lead

DIMENSIONS / WEIGHT5

Product dimensions W x H x D: 397 x 256 x 28.5mm
Box dimensions W x H x D: 495 x 305 x 75mm
Weight (without box): 2kg
Weight (with box): 3kg
EAN code: 4948570125692

Downloads

7 files from the manufacturer

XLSX Datasheets TW1625LASC-B3PNR_Specifications.xlsx 9 KB PDF Datasheets TW1625LASC-B3PNR_datasheet.pdf 1.5 MB PDF Manuals & guides TW10_1625LASC-B3PNR-usermanual-e_rev i.pdf 3.1 MB ZIP Manuals & guides · Opens on manufacturer site LED_TW1625LASC_instruction_20260317.zip ZIP Manuals & guides · Opens on manufacturer site TW series API Setup instructions_20251001.zip PDF Drawings & CAD TW1625LASC-B3PNR drawing.pdf 381 KB PDF Other documents TW1625LASC-B3PNR.pdf 319 KB

Questions about TW1625LASC-B3PNR

What is the iiyama TW1625LASC-B3PNR used for?

It is a 15.6-inch touch panel PC for places where a screen must show information and also run a task such as room booking or visitor check-in. Typical uses include meeting room door panels, hotel reception info points and office lobby sign-in stations. Its RGB LED bar shows room availability and its NFC/RFID reader handles contactless actions, so one unit can replace a separate screen and card reader.

Can I power it over a single network cable?

Yes. The RJ45 port supports Power over Ethernet under IEEE 802.3at at 30W, so one cable carries both power and data. The source data also lists an external DC 12 V adapter in the box. Before ordering, tell the SmartRooms Qatar team which supply path your installation will use so the right setup is quoted.

Which RFID tags does the reader support?

The 125kHz RFID reader works with EM4100, TK4100 and GK4100 tags and with ISO/IEC 11784/11785 formats. The NFC reader uses an NXP PN7160 chip. If your office already issues proximity cards, check the card type against these standards before ordering, and ask the team to confirm compatibility for your access system.

Will the screen be readable near a bright window in Doha?

The panel is rated at 450 cd/m² panel brightness and has an anti-glare coating and optical bonding, which reduce reflections. The source data does not give a sunlight-readability rating, so placement matters. For a lobby with strong daylight, position the unit away from direct sun and ask SmartRooms Qatar to review the location during a free site survey.

Can it be mounted in portrait orientation?

Yes. The unit supports landscape, portrait and face-up orientation, and it has auto-rotation. A portrait layout suits a reception counter or a corridor sign where a tall display is easier to read. Plan the wall mount using the 75 x 75mm VESA pattern and check that the cable route allows the chosen orientation.

Does the touchscreen work with gloves or a stylus?

The 10-point projected capacitive touch accepts fingers, latex gloves and capacitive styluses. This matters for facilities staff or hospitality teams who wear gloves at work. The source data does not list a glove type beyond latex, so test a specific glove if your staff wear a different type before rolling out many units.

Can it run 24/7 at a visitor desk or lobby?

The source data lists a maximum non-stop operating time of 24/7 and a kiosk mode. That makes it suitable for a lobby or info point that stays on through the working week, from Sunday to Thursday, and beyond. Confirm the expected duty cycle and room environment with SmartRooms Qatar when you request a quote.

How is content managed across several units?

The unit integrates with iiSignage², iiyama's content management system, which lets you control messages and advertising remotely. For a school or company with several panels, this means updating content from one place rather than visiting each unit. Ask the team to confirm the licensing and setup steps as part of your quotation.

What do I need to plan for mounting and installation?

The unit measures 397 x 256 x 28.5mm and weighs 2kg without its box, and it has a 75 x 75mm VESA pattern. A wall mount and cable cover are included. Plan the cable route for the PoE or adapter connection before drilling. SmartRooms Qatar offers professional installation and a free site survey, which helps confirm wall type and height.

Is it suitable for a hotel reception in West Bay or The Pearl?

It suits a reception or concierge point where guests check in or find information. The camera, microphone and speakers support a basic visitor interaction, and the NFC reader can handle staff badges. Hotels in West Bay or The Pearl should confirm the placement and the app set-up with the team, since the device runs Android and can install apps from the Play Store.

Can a school in Education City or Al Rayyan use it to show room availability?

Yes. The RGB LED bar around the bezel can show a wide range of colours, so a classroom or meeting room can display free, booked or in-use status at a glance. Pair it with RFID tags so teachers can start a session by tapping. Ask SmartRooms Qatar to quote for the number of rooms in your building.

Can a government entity or company order it through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. For a ministry or school ordering several TW1625LASC-B3PNR units, send the quantity and LPO details with your request so the quotation matches your procurement process.

Which certifications does the unit carry?

The source data lists CE, EAC, RoHS support, ErP, WEEE, REACH and UKCA. It also lists REACH SVHC content above 0.1% for lead. Ask for the relevant declarations when you request a quote, especially for tender documents. The unit is covered by the manufacturer's warranty.
