LG 49UH5N-E (Discontinued) · Replacements in Qatar

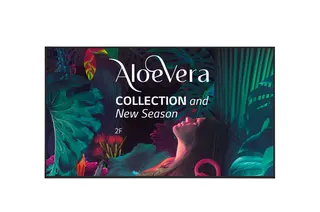

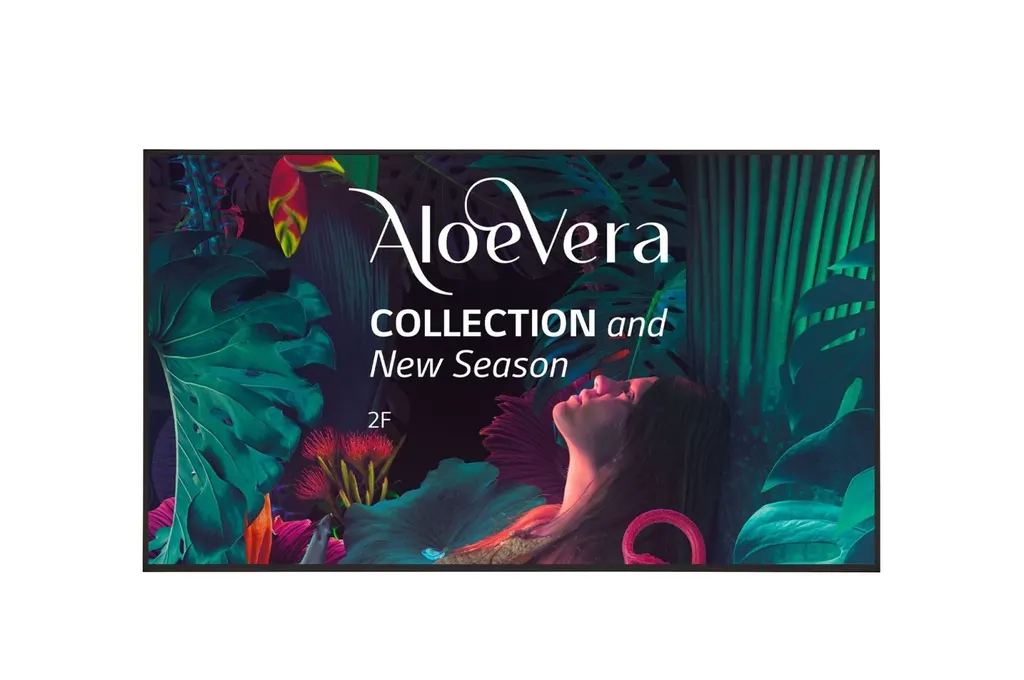

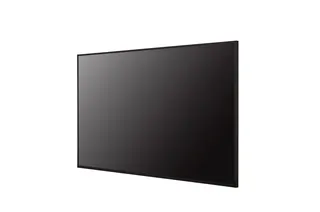

Name: LG 49UH5N-E 49-inch UHD Digital Signage Display
Brand: LG
SKU: lg-49uh5n-e
Availability: Discontinued

Overview

The LG 49UH5N-E is a 49-inch 4K UHD signage display with an IPS panel, 500 nit typical brightness and built-in webOS 6.0, so it can play content without an external media player. The manufacturer has discontinued this model. Organisations in Qatar that already run one, or are comparing options for lobbies, corridors and service counters, should request a quote for a current equivalent or compatible replacement.

What the 49UH5N-E is and where it runs

The LG 49UH5N-E is a 49-inch 4K UHD display built for digital signage in public and semi-public spaces. Its panel shows menus, wayfinding, queue numbers and announcements, and its built-in webOS 6.0 platform plays that content without a separate media player. The manufacturer has discontinued this model, so this page is written for organisations that already own one, buyers comparing it with other 49-inch screens, and anyone who needs a current replacement.

Panel facts that matter on a busy wall

Resolution: 3840 x 2160 native UHD with 10-bit colour depth
Brightness: 500 nit typical on an IPS panel with edge backlight
Anti-glare: 28% surface haze to reduce reflections near windows
Colour and viewing: BT.709 95% colour gamut and 178 x 178 degree viewing angle
Operation: rated for 24/7 use with a 50,000-hour minimum lifetime, in portrait or landscape

Brightness and glare control are the figures to check for a lobby in Msheireb or a foyer in West Bay where daylight falls on the glass. At 500 nit typical, the screen suits indoor areas with controlled light rather than sun-facing positions, and a site survey will confirm placement before installation.

Playback, connectivity and network control

The 49UH5N-E has three HDMI inputs and one DisplayPort input, each accepting 3840 x 2160 at 60Hz. Its daisy chain takes HDMI or DisplayPort input and outputs HDMI at 30Hz, so one source can feed the next screen. For control it offers RS232C in and out, IR in, RJ45 LAN, built-in Wi-Fi, one USB 2.0 Type A port and an audio output. IR daisy chaining runs through RS232C rather than a dedicated IR output. Internal memory is 16GB.

On the software side, the display is listed as compatible with SuperSign CMS, SuperSign Control, SuperSign WB, SuperSign Cloud and the Mobile CMS app. Local contents scheduling, group management, fail over, tile mode up to 15 x 15 and up to four picture-by-picture regions help operators run one screen or a matched set. A government service centre in Msheireb could use local scheduling to switch queue information and service notices by time of day, while a hotel in West Bay could run arrival messages from the same playlist logic.

Planning space, mounting and heat in Qatar

Monitor size without IR: 1095.6 x 630.8 x 29.7 mm
Head weight 13.6 kg, packed weight 16.1 kg
VESA interface 300 x 300
Bezels: 8.9 mm top, left and right; 12.9 mm bottom
About 13 mm wall clearance with the slim bracket, with hidden power inlets for close mounting

Qatar summer temperatures can exceed 45°C, but this model is rated for an operating range of 0°C to 40°C and 10% to 80% humidity. Install it in an air-conditioned space with airflow around the housing, away from direct sun and open entrances. The IP5X rating covers dust protection and does not extend the temperature range. The listed optional mounts are the Slim Wall Mount WB21LMA/B, Wall Mount OLW480A/B and Wall Mount Adapter AM-B330S, and their availability should be confirmed with your quotation.

Power, certifications and security

Power is supplied through a built-in AC supply rated 100-240V, 50/60Hz. Typical consumption is 100W and maximum is 140W, with around 70W under smart energy saving. Qatar mains at 240V and 50Hz fall within this input range. Listed certifications include CB/NRTL for safety, FCC Class B, CE, KC, ErP and ENERGY STAR. The unit includes LG Enhanced Kernel Protection, and the manufacturer states ISO/IEC 15408 Common Criteria EAL2 certification for this model. The on-screen menu also offers Arabic.

To request a quote for a current equivalent or a compatible replacement, send SmartRooms Qatar your room dimensions, mounting height, content system and number of screens. Our team will reply with a quotation, usually within one working day, and can support purchase orders and government tenders.

Highlights

Discontinued by the manufacturer; quotes for current equivalents
3840 x 2160 native UHD panel with 10-bit colour
500 nit typical brightness with 28% haze anti-glare surface
Built-in webOS 6.0 and 16GB memory for standalone playback
Operating range 0°C to 40°C, IP5X dust rating
Bezels 8.9 mm sides and top, 12.9 mm bottom

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

108 specifications · Source: manufacturer · checked Oct 2026

INFO3

Product: Standard (UHD)
Year: Y23
Month: M06(TBD)

PANEL17

Screen Size (Inch): 49"
Panel Technology: IPS
Back Light Type: Edge
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160 (UHD)
Refresh Rate: 60Hz
Brightness (Typ.): 500nit (Typ.)
Contrast Ratio: 1,100:1
Dynamic CR: 1,000,000:1
Color Gamut: BT709 95%
Viewing Angle(H x V): 178 x 178
Color Depth: 10bit(D), 1.07Billion colors
Response Time: Tr : 6ms / Tf :9ms
Surface Treatment(Haze): 28%
Life time: 50,000Hrs (Min.)
Operation Hours (Hours/Day): 24/7
Portrait / Landscape: Yes / Yes

Connectivity (Jack Interface)11

HDMI IN: Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN: Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN: Yes (1), 4pin Phone-jack
RJ45(LAN) IN: Yes (1)
IR IN: Yes (1)
USB IN: USB2.0 Type A(1)
HDMI Out: Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
Audio Out: Yes (1)
RS232C Out: Yes (1), 4pin Phone-jack
IR Out: No (Support IR daisy chain via RS232C IN/OUT)
Daisy Chain: Yes(Input HDMI, DP / Output HDMI)

MECHANICAL7

Bezel Color: Black
Bezel Width: T/R/L: 8.9mm, B: 12.9mm
Weight (Head): 13.6 kg
Packed Weight: 16.1 kg
Monitor Dimensions (W x H x D): 1095.6 x 630.8 x 29.7mm (without IR)
Carton Dimensions (W x H x D): 1215.0 x 736.0 x 152.0mm
VESA™ Standard Mount Interface: 300 x 300

HW FEATURE7

Internal Memory: 16GB
Wi-Fi (Built-in): Yes
Temperature Sensor: Yes
Auto Brightness sensor: Yes(IR)
Acceleration(Gyro) Sensor: Yes
Local Key Operation: Yes
Speaker (Built-in): Yes

SW FEATURE35

OS ver.: webOS6.0
Local Contents Scheduling: Yes
Group Manager: Yes
USB Plug & Play: Yes
Fail over: Yes
Booting Logo Image: Yes
No Signal Image: Yes
RS232C Sync: Yes
Local Network Sync: Yes
PIP: Yes
PBP: Yes (4)
Screen Share: Yes
Video Tag: Yes (4)
Play via URL: Yes
Screen Rotation: Yes
External Input Rotation: Yes
Gapless Playback: Yes
Tile Mode Setting: Yes (Max. 15x15)
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Auto Set ID: Yes
Status Mailing: Yes
Control Manager: Yes
Cisco Certi.: Yes
Crestron Inside: Yes
Smart Energy Saving: Yes
PM mode: Yes
Wake on LAN: Yes
Beacon: Yes
Network Ready: Yes
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

ENVIRONMENT CONDITIONS2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10 % to 80 %

POWER8

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power
Power Consumption (Typ.): 100W
Power Consumption (Max.): 140W
Power Consumption (British Thermal Unit): 341 BTU/Hr(Typ.), 478 BTU/Hr(Max)
Power Consumption (Smart Energy Saving, ~70%): 70W
Power Consumption (DPM): 0.5W
Power Consumption (Power Off): 0.5W

CERTIFICATION6

Safety: CB / NRTL
EMC: FCC Class "B" / CE / KC
ErP / Energy Star: Yes(NewErP)/Yes
ePEAT(US only): Yes
ISTA6: Yes(~'23.9, US Suffix Only)
Carbon Trust: Yes(TBD, Reducing CO2)

SOFTWARE COMPATIBILITY6

SuperSign CMS: Yes
SuperSign Control / Control+: Yes / Yes
SuperSign WB: Yes
SuperSign Cloud: Yes
Mobile CMS: Yes
Connected Care: Yes

Language1

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portuguese(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic

ACCESSORY2

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
Optional: Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)

SPECIAL FEATURE3

Tilt (Face Down): Yes(Max 30º degree, 40ºC temperature)
IP Rating: IP5X
Conformal Coating (Power Board): Yes

Downloads

5 files from the manufacturer

PDF Manuals & guides · Opens on manufacturer site 43495565UH5N-EP_ARA.pdf 2.1 MB PDF Manuals & guides · Opens on manufacturer site 43495565UH5N-EP_E.pdf 1.9 MB PDF Manuals & guides · Opens on manufacturer site MFL72000302_02_230926.pdf 3.1 MB PDF Manuals & guides · Opens on manufacturer site WebOS 6.0. 6.1_ENG.pdf 5.9 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 49UH5N-E

Is the LG 49UH5N-E still available from SmartRooms Qatar?

The manufacturer has discontinued the 49UH5N-E, so it is no longer in production. SmartRooms Qatar can still quote on a current equivalent or a compatible replacement that matches your 49-inch size, 4K resolution and connection needs. Send us your current model or room layout and we will respond with a quotation, usually within one working day.

What is the 49UH5N-E designed for?

It is a 49-inch 4K UHD display built for digital signage, showing menus, wayfinding, queue numbers and announcements in public areas. Its 24/7 operation rating, built-in webOS 6.0 playback and IP5X dust rating suit lobbies, corridors and service counters. Organisations that want one screen to run content without an external media player will find this layout fits their needs.

Does it need an external media player?

No. The high-performance processor is listed as running multiple tasks without a separate media player, and 16GB of internal memory holds content. Playlists can be managed through SuperSign CMS, SuperSign Control, SuperSign Cloud or the Mobile CMS app, all listed as compatible. Confirm which CMS version your IT team prefers before the quotation is finalised.

How bright and sharp is the panel for a bright lobby in Doha?

The IPS panel has 500 nit typical brightness, a 3840 x 2160 native resolution and a 28% haze anti-glare surface that reduces reflections. These figures help text stay legible near windows in West Bay or Lusail, where daylight can wash out screens. For positions that receive direct sunlight, have the SmartRooms Qatar team check placement during a free site survey.

What are the operating temperature limits, and can it sit near a window?

The rated operating temperature is 0°C to 40°C, with 10% to 80% humidity. Qatar summers can exceed 45°C, so place the display in an air-conditioned, ventilated space and keep it out of direct sun and dust-storm exposure, even though it carries an IP5X dust rating. Ask the team to confirm the exact position during a free site survey.

Which inputs and outputs does it have?

It has three HDMI inputs and one DisplayPort input, each supporting 3840 x 2160 at 60Hz. The daisy-chain output is HDMI at 30Hz and accepts HDMI or DisplayPort from the source. Control ports include RS232C in and out, IR in, RJ45 LAN and one USB 2.0 Type A port, plus an audio output and built-in Wi-Fi for network connection.

Can I build a video wall with it?

The data lists a tile mode of up to 15 x 15, portrait and landscape operation, RS232C sync and local network sync, so it can be arranged in a wall. Plan the layout with the bezel figures: 8.9 mm on the top, left and right, and 12.9 mm at the bottom. Share your wall dimensions with the SmartRooms Qatar team so the quotation matches your controller and content setup.

How much wall space does it need?

Without IR, the monitor measures 1095.6 x 630.8 x 29.7 mm and the head weighs 13.6 kg, with a 16.1 kg packed weight. It uses a 300 x 300 VESA interface. With the slim bracket the manufacturer quotes about 13 mm of wall clearance. The optional Slim Wall Mount WB21LMA/B and Wall Mount OLW480A/B are listed, so confirm their availability in your quote.

Is it suitable for a school corridor?

Yes, for corridor announcements, timetable panels and event notices. A private school in Al Wakrah fitting out new corridors could schedule content locally by time of day, use fail over and no-signal images for reliability, and rely on the built-in speaker for audio. Confirm the wall height and cable route with the SmartRooms Qatar team during the site survey.

Does the on-screen menu support Arabic?

Yes. The language list for the on-screen display includes Arabic alongside English and other languages, which helps Qatari offices that work in both Arabic and English. Content font support depends on your media player software and file formats, so test a sample playlist with your Arabic text before rolling out the screens across a site.

What security features does it include?

It includes LG Enhanced Kernel Protection, which guards against external access or attack, and the manufacturer states ISO/IEC 15408 Common Criteria EAL2 certification for this model. It also supports SNMP, Wake on LAN and network-ready operation over RJ45 LAN or Wi-Fi. Government and corporate IT teams should review the network policy before connecting the display.

What power and energy figures should I plan for?

The built-in power supply is rated 100-240V, 50/60Hz. Typical consumption is 100W, maximum 140W, and about 70W with smart energy saving. Standby and power-off draw are each listed at 0.5W. Qatar mains at 240V and 50Hz fall within the input range. The basic accessories include a power cord, a remote controller with batteries and cable holders.

Which certifications are listed for this model?

The listed certifications include CB/NRTL for safety, FCC Class B, CE, KC, ErP and ENERGY STAR. Software compatibility lists SuperSign CMS, Control, WB and Cloud, Crestron Inside and Cisco certification. When comparing with a replacement, ask your SmartRooms Qatar contact to check the certification list for the current equivalent you are considering.
