Name: Panasonic TH-55SQ1 55-inch 4K Digital Signage Display (Discontinued)
Brand: Panasonic
SKU: panasonic-th-55sq1
Availability: Discontinued

Overview

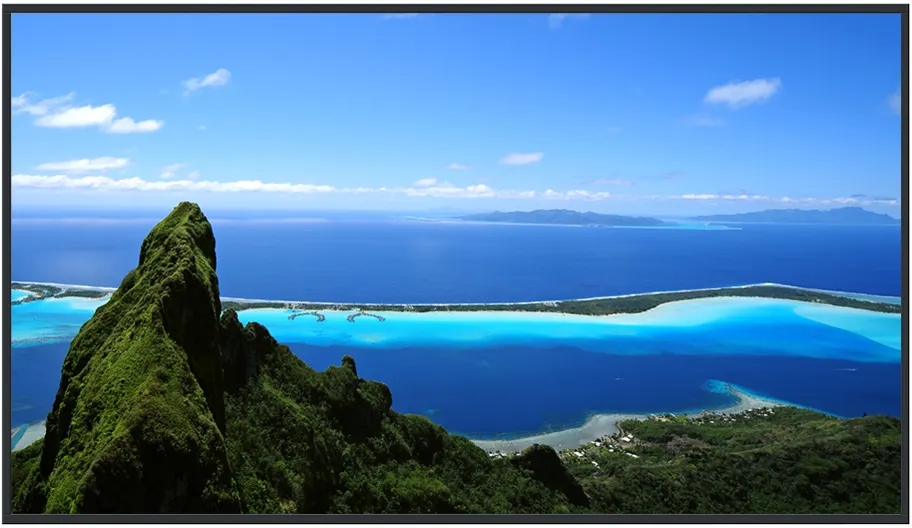

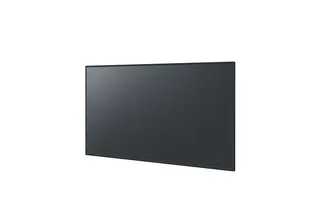

The Panasonic TH-55SQ1 is a discontinued 55-inch class 4K UHD signage display from the SQ1 Series, rated at 500 cd/m² with HDR support and 24-hour operation. It includes a built-in USB media player, a DIGITAL LINK port and an Intel SDM slot. It suits meeting rooms, classrooms and lobbies in Qatar that need a current replacement. Request a quote for a compatible model.

What the TH-55SQ1 delivers in a 55-inch frame

The Panasonic TH-55SQ1 is a 55-inch class 4K UHD LCD display from the SQ1 Series, built for digital signage, meeting rooms and public information points. Its 3840 x 2160 panel delivers about 8.3 million pixels across an active area of 1209 x 680 mm, so text, spreadsheets and fine graphics stay sharp at close viewing distances. Panasonic has discontinued the TH-55SQ1. Organisations that already run this model, and buyers comparing it with newer displays, can request a quote for a current equivalent or a compatible replacement from SmartRooms Qatar.

Picture and content controls that matter on site

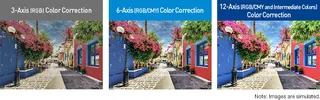

The panel has a typical brightness of 500 cd/m², a typical contrast ratio of 1100:1 and an 8 ms response time (G to G). It plays HDR content in PQ and HLG formats and includes an emulation mode for the BT.2020 colour gamut. Twelve-axis colour management lets an installer adjust colour temperature, shade and brightness for red, green, blue, cyan, magenta and yellow, which helps a brand's artwork match across several screens. The display menu offers modes including Vivid signage, Natural signage, Standard, Surveillance and Graphic, so one panel can suit different content and rooms.

Where it fits in Qatar

Meeting rooms in West Bay or Lusail: a 55-inch panel suits a small or medium boardroom where participants sit close. Its 178 degree viewing angle keeps the picture readable from the side of the table.
Schools in Education City or Al Sadd: Screen Transfer software can push announcements to up to 64 displays over wired LAN, with a priority function for urgent messages.

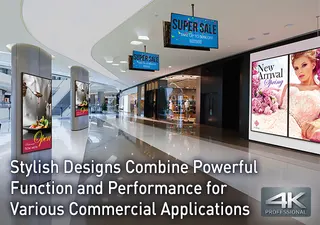

Retail and lobbies in The Pearl or Msheireb: the built-in USB media player starts playback from a memory stick without a PC, so promotions can loop on a simple setup.
Control rooms in Mesaieed or Ras Laffan: failover and failback switch to alternative signals when the main feed drops, although the usable main and backup combinations are limited.

What to plan before installation

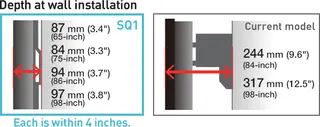

Check the wall and bracket first. The display measures 1240 x 714 x 74 mm including handles, weighs approximately 25.5 kg and uses a 400 x 400 mm VESA pattern. The 55-inch model tilts from 0 to 45 degrees forward or backward in both landscape and portrait. Its operating environment is rated at 0 to 40 °C and 20% to 80% humidity, non-condensing. Qatar summers can exceed 45 °C, so the room needs dependable air conditioning, and the mounting position should be confirmed with the SmartRooms Qatar team. Power input is 110–240 V AC at 50/60 Hz with a power consumption of 300 W. For 4K video over DIGITAL LINK, plan cable runs up to 50 m of CAT5e or higher STP cable.

Ordering and next steps

SmartRooms Qatar offers a free site survey before wall-mounting, delivery to all eight municipalities of Qatar, professional installation and quotations usually within one working day. Government and school buyers can order by LPO or through Monaqasat tenders. Send the room size, the mounting wall and your content sources, and request a quote for the TH-55SQ1 or a current replacement.

Highlights

55-inch class 4K UHD panel at 3840 x 2160 resolution
500 cd/m² typical brightness and 1100:1 typical contrast ratio
HDR in PQ and HLG formats with BT.2020 emulation mode
Built-in USB media player that plays content without a PC
Rated for 24 hours a day operation with 0 to 45 degree tilt
Intel SDM slot for optional third-party interface boards

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

37 specifications · Source: manufacturer · checked Oct 2026

Display Panel9

Screen size (diagonal): 55-inch (54.7" / 1387.8 mm)
Aspect ratio: 16:9
Effective display area (W x H): 1209 x 680 mm (47.6" x 26.7")
Resolution: 3840 x 2160
Brightness (typ.): 500 cd/m²
Contrast ratio (typ.): 1100:1
Response time: 8 ms (G to G)
Viewing angle [(T/B)/(L/R)]: 178°/178° (CR≥10)
Panel Surface Treatment: Anti-Grare Type (Haze 28%)

Terminals12

HDMI In: HDMI TYPE-A Connector x 2 (Compatible with HDCP 2.2)
DVI-D In / Audio In (L/R): DVI-D 24-pin x 1 (HDCP 1.1) / Stereo Mini Jack (M3) x 2 (Shared with PC In)
PC In / Audio In (L/R): Mini D-sub 15-pin x 1 / Stereo Mini Jack (M3) x 2 (Shared with DVI-D In)
DisplayPort In: DisplayPort x 1 (HDCP2.2)* 1
DisplayPort Out: DisplayPort x 1 (HDCP1.4)* 1
USB: USB Connector (TYPE-A) x 2, DC 5 V/2 A, DC 5V/1A (USB 3.0 Supported)
Serial: D-sub 9-pin x 1, RS232C Compatible
LAN: RJ45 x 1, 10 BASE-T / 100 BASE-TX, Compatible with PJLink™
DIGITAL LINK: RJ45 x 1, 100 BASE-TX, Compatible with long reach mode and PJLink™
IR In/Out: Stereo Mini Jack (M3) x 1 / x 1
Audio Out: Stereo Mini Jack (M3) x 1 0.5 V [rms],　Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,　10 kΩ Load)
SLOT: Intel® SDM specification Corresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A

Audio2

Built-in speaker: 20 W [10 W + 10 W]
External speaker out: 30 W [15 W + 15 W]　10 % THD

Electrical4

Power requirements: 110–240 V AC,　50 Hz/60 Hz
Power consumption: 300 W
Power off condition: Approx. 0.3 W
Stand-by condition: Approx. 0.5 W

Mechanical4

Dimensions (W x H x D): 1240 x 714 x 74 mm (48.9" x 28.1" x 2.9") Including handles
Weight: Approx. 25.5 kg (56.3 lbs.)

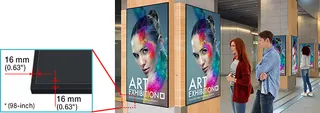

Bezel width: 12.2 mm (0.48") (T), 15.8 mm (0.62") (B), 12.7 mm (0.50") (L/R)
Wall-hanging pitch: 400 x 400 mm (15.75" x 15.75") VESA Compliant

Installation Environment3

Orientation: Landscape/Portrait* 2
Tilting Angle: Landscape setting: 0 - 45 degrees forward/backward Portrait setting: 0 - 45 degrees forward/backward
Operating time* 3: 24 h/day

Environment3

Operating environment: Temperature : 0 °C to 40 °C / Humidity: 20% to 80% (Non-condensation)
Applicable software: Multi Monitoring & Control Software, Content Management Software, Video Wall Manager
Regional Spec Sheets: Global: TH-55SQ1W

Downloads

7 files from the manufacturer

PDF Datasheets TH-55SQ1_Spec_Sheet_Global.pdf 1.4 MB PDF Datasheets sq1_screen_transfer_leaflet_en.pdf 141 KB PDF Manuals & guides sq1w_manual_en.pdf 12.2 MB PDF Manuals & guides sq1w_qsg_ar.pdf 6.1 MB PDF Manuals & guides sq1w_qsg_en.pdf 7.1 MB PDF Brochures SQ1_series_g.pdf 2.2 MB URL Drawings & CAD · Opens on manufacturer site #sq1

Questions about TH-55SQ1

Is the Panasonic TH-55SQ1 still available from SmartRooms Qatar?

Panasonic has discontinued the TH-55SQ1, so it may not be available as new. SmartRooms Qatar can quote for a current equivalent or a compatible replacement. Send the room size, mounting wall and content sources, and the team will respond with a quotation, usually within one working day. Stock levels and lead times are confirmed with the quotation.

Is a 55-inch SQ1 panel the right size for a meeting room in West Bay?

A 55-inch panel suits a small or medium boardroom where participants sit within a few metres of the screen. Its active area of 1209 x 680 mm gives a clear view of slides and spreadsheets without dominating the wall. Larger SQ1 sizes such as the 65-inch and 86-inch models suit lecture halls or large boardrooms, so measure the seating distance before choosing.

How bright is the screen, and will it work in a room with strong sunlight?

The panel has a typical brightness of 500 cd/m² and a typical contrast ratio of 1100:1, with an anti-glare surface (haze 28%). Its operating environment is rated at 0 to 40 °C and 20% to 80% non-condensing humidity. Rooms with windows facing the sun need shading and dependable air conditioning, and the SmartRooms Qatar team can confirm the position before installation.

Does the TH-55SQ1 support HDR content?

Yes. The SQ1 Series supports HDR in PQ and HLG formats, so highlights and shadows in compatible footage show more detail. The display also includes an emulation mode for the BT.2020 wide colour gamut. This is useful for a retail brand in Msheireb or a media team in Doha that needs its artwork to look consistent on screen.

Can a retail store in The Pearl run promotions from a USB stick without a PC?

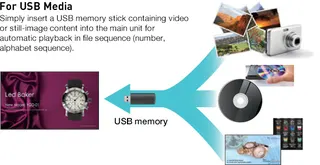

Yes. Inserting a USB memory stick with saved content starts playback automatically, and the display supports still image formats including JPG and BMP as well as video formats including MP4, MOV and AVI. Some files may not play even when the format is supported, so test the files on the display before a campaign goes live.

Which inputs and outputs does the TH-55SQ1 provide for a PC or video source?

The display has two HDMI inputs with HDCP 2.2, a DVI-D input, a Mini D-sub 15-pin PC input, a DisplayPort input and a DisplayPort output. The DisplayPort output allows daisy-chaining for 4K images across several units. DVI-D does not support 4K signals, so use HDMI or DisplayPort for 4K sources such as a presentation PC in a boardroom.

How far can a cable run from the source to the display?

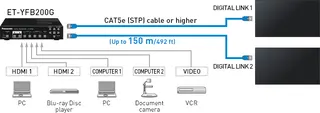

DIGITAL LINK carries video, audio and control over a single CAT5e or higher STP cable. The source data gives 50 m for 4K video. Full HD transmission reaches 150 m only with the optional ET-YFB200G DIGITAL LINK Switcher in Long Reach Mode. A school campus in Education City with long corridors should plan cable routes and switchers during the site survey.

Can a school in Qatar push announcements to all of its classrooms at once?

Yes, with the free Screen Transfer software, version 2.0 or later, which shows a PC screen on up to 64 displays over wired LAN. Staff can confirm distribution status from a PC, and the priority function can switch displays on and show urgent messages. The software needs the Software Main Version 4.40 or later on the display, so confirm firmware before purchase.

Is the TH-55SQ1 suitable for a control room at an industrial site such as Mesaieed?

The SQ1 Series includes failover and failback, which switches to alternative video and audio signals when the main feed is interrupted and returns to the original image once it is restored. The usable combinations of main and backup signals are limited, so confirm the input pairing with the SmartRooms Qatar team before specifying the control room layout.

Can the display run 24 hours a day in a busy public area such as an airport or hotel lobby?

The data rates the display for 24 hours a day operation and describes use in public spaces such as airports and shopping malls. To reduce image retention, show moving content where possible, because a still picture left on screen for a long time may leave a ghost image. Confirm the lobby climate and the content schedule when you request a quote.

How heavy is the panel, and what wall mount does it need?

The display weighs approximately 25.5 kg and measures 1240 x 714 x 74 mm including handles. It uses a 400 x 400 mm VESA mounting pattern and tilts from 0 to 45 degrees in landscape and portrait. SmartRooms Qatar offers a free site survey before wall-mounting, so the wall structure and bracket can be checked before the panel is fitted.

Does the power input suit Qatar's electrical supply?

The power input is 110–240 V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. Power consumption is listed as 300 W, with approximately 0.5 W in standby and 0.3 W when powered off. Ask the team to confirm the power outlet and cable arrangement for your room when you request a quote.
