BenQ Interactive Flat Panels Current

RE7504FV

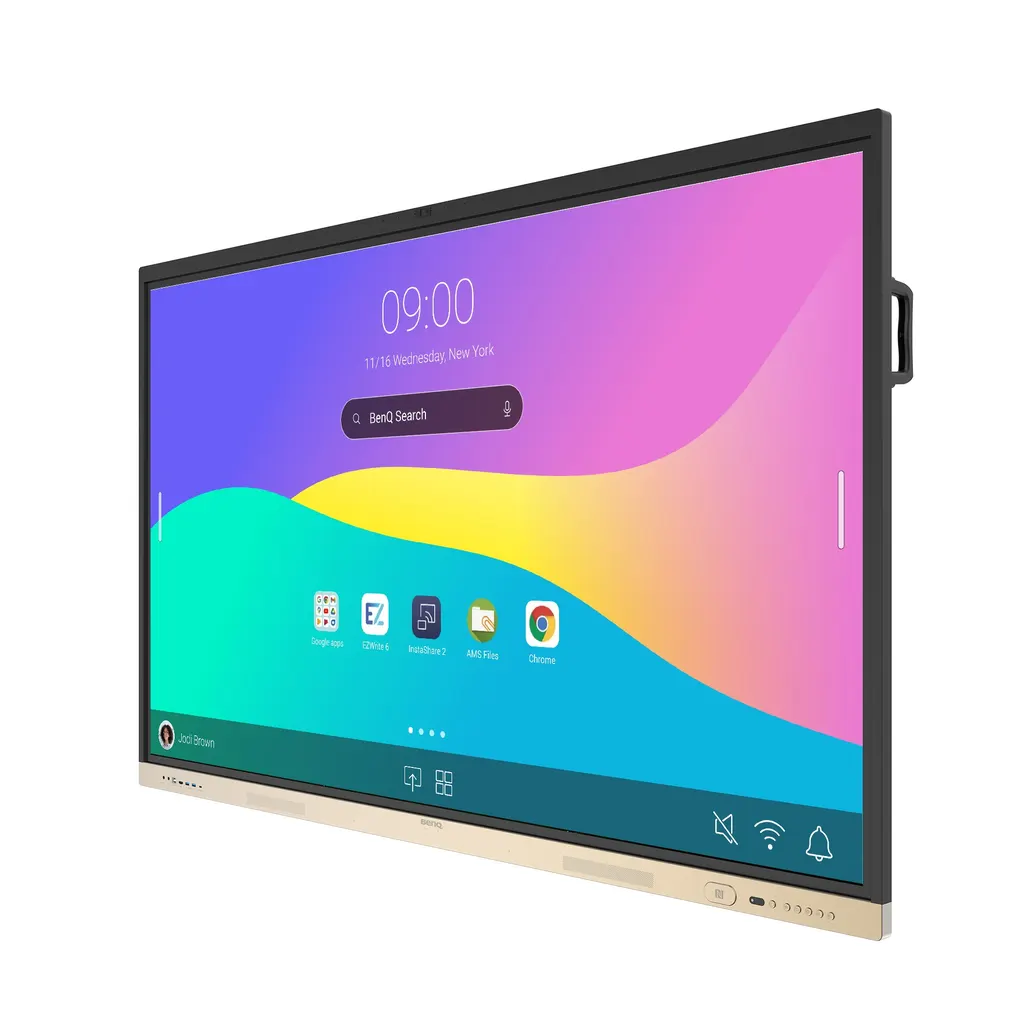

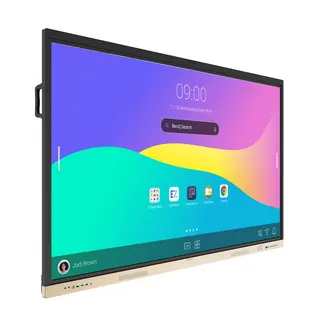

BenQ RE7504FV 75-inch Interactive Display

Screen size: 75''
Resolution: UHD 3840 × 2160 pixels
Touch: Precision IR
System: Android 14.0 (EDLA)

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The BenQ RE7504FV is a 75-inch interactive display built around a 4K UHD IPS panel with Precision IR touch for up to 40 touch points. It combines a 4K camera, an 8-microphone array and two 20 W speakers with an OPS slot for a Windows slot-in PC and USB-C charging at 65 W. Suited to meeting rooms in Doha, Lusail and Education City running hybrid meetings.

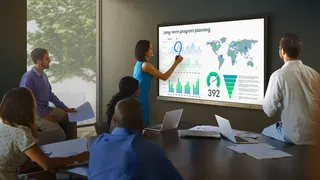

What the BenQ RE7504FV does in a meeting room

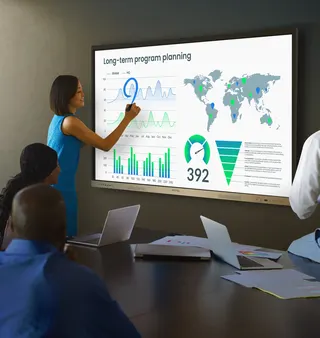

The BenQ RE7504FV is a 75-inch all-in-one interactive board from the BenQ Board Essential Series. It combines a touch display, a 4K camera, microphones, speakers and an Android-based system in one unit, so a room can run presentations, whiteboard sessions and video calls without assembling a separate PC, webcam and speakerphone.

The 3840 × 2160 IPS panel delivers 450 nits of typical brightness, a 1200:1 typical contrast ratio and 10-bit colour depth with a 72% NTSC colour gamut. Precision IR touch supports up to 40 touch points with a response time under 5 ms, and the 9H tempered glass has an anti-glare finish.

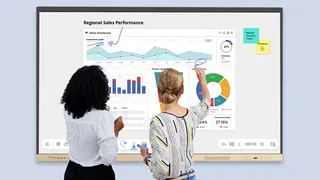

Presentation, whiteboarding and hybrid calls

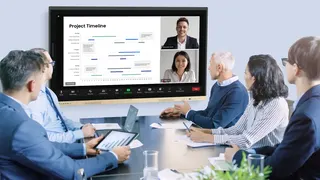

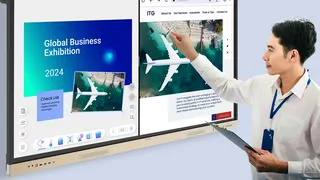

Presenters can share a laptop wirelessly through InstaShare 2 or connect by cable. The EZWrite 6.0 whiteboard software lets a team annotate content, save sessions and return to them later. For hybrid meetings, the 4K camera has a privacy cover, and the eight-microphone array is rated for pickup up to 8 m (26 ft). The board works with any video conferencing or UCaaS platform, so an organisation can keep the platform it already uses.

Where it fits in Qatar

Corporate boardroom in Lusail or West Bay: a leadership team joins calls with colleagues in other cities and countries on the platform the company already licenses, while the IT team manages the board remotely.
Government office in Msheireb: administrators push device and app policies from one console, while staff sign in with single sign-on and NFC tap-to-login.
Training room in Education City: lecturers present from a laptop over HDMI or USB-C, annotate slides directly on the screen and save notes for the next session.

Security and management for IT teams

Account separation and single sign-on keep user preferences, files, browsing data and app data with their rightful owners. Directory syncing works with Microsoft Entra ID, Google Workspace and other LDAP or SAML identity providers, so only registered users can access the board. Application control blocks unauthorised apps across all boards, and firmware and app updates are managed centrally.

What to plan before installation

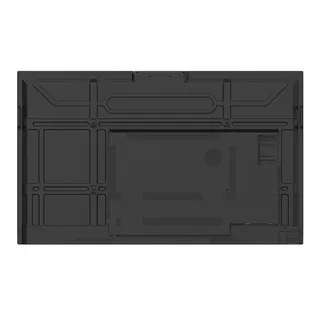

The unit measures 1716.5 × 1045.4 × 87.7 mm and weighs 49.6 kg, or 57 kg when shipped. It uses a VESA 800 × 600 mm mounting pattern with four M8 × 25 screws, and a wall mount is included. Because of its weight, SmartRooms Qatar recommends a free site survey before fixing it to a wall, to confirm the wall structure and access routes.

The operating range is 0°C to 40°C with 20 to 80% relative humidity, non-condensing. Outdoor temperatures in Qatar's summer can exceed 45°C, so plan an air-conditioned room away from direct sunlight through windows. Power input is 100 to 240 V at 50/60 Hz, with typical consumption of 73.9 W and standby below 0.5 W.

The box includes VGA, HDMI and USB-B touch cables (3 m each), a USB-C cable (1.5 m), two pens, a remote control and the wall mount. An OPS slot-in PC is not in the accessory list, so request one separately if you need Windows software.

To request a quote for the BenQ RE7504FV, tell SmartRooms Qatar the room size, wall type, number of units and whether you need a slot-in PC. Quotations are usually issued within one working day, and purchase orders are accepted. Request a quote today.

Highlights

75-inch 4K UHD IPS display at 3840 × 2160 resolution
Precision IR touch with up to 40 touch points
4K camera, 8-microphone array and 2 × 20 W speakers
OPS slot for a Windows slot-in PC
USB-C port with 65 W power delivery and three HDMI inputs
IP5X dust protection rating

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

67 specifications · Source: manufacturer · checked Oct 2026

Panel14

Screen size: 75''
Panel type: IPS
Active area: 1649.7 × 927.9 mm
Aspect ratio: 16:9
Resolution: UHD 3840 × 2160 pixels
Response time: 8 ms
Color depth: 10-bit
Orientation: Landscape
Operation hours: 18 hours / 7 days
Panel brightness (typical): 450 nits
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 30,000:1
Color gamut: 72% NTSC
Backlight life (typical): 50,000 hrs

Glass3

Germ-resistant technology: Availability dependent on region
Anti-glare: Yes | NA
Hardness: 9H tempered

Touch screen3

Touch technology: Precision IR
Touch points: up to 40
Touch response time: < 5 ms

System4

GPU: G52 MP8
CPU: A73 × 4 + A53 × 4
Memory | Storage: 8 GB | 128 GB (depends on region)
OS: Android 14.0 (EDLA)

Connectivity14

HDMI (in | out): 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort: 1 × 1.2a
USB-A: 2 × 2.0 + 2 × 3.0
USB-C: 1 × 2.0 + 1 × 3.0 (PD 65 W)
USB-B (for touch): 2 × 2.0
3.5 mm Line in (1): PC Audio × 1
VGA: 1
3.5 mm Line out: Earphone × 1
OPS slot (for slot-in PC): 1
Micro SD reader: ×1 (Expandable up to 512GB)
S/PDIF out: 0 | 1 (optical)
Ethernet: 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
3.5 mm Line in (2): Mic × 1
RS-232: 1

Built-in peripherals6

NFC sensor: Yes
Ambient light sensor: Yes
IR sensor: Yes
Microphone: 8-microphone array (range: up to 8 m | 26ft)
Speaker: 2 × 20 W (max)
Camera: 1

Power3

ENERGY STAR®: Yes
Power: AC 100-240V 50/60Hz
Typical power consumption: 73.9 W

Physical4

Dimensions (W x H x D): 1716.5 × 1045.4 × 87.7 mm (67.6 × 41.2 × 3.5 inch)
Shipping dimensions (W x H x D): 1860.0 × 1125.0 × 185.0 mm (73.2 × 44.3 × 7.3 inch)
Weight (product I shipping): 49.6 kg | 57 kg (109.4 lbs | 125.7 lbs)
Mount (screws): VESA 800 × 600 mm ( 4 × M8 × 25L)

Environment4

Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F
Storage temperature: -10°C ~ 60°C | 14°F ~ 140°F
Storage humidity: 10% ~ 80% RH non-condensing
Operating humidity: 20% ~ 80% RH non-condensing

Software8

Whiteboarding: EZWrite 6.0
Wireless screen sharing: InstaShare 2
Device management: DMS
Account management: AMS
Flicker Free: Yes
Quick access tool: Floating Tool
Broadcast system: X-Sign Broadcast
Low Blue Light: Yes

Accessories4

Cables: 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
Wall mount: 1
Pen: 2
Remote control: 1

Downloads

12 files from the manufacturer

Questions about RE7504FV

What is the BenQ RE7504FV and who is it for?

The RE7504FV is a 75-inch all-in-one interactive board for presentations, in-person meetings and video conferencing. It suits organisations that want one display to handle writing, screen sharing and calls in a single room, such as an office meeting room in West Bay or a training room in Education City. Its built-in camera, microphones and speakers mean most meetings do not need a separate conferencing device.

Is the RE7504FV compatible with my video conferencing platform?

The board is described as compatible with leading UCaaS solutions and can host or join meetings using any video conferencing or UCaaS solution. Before ordering, confirm that your platform's app is available on the board's Android system. SmartRooms Qatar can check the details for your setup when preparing the quotation, so you know what to expect before installation.

What do the camera and microphones cover?

The 4K camera includes a privacy cover, so staff can block the lens when it is not needed. The eight-microphone array is rated for pickup up to 8 metres (26 ft), and two 20 W speakers provide room audio. In a small meeting room where people sit close to the screen, this may remove the need for a separate speakerphone. Confirm room acoustics during the site survey.

Can a laptop connect to the board and charge at the same time?

Yes. The connectivity includes three HDMI 2.0 inputs, one DisplayPort 1.2a, VGA, and a USB-C port with 65 W power delivery. A presenter can connect a laptop over USB-C and keep it charged during a long session. USB-B connections are provided for touch input, and the board also has an HDMI 2.0 output.

Can I run Windows software on the board?

Yes, through the OPS slot. The board has one OPS slot, and a Windows slot-in PC can be plugged in to run specialised apps directly from the board. The OPS slot also has its own Ethernet connection. A slot-in PC is not in the accessory list, so request one separately in your quotation if your teaching or engineering software needs Windows.

Which accessories are included in the box?

The package includes one 3 m VGA cable, one 3 m HDMI cable, one 3 m USB-B cable for touch, one 1.5 m USB-C cable, one wall mount, two pens and one remote control. Cable lengths are useful for planning cable routes behind a wall-mounted panel. Confirm any extra cables, such as a longer HDMI run or a slot-in PC, when you request your quote.

Will the RE7504FV cope with Qatar's summer heat?

The operating temperature range is 0°C to 40°C, with 20 to 80% relative humidity, non-condensing. Outdoor summer temperatures in Qatar can exceed 45°C, so the board should be installed in an air-conditioned room, away from direct sunlight through windows or a sunlit lobby. The storage range is -10°C to 60°C. Confirm the room environment with the SmartRooms Qatar team during the site survey.

What are the power requirements for Qatar?

The power input is AC 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical power consumption is 73.9 W, and standby consumption is below 0.5 W. The specification marks the product as ENERGY STAR. Ask SmartRooms Qatar to confirm the power cable and socket arrangement for your site before installation.

How heavy is it and what kind of wall does it need?

The product weighs 49.6 kg and 57 kg when shipped, and it measures 1716.5 × 1045.4 × 87.7 mm. It uses a VESA 800 × 600 mm mounting pattern with four M8 × 25 screws, and a wall mount is included. Because of its weight, request a free site survey to check the wall structure, fixings and access route before the panel is delivered and mounted.

How secure is the board for a government or large corporate office?

It offers account separation and single sign-on, so user files and app data stay with their owners. Directory syncing works with Microsoft Entra ID, Google Workspace and other LDAP or SAML providers, so only registered users can access the board. NFC one-tap login avoids manual credential entry, and application control blocks unauthorised apps on all boards managed from one console.

What software comes with the RE7504FV?

The software list includes EZWrite 6.0 for whiteboarding, InstaShare 2 for wireless screen sharing, a Floating Tool for quick access, DMS for device management, AMS for account management, and X-Sign Broadcast. Flicker Free and Low Blue Light features are also listed. IT teams can use the device and account management tools to register boards, configure settings and regulate user access.

Can a school or company buy several units on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. A school fitting out several classrooms or a company equipping multiple meeting rooms can request one quotation covering all units, with delivery to any of Qatar's 8 municipalities.
