RM5502K

What the RM5502K is built to do

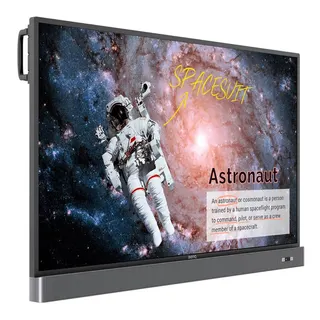

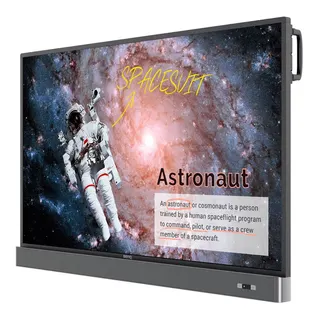

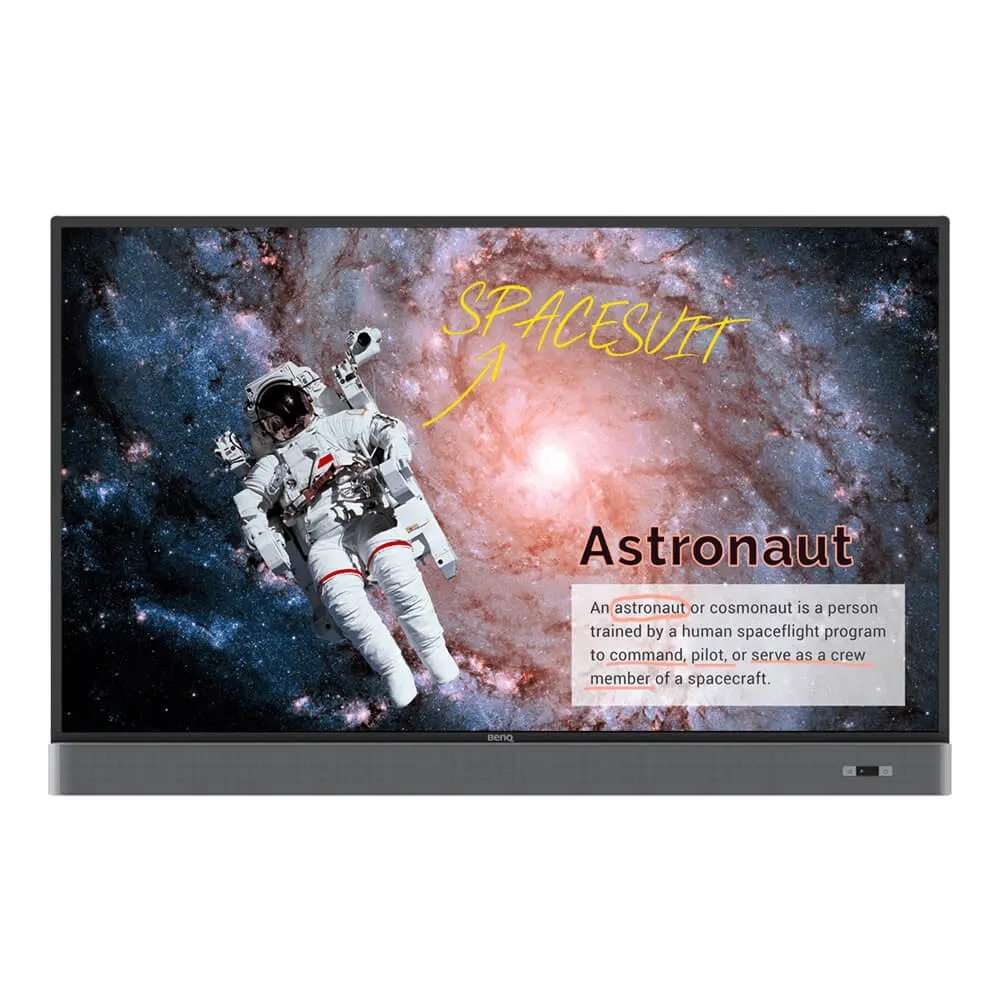

The BenQ RM5502K is a 55-inch education interactive flat panel from the BenQ Board Master RM02K series. Its VA panel runs at 3840 × 2160 pixels and offers 400 nits typical brightness, a 5000:1 typical contrast ratio, 10-bit colour depth and a 68% NTSC colour gamut. The 8.5 ms response time keeps moving content clear, and the listed operation is 18 hours a day across seven days.

Touch is handled by an infrared layer with 20 touch points and a touch response under 8 ms, so several students can write on the glass at the same time without the board falling behind.

Annotation, cloud files and shared writing

EZWrite 5.0 is the whiteboard software included with the panel. Its floating tool lets a teacher write over any app, video, website or document, and capture all or part of the screen. Two pens let two users write in different colours at once, and handwriting recognition turns written text, numbers and drawings into digital text without switching modes.

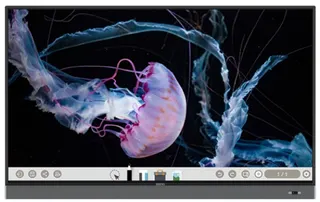

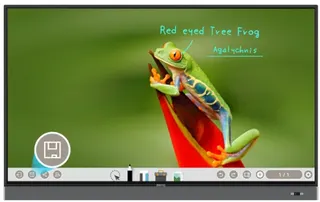

EZWrite 5 can also open and save files to cloud services such as Google Drive and Dropbox, so a lesson prepared at home can be opened directly on the panel in class.

Connections, speakers and expansion

• Three HDMI 2.0 inputs and one HDMI 2.0 output for a second screen
• One VGA input, two USB-B touch ports and five USB-A ports across USB 2.0 and 3.0
• An OPS slot for a slot-in PC, plus an Ethernet port rated up to 1000 Mbps, RS-232 and an optical S/PDIF output
• Two 16 W front-facing speakers and a mic-in port for an external microphone

Planning the installation in Qatar

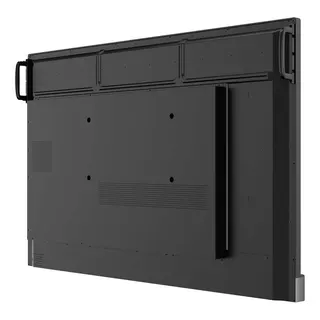

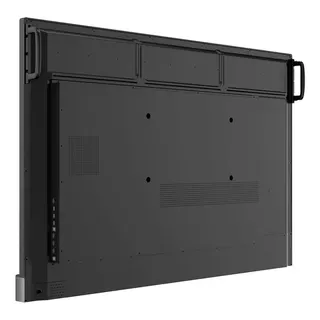

The panel measures 1268.1 × 814.5 × 115.6 mm and weighs 29.3 kg without packaging, or 37.1 kg in shipping packaging. It mounts on a VESA 400 × 200 mm pattern using M8 screws, and a wall mount is included. Before fixing it to a wall, a free site survey from SmartRooms Qatar can confirm the wall structure, the height for seated pupils and the power and cable route.

The operating range is 0°C to 40°C at 10% to 90% relative humidity, non-condensing. Summer temperatures in Qatar can exceed 45°C, so the panel belongs in an air-conditioned room, away from direct sunlight and window glare. Confirm the room climate with the SmartRooms Qatar team during the survey. The power input is AC 100–240 V, 50/60 Hz, with typical consumption of 102 W and standby below 0.5 W.

Where it fits in Qatar

• A primary classroom in Al Wakrah being refitted one room at a time, where a 55-inch panel suits the space
• A meeting room in West Bay where a team in Doha joins colleagues abroad and annotates the same document
• A training centre near Education City with several teaching rooms, each using the same EZWrite workflow

For a school ordering several units, one purchase order (LPO) can cover the whole project, and SmartRooms Qatar delivers to all eight municipalities of Qatar. Quotations are usually issued within one working day. Send your room sizes and mounting details and request a quote for the RM5502K today.
