RM6504

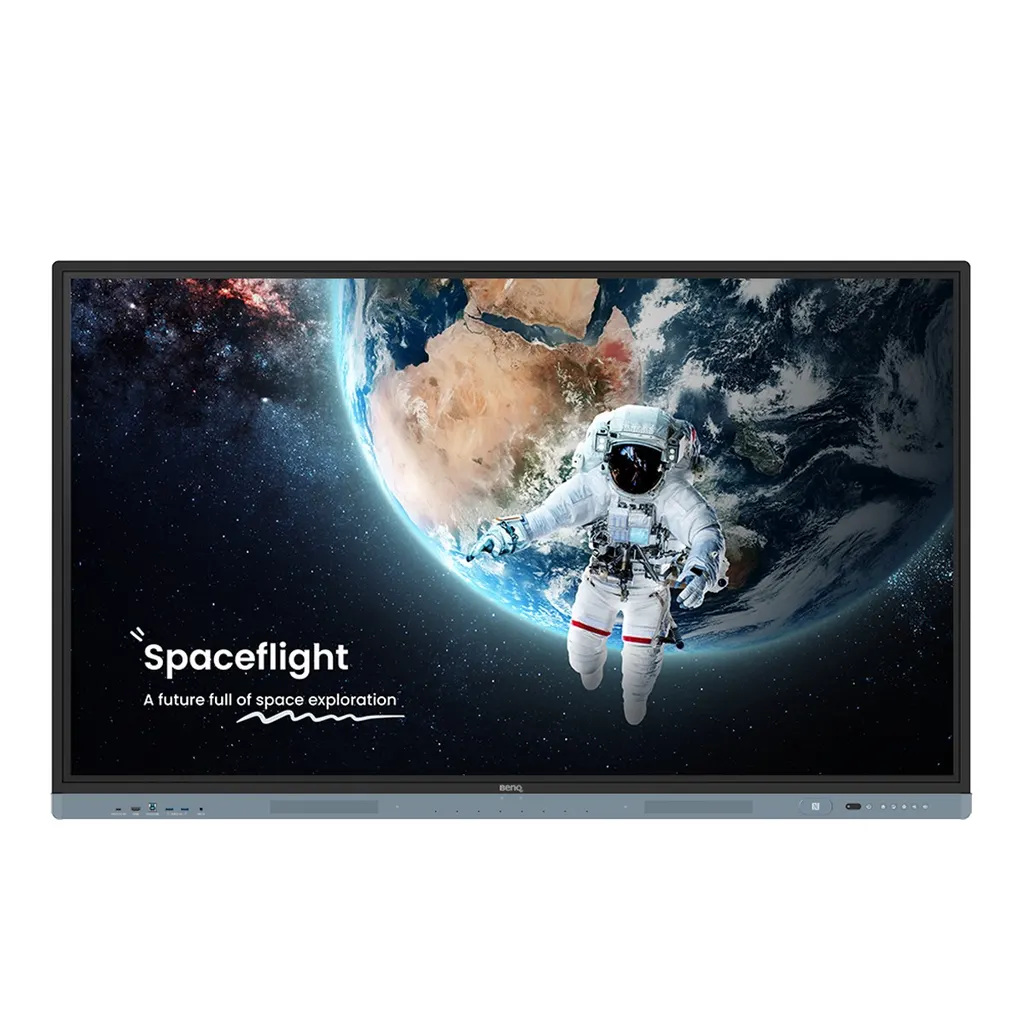

BenQ Board Master RM6504 65-inch Interactive Display

Screen size: 65''
Resolution: UHD 3840 × 2160 pixels
Touch: High Precision IR
System: Android 13 (EDLA)

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The BenQ Board Master RM6504 is a 65-inch 4K UHD interactive display with a 450-nit IPS panel, 40-point high precision IR touch and an 8-microphone array. Its USB-C port delivers 65 W, and an OPS slot takes a slot-in PC. It suits schools, training centres and meeting rooms in Doha and across Qatar that need one screen for teaching, presenting and video calls.

A 65-inch 4K display built for lessons and meetings

The BenQ Board Master RM6504 is a 65-inch interactive display from the RM04 series. Its 3840 × 2160 IPS panel, touch layer and whiteboard software let one screen run lessons, group activities and video calls. An Android-based system with EDLA certification provides Google core services, and an OPS slot is available for a slot-in PC when a room needs a computer built into the display setup.

Specifications that shape daily use

Panel: 450 nits typical brightness, 1,200:1 typical contrast, 10-bit colour and an anti-glare finish, which helps in rooms with daylight.
Touch: High Precision IR with up to 40 touch points and a response time below 5 ms.
Glass: 9H tempered glass with a germ-resistant nano-ionic silver treatment, a flicker-free panel and low blue light.
Audio: two 20 W speakers and an 8-microphone array that picks up voices up to 8 m.
Connectivity: three HDMI 2.0 inputs, DisplayPort 1.2a, USB-C with 65 W power delivery, two Ethernet ports, RS-232 and optional Wi-Fi 6.
Accessories: two pens, one remote control, one wall mount, and VGA, HDMI, USB-B touch and USB-C cables.

Where the RM6504 fits in Qatar

In Al Rayyan, a secondary school refitting its science labs and classrooms can use this 65-inch size in a room where students gather around the board, and the 40-point touch lets several students work at once. In West Bay, a corporate boardroom that connects with colleagues abroad benefits from the array microphones and from a USB-C port that can charge a laptop while it is connected. At a training centre in Education City, the display can serve as a presentation screen for workshops, with EZWrite 6.0 for annotation.

Planning the installation, power and environment

The panel weighs 37.8 kg and the shipping carton weighs 51.5 kg, so plan for two people and a wall that can take the load. The VESA pattern is 600 × 400 mm, and the included wall mount fixes to it. Operating temperature is 0°C to 40°C. In Qatar's summer, when outdoor temperatures can pass 45°C, install the display in an air-conditioned room away from direct sunlight, and confirm the space with the SmartRooms Qatar team. The rated input is 100-240V at 50/60Hz with typical consumption of 106.1 W. The accessory list does not include a power cable, so confirm the plug type for BS 1363 sockets before ordering.

SmartRooms Qatar offers free site surveys before wall mounting, professional installation across Qatar, and quotations usually within one working day. Request a quote for the BenQ RM6504 and tell us the room size, the number of units and the mounting location.

Highlights

3840 × 2160 IPS panel with 10-bit colour depth
450 nits typical brightness and 1,200:1 typical contrast
High Precision IR touch with up to 40 touch points
USB-C port with 65 W power delivery
One OPS slot for a slot-in PC, plus two Ethernet ports
Eyesafe Certified 2.0 panel, flicker-free with low blue light

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

74 specifications · Source: manufacturer · checked Oct 2026

Panel14

Screen size: 65''
Panel type: IPS
Active area: 1428.3 × 803.4 mm
Aspect ratio: 16:9
Resolution: UHD 3840 × 2160 pixels
Response time: 8 ms
Color depth: 10-bit
Orientation: Landscape
Operation hours: 18 hours / 7 days
Panel brightness (typical): 450 nits
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 50,000:1
Color gamut: 72% NTSC
Backlight life (typical): 50,000 hrs

Glass3

Germ-resistant technology: Nano-ionic silver
Anti-glare: Yes
Hardness: 9H tempered

Touch screen3

Touch technology: High Precision IR
Touch points: up to 40
Touch response time: < 5 ms

Connectivity16

HDMI (in | out): 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort: 1 × 1.2a
USB-A: 5 × 3.0, 2 × 2.0
USB-C: 1 × 3.0 (PD 65 W), 2 × 3.0
USB-B (for touch): 3 × 3.0
3.5 mm Line in (1): Mic × 1
VGA: 1
3.5 mm Line out: Earphone × 1
OPS slot (for slot-in PC): 1
Micro SD reader: N/A
Wi-Fi: Wi-Fi 6 (optional)
Bluetooth®: Bluetooth 5.2
S/PDIF out: 1 (optical)
Ethernet: 2
3.5 mm Line in (2): PC Audio × 1
RS-232: 1

Built-in peripherals10

NFC sensor: Yes
Ambient light sensor: Yes
IR sensor: Yes
Motion sensor: N/A
Microphone: 8-microphone array (range: up to 8 m | 26ft)
Speaker: 2 × 20 W (max)
Camera: N/A
Air sensor: N/A
Subwoofer: N/A
Air Ionizer: N/A

Power3

ENERGY STAR®: Yes
Power: AC 100-240V 50/60Hz
Typical power consumption: 106.1 W

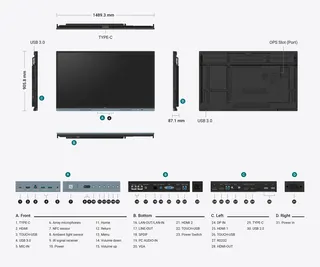

Physical5

Dimensions (W x H x D): 1489.3 × 905.8 × 87.1 mm (58.6 × 35.7 × 3.4 inch)
Shipping dimensions (W x H x D): 1640.0 × 1010.0 × 185.0 mm (64.6 × 39.8 × 7.3 inch)
Weight (product I shipping): 37.8 kg | 51.5 kg (83.3 lbs | 113.5 lbs)
Mount (screws): VESA 600 × 400 mm ( 4 × M8 × 25L)
Pen Tray: N/A

Environment4

Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F
Storage temperature: -10°C ~ 60°C | 14°F ~ 140°F
Storage humidity: 10% ~ 80% RH Non-Condensing
Operating humidity: 20% ~ 80% RH non-condensing

Software8

Whiteboarding: EZWrite 6.0
Wireless screen sharing: InstaShare 2
Device management: DMS
Account management: AMS
Flicker Free: Yes
Quick access tool: Floating Tool
Broadcast system: X-Sign Broadcast
Low Blue Light: Yes

Accessories4

Cables: 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
Wall mount: 1
Pen: 2
Remote control: 1

System4

GPU: Arm Mali-G52 MP8
CPU: Arm Cortex-A73 × 4 + A53 × 4
Memory | Storage: 8 GB | 32 GB/128 GB
OS: Android 13 (EDLA)

Downloads

15 files from the manufacturer

PDF Datasheets BQP-RM04-Series-eBrochure.pdf 24.1 MB PDF Manuals & guides IH_EN_260519104241.pdf 14.5 MB PDF Manuals & guides PCFS_G_241220164121.pdf 23 KB PDF Manuals & guides RCUM_EN_250616104132.pdf 968 KB PDF Manuals & guides RS232 & LAN Command List_2.00_Others.pdf 576 KB PDF Manuals & guides UM_AR_250221090059.pdf 7.5 MB PDF Manuals & guides UM_EN_250221090059.pdf 7.4 MB PDF Manuals & guides · Opens on manufacturer site AMS_EN_250819160158.pdf PDF Manuals & guides · Opens on manufacturer site DMS Local_EN_251223091035.pdf ZIP Drawings & CAD · Opens on manufacturer site RM6504_Display Drawing_4_Others.zip ZIP Drawings & CAD · Opens on manufacturer site Wallmount Drawing_01_Others_260831140218.zip PDF Certificates & compliance RM6504_DM_EN_231201131959.pdf 949 KB PDF Certificates & compliance RM6504_PCF_EN_241120113540.pdf 266 KB ZIP Software & firmware · Opens on manufacturer site Additional Driver to Support Gesture_Mac_10.14-newer_v07.01_199_Mac_260618103552.zip ZIP Software & firmware · Opens on manufacturer site Additional Driver to Support Gesture_Mac_OS_10.8-10.13_v06.00_771_Mac_260618103442.zip

Questions about RM6504

What is the BenQ RM6504 and who is it for?

The RM6504 is a 65-inch 4K UHD interactive display from the BenQ Board Master RM04 series, with a touch layer, EZWrite whiteboard software and an EDLA-certified Android system. It suits primary and secondary schools, universities, training centres and corporate meeting rooms that need one screen for lessons, presentations and video calls. Its 3840 × 2160 resolution keeps small text readable at the back of a classroom.

What panel, brightness and colour performance does it offer?

It uses an IPS panel with 3840 × 2160 pixels, 10-bit colour depth, 450 nits typical brightness and a 1,200:1 typical contrast ratio. The colour gamut is listed at 72% NTSC and the response time at 8 ms. The 450-nit figure matters in rooms with daylight through windows, where a display with lower brightness can look washed out. The SmartRooms Qatar team can review your room lighting before you order.

Can it run in Qatar's summer heat in a school hall or lobby?

The operating range is 0°C to 40°C, and summer temperatures in Doha can exceed 45°C, so the RM6504 should be installed in an air-conditioned room and kept away from direct sunlight through windows. Its storage range is -10°C to 60°C, which covers transport and storage. Lobbies, entrances and open-air spaces are not recommended until the environment has been confirmed with the SmartRooms Qatar team.

Which ports can I use to connect laptops, PCs and other sources?

The display provides three HDMI 2.0 inputs, one HDMI 2.0 output, a DisplayPort 1.2a input and a VGA input. Its USB-C port offers 65 W power delivery, so it can charge a compatible laptop while extending the laptop screen. There are also USB-A and USB-B ports for touch, 3.5 mm line-in and line-out connections, and an optical S/PDIF output. Check your laptop's video output before buying adapters.

What is the OPS slot for, and does the display include a PC?

The RM6504 has one OPS slot for a slot-in PC, a compact computer module that sits inside the display. It lets you run PC-based applications without a desktop computer beside the screen. A slot-in PC is not included in the accessory list for this model, so budget for it separately. Tell the SmartRooms Qatar team which operating system and software you need before choosing the module.

How well does the touch work when several students write at once?

The High Precision IR touch layer supports up to 40 touch points and has a touch response time below 5 ms. That lets several students write or move objects during group work at the same time. The glass is 9H tempered, and the manufacturer describes a zero gap between glass and panel, which helps writing feel closer to paper. Two pens and a remote control are included in the box.

Is the audio enough for a boardroom or a larger lecture hall?

The RM6504 has two 20 W speakers and an 8-microphone array that picks up voices up to 8 m away. That suits a boardroom in West Bay or a classroom in Al Sadd. For a lecture hall with a wider audience, the sound coverage should be confirmed with the SmartRooms Qatar team, as an external sound system may be needed.

What wireless and network options does it have?

The display has Bluetooth 5.2, an NFC sensor, two Ethernet ports and optional Wi-Fi 6. Because Wi-Fi 6 is listed as optional, confirm with the SmartRooms Qatar team whether your order includes it before planning a wireless setup. NFC lets staff log in with a card, and Ethernet gives a wired connection for video conferencing in a room where the wireless network is busy.

What software is included, and can IT manage several boards centrally?

The software set includes EZWrite 6.0 for whiteboarding, InstaShare 2 for wireless screen sharing and X-Sign Broadcast for messages across displays. It also includes DMS for device management and AMS for account management. IT staff can monitor devices, push firmware updates and set startup and shutdown times from one dashboard, and sync user lists with Google Workspace or Microsoft Entra ID.

How much power does it use, and will it run on Qatar's supply?

Typical power consumption is 106.1 W, and standby draw is below 0.5 W. The power input is rated AC 100-240V at 50/60 Hz, which covers the 240 V, 50 Hz mains supply used in Qatar. The accessory list does not include a power cable, so ask the SmartRooms Qatar team to confirm the plug fitting for BS 1363 sockets before installation. The display is also listed as ENERGY STAR certified.

What do I need to plan for wall mounting in a new office or school?

The panel weighs 37.8 kg and the shipping carton weighs 51.5 kg, so two people should handle it. The VESA pattern is 600 × 400 mm with four M8 screws, and one wall mount is included. Overall dimensions are 1489.3 × 905.8 × 87.1 mm. For a new fit-out in Lusail or The Pearl, a free site survey confirms the wall structure, mounting height and cable routes before installation.

Can a school or government entity order several units under one purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A school fitting out several classrooms with RM6504 units can place one LPO covering all the displays, mounts and cables listed in the quotation. Each unit includes two pens, one remote, one wall mount and four cables: VGA, HDMI, USB-B for touch and USB-C.
