BenQ Board Master RM6505 65-inch Interactive Display

Name: BenQ Board Master RM6505 65-inch Interactive Display
Brand: BenQ
SKU: benq-rm6505
Availability: InStock

Overview

The BenQ Board Master RM6505 is a 65-inch 4K interactive display for classrooms and meeting rooms in Qatar. It runs Android 15 with Google EDLA certification, offers a 10-bit IPS panel with up to 50 touch points, and includes an OPS slot for a slot-in PC. Suited to a classroom in Al Wakrah or a meeting room in West Bay. Request a quote for supply and installation.

What the BenQ Board Master RM6505 is

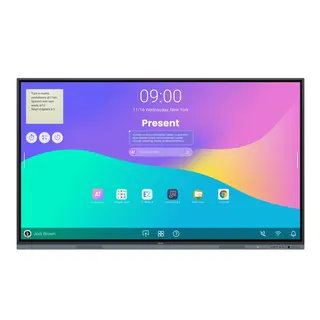

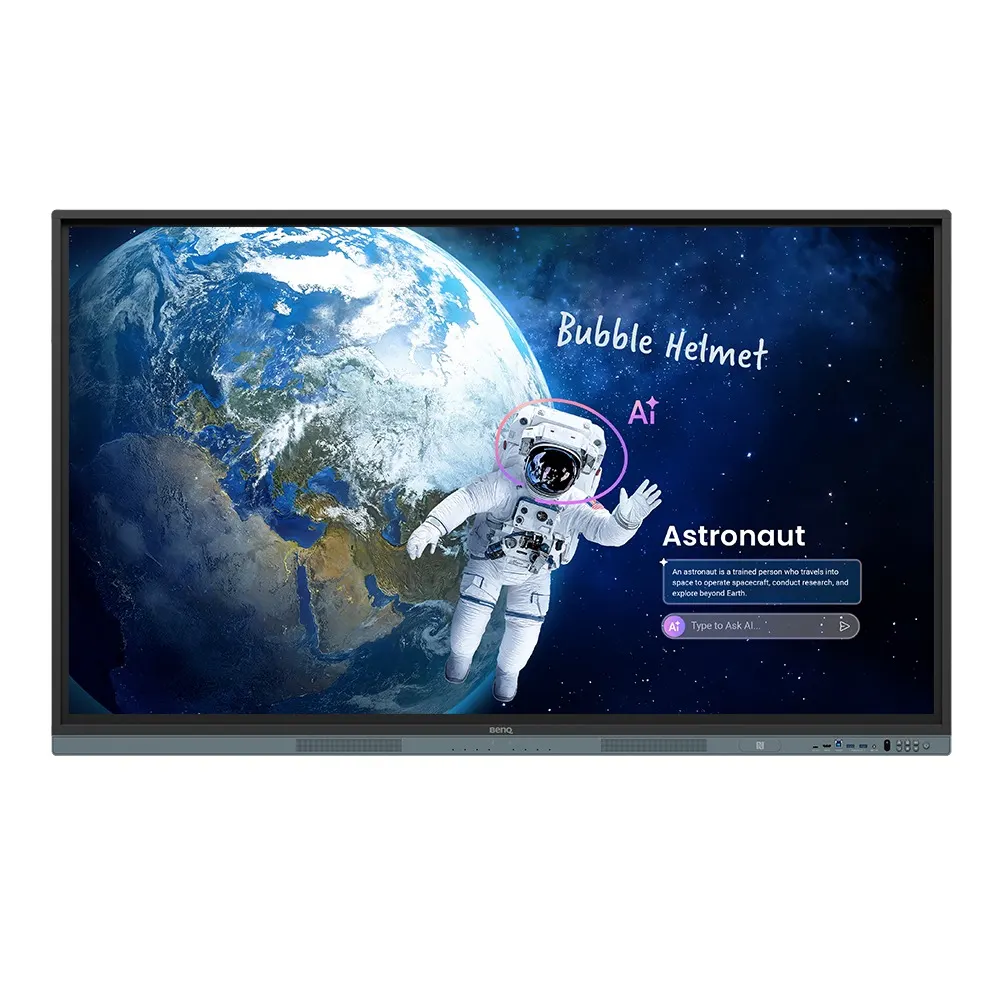

The BenQ Board Master RM6505 is a 65-inch interactive display from the RM05 series, built on a 16:9 IPS panel at UHD 3840 × 2160 resolution. It combines a large touch surface, the Android 15 operating system and an OPS slot for a slot-in PC in one unit, so a teacher or presenter can start a lesson or meeting without a separate computer on the desk. The RM05 4K range also includes the 75-inch RM7505 and 86-inch RM8605, which makes the 65-inch RM6505 the most compact option in that line-up for smaller rooms.

Display, touch and audio figures

These figures come from the manufacturer's specification for this model.

Panel: 10-bit colour depth, 450 nits typical brightness, 1,500:1 typical contrast ratio and 8 ms response time.
Touch: High Precision IR with up to 50 touch points and a touch response time below 5 ms.
Glass: 9H tempered glass with an anti-glare finish and nano-ionic silver germ-resistant treatment.
Audio: 2 × 25 W speakers and an 8-microphone array that picks up voices up to 12 m away.
Sensors: ambient light, IR and NFC sensors are built in.

Fifty touch points suit group work at the board, and the microphone range suits a teacher or presenter moving across the front of the room.

Software, ports and remote management

The RM6505 runs Android 15 with Google EDLA certification and Google Play support. For IT teams, directory sync can create accounts from existing identity records through Google, Microsoft, ClassLink and Clever, plus other identity services, and single sign-on lets users reach their workspace with existing credentials. Device management (DMS) and account management (AMS) are part of the software set, alongside EZWrite 6.0 for whiteboarding, InstaShare 2 for wireless screen sharing and the Floating Tool for notes placed over other apps.

Video inputs: 3 × HDMI 2.0 in, 1 × HDMI 2.0 out, 1 × DisplayPort 1.2a and 1 × VGA.
USB: USB-C ports (one 2.0, one 3.0, with 65 W Power Delivery), 3 × USB-B for touch, and 7 USB-A ports.
Network: Ethernet at 10/100/1000 Mbps. Wi-Fi 6 and Bluetooth 5.2 are listed as optional.
Expansion: one OPS slot for a slot-in PC, a micro SD reader and an S/PDIF optical output.

Planning a Qatar installation

The panel measures 1488.4 × 903.3 × 98.4 mm and weighs 30.2 kg without packaging, or 39.3 kg shipped. It mounts to a VESA 600 × 400 mm pattern with four M8 screws, and one wall mount is included. At this width and weight, a site survey is worth doing before drilling. It confirms wall construction, load capacity and cable routes for the HDMI, USB-B touch and USB-C leads. SmartRooms Qatar offers free site surveys before installation.

The operating range is 0°C to 40°C at 10% to 90% relative humidity, non-condensing. Qatar summer temperatures exceed 45°C, so the display belongs in an air-conditioned room, away from direct sun through windows. The power input is listed as 100 to 240 V, 50/60 Hz, which covers the 240 V, 50 Hz supply used in Qatar. Typical power consumption is 83.4 W and standby is below 0.5 W.

Where it fits in Qatar

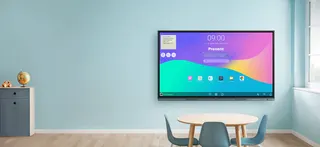

A primary classroom in Al Wakrah: one 65-inch board at the front, with individual teacher logins through single sign-on.
A training room in Msheireb: trainees share laptop and phone screens wirelessly through InstaShare 2, then use the whiteboard for group exercises.

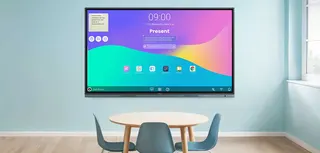

A team meeting room in West Bay: a compact display where the 8-microphone array picks up speakers across the table.

Schools and government offices can order through a purchase order (LPO). SmartRooms Qatar supplies all eight municipalities of Qatar and supports government tenders, including Monaqasat. Request a quote for the RM6505 and tell us the room size, the wall type and the number of units. The team will reply with a quotation, usually within one working day.

Highlights

65-inch 4K UHD IPS panel at 3840 × 2160 pixels
Android 15 with Google EDLA certification and Google Play
High Precision IR touch with up to 50 touch points
OPS slot for a slot-in PC
Directory sync and single sign-on for IT teams
Operating range 0°C to 40°C; keep in air-conditioned rooms

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

76 specifications · Source: manufacturer · checked Oct 2026

Panel14

Screen size: 65''
Panel type: IPS
Active area: 1428.5 × 803.5 mm
Aspect ratio: 16:9
Resolution: UHD 3840 × 2160 pixels
Response time: 8 ms
Color depth: 10-bit
Orientation: Landscape
Operation hours: 18 hours / 7 days
Panel brightness (typical): 450 nits
Contrast ratio (typical): 1500:1
Dynamic contrast ratio: 50,000:1
Color gamut: 72% NTSC
Backlight life (typical): 50,000 hrs

Glass3

Germ-resistant technology: Nano-ionic silver
Anti-glare: Yes | NA
Hardness: 9H tempered

Touch screen3

Touch technology: High Precision IR
Touch points: up to 50
Touch response time: < 5 ms

Connectivity17

HDMI (in | out): 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort: 1 × 1.2a
USB-A: 3 × 2.0 + 4 × 3.0
USB-C: 1 × 2.0 + 1 × 3.0 (PD 65 W)
USB-B (for touch): 3 × 3.0
3.5 mm Line in (1): Mic × 1
USB-C out: 1 x Type-C (2.0 data / video out / audio out / touch)
VGA: 1
3.5 mm Line out: Earphone × 1
OPS slot (for slot-in PC): 1
Micro SD reader: 1
Wi-Fi: Wi-Fi 6 (optional)
Bluetooth®: Bluetooth 5.2 (optional)
S/PDIF out: 1 (optical)
Ethernet: 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
3.5 mm Line in (2): PC Audio × 1
RS-232: 1 | 0

Built-in peripherals10

NFC sensor: Yes
Ambient light sensor: Yes
IR sensor: Yes
Motion sensor: N/A
Microphone: 8-microphone array (range: up to 12 m | 39ft)
Speaker: 2 × 25 W
Camera: N/A
Air sensor: N/A
Subwoofer: N/A
Air Ionizer: N/A

Power3

ENERGY STAR®: Yes
Power: AC 100-240V 50/60Hz
Typical power consumption: 83.4 W

Physical5

Dimensions (W x H x D): 1488.4 × 903.3 × 98.4 mm (58.6 × 35.6 × 3.9 inch)
Shipping dimensions (W x H x D): 1628 × 1014 × 185 mm (64.1 × 39.9 × 7.3 inch)
Weight (product I shipping): 30.2 kg | 39.3 kg (66.6 lbs | 86.6 lbs)
Mount (screws): VESA 600 × 400 mm ( 4 × M8 × 25L)
Pen Tray: N/A

Environment4

Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F
Storage temperature: -20°C ~ 60°C | -4°F ~ 140°F
Storage humidity: 10% ~ 90% RH non-condensing
Operating humidity: 10% ~ 90% RH non-condensing

Software8

Whiteboarding: EZWrite 6.0
Wireless screen sharing: InstaShare 2
Device management: DMS
Account management: AMS
Flicker Free: Yes
Quick access tool: Floating Tool
Broadcast system: X-Sign Broadcast
Low Blue Light: Yes

Accessories4

Cables: 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
Wall mount: 1
Pen: 2
Remote control: 1

System5

GPU: Arm Mali-G57 MC2
CPU: Arm Cortex-A78 × 2 + A55 × 6
NPU: 10 TOPS
Memory | Storage: 8GB | 128GB
OS: Android 15.0 (EDLA)

Downloads

8 files from the manufacturer

PDF Datasheets benq-board-master-rm05-ebrochure.pdf 4.5 MB PDF Manuals & guides IH_EN_260519104241.pdf 14.5 MB PDF Manuals & guides RS232&LAN Command List_01_Others_260331133236.pdf 650 KB PDF Manuals & guides UM_EN_260325095656.pdf 20.0 MB ZIP Drawings & CAD · Opens on manufacturer site RM6505_Display Drawing_1_Others_251105151243.zip ZIP Drawings & CAD · Opens on manufacturer site Wallmount Drawing_1.00_Others_260922163728.zip PDF Certificates & compliance RM6505_PCF_EN_260129150902.pdf 260 KB ZIP Software & firmware · Opens on manufacturer site Additional Driver to Support Gesture_Mac_1.0.1.63_Mac_260730130228.zip

Questions about RM6505

Who is the BenQ RM6505 designed for?

The RM6505 suits primary and secondary classrooms, training rooms and smaller meeting rooms where a teacher or presenter needs one large touch surface. Its 65-inch 4K panel gives students seated at desks a clear view, and the Android 15 system with Google Play support runs apps without a separate laptop. Many schools pick this size for rooms too small for the 75-inch or 86-inch versions.

How does the RM6505 compare with the 75-inch and 86-inch RM05 models?

The RM6505 is the 65-inch member of the RM05 4K UHD series, alongside the RM7505 at 75 inches and the RM8605 at 86 inches. The source data lists all three with Android 15 and 8GB RAM with 128GB storage. The main practical difference is screen size, so the 65-inch model is the narrower option for a smaller room, while the larger models suit lecture halls and boardrooms.

Can the RM6505 go in a classroom without air conditioning?

No. The operating range is 0°C to 40°C at 10% to 90% relative humidity, non-condensing, while Qatar summer temperatures exceed 45°C. Install it in an air-conditioned room, not a hot store, a sunlit corridor or an open-sided hall. If the room's cooling is unreliable in summer, confirm the environment with the SmartRooms Qatar team before installation.

Does the RM6505 work with Qatar's 240 V power supply?

The power input is listed as AC 100 to 240 V at 50/60 Hz, which covers the 240 V, 50 Hz mains used in Qatar. Typical power consumption is 83.4 W, and standby consumption is below 0.5 W. When you request a quote, ask the SmartRooms Qatar team to confirm the plug arrangement and outlet position so electrical work is planned before the panel arrives.

Which ports do I need to connect a laptop and a desktop PC?

The RM6505 has three HDMI 2.0 inputs, one HDMI 2.0 output, a DisplayPort 1.2a input and a VGA port. One USB-C port offers 65 W Power Delivery, which can charge a compatible laptop while it connects. Three USB-B ports handle touch. The box includes a 3 m HDMI cable, a 3 m USB-B cable and a 1.5 m USB-C cable.

What is the OPS slot, and does the RM6505 need a PC to run?

The display runs on its own Android 15 system with 8GB RAM and 128GB storage, so a separate PC is not required. The OPS slot accepts a slot-in PC when a school or office needs full computer software inside the display, and two OPS Ethernet ports sit beside it at 10/100/1000 Mbps. Confirm your software needs before requesting a quote so the requirement is included in the quotation.

How many touch points does the RM6505 support?

It uses High Precision IR touch with up to 50 touch points and a touch response time below 5 ms. This helps in classrooms where several students write or drag objects at the same time, and in training rooms where a group works through one exercise on the board. Two pens are supplied, and EZWrite 6.0 offers writing, templates and sections for group activities.

Can IT teams manage many RM6505 displays and student accounts centrally?

Yes. The software set includes DMS for device management and AMS for account management. Directory sync supports Google, Microsoft, ClassLink, Clever and other identity providers, so accounts can be created from existing records without manual setup for each user. Single sign-on gives teachers a personal workspace with app shortcuts and cloud storage, so a school with several classrooms can apply the same process to every display.

What wall space and weight should I plan for when wall-mounting it?

The panel measures 1488.4 × 903.3 × 98.4 mm and weighs 30.2 kg without packaging, or 39.3 kg shipped. It mounts to a VESA 600 × 400 mm pattern with four M8 screws, and one wall mount is included. Because the panel is wide and heavy, SmartRooms Qatar offers a free site survey to check wall construction, load capacity and cable routes. Two people should handle the unit during mounting.

How can staff in a West Bay meeting room share laptop screens wirelessly?

The RM6505 supports wireless screen sharing with InstaShare 2. Staff can cast from a laptop or mobile device, sharing the full screen, a single app, or media such as photos, videos, camera feeds or Office files. The Floating Tool lets presenters add notes on top of other apps during a meeting. Wi-Fi 6 is an optional module, so confirm the wireless setup with the SmartRooms Qatar team if your building network is fixed.

Can a government office buy the RM6505 through an LPO or a tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and supports government tenders, including those on Monaqasat, for supply and installation across Qatar's eight municipalities. Payment can be made by bank transfer, cheque or purchase order. When you request a quote, send the room details, number of units and wall type. The team will reply with a quotation, usually within one working day.
