BenQ Interactive Flat Panels Current

RM7503

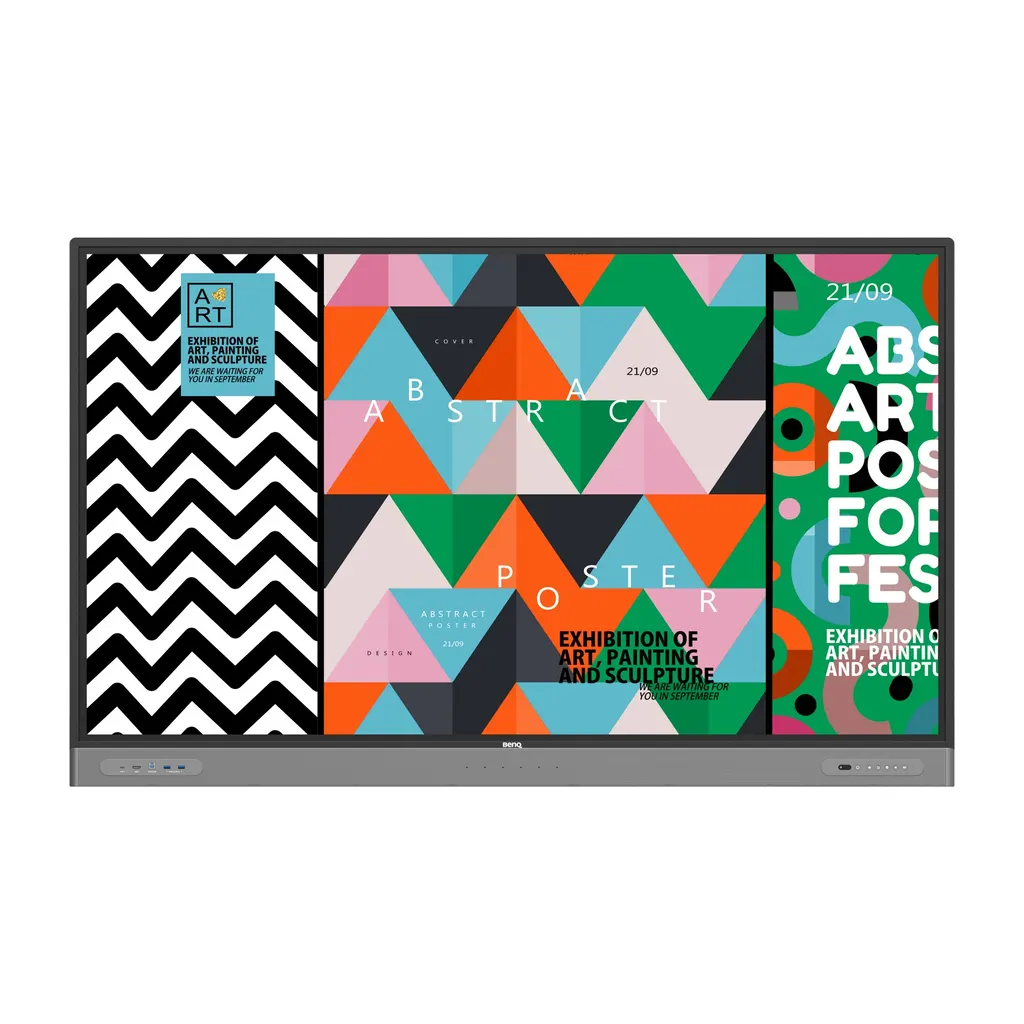

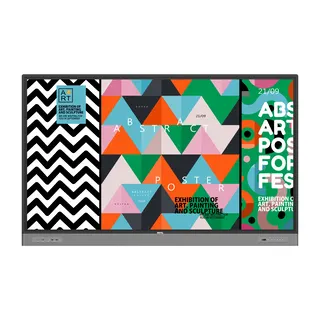

BenQ Board Master RM7503 75-inch Interactive Display

Screen size: 75''
Resolution: UHD 3840 × 2160 pixels
Touch: Infrared touch
System: Android 9.0

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The BenQ Board Master RM7503 is a 75-inch UHD interactive display with an IPS panel, 40-point infrared touch and an OPS slot for a Windows PC. Built-in 6-microphone array and 2 x 16 W speakers support calls, and InstaShare 2 shares up to nine screens. Suited to Doha boardrooms, training rooms and university seminar rooms. Request a quote from SmartRooms Qatar.

A 75-inch UHD touch panel for group work

The BenQ Board Master RM7503 pairs a 75-inch IPS panel at 3840 × 2160 pixels with infrared touch that registers up to 40 touch points at once. Several people can annotate, drag and write on the same surface during one session. That makes it a practical centre for brainstorming and for presentations where the audience takes part rather than watches.

Connectivity and computing to plan around

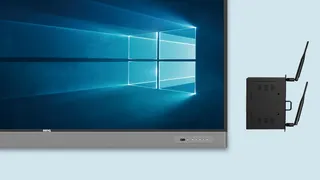

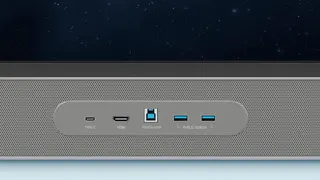

The panel runs Android 9.0 with 8GB of memory and 32GB of storage. Its OPS slot takes a slot-in Windows PC when a team needs desktop software. For laptops it offers three HDMI 2.0 inputs, one DisplayPort 1.2 input and a front USB-C port with 65 W power delivery, so a presenter can connect and charge with one cable. Touchback lets the presenter control the laptop from the screen, and InstaShare 2 shares up to nine screens wirelessly.

Features that matter day to day

Audio: two 16 W speakers and a six-microphone array with an 8 m maximum pickup range, for calls and sessions in larger rooms.
Whiteboard tools: EZWrite 6.0, a Floating Tool for writing over any on-screen content, and options to take screenshots and record sessions.
Screen care: a nano-ionic silver germ-resistant touchscreen with TÜV certification, germ-resistant pens, a low blue light setting, flicker-free operation and an anti-glare finish.
Management: DMS for device management and AMS for accounts, with sync to Azure Active Directory and Google Workspace.

Where it fits in Qatar

A government office in West Bay could use the panel in a boardroom where Arabic and English presentations run side by side, with InstaShare 2 letting visiting staff share a laptop screen without cables. A private school in Al Wakrah could place one in a senior classroom or staff meeting room, where the touch surface supports group exercises and the speakers reach the back row. In Mesaieed or Ras Laffan, an engineering team can join calls with colleagues abroad using a slot-in PC with its usual video conferencing software, while the room microphones pick up voices across the table.

What to plan before installation

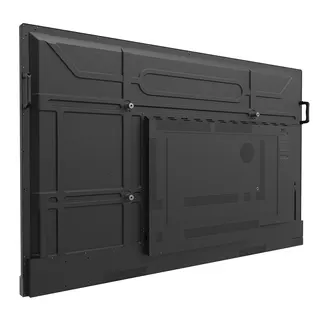

The panel weighs 53.0 kg, or 72.0 kg in shipping packaging, so it needs two people to handle and a wall structure rated for that load. The included wall mount fits a VESA 800 × 400 mm pattern with four M8 screws. Allow clearance for the 1717.0 × 1065.0 × 121.5 mm body and route cables for HDMI, USB-C and the USB-B touch connection. Qatar summers can exceed 45°C and the rated operating range is 0°C to 40°C, so the room's air conditioning must hold the space within that range. The 100-240V, 50/60Hz power input covers Qatar's 240 V, 50 Hz supply, with typical consumption of 140.9 W and standby below 0.5 W. Our free site survey checks the wall, socket and sightline before you order.

Request a quote from SmartRooms Qatar for the BenQ Board Master RM7503 with professional installation. We usually reply within one working day, and for several units we can prepare the quotation for a purchase order or tender.

Highlights

75-inch UHD (3840 × 2160) IPS panel with 450 nits typical brightness
Infrared touch with up to 40 touch points and under 10 ms response
OPS slot for a slot-in Windows PC
Six microphones and 2 × 16 W built-in speakers
Three HDMI 2.0 inputs plus front USB-C with 65 W power delivery
Nano-ionic silver germ-resistant screen and germ-resistant pens

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

62 specifications · Source: manufacturer · checked Oct 2026

Panel14

Screen size: 75''
Panel type: IPS
Active area: 1649.7 × 927.9 mm
Aspect ratio: 16:9
Resolution: UHD 3840 × 2160 pixels
Response time: 8 ms
Color depth: 10-bit
Orientation: Landscape
Operation hours: 18 hours / 7 days
Panel brightness (typical): 450 nits
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 30,000:1
Color gamut: 72% NTSC
Backlight life (typical): 50,000 hrs

Glass3

Germ-resistant technology: Nano-ionic silver
Anti-glare: Yes | NA
Hardness: 9H tempered

Touch screen3

Touch technology: Infrared touch
Touch points: up to 40
Touch response time: < 10 ms

System4

GPU: G52 MC 2
CPU: A73 × 4
Memory | Storage: 8GB | 32GB
OS: Android 9.0

Connectivity13

HDMI (in | out): 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort: 1 × 1.2 | No
USB-A: 2 × 2.0 + 5 × 3.0
USB-C: 1 × 3.0 (PD 65 W)
USB-B (for touch): 3 × 3.0
3.5 mm Line in (1): PC Audio × 1
VGA: 1 | 0
3.5 mm Line out: Earphone × 1
OPS slot (for slot-in PC): 1
S/PDIF out: 0 | 1 (optical)
Ethernet: 10 / 100 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
3.5 mm Line in (2): Mic × 1
RS-232: 1 | 0

Built-in peripherals2

Microphone: 6 (Max. pickup range 8m)
Speaker: 2 × 16 W

Power2

Power: AC 100-240V 50/60Hz
Typical power consumption: 140.9 W

Physical5

Dimensions (W x H x D): 1717.0 × 1065.0 × 121.5 mm (67.6 × 41.9 × 4.8 inch)
Shipping dimensions (W x H x D): 1900 × 1160 × 225 mm (74.8 × 45.7 × 8.9 inch)
Weight (product I shipping): 53.0 kg | 72.0 kg (116.8 lbs | 158.7 lbs)
Mount (screws): VESA 800 × 400 mm (4 × M8 × 20L)
Pen Tray: 1

Environment4

Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F
Storage temperature: -10°C ~ 60°C | 14°F ~ 140°F
Storage humidity: 20% ~ 80% RH non-condensing
Operating humidity: 20% ~ 80% RH non-condensing

Software8

Whiteboarding: EZWrite 6.0
Wireless screen sharing: InstaShare 2
Device management: DMS
Account management: AMS
Flicker Free: Yes
Quick access tool: Floating Tool
Broadcast system: X-Sign Broadcast
Low Blue Light: Yes

Accessories4

Cables: 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
Wall mount: 1
Pen: 2
Remote control: 1

Downloads

16 files from the manufacturer

Questions about RM7503

Who is the BenQ Board Master RM7503 best suited to in Qatar?

It suits boardrooms, seminar rooms and classrooms where a group works from one large touch surface. A boardroom in West Bay or a seminar room in Education City gains from the 75-inch UHD screen, which keeps text readable from the back row, and from infrared touch that lets several people write at the same time.

Does the RM7503 include a computer?

The included accessories are cables, a wall mount, two pens and a remote control, so no Windows PC is supplied. The panel itself runs Android 9.0 with 8GB memory and 32GB storage. Its OPS slot accepts a slot-in PC if your team needs Windows applications, which should be confirmed in your quotation.

How does the touch function perform?

The display uses infrared touch with support for up to 40 touch points and a touch response time below 10 ms. Multiple users can annotate or move content together, which suits brainstorming sessions in a meeting room. The touchscreen is hardened with 9H tempered glass.

Which inputs connect a laptop to the panel?

The panel has three HDMI 2.0 inputs, one DisplayPort 1.2 input, a VGA input and a USB-C 3.0 port rated at 65 W power delivery on the front. The front USB-C port lets a presenter connect and charge with one cable, and touchback lets the presenter control the laptop from the display.

Can staff share their screens wirelessly?

Yes. InstaShare 2 lets users share up to nine screens wirelessly onto the board, and the board can also cast its own screen to connected devices. In an office in Msheireb where Arabic and English presenters take turns, visitors can share from their own devices without searching for cables.

Are the speakers and microphones good enough for video calls with teams abroad?

The panel has two 16 W speakers and six built-in microphones with a maximum pickup range of 8 m, along with echo cancellation and noise reduction. Video conferencing software such as Zoom, Microsoft Teams or Google Meet can run through a slot-in PC or the InstaShare Button, which helps an engineering team in Mesaieed join calls with colleagues abroad.

Can the RM7503 go in a lobby with direct sunlight or outdoors?

The rated operating range is 0°C to 40°C with 20% to 80% relative humidity, non-condensing. Qatar summers can exceed 45°C, so install it in an air-conditioned indoor room and keep it away from direct sun. Confirm the environment with the SmartRooms Qatar team before deciding on any other location.

How heavy is the panel and how should it be mounted?

The panel weighs 53.0 kg, and 72.0 kg in shipping packaging, so it needs at least two people and a suitably rated wall. It mounts on a VESA 800 × 400 mm pattern with four M8 screws, and a wall mount is included. A free site survey checks the wall structure before installation is scheduled.

What power does the unit need and how much does it draw?

The power input is AC 100-240V at 50/60Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 140.9 W and standby power is below 0.5 W. During the site survey, confirm the socket position relative to the wall mount and the plug arrangement needed on site.

Does the germ-resistant screen help in shared offices?

The touchscreen uses a nano-ionic silver formula that carries TÜV certification, and the pens are also germ-resistant. The manufacturer states 99.9% effectiveness against common germs. This helps in shared offices or schools where many people touch the same board and pens during a day.

What software is built in for whiteboarding and recording?

The panel includes EZWrite 6.0 for whiteboarding and a Floating Tool that lets users write over any displayed content, take screenshots and record sessions. A teacher at a private school in Al Rayyan could save annotated lessons for students to review after class without extra equipment.

Can an IT team manage several displays across a company?

Yes. The software set includes DMS for device management, AMS for account management, and features for app installation, over-the-air updates, device analytics and QR code login. Accounts can sync with Azure Active Directory and Google Workspace, which helps IT managers control access on shared displays.

What should I do to request a quote for this model?

Send SmartRooms Qatar the quantity, the room type and the site location, and we usually send a quotation within one working day. We supply to all 8 municipalities of Qatar, install professionally, and accept purchase orders and government tenders, with payment by bank transfer, cheque or purchase order.
