RM8604

What the BenQ RM8604 is and where it fits

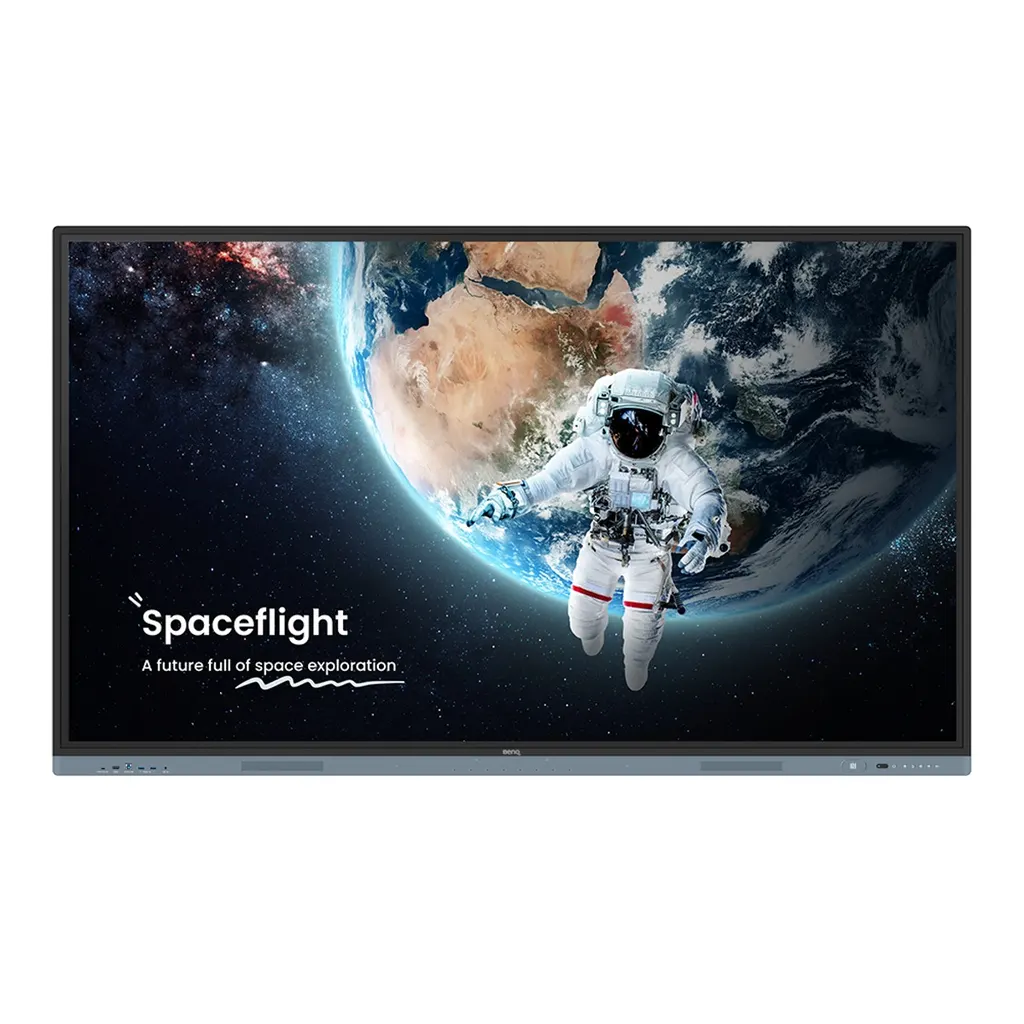

The BenQ RM8604 is the 86-inch model in the Board Master RM04 series, a large interactive display for teaching spaces and meeting rooms. Its IPS panel runs at 3840 x 2160 pixels, so writing and text stay crisp when a full class reads from the back of the room. As the largest size in this series, it suits lecture halls, big training rooms and boardrooms where a 65-inch or 75-inch panel would be too small for the audience.

Panel brightness is 450 nits typical, the contrast ratio is 1,200:1 typical, and the panel shows 10-bit colour with 72% NTSC gamut. The display is landscape with a 16:9 aspect ratio.

Touch, writing and wireless sharing

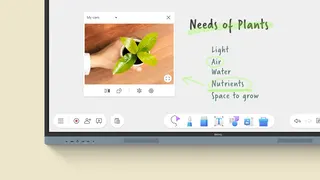

High Precision IR touch recognises up to 40 touch points, so several students or presenters can write on the glass at once. The glass is 9H tempered with an anti-glare finish, and the surface carries a nano-ionic silver germ-resistant treatment. Touch response is under 5 ms. The whiteboard software is EZWrite 6.0, and wireless sharing runs through InstaShare 2 so teachers and students can cast from their own devices without a cable.

Ports, computing and connectivity

• Video inputs: three HDMI 2.0 inputs, one HDMI 2.0 output, one DisplayPort 1.2a and one VGA port.
• USB: three USB-C 3.0 ports (one with 65 W power delivery), five USB-A 3.0 and two USB-A 2.0 ports, plus three USB-B ports for touch.
• Slot-in PC: one OPS slot for a slot-in PC.
• Network and control: two Ethernet ports, one RS-232 port, Wi-Fi 6 (optional), Bluetooth 5.2, NFC and an optical S/PDIF output.

Audio, power and daily running

Two 20 W speakers and an 8-microphone array, with pickup up to 8 m, cover a room for lessons and calls without extra hardware. The RM8604 has no built-in camera, so for hybrid teaching you would pair it with a separate camera; BenQ lists the DV01K smart 4K UHD camera as a companion product. Typical power draw is 168.9 W and standby draw is below 0.5 W. The unit is rated for AC 100 to 240 V at 50/60 Hz, a range that includes Qatar's 240 V, 50 Hz supply, and it carries ENERGY STAR listing.

Planning the installation in Qatar

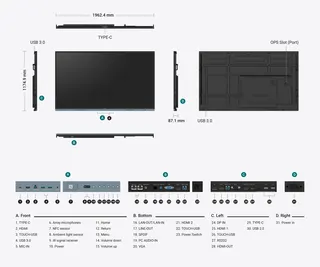

The panel measures 1962.4 x 1174.9 x 87.1 mm and weighs 65.2 kg without packaging, or 82.9 kg as shipped. It mounts on a VESA 800 x 600 mm pattern with four M8 screws, so confirm wall strength and bracket fit before the unit arrives. The operating range is 0 to 40 °C with 20 to 80% non-condensing humidity. Summer outdoor temperatures in Qatar often exceed 45 °C, so install the display in an air-conditioned room away from direct sun through glazing. Where conditions are uncertain, our team can confirm them with you before quoting.

Where it fits: three Qatar scenarios

• A lecture hall in Education City: a university seminar room where hybrid sessions link students in Doha with lecturers abroad, using the display for writing and video.

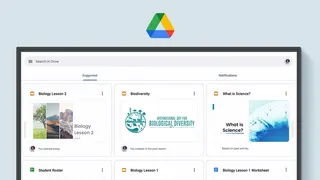

• A government boardroom in Msheireb: a meeting room where Arabic and English presentation files open side by side from cloud storage.
• A private school in Al Rayyan fitting out a hall: a large assembly or lecture space where the 86-inch size keeps the back row in view.

Next step

Send SmartRooms Qatar the room size, the mounting wall and the quantity, and we will reply with a quotation usually within one working day. Multi-unit school and government orders can be placed on an LPO or through a tender, and we can arrange a free site survey before the panel is wall-mounted. Request a quote for the BenQ RM8604 today.
