RP8604
BenQ Board Pro RP8604 86-inch Interactive Flat Panel
- Screen size
- 86''
- Resolution
- UHD 3840 × 2160 pixels
- Touch
- Ultra Precision IR
- System
- Android 15.0

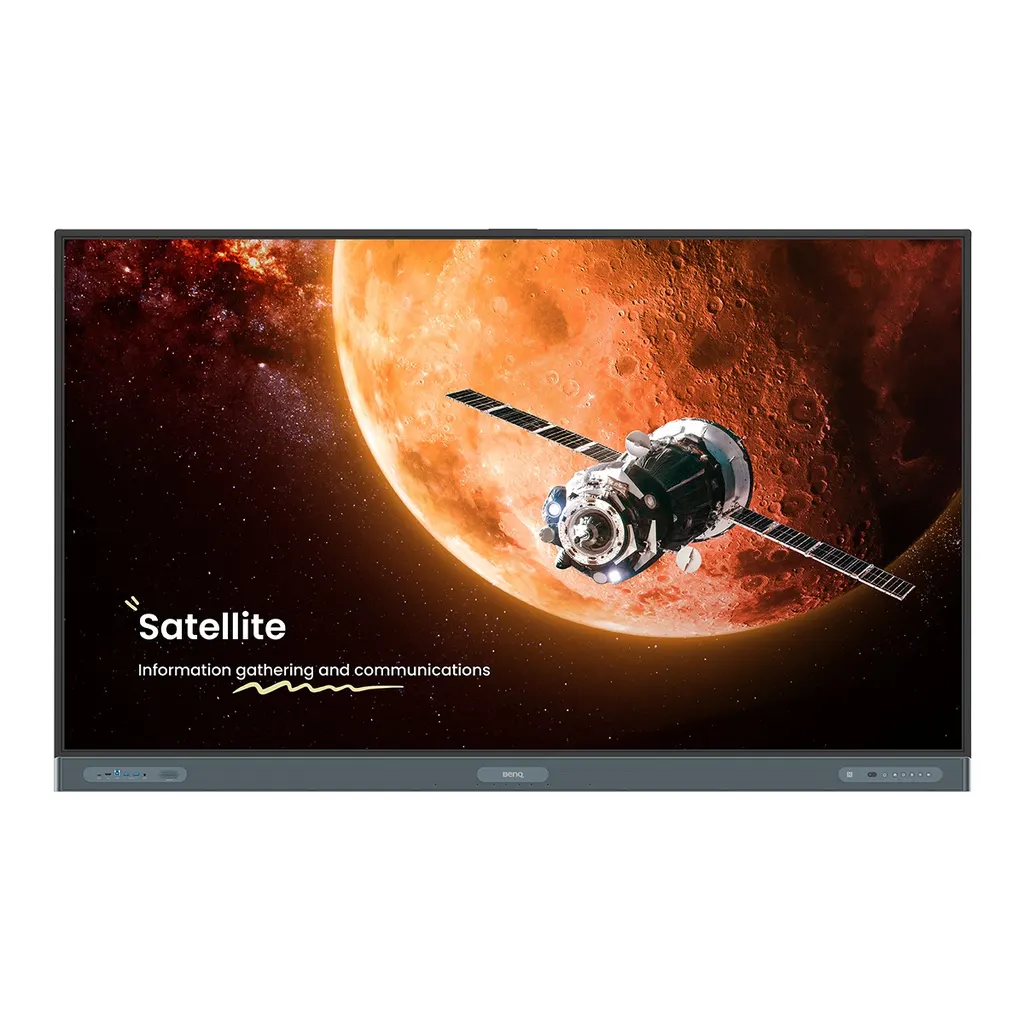

The BenQ Board Pro RP8604 is an 86-inch interactive display with a 4K UHD IPS panel, up to 50 touch points through Ultra Precision IR, and a slot for an OPS PC. It runs Android 15 with Google Play access and suits large lecture halls, boardrooms and training rooms in Doha, Lusail and Education City where one surface must serve the whole room. Request a quote.
86 inches for rooms where the back row must still read clearly
The BenQ Board Pro RP8604 is the 86-inch model in the RP04 series of interactive displays. Its IPS panel runs at 3840 × 2160 across an active area of 1895.0 × 1066.0 mm. The 65-inch and 75-inch siblings in the series suit smaller rooms, while this size fits a lecture theatre, a long boardroom table or a training hall where the far seats need the same content as the front row.
Panel, touch and eye comfort
The panel is rated at 450 nits typical brightness, 1200:1 typical contrast, 10-bit colour depth and 72% NTSC colour gamut, with anti-glare glass and flicker-free output. Ultra Precision IR touch supports up to 50 touch points with a response time under 2.5 ms, so several people can write at once. The 9H tempered glass carries a nano-ionic silver germ-resistant treatment, and Eyesafe 2.0 certification with an RPF50 rating is listed for long sessions.
Android 15, software and connections

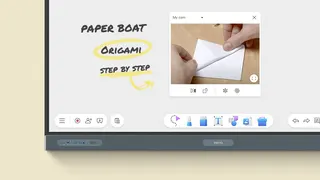

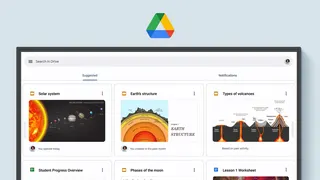

The board runs Android 15 on an octa-core Arm processor with 8 GB memory and 64 GB or 128 GB storage. It carries Google EDLA certification for Google Play and core Google services. EZWrite 6.0 covers whiteboarding, and the Floating Tool lets presenters annotate over any open app.
- Four HDMI 2.0 inputs, one HDMI 2.0 output, DisplayPort 1.2a and VGA
- One OPS slot for a slot-in PC
- A 100 W USB-C port that charges devices and enables touchback
- Two Ethernet ports, RS-232 and optical S/PDIF out
- Wi-Fi 6 and Bluetooth 5.2
Two 20 W speakers, a 16 W subwoofer and an 8-microphone array reaching up to 8 m cover the room for audio.
Where the RP8604 fits in Qatar
- Lecture theatre in Education City: lecturers share from a laptop, a slot-in PC or the board's own apps, and the screen size keeps slides readable across a large hall.

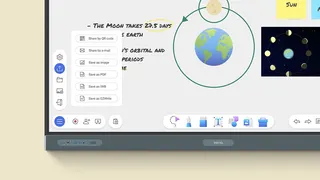

- Boardroom in West Bay: a long executive table needs a screen readable from the far end, and session notes can be saved as an editable file or a PDF.
- Training room in the Industrial Area: safety inductions for a full group, with PDFs and Office files opened directly and handouts exported as PDF.
Climate, power and installation planning
Summer temperatures in Qatar can exceed 45°C, so place the board in an air-conditioned room away from direct sun through unshaded windows. The listed operating range is 0°C to 40°C at 10% to 90% non-condensing humidity. The power input is rated AC 100-240V at 50/60Hz, which covers Qatar's 240 V, 50 Hz supply, and typical consumption is 164.4 W.
The panel weighs 64.7 kg and mounts to a VESA 800 × 600 mm pattern with M8 screws, and one wall mount is in the box, so plan for two people and a checked wall. SmartRooms Qatar offers a free site survey before wall mounting, professional installation and delivery across all eight municipalities. Request a quote and tell us your room size, wall type and whether you plan to add a PC in the OPS slot.
Highlights
- 86-inch UHD 4K (3840 × 2160) IPS panel
- Ultra Precision IR touch with up to 50 points
- Android 15 with Google EDLA certification
- Two 20 W speakers and a 16 W subwoofer
- OPS slot, 100 W USB-C and four HDMI 2.0 inputs
- VESA 800 × 600 mm mount, 64.7 kg panel
Classroom fit
At 86″ the farthest student should sit within about 6.4 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Panel14
- Screen size
- 86''
- Panel type
- IPS
- Active area
- 1895.0 × 1066.0 mm
- Aspect ratio
- 16:9
- Resolution
- UHD 3840 × 2160 pixels
- Response time
- 8 ms
- Color depth
- 10-bit
- Orientation
- Landscape
- Operation hours
- 18 hours / 7 days
- Panel brightness (typical)
- 450 nits
- Contrast ratio (typical)
- 1200:1
- Dynamic contrast ratio
- 50,000:1
- Color gamut
- 72% NTSC
- Backlight life (typical)
- 50,000 hrs
Glass3
- Germ-resistant technology
- Nano-ionic silver
- Anti-glare
- Yes
- Hardness
- 9H tempered
Touch screen3
- Touch technology
- Ultra Precision IR
- Touch points
- up to 50
- Touch response time
- < 2.5 ms
Connectivity16
- HDMI (in | out)
- 4 × HDMI 2.0 | 1 × HDMI 2.0
- DisplayPort
- 1 × 1.2a
- USB-A
- 7 × 3.0, 1 × 2.0
- USB-C
- 1 × 3.0 (PD 100 W), 2 × 3.0, 1 × 2.0 (PD 65 W)
- USB-B (for touch)
- 3 × 3.0
- 3.5 mm Line in (1)
- Mic × 1
- VGA
- 1
- 3.5 mm Line out
- Earphone × 1
- OPS slot (for slot-in PC)
- 1
- Micro SD reader
- N/A
- Wi-Fi
- Wi-Fi 6
- Bluetooth®
- Bluetooth 5.2
- S/PDIF out
- 1 (optical)
- Ethernet
- 2
- 3.5 mm Line in (2)
- PC Audio × 1
- RS-232
- 1
Built-in peripherals10
- NFC sensor
- Yes
- Ambient light sensor
- Yes
- IR sensor
- Yes
- Motion sensor
- Yes
- Microphone
- 8-microphone array (range: up to 8 m | 26ft)
- Speaker
- 2 × 20 W (max)
- Camera
- N/A
- Air sensor
- CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature, humidity
- Subwoofer
- 1 × 16 W
- Air Ionizer
- Yes
Power3
- ENERGY STAR®
- Yes
- Power
- AC 100-240V 50/60Hz
- Typical power consumption
- 164.4 W
Physical5

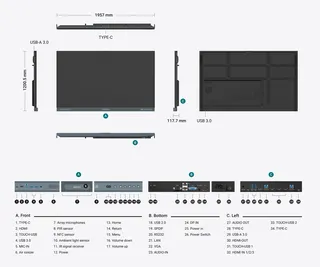

- Dimensions (W x H x D)
- 1957.0 × 1200.5 × 117.7 mm (77.0 × 47.3 × 4.6 inch)
- Shipping dimensions (W x H x D)
- 2110 × 1291 × 205 mm (83.0 × 50.8 × 8.1 inch)
- Weight (product I shipping)
- 64.7 kg | 79.6 kg (142.6 lbs | 175.5 lbs)
- Mount (screws)
- VESA 800 × 600 mm (4 × M8 × 25L)
- Pen Tray
- Yes
Environment4
- Operating temperature
- 0°C ~ 40°C | 32°F ~ 104°F
- Storage temperature
- -20°C ~ 60°C | -4°F ~ 140°F
- Storage humidity
- 10% ~ 90% RH Non-Condensing
- Operating humidity
- 10% ~ 90% RH non-condensing
Software8
- Whiteboarding
- EZWrite 6.0
- Wireless screen sharing
- InstaShare 2
- Device management
- DMS
- Account management
- AMS
- Flicker Free
- Yes
- Quick access tool
- Floating Tool
- Broadcast system
- X-Sign Broadcast
- Low Blue Light
- Yes
Accessories4
- Cables
- 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
- Wall mount
- 1
- Pen
- 2
- Remote control
- 1
System4
- GPU
- Arm Mali-G57 MC5
- CPU
- Arm Cortex-A78 × 4 + A55 × 4
- Memory | Storage
- 8 GB | 64 GB/128 GB
- OS
- Android 15.0
