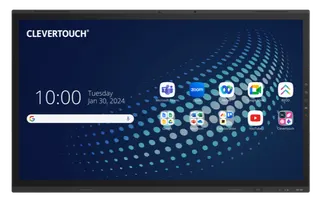

Clevertouch Edge 75" 4K Interactive Display

Name: Clevertouch Edge 75" 4K Interactive Display
Brand: Clevertouch
SKU: clevertouch-clevertouch-edge-75
Availability: InStock

Overview

The Clevertouch Edge 75-inch is a 4K interactive display for medium meeting rooms and boardrooms. It combines a 4K UHD LCD panel rated at 500 cd/m2 with FlatFrog InGlass touch that tracks up to 40 points, a 48 MP Sony camera with face-based auto tracking, and an Android-based interface with Google Play access. Offices in Doha and Lusail running hybrid meetings can request a quote.

What the 75-inch Edge panel covers

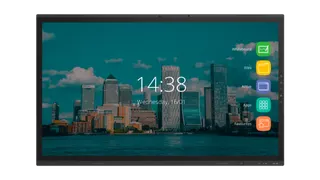

The Clevertouch Edge 75" is the mid-size option in the Edge range, built on a 75-inch 4K UHD LCD panel with a 3840 x 2160 resolution and a 60Hz refresh rate. Direct LED backlighting gives 500 cd/m2 brightness, a 4000:1 contrast ratio and a 6000:1 dynamic contrast ratio, while the 178-degree viewing angle keeps slides readable from the far end of a boardroom table. The 3 mm anti-glare tempered glass front is rated Mohs level 7, and both the glass and the power button are listed as antibacterial.

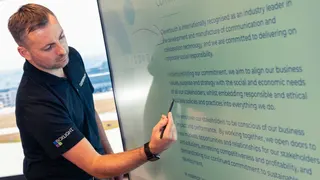

Touch, pen and writing

Writing runs on FlatFrog InGlass IR technology (M5), which supports 40 continuous touch points with touch accuracy below 1 mm and a minimum detectable object size of 2 mm. Two dual recognition styluses are supplied, and the panel tells pen input apart from finger touch, with palm rejection built in. Annotation works over any connected source, so a presenter can mark up a laptop display without switching apps.

Finger, passive pen, opaque objects and paint brushes all work as touch tools.
Magnetic pen holders are built into the frame for both styluses.
LYNX ink tools and LYNX Pro handwriting recognition are included.

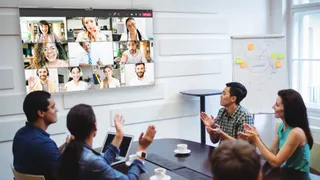

Camera, audio and meeting coverage

A 48 MP Sony 4K camera sits in the top bezel with a 90-degree field of view and a 5 m focus distance. Face detection drives auto tracking and electronic pan, tilt and zoom, and the camera supports 4K video with mainstream cloud meeting apps. The manufacturer lists voice tracking as coming soon, so face-based framing is the feature to plan around today.

Sound comes from two 20W front-facing speakers and two 10W subwoofers. The eight-element array microphone uses noise cancelling and picks up sound across a 180-degree arc up to 8 m away, which suits a table of participants rather than a single presenter.

Where the 75-inch Edge fits in Qatar

A mid-size boardroom in West Bay or Msheireb. Executives join calls with colleagues in Europe or Asia, and one panel can take the place of a separate camera, microphone and speaker set. Google EDLA certification means certified video conferencing apps run directly on the screen itself.

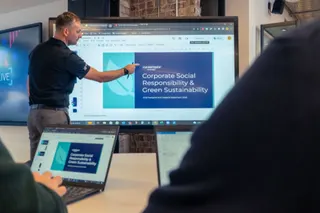

A university seminar room in Education City. A lecturer can write on the glass during a session, switch between Android and PC mode, and share a laptop through the front USB-C port, which also provides charging at up to 100W.

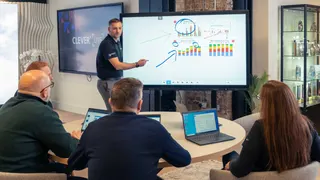

A training room at a company in the Industrial Area or Al Sadd. Trainers can mirror phones and tablets using Miracast, AirPlay or Chromecast, and CleverLive room booking is embedded for shared spaces.

What to plan before ordering

The panel weighs 54.70 kg net and 67.00 kg gross, with panel dimensions of 1731 x 1061 x 85 mm and a VESA mount pattern of 800 x 400 mm. Check that the wall or stand is rated for this load before ordering, and book a free site survey to confirm mounting height and cable routing. The operating range is 0 to 40 degrees Celsius at 10 to 90 per cent humidity, so the room needs air-conditioning that keeps it inside that range through the Qatari summer.

Power is rated at 100-240V, 50/60Hz, with normal consumption of 133.18W and standby consumption of 0.5W or less, and the design is fanless. Remote management (MDM) includes a one-year licence, and CleverLive is included with no subscription fees. The manufacturer's warranty applies, and SmartRooms Qatar delivers to all eight municipalities and provides professional installation.

Planning a 75-inch meeting room? Request a quote from SmartRooms Qatar, and we will send a quotation, usually within one working day.

Highlights

75-inch 4K UHD panel at 3840 x 2160 resolution
FlatFrog InGlass touch with 40 continuous touch points
48 MP Sony camera with face-based auto tracking
2 x 20W front speakers and 2 x 10W subwoofers

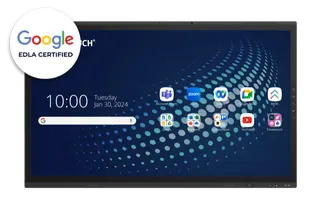

Google EDLA certified with Google Play access
Integrated NFC, Wi-Fi 6E and 100W front USB-C charging

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

127 specifications · Source: manufacturer · checked Oct 2026

Display20

Diagonal Size: 65” 4K, 75” 4K, 86” 4K
Screen Type: LCD - Direct LED Backlight
Aspect Ratio: 16:9
Display Colours: 1.07 Billion (10 bit)
Resolution: 4K UHD (3840x2160 @60Hz)
Response Time: 3ms
Refresh Rate: 60Hz
LCD Viewing Angle: 178°
Brightness: 500 cd/m2
Contrast Ratio: 4000:1
Dynamic Contrast Ratio: 6000:1
DC Dimming for Flicker Free: Yes
Glass Hardness: AG Tempered Glass - Mohs Level 7
Glass Thickness: 3mm
Glass Type: Low Parallax 0 mm Air Gap - Heat tempered - Anti Glare & Anti Smudge for durability - Super Glide Surface
Antibacterial Glass: Yes
Antibacterial Power Button: Yes
Main Board: RK3588
Life of Screen: 50,000 Hours
NTSC: 72%

Interactivity20

Writing Technology: Flat Frog InGlass IR Technology - M5
Continuous Touch Points: 40
Touch Resolution: 32768x32768px
Response Time: ≤5ms
Minimum Object Size: 2mm
Touch Tool: Finger, passive pen, opaque objects, paint brushes
Simultaneous Writing: Yes
Ink In Tools: Yes - LYNX
Pens Included: 2
Pen Type: Dual Recognition Stylus | Infinity Stylus
Pen Holder: Integrated magnetic pen holders
Pen Tip Diameter: 2.8mm/6.3mm
Pen & Touch Differentiation: Yes
Pen Identities: 2
Palm Rejection: Yes
Annotation Over Any Source: Yes
Compatibility: Windows, Linux, Mac, Android, Chrome
Tracking Rate: ≥1m/s
Scan Rate: 150Hz
Gestures & Edge Swipes: Windows Supported, OSX with additional Driver

Connectivity17

OPS Slot Total touch out ports: 1 - Intel Spec 80Pin 3
HDMI In NFC Reader / Writer: 3 Yes - Integrated
HDMI Out Proximity Sensor: 1 Yes
USB-A 2.0 Array Mic: 3 8 Array Microphone
USB Touch (type B) Sound pickup angle: 3 180°
USB C (Video, Audio & Touch) WiFi Generation: 2 x USB Front Type A 3.0 8m with faster data transfer 2 x USB Side Type A 3.0 with 32kHz faster data transfer IEEE 802.11a/b/g/n/ac/ax 1 x USB Side Type C with with 2 × 2 MIMO (hotspot video, audio, touch & only) (both 2.4 and 5 GHz network bands) 1 x USB Front Type C with video, audio, touch, 6E network, and 100W charging Capable of speeds up to 1Gbps 1 x USB Type C Out with video, audio, touch and network
LAN In (RJ45): 1
LAN Out (RJ45): 1
RS-232: 1
Wake-on-Lan: Yes
Wireless Adapter 2.0 + WAP: Yes
Clevertouch WiFi Module: Yes
Bluetooth: Yes – 5.2
Displayport In: 1
Audio In: 1
Optical Out: 1
Headphone: 1 (3.5mm)

Camera9

Camera: 4K Sony integrated camera
Camera Pixel: 48 MP
Camera FOV: 90°
Camera Focus Distance: 5M
Camera Tracking: Auto tracking via face detection
ePTZ: Yes
Adapts to mainstream cloud meeting apps: Yes
Supports 4k Video: Yes
Voice Tracking: Coming soon

Audio6

Dual Front Facing, Bass Enhanced Speakers: 2 x 20W Speaker + 2 x 10W Subwoofer
Audio Out: Yes
SPDIF / Fibre: Yes
Sound Channel: 2.2
8 Array Microphone (noise cancelling): 8 Array Microphone
Super Wide Sound: Yes

Power4

Power Requirements: 100-240V ~ 50/60Hz
Power Consumption (Normal): [65" / 75" / 86"] 98W 133.18W 160.68W
Power Consumption (Standby): ≤0.5W
Ultra Quiet Fanless Design: Yes

Computing13

Operating System: Android 15
System Version: LUX 15
Access to Google Play Store Apps: Yes (Certified)
Access to Microsoft Apps: Yes (Certified)
Access to Google Cloud Services: Yes (Certified)
Access to Video Conferencing Apps (MS Teams, Google Meet, Zoom etc): Yes (Certified)
RAM: 8GB
Internal Storage: 128GB
CPU: Quad Core A76 + Quad Core A55
GPU: Mali G610 MP4
Android Resolution: 4K
Integrated LUX UI: Yes
System Architecture: 64-bit

Environment5

Operating Temperature: 0˚ to 40˚
Storage Temperature: -20˚ to 60˚
Operating Humidity: 10% to 90% RH
Storage Humidity: 10% to 90% RH
Altitude: Below 5000 metres

Clevertouch Edge Built-In Features27

BYOM: Yes
Handwriting Recognition: Yes - LYNX Pro
Unlimited Multi-Floating Resizable Windows: Yes
Split Screen Support: Yes
Ecosystem of Extensive Apps with Secure and Fast Download: Yes
OpenSDK Support: Yes
Intelligent O&M: Yes
CleverLive™ Embedded Digital Signage: Yes
Clevershare™ Mirroring Any Device To The Board: Free for the life of the screen (touch back)
Miracast (WiFi Direct): Yes
AirPlay: Yes
Chromecast: Yes
Integrated Personalised Accounts Profiles: Yes
Cloud Account Access: OneDrive, Google Drive, Dropbox
CleverLive Rooms™ Embedded Room Booking: Yes
Customizable Welcome Page with option to integrate logo, clocks apps and more (CleverLauncher™): Yes
LynxShare™: Yes
LynxCloud™: Yes
Whiteboard Annotation: Yes
Email Out Direct From Touchscreen: Yes
Scan QR Code For Saving Work: Yes
Alerts and Announcements: Yes
Over-the-Air Updates: Yes
Remote Management Of Touchscreens (MDM): Yes - One year license
Codec: Yes
H.264 + H.265: Yes
HD Hardware Encoding and Decoding: Yes

Physical Spec5

Panel Dimensions: [65" / 75" / 86"] 1510 x 937 x 83mm L x H x D 1731 x 1061 x 85mm 1979 x 1202 x 85mm
Packed Dimensions: [65" / 75" / 86"] 1654 x 208 x 1026mm L x W x D 1890 x 255 x 1186mm 2138 x 255 x 1328mm
Net Weight: [65" / 75" / 86"] 40.6kg 54.70kg 68.85kg
Gross Weight: [65" / 75" / 86"] 49.5kg 67.00kg 85.30kg
VESA Mount Point: [65" / 75" / 86"] 600 x 400mm 800 x 400mm 800 x 600mm

Inside your Clevertouch Box1

What's In The Box: (1) Clevertouch Edge (1) 3M HDMI Cable

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about Clevertouch Edge 75"

Who is the Clevertouch Edge 75" best suited to?

The 75-inch model suits mid-sized rooms such as boardrooms, seminar rooms and training rooms, where a group sits around a table and some participants join remotely. It sits between the 65-inch and 86-inch Edge panels in size, so it fits when a 65-inch screen feels small for the room but an 86-inch would fill the wall too much. Confirm the room dimensions with the SmartRooms Qatar team before choosing.

Is the 75-inch Edge right for a university seminar room in Education City?

Yes, for a seminar room of this scale. The 4K UHD panel at 3840 x 2160 keeps dense slides and spreadsheets legible, and the FlatFrog InGlass touch layer lets a lecturer annotate directly on the glass with the two included styluses. If the session is streamed to students in other locations, the 48 MP camera provides face-based framing, and the microphone picks up speech up to 8 m away.

Will the camera keep people in frame during a hybrid meeting in West Bay?

The camera uses face detection for auto tracking and offers electronic pan, tilt and zoom, with a 90-degree field of view and a 5 m focus distance. In a West Bay boardroom where some participants sit at the far end of the table, the field of view and focus range should be checked against the seating plan during the site survey. Voice tracking is listed as coming soon, so framing follows faces rather than the current speaker.

Can the panel run in summer heat in a Doha meeting room?

The rated operating range is 0 to 40 degrees Celsius at 10 to 90 per cent relative humidity, and storage is rated from -20 to 60 degrees Celsius. Outdoor summer temperatures in Qatar regularly exceed 45 degrees, so the room must be air-conditioned and kept within the operating range. The unit is fanless, but room cooling still matters, so ask the SmartRooms Qatar team to review the cooling plan with you.

Which ports are available for connecting laptops and other devices?

The panel has three HDMI inputs, one HDMI output and one DisplayPort input. A front USB-C port carries video, audio, touch and network with 100W charging, and there is a side USB-C port for video, audio, touch and hotspot use, plus a USB-C output. It also has USB Type-A 3.0 ports, LAN in and out, RS-232, optical audio out and a 3.5mm headphone output. A 3M HDMI cable is supplied.

Are styluses included, and do they need charging?

Two dual recognition styluses are supplied, and they are passive pens that need no charging. The panel distinguishes pen input from finger touch, which helps when two people write at the same time, and the two pen identities match the two included styluses. Integrated magnetic pen holders in the frame keep both styluses in place between sessions.

How does the 75-inch compare with the 65-inch and 86-inch Edge models?

The 75-inch panel measures 1731 x 1061 x 85 mm and weighs 54.70 kg net, compared with 1510 x 937 x 83 mm and 40.6 kg for the 65-inch, and 1979 x 1202 x 85 mm and 68.85 kg for the 86-inch. Normal power consumption is 133.18W, against 98W and 160.68W respectively. All three share the same 4K resolution, camera and audio package, so the choice depends mainly on room size and wall capacity.

Does the panel need a separate PC, or can it run on its own?

The Edge runs its own Android-based interface with access to Google Play, Microsoft apps and Google cloud services, plus video conferencing apps certified on the platform. It has 8GB RAM and 128GB internal storage. You can switch to PC mode for Windows applications, and an 80-pin OPS slot to Intel specification is provided, with Clevertouch OPS i5 and OPS i7 modules listed as options if you need a full Windows PC built into the panel.

How heavy is the panel, and what mount does it need?

The 75-inch panel weighs 54.70 kg net and 67.00 kg gross, and its VESA mount pattern is 800 x 400 mm. The wall or mobile stand must be rated for the gross weight with a safety margin, and it must be fixed to a suitable structure rather than plasterboard alone. A free site survey from SmartRooms Qatar lets the team confirm fixing points, mount height and cable routes before installation.

What remote management and software come with the panel?

Remote management through CleverMDM includes a one-year licence, so IT teams can link the display to an MDM account and control it without visiting the room. CleverLive, the digital signage platform, is included with no subscription fees, and the screen supports over-the-air updates and a customisable welcome page with your logo. Ask about MDM licence renewal after the first year when you request a quote.

Can a ministry or government school buy this panel through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including tenders published on Monaqasat, and payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. For a school fitting out several rooms, ask that the quotation lists the size of each unit and the installation scope for each room.

What supply and installation support is available across Qatar?

SmartRooms Qatar delivers to all eight municipalities of Qatar and provides professional installation, with a free site survey before a panel of this weight is wall mounted. Installation must be completed by a qualified installer following the manufacturer's guidance. Products are covered by the manufacturer's warranty, and warranty terms vary by region, so the quotation will confirm the terms that apply in Qatar.
