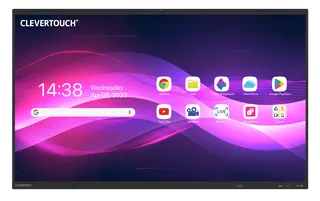

Clevertouch IMPACT Lux 2 65"

Name: Clevertouch IMPACT Lux 2 65-inch 4K Interactive Display
Brand: Clevertouch
SKU: clevertouch-impact-lux-2-65
Availability: InStock

Overview

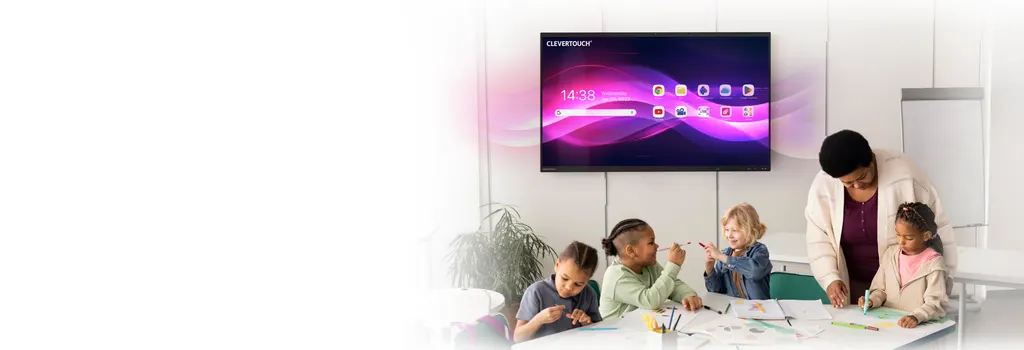

The Clevertouch IMPACT Lux 2 65-inch is a 4K UHD interactive display for classrooms, training rooms and meeting rooms that need a large, responsive touch surface. It offers 50 touch points, a scan rate of at least 400Hz, an OPS slot, three HDMI inputs and Android 15 with EDLA certification. Its built-in audio and NFC profile log-in suit Qatar schools and corporate teams that share one room across several users.

What the IMPACT Lux 2 65-inch is

The Clevertouch IMPACT Lux 2 65-inch is a 4K UHD interactive display on a VA panel, designed for teaching spaces and meeting rooms where several people need to write, annotate and present on one surface. It is the smallest model in the IMPACT Lux 2 range, so it suits rooms of moderate size where a large screen is needed but a lecture-hall or boardroom panel would be excessive.

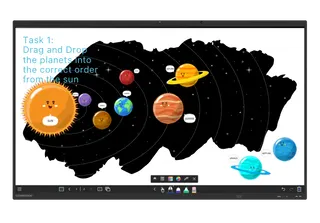

Touch, writing and palm rejection

The touch frame uses high precision infrared sensors around the glass edge to read fingers, passive pens and opaque objects from a 2 mm minimum size, with touch accuracy rated at ±1 mm. Palm rejection separates a resting hand from a deliberate stroke, so a teacher can write naturally while explaining a problem. The display supports 50 continuous touch points and a scan rate of at least 400Hz, which keeps input responsive when a group works on the glass together. Two Super Cool Stylus 2.0 pens with 3 mm and 7 mm tips are included, and the display can tell pen input from touch input.

Image, audio and computing

The panel offers 3840 x 2160 resolution at 60Hz, 500 cd/m2 brightness, a 5500:1 contrast ratio and 1.07 billion colours at 10-bit. DC dimming keeps low brightness levels flicker-free, which helps in rooms that run long sessions with the lights lowered. Integrated audio uses two 20W front-facing speakers and two 10W subwoofers, so a separate soundbar may not be needed. The RK3588 main board, 8GB RAM and 128GB internal storage run Android 15 with the Lux 2 UI.

Ports: OPS slot (Intel spec 80-pin), three HDMI In, one HDMI Out, one DisplayPort In, RS-232 and LAN at 10/100/1000 Mbps.
Wireless: WiFi 6E (802.11ax, 2 x 2 MIMO), Bluetooth 5.2 and integrated NFC.

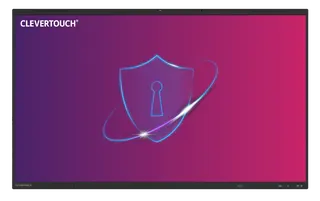

Security and management: EDLA certified, with remote management (MDM) under a one-year licence.
Power: 89.08W normal consumption at this size, 0.3W or less on standby, 100-240V at 50/60Hz.

Where the 65-inch fits in Qatar

A private school in Al Wakrah fitting out new primary classrooms could standardise on this model, using the NFC teacher profiles and multi-touch activities for group work. A consultancy meeting room in West Bay or Msheireb, where a team joins video calls with colleagues abroad, can use the three HDMI inputs and the front USB-C port to share laptop screens. The top USB-C port supports a top-mounted camera, which is an optional extra. A training centre near the Hamad International Airport area running short courses for staff could use the display for both presenting and hands-on exercises.

What to plan before installation

Match the wall bracket to the 600 x 400 mm VESA pattern. The panel measures 1488 x 916 x 86 mm and weighs 37.90 kg net, or 44.5 kg packed.
Choose an air-conditioned room. The operating range is 0 to 40 °C at 10 to 90% relative humidity.
Confirm a socket near the mounting point on site. A 3 m HDMI cable is included in the box.

SmartRooms Qatar offers a free site survey before wall-mounting, which checks wall structure, sightlines and cable routes. To request a quote for the IMPACT Lux 2 65-inch, send your room dimensions, the quantity and whether you need an LPO, and the SmartRooms Qatar team will respond with a quotation.

Highlights

65-inch 4K UHD panel with 3840 x 2160 resolution
50 continuous touch points with palm rejection
Android 15 with EDLA certification and Lux 2 UI
OPS slot, three HDMI In and one DisplayPort In
Integrated NFC, WiFi 6E and Bluetooth 5.2
2 x 20W front speakers with 2 x 10W subwoofers

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

125 specifications · Source: manufacturer · checked Oct 2026

Display Panel20

Diagonal Size: 65" 4K, 75" 4K, 86" 4K
Screen Type: 65”/75” – VA – Direct LED Backlight 86” – IPS – Direct LED Backlight
Aspect Ratio: 16:9
Display Colours: 1.07 Billion (10 bit)
Resolution: 4K UHD (3840x2160) @ 60Hz
Response Time: 5ms
Refresh Rate: 60Hz
LCD Viewing Angle: 178°
Brightness: 500 cd/m2
Contrast Ratio: 5500:1
Dynamic Contrast Ratio: 6000:1
DC Dimming for Flicker Free: Yes
Glass Hardness: AG Tempered Glass - Mohs Level 7
Glass Thickness: 3mm
Glass Type: Low Parallax 0mm Air Gap - Heat tempered - Anti Glare & Anti Smudge for durability - Super Glide Surface
Antibacterial Glass: Yes
Antibacterial Power Button: Yes
Main Board: RK3588
Life of Screen: 50,000 Hours
NTSC: 72%

Interactivity22

Writing Technology: High Precision IR Technology + Material Classification Sensor
Continuous Touch Points: 50 (Android) / 50 (Windows)
Touch Resolution: 32768x32768px
Response Time: ≤5ms
Touch Accuracy: ±1mm
Minimum Object Size: 2mm
Touch Tool: Finger, passive pen, opaque objects
Simultaneous Writing: Yes
Ink In Tools: Yes - LYNX
Pens Included: 2
Pen Type: Dual Recognition Stylus | Super Cool Stylus 2.0
Pen Holder: Integrated magnetic pen holders
Pen Tip Diameter: 3mm/7mm
Pen & Touch Differentiation: Yes
Pen Identities: 2
Palm Rejection: Yes
Annotation Over Any Source: Yes
Classroom Essential Apps: Includes Whiteboard, Annotate, Timer, Media Players, Browser, PDF Reader, Screen Record, Spinner, Voting, Maths Tools
Compatibility*: Windows 10, Linux, Mac, Android, Chrome
Tracking Rate: ≥1m/s
Scan Rate: ≥400hz
Gestures & Edge Swipes: Windows Supported, OSX With additional Driver

Connectivity29

OPS Slot: 1 - Intel Spec 80Pin
HDMI In: 3
HDMI Out: 1
USB-A 2.0: 3
USB Touch (type B): 3
USB A 3.0 (faster data transfer): 2 x USB Front Type A 3.0 with faster data transfer 2 x USB Side Type A 3.0 with faster data transfer
USB C (Video, Audio & Touch): 1 x USB Side Type C with video, audio, touch & network 1 x USB Front Type C with video, audio, touch, network, and 100W charging
USB C (Data Transfer): 1 x USB Top Type C Supports data transfer for top mounted camera
USB C Out: 1 x USB Type C Out with video, audio, touch and network
Display Port In: 1
LAN In (RJ45): 1
LAN Out (RJ45): 1
LAN Supports: 10/100/1000 Mbps
RS-232: 1
Wake-on-Lan: Yes
Wireless Adapter: 2.0 + WAP
Clevertouch WiFi Module: Yes
Bluetooth: Yes - 5.2
Audio In: 1
Optical Out: 1
Headphone: 1 (3.5mm)
Total touch out ports: 3
NFC Reader / Writer: Integrated
WiFi: IEEE 802.11a/b/g/n/ac/ax with 2 × 2 MIMO (hotspot only) (both 2.4 and 5 GHz bands)
WiFi Generation: WiFi 6E
WiFi Speed: Capable of speeds up to 1GBps
Camera: Optional Extra
Proximity Sensor: Yes
Ambient Sensor: Yes

Computing13

Operating System: Android 15
System Version: Lux 13
RAM: 8GB
Internal Storage: 128GB
CPU: Quad Core A76 + Quad Core A55
GPU: Mali G610 MC4
Android Resolution: 4K
Integrated Lux 2 UI: Yes
System Architecture: 64-bit
Google Certification: EDLA Certified (Enterprise Device Licence Agreement)
Access to Google Playstore Apps: Yes (certified)
Access to 0Microsoft Apps: Yes (certified)
Access to Google Cloud Services: Yes (certified)

Power4

Power Requirements: 100 - 240V ~ 50/60Hz 3.5A
Power Consumption (Normal): [65" / 75" / 86"] 89.08W 103.34W 116.75W
Power Consumption (Standby): ≤0.3W
Ultra Quiet Fanless Design: Yes

Operating & Storage Environment5

Operating Temperature: 0˚ to 40˚
Storage Temperature: -20˚ to 60˚
Operating Humidity: 10% to 90% RH
Storage Humidity: 10% to 90% RH
Altitude: Below 5000 metres

Audio10

Dual Front Facing,Bass Enhanced Speakers: 2 x 20W Front Facing + 2x 10W Subwoofer
Audio Out: Yes
SPDIF / Fibre: Yes
Sound Channel: 2.2
Line Array Microphone (noise cancelling): 8-array
Super Wide Sound: Yes
Amplifier Power: 95W
Sound Pickup Angle: 180 ˚
Sound Pickup Distance: 8M
Frequency Domain: 32kHz

IMPACT Lux 2 Built-In Features15

LYNX™ App With Online Lesson Planning: Yes

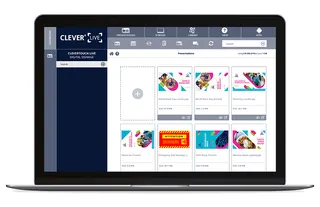

Embedded Digital Signage: Yes
Clevershare™ Mirroring Any Device To The Board: Free for the life of the screen (touch back)
Integrated Personalised Account Profiles: Yes
Cloud Account Access: OneDrive, Google Drive, LYNX Cloud
Embedded Room Booking: Yes
Whiteboard Annotation: Yes
Email Out Direct From Touchscreen: Yes
Scan QR Code For Saving Work: Yes
Alerts and Announcements: Yes
Over-the-Air Updates: Yes

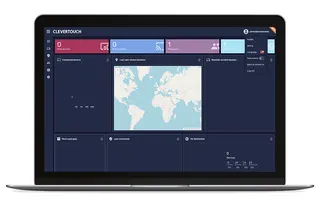

Remote Management Of Touchscreens (MDM): Yes - One year license
CleverLauncher™: Yes
LynxShare™: Yes
LynxCloud™: Yes

Physical Spec5

Panel Dimensions: [65" / 75" / 86"] 1488 x 916 x 86mm 1709 x 1039 x 86mm 1957 x 1178 x 99mmv
Packed Dimensions: [65" / 75" / 86"] 1628 x 185 x 1020mm 1863 x 225 x 1155mm 2110 x 225 x 1304mm
Net Weight: [65" / 75" / 86"] 37.90kg 49.95kg 61.25kg
Packed Weight: [65" / 75" / 86"] 44.5kg 59.9kg 72.8kg
VESA Mount Point: [65" / 75" / 86"] 600 x 400mm 800 x 400mm 800 x 600mm

Inside your Clevertouch Box1

What's In The Box: (1) Clevertouch IMPACT Lux 2 (1) 3M Length HDMI Cable

Compliance & Certification1

Regulatory Certification: RoHS, CE, FCC, UL, Energy Star & EEC

Downloads

8 files from the manufacturer

PDF Datasheets 15893 IMPACT Lux 2 Flyer_A4_ENGLISH_16.pdf 4.9 MB PDF Manuals & guides IMPACT Lux - System Navigation Guide - Final.pdf 531 KB PDF Manuals & guides Impact Lux Setup Guide.pdf 4.2 MB URL Other documents · Opens on manufacturer site 1z2elZ_T_fw URL Other documents · Opens on manufacturer site H4R0Fd0v0Q8 URL Other documents · Opens on manufacturer site HMze9z40nYk URL Other documents · Opens on manufacturer site PVBSulYudpw URL Other documents · Opens on manufacturer site YQtkH0mBfBE

Questions about IMPACT Lux 2 65"

Who is the IMPACT Lux 2 65-inch best suited for?

It suits classrooms, seminar rooms and meeting rooms of moderate size, where a 65-inch screen can be read from the back of the room. A private school in Al Wakrah refitting primary classrooms, or a company in West Bay equipping a small team meeting room, would both fit this model. The 75-inch and 86-inch versions suit larger rooms and lecture halls.

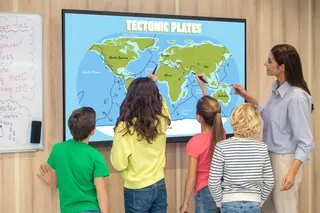

How many people can write on the screen at the same time?

The display supports 50 continuous touch points on both Android and Windows, so several students or colleagues can annotate at once. Palm rejection ignores a hand resting on the glass while writing. Two Super Cool Stylus 2.0 pens with 3 mm and 7 mm tips are included in the box, and touch accuracy is rated at ±1 mm with a 2 mm minimum object size.

Which computers and operating systems does it work with?

The display is rated compatible with Windows 10, Linux, Mac, Android and Chrome. Edge-swipe gestures are supported on Windows, while macOS needs an additional driver. The panel runs Android 15 with the Lux 2 UI, so basic lessons can run without a connected computer. Confirm your laptop model and meeting software with the SmartRooms Qatar team before ordering.

Can it show a laptop screen during video calls with teams abroad?

Yes. It has three HDMI In ports, one DisplayPort In, and a front USB-C port that carries video, audio, touch and network with 100W charging. Clevershare mirroring, which shows any connected device on the board, is free for the life of the screen. For a Doha office running calls with teams abroad, plan the camera position early, since the top USB-C port supports a top-mounted camera as an optional extra.

How much wall space and support does the 65-inch model need?

The panel measures 1488 x 916 x 86 mm and weighs 37.90 kg net, or 44.5 kg packed. It uses a 600 x 400 mm VESA mounting pattern, so the wall bracket must match it. In older Doha buildings, check the wall structure before drilling. SmartRooms Qatar offers a free site survey before wall-mounting to confirm the fixing point and cable route.

Can it be placed near a window or in a lobby during Qatar summers?

The rated operating temperature is 0 to 40 °C at 10 to 90% relative humidity, and storage is rated from -20 to 60 °C. Qatar summer temperatures can exceed 45 °C, so keep the display in an air-conditioned room, away from direct sunlight and window glare. The fanless design means there is no cooling fan to clog with dust. Confirm the installation environment with the SmartRooms Qatar team first.

What is its power draw and does it suit Qatar's mains supply?

The 65-inch model draws 89.08W in normal use and no more than 0.3W on standby. Its power input is rated 100-240V at 50/60Hz with 3.5A, a range that covers Qatar's 240V, 50Hz mains. The data does not specify the plug type, so check the socket near the mounting point on site before installation.

What does EDLA certification mean for a government or bank office?

EDLA stands for Enterprise Device License Agreement, a Google programme for managed Android devices. This display is EDLA certified and supports password protection, two-step authentication and data encryption. It can also be remotely wiped or locked if lost or stolen. Remote management (MDM) comes with a one-year licence. Ministries and banks in Doha with formal IT security policies can apply these controls.

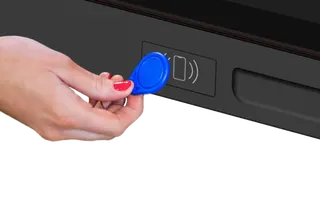

How does NFC log-in work and why would a school use it?

Integrated NFC lets a teacher tap an NFC card, included in the box, to open their personalised profile on any Clevertouch display. Files and settings follow the teacher between rooms without resetting each board. This suits schools in Education City or Al Rayyan where teachers move between classrooms. The display also connects to OneDrive, Google Drive and LYNX Cloud accounts.

Do I need external speakers for a classroom of this size?

In a classroom or meeting room of this size, the built-in audio may remove the need for a separate soundbar. The display has two 20W front-facing speakers and two 10W subwoofers, with a 95W amplifier. Its eight-array microphone picks up voices across a 180-degree angle up to 8 metres. For a large room or one with hard surfaces, review the acoustics with the SmartRooms Qatar team before buying.

What warranty applies and how do I request a quote?

The manufacturer provides a 5-year warranty as standard, with an optional 7-year warranty. SmartRooms Qatar supplies the display and delivers to all eight municipalities of Qatar, with professional installation available. Quotations usually arrive within one working day. Government buyers can issue an LPO or work through Monaqasat, and payment can be made by bank transfer, cheque or purchase order. Request a quote with your room size and quantity.
