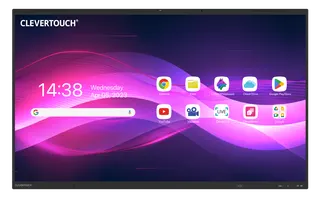

Clevertouch IMPACT Lux 2 75" Interactive Display

Name: Clevertouch IMPACT Lux 2 75" Interactive Display
Brand: Clevertouch
SKU: clevertouch-impact-lux-2-75
Availability: InStock

Overview

The Clevertouch IMPACT Lux 2 75-inch is a 4K interactive display with a VA panel, 50 touch points and Android 15. Its integrated NFC reader, OPS slot and 2 x 20W front speakers with subwoofers mean no separate soundbar is needed. It suits mid-sized classrooms, training rooms and meeting rooms across Qatar. Request a quote for supply and installation.

What the 75-inch IMPACT Lux 2 is built to do

The Clevertouch IMPACT Lux 2 75-inch is an interactive display for rooms where several people write, annotate and share content at the same time. It sits in the middle of the IMPACT Lux 2 range, between the 65-inch and 86-inch models, and uses a 4K UHD panel at 3840 x 2160 resolution with a VA panel and direct LED backlight.

Panel and touch performance that matter in a room

The panel is rated at 500 cd/m2 brightness, a 5500:1 contrast ratio and a 6000:1 dynamic contrast ratio, showing 1.07 billion colours at 10-bit with a 178-degree viewing angle. DC dimming provides flicker-free brightness control, which helps when the room is dimmed for long sessions. Touch runs on an HPIR frame with palm rejection, supporting 50 continuous touch points, a 400Hz scan rate and ±1mm touch accuracy. It detects objects as small as 2mm and tells a pen apart from a finger.

Anti-glare tempered glass rated Mohs level 7, with antibacterial glass

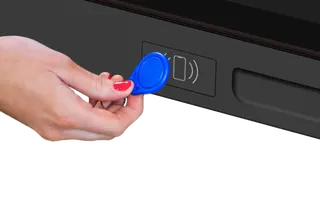

Integrated NFC reader for personal teacher and user profiles
Two 20W front speakers and two 10W subwoofers, with an 8-array microphone

Connectivity, computing and software

The 75-inch runs Android 15 on a quad-core A76 and quad-core A55 processor, with 8GB RAM and 128GB internal storage. An Intel-spec 80-pin OPS slot takes a compatible computing module. Ports include three HDMI inputs, one HDMI output, one DisplayPort input, three touch outputs, a front USB-C port that carries video, audio, touch and network with 100W charging, a USB-C output, and 10/100/1000 Mbps Ethernet. Wireless runs on WiFi 6E across 2.4 and 5 GHz with Bluetooth 5.2, and an optional top-mounted camera is available as an extra.

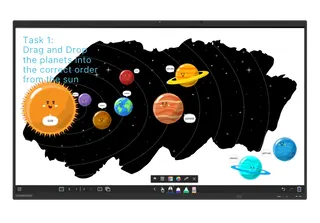

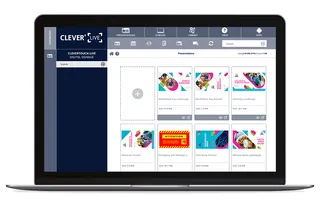

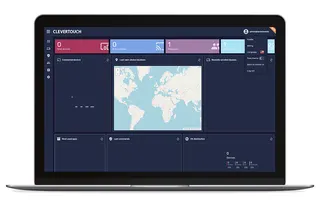

Bundled software includes CleverLive for cloud digital signage, LYNX Whiteboard for lesson activities, and CleverMDM for managing displays from one console, with a one-year remote management licence included. The manufacturer states that bundled software carries no subscription fees. Google EDLA certification adds device security features such as encryption, password protection, two-step authentication and remote lock or wipe.

Where it fits in Qatar

A 75-inch panel suits mid-sized rooms where the back row still needs to read the screen clearly. A private school in Al Rayyan refitting a science classroom could use it to show lab videos, annotate diagrams and let students work at the board without a projector. A ministry meeting room in Msheireb could connect a laptop over HDMI or USB-C and share the screen with colleagues joining from abroad, using the 8-array microphone, which picks up sound across 180 degrees to about 8 metres. A training centre in West Bay could use the same setup for group workshops that run through the working week.

What to plan before installation

At 49.95 kg net and 59.9 kg packed, the panel needs a wall that can carry its weight, and two people should handle it. The VESA pattern is 800 x 400 mm and the panel measures 1709 x 1039 x 86 mm. A free site survey from SmartRooms Qatar checks wall structure, mounting height and cable routes before any drilling. The operating range is 0 to 40°C with 10 to 90% relative humidity, so install it in an air-conditioned room away from direct sun, not in an unconditioned lobby or outdoor area where Qatar's summer heat can exceed the rated range. Typical power draw is 103.34W, falling to 0.3W or less on standby, on a 100 to 240V, 50/60Hz supply. The box includes a 3m HDMI cable and a regional power cable, so confirm the plug type with the team before installation.

Send your room dimensions, wall details and cable plan, and request a quote from SmartRooms Qatar. Quotations usually arrive within one working day, and the team will confirm lead times based on stock when the quotation is issued.

Highlights

75-inch 4K UHD panel at 3840 x 2160 resolution
50 continuous touch points with ±1mm touch accuracy
Android 15 with 8GB RAM and 128GB internal storage
Integrated NFC reader, WiFi 6E and Bluetooth 5.2
Two 20W front speakers and two 10W subwoofers
Google EDLA certified with one-year MDM licence included

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

125 specifications · Source: manufacturer · checked Oct 2026

Display Panel20

Diagonal Size: 65" 4K, 75" 4K, 86" 4K
Screen Type: 65”/75” – VA – Direct LED Backlight 86” – IPS – Direct LED Backlight
Aspect Ratio: 16:9
Display Colours: 1.07 Billion (10 bit)
Resolution: 4K UHD (3840x2160) @ 60Hz
Response Time: 5ms
Refresh Rate: 60Hz
LCD Viewing Angle: 178°
Brightness: 500 cd/m2
Contrast Ratio: 5500:1
Dynamic Contrast Ratio: 6000:1
DC Dimming for Flicker Free: Yes
Glass Hardness: AG Tempered Glass - Mohs Level 7
Glass Thickness: 3mm
Glass Type: Low Parallax 0mm Air Gap - Heat tempered - Anti Glare & Anti Smudge for durability - Super Glide Surface
Antibacterial Glass: Yes
Antibacterial Power Button: Yes
Main Board: RK3588
Life of Screen: 50,000 Hours
NTSC: 72%

Interactivity22

Writing Technology: High Precision IR Technology + Material Classification Sensor
Continuous Touch Points: 50 (Android) / 50 (Windows)
Touch Resolution: 32768x32768px
Response Time: ≤5ms
Touch Accuracy: ±1mm
Minimum Object Size: 2mm
Touch Tool: Finger, passive pen, opaque objects
Simultaneous Writing: Yes
Ink In Tools: Yes - LYNX
Pens Included: 2
Pen Type: Dual Recognition Stylus | Super Cool Stylus 2.0
Pen Holder: Integrated magnetic pen holders
Pen Tip Diameter: 3mm/7mm
Pen & Touch Differentiation: Yes
Pen Identities: 2
Palm Rejection: Yes
Annotation Over Any Source: Yes
Classroom Essential Apps: Includes Whiteboard, Annotate, Timer, Media Players, Browser, PDF Reader, Screen Record, Spinner, Voting, Maths Tools
Compatibility*: Windows 10, Linux, Mac, Android, Chrome
Tracking Rate: ≥1m/s
Scan Rate: ≥400hz
Gestures & Edge Swipes: Windows Supported, OSX With additional Driver

Connectivity29

OPS Slot: 1 - Intel Spec 80Pin
HDMI In: 3
HDMI Out: 1
USB-A 2.0: 3
USB Touch (type B): 3
USB A 3.0 (faster data transfer): 2 x USB Front Type A 3.0 with faster data transfer 2 x USB Side Type A 3.0 with faster data transfer
USB C (Video, Audio & Touch): 1 x USB Side Type C with video, audio, touch & network 1 x USB Front Type C with video, audio, touch, network, and 100W charging
USB C (Data Transfer): 1 x USB Top Type C Supports data transfer for top mounted camera
USB C Out: 1 x USB Type C Out with video, audio, touch and network
Display Port In: 1
LAN In (RJ45): 1
LAN Out (RJ45): 1
LAN Supports: 10/100/1000 Mbps
RS-232: 1
Wake-on-Lan: Yes
Wireless Adapter: 2.0 + WAP
Clevertouch WiFi Module: Yes
Bluetooth: Yes - 5.2
Audio In: 1
Optical Out: 1
Headphone: 1 (3.5mm)
Total touch out ports: 3
NFC Reader / Writer: Integrated
WiFi: IEEE 802.11a/b/g/n/ac/ax with 2 × 2 MIMO (hotspot only) (both 2.4 and 5 GHz bands)
WiFi Generation: WiFi 6E
WiFi Speed: Capable of speeds up to 1GBps
Camera: Optional Extra
Proximity Sensor: Yes
Ambient Sensor: Yes

Computing13

Operating System: Android 15
System Version: Lux 13
RAM: 8GB
Internal Storage: 128GB
CPU: Quad Core A76 + Quad Core A55
GPU: Mali G610 MC4
Android Resolution: 4K
Integrated Lux 2 UI: Yes
System Architecture: 64-bit
Google Certification: EDLA Certified (Enterprise Device Licence Agreement)
Access to Google Playstore Apps: Yes (certified)
Access to 0Microsoft Apps: Yes (certified)
Access to Google Cloud Services: Yes (certified)

Power4

Power Requirements: 100 - 240V ~ 50/60Hz 3.5A
Power Consumption (Normal): [65" / 75" / 86"] 89.08W 103.34W 116.75W
Power Consumption (Standby): ≤0.3W
Ultra Quiet Fanless Design: Yes

Operating & Storage Environment5

Operating Temperature: 0˚ to 40˚
Storage Temperature: -20˚ to 60˚
Operating Humidity: 10% to 90% RH
Storage Humidity: 10% to 90% RH
Altitude: Below 5000 metres

Audio10

Dual Front Facing,Bass Enhanced Speakers: 2 x 20W Front Facing + 2x 10W Subwoofer
Audio Out: Yes
SPDIF / Fibre: Yes
Sound Channel: 2.2
Line Array Microphone (noise cancelling): 8-array
Super Wide Sound: Yes
Amplifier Power: 95W
Sound Pickup Angle: 180 ˚
Sound Pickup Distance: 8M
Frequency Domain: 32kHz

IMPACT Lux 2 Built-In Features15

LYNX™ App With Online Lesson Planning: Yes
Embedded Digital Signage: Yes
Clevershare™ Mirroring Any Device To The Board: Free for the life of the screen (touch back)
Integrated Personalised Account Profiles: Yes
Cloud Account Access: OneDrive, Google Drive, LYNX Cloud
Embedded Room Booking: Yes
Whiteboard Annotation: Yes
Email Out Direct From Touchscreen: Yes
Scan QR Code For Saving Work: Yes
Alerts and Announcements: Yes
Over-the-Air Updates: Yes
Remote Management Of Touchscreens (MDM): Yes - One year license
CleverLauncher™: Yes
LynxShare™: Yes
LynxCloud™: Yes

Physical Spec5

Panel Dimensions: [65" / 75" / 86"] 1488 x 916 x 86mm 1709 x 1039 x 86mm 1957 x 1178 x 99mmv
Packed Dimensions: [65" / 75" / 86"] 1628 x 185 x 1020mm 1863 x 225 x 1155mm 2110 x 225 x 1304mm
Net Weight: [65" / 75" / 86"] 37.90kg 49.95kg 61.25kg
Packed Weight: [65" / 75" / 86"] 44.5kg 59.9kg 72.8kg
VESA Mount Point: [65" / 75" / 86"] 600 x 400mm 800 x 400mm 800 x 600mm

Inside your Clevertouch Box1

What's In The Box: (1) Clevertouch IMPACT Lux 2 (1) 3M Length HDMI Cable

Compliance & Certification1

Regulatory Certification: RoHS, CE, FCC, UL, Energy Star & EEC

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about IMPACT Lux 2 75"

Who is the Clevertouch IMPACT Lux 2 75" best suited to?

It suits mid-sized rooms where the screen must be readable from the back row, such as classrooms, training rooms and meeting rooms in Doha, Lusail or Al Rayyan. The 4K UHD panel at 3840 x 2160 keeps small text sharp, and the built-in 2 x 20W speakers and 2 x 10W subwoofers cover the room without an extra soundbar.

How does the 75-inch compare with the 86-inch IMPACT Lux 2?

The 75-inch uses a VA panel, while the 86-inch uses IPS. The 75-inch has a net weight of 49.95 kg and a panel measuring 1709 x 1039 x 86 mm, compared with 61.25 kg and 1957 x 1178 x 99 mm for the 86-inch. For a boardroom in The Pearl where wall load or space is tighter, the 75-inch is easier to plan. Both share the same connectivity and Android 15 platform.

Is a 75-inch panel right for a mid-sized classroom in Al Rayyan or Education City?

Often yes, provided the room is large enough for the screen to be viewed comfortably from the back and the wall can carry about 50 kg. A private school in Al Rayyan refitting a science classroom could use it to show lab videos and annotate diagrams. Check sightlines and mounting height during a free site survey from SmartRooms Qatar before ordering several units.

What should a ministry meeting room in Msheireb consider before buying this model?

Start with the audio and camera plan. The 8-array noise-cancelling microphone picks up sound across 180 degrees to about 8 metres, which suits a table of participants. A top-mounted camera is an optional extra and must be ordered separately. Confirm the network policy as well, because the display offers WiFi 6E and a 10/100/1000 Mbps Ethernet port for connecting to remote colleagues.

Can it handle a room where several people write on the screen at once?

Yes. The display supports 50 continuous touch points on Android and 50 on Windows, so several people can annotate at the same time. Palm rejection helps when a student rests a hand on the surface while writing, and the 400Hz scan rate keeps ink responsive. In a classroom running group tasks, each team can work in its own area of the screen.

Which laptops and devices can connect to it?

The compatibility list covers Windows 10, Linux, Mac, Android and Chrome. Gestures and edge swipes work on Windows, while OS X needs an additional driver. A laptop can connect by HDMI (three inputs), DisplayPort (one input) or the front USB-C port, which carries video, audio, touch and network and provides 100W charging. Clevershare mirroring from other devices is free for the life of the screen.

What does EDLA certification mean for an IT team?

EDLA stands for Enterprise Device License Agreement, a Google programme that adds Android device security features. These include data encryption, device management tools, password protection and two-step authentication. Because the display is EDLA certified, an IT team can lock or remotely wipe it if it is lost or stolen. The included one-year CleverMDM licence lets staff manage multiple displays from one console.

Can a training room in Mesaieed with a sun-facing window use it?

Plan for air conditioning and shading first. The operating temperature range is 0 to 40°C with 10 to 90% RH humidity, and the storage range is -20 to 60°C. Summer temperatures in Mesaieed can exceed 45°C, so the display should sit in a cooled room away from direct sun rather than beside a window. Ask the SmartRooms Qatar team to review the exact position before it is fixed to the wall.

Can it be wall-mounted in a school hall in Al Khor?

Yes. It uses an 800 x 400 mm VESA mount pattern and the panel measures 1709 x 1039 x 86 mm. The net weight is 49.95 kg and the packed weight is 59.9 kg, so the wall structure and fixings must be confirmed before delivery. A free site survey from SmartRooms Qatar checks wall construction, height and cable routes, and installation can be arranged on the quotation.

What power does it need in Qatar?

The display accepts a 100 to 240V supply at 50/60Hz and draws up to 3.5A. Normal power consumption is 103.34W, and standby consumption is 0.3W or less. The box includes a 3m regional power cable, so confirm the plug type with the SmartRooms Qatar team before installation to match the BS 1363 (Type G) sockets used across Qatar.

What comes in the box and what must be ordered separately?

The box contains the IMPACT Lux 2 75-inch, a 3m HDMI cable, a 3m USB A-to-B cable, a 1.5m USB-C cable, a 3m regional power cable, a remote control with batteries, two Super Cool Stylus 2.0 pens, a WiFi module, an NFC card and the user and quick install guides. The top-mounted camera is an optional extra. Request a quote to confirm the accessories your room needs.

Can a government body buy it through an LPO or tender?

Yes. SmartRooms Qatar supplies government and public-sector buyers by purchase order (LPO) and through government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. State the quantity and room locations in your request so the quotation covers the right mounting and cable needs. The product carries the manufacturer's standard 5-year warranty, with an optional 7-year warranty available.
