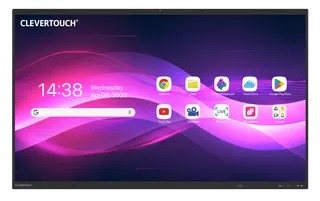

IMPACT Lux 2 86"

An 86-inch 4K display built for large rooms

The Clevertouch IMPACT Lux 2 86-inch is the largest size in its series and uses a 4K UHD panel at 3840 x 2160 resolution. This size uses an IPS panel, while the 65-inch and 75-inch models use VA panels. The panel is rated at 500 cd/m2 brightness, a 5,500:1 contrast ratio, a 6,000:1 dynamic contrast ratio and a 178° viewing angle, so people seated across a wide room see a consistent image.

Touch, pen and writing performance

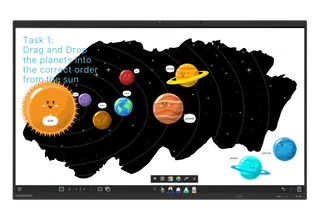

Touch is handled by a high precision infrared frame with a material classification sensor and palm rejection, so a resting hand is not read as writing. The display accepts finger, passive pen and opaque objects, with a 2mm minimum object size and touch accuracy of ±1mm. Two Super Cool Stylus 2.0 pens come in the box, and integrated magnetic pen holders keep them close to the screen. Support for 50 continuous touch points on both Android and Windows means a class or team can write on the same screen at once.

• DC dimming for flicker-free brightness at low levels
• Antibacterial glass and antibacterial power button
• Ambient and proximity sensors for automatic adjustment

Android 15, connectivity and included software

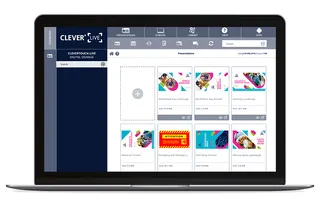

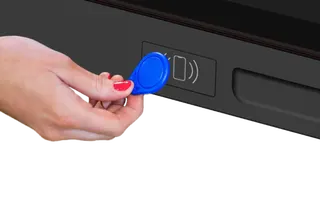

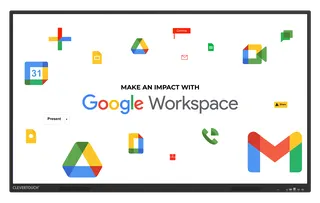

The screen runs Android 15 on a quad-core A76 and quad-core A55 processor with 8GB RAM and 128GB internal storage. It is EDLA certified, and Google Play apps and Google Cloud services are available on the device. Connectivity covers WiFi 6E, Bluetooth 5.2, NFC, an Intel-spec 80-pin OPS slot, three HDMI inputs, one HDMI output, a DisplayPort input and a front USB-C port that carries video, audio, touch and network with 100W charging. It is compatible with Google Classroom and Microsoft 365 and can convert Smart, Promethean and PPT files. CleverLive cloud digital signage and the LYNX Whiteboard are included with no subscription fees.

Where this size fits across Qatar

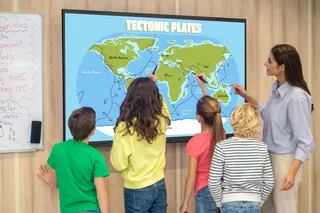

In a boardroom in West Bay or Msheireb, a leadership team can review a document or join a video call with colleagues abroad while everyone sees the same content. At a university in Education City, a lecture hall can use the 50 touch points so several students annotate a shared problem at the same time. In a training centre in Lusail or a hotel conference room near Hamad International Airport, the 2 x 20W front speakers and 8-array microphone with an 8-metre pickup distance cover presenters and audience without extra speakers.

What to plan before installation

At 61.25kg net and 72.8kg packed, the 86-inch model needs a wall bracket or trolley rated for its weight. The VESA pattern is 800 x 600mm, the panel measures 1957 x 1178 x 99mm and the packed box measures 2110 x 225 x 1304mm. A free site survey should confirm wall structure, lift and corridor access before delivery. The display is rated for operation between 0°C and 40°C at 10 to 90% relative humidity. Summer temperatures in Qatar can exceed 45°C, so it belongs in an air-conditioned room, and any sun-facing lobby should be assessed before mounting. Its 100 to 240V input at 50/60Hz covers Qatar's 240V supply, with typical power draw of 116.75W and standby at 0.3W or less. The manufacturer's warranty is 5 years as standard, with an optional 7-year warranty.

Request a quote

Send SmartRooms Qatar the room size, mounting type and number of units, and we will usually return a quotation within one working day. We supply and deliver to all eight municipalities of Qatar, install the display professionally and accept purchase orders (LPOs), Monaqasat tenders, and payment by bank transfer, cheque or purchase order. Request a quote for your Clevertouch IMPACT Lux 2 86-inch today.
