Clevertouch LUX for Enterprise 2 75"

Name: Clevertouch LUX for Enterprise 2 75" Interactive Display
Brand: Clevertouch
SKU: clevertouch-lux-for-enterprise-2-75
Availability: InStock

Overview

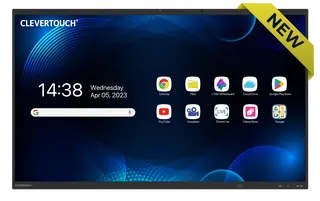

The Clevertouch LUX for Enterprise 2 75-inch is a 4K LCD interactive display with 50 continuous touch points, WiFi 6E, NFC user profiles and Android 15. It has one OPS slot, 2 x 20W front speakers with subwoofers, and an 8-array microphone for hybrid meetings. It suits boardrooms, training rooms and classrooms across Qatar. Request a quote from our team.

Where the 75-inch LUX for Enterprise 2 fits

The 75-inch version is the middle size in the LUX for Enterprise 2 range, sitting between the 65-inch and 86-inch models. Its 4K LCD panel measures 1709 x 1039 x 86 mm and weighs 49.95 kg without packaging, which makes it a practical choice for a mid-sized boardroom, a training room or a classroom where students at the back still need to read the board.

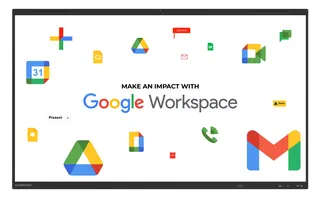

The panel runs Android 15 with the Lux 2 user interface. Its EDLA certification gives IT teams access to Google Play apps directly on the screen, along with device security tools. For organisations that want a consistent setup across several rooms, the bundled one-year MDM licence supports remote management of touchscreens.

Touch, pens and in-room writing

The touch system supports 50 continuous touch points with a response time of 2.5 ms or less and an accuracy of ±1 mm. Two styluses are included, with 3 mm and 7 mm tip diameters. Pen input and finger touch are differentiated, and palm rejection and annotation over any source are supported. Integrated magnetic pen holders keep the styluses within reach, and a scan rate of 400 Hz or higher suits fast handwriting during lessons and presentations.

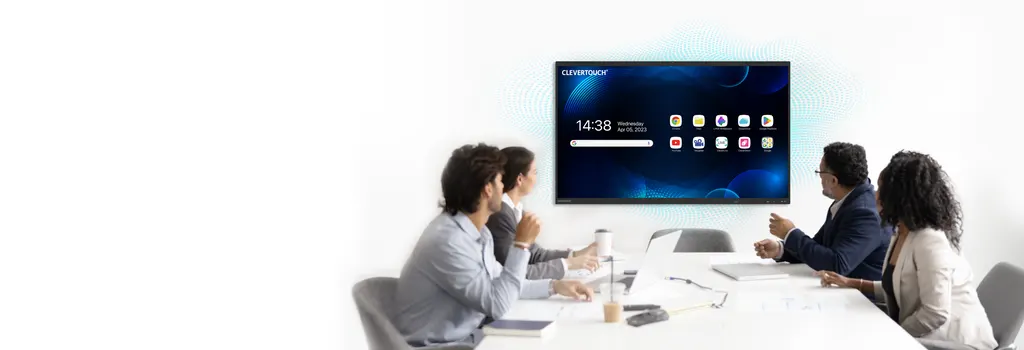

Connectivity for hybrid meetings in Qatar

A meeting in Doha often links local staff with colleagues abroad, so the input layout matters. The LUX for Enterprise 2 offers three HDMI inputs, one HDMI output, one DisplayPort input and an Intel-spec 80-pin OPS slot. The front USB-C port carries video, audio, touch and network, and it can deliver 100W charging for a laptop. A top USB-C port handles data for a top-mounted camera, which is sold as an optional extra. The panel also has WiFi 6E on both 2.4 and 5 GHz bands, Bluetooth 5.2 and an integrated NFC reader for personal profiles.

Planning a 75-inch installation

Plan the wall before the panel arrives. The VESA mounting pattern is 800 x 400 mm, the packed weight is 59.9 kg and the packed size is 1863 x 225 x 1155 mm, so two people or a lift are needed to handle it safely. A site survey helps confirm wall construction and cable routes, and SmartRooms Qatar offers free site surveys before a wall-mounted installation. Power is rated 100 to 240 V, 50/60 Hz, with typical consumption of 103.34 W and standby at 0.3 W or less. The design is fanless. The operating range is 0 to 40 °C with 10 to 90% humidity, so in Qatar's summer heat the panel belongs in an air-conditioned room. For lobby or window-facing positions, confirm the conditions with the SmartRooms Qatar team first.

Specifications to check before you order

Display: 4K UHD (3840 x 2160) at 60 Hz, 500 cd/m2 brightness, 5,500:1 contrast ratio
Glass: 3 mm anti-glare tempered glass, with antibacterial glass and power button
Audio: 2 x 20W front speakers, 2 x 10W subwoofers and an 8-array noise-cancelling microphone

The manufacturer lists a 5-year warranty as standard, with an optional 7-year warranty. Send your room dimensions, expected number of users and existing devices, and request a quote from SmartRooms Qatar. Quotations usually come within one working day.

Highlights

75-inch 4K LCD panel measuring 1709 x 1039 x 86 mm
50 continuous touch points with two styluses included
WiFi 6E, Bluetooth 5.2 and integrated NFC reader
Android 15 with EDLA certification and Google Play access
One OPS slot, three HDMI inputs and front USB-C 100W charging
Typical power 103.34 W; operating range 0 to 40 °C

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

123 specifications · Source: manufacturer · checked Oct 2026

Display Panel20

Diagonal Size: 65" 4K, 75" 4K, 86" 4K
Screen Type: LCD
Aspect Ratio: 16:9
Display Colours: 1.07 Billion (10 bit)
Resolution: 4K UHD (3840x2160) @ 60Hz
Response Time: 5ms
Refresh Rate: 60Hz
LCD Viewing Angle: 178°
Brightness: 500 cd/m2
Contrast Ratio: 5500:1
Dynamic Contrast Ratio: 6000:1
DC Dimming for Flicker Free: Yes
Glass Hardness: AG Tempered Glass - Mohs Level 7
Glass Thickness: 3mm
Glass Type: Low Parallax 0mm Air Gap - Heat tempered - Anti Glare & Anti Smudge for durability - Super Glide Surface
Antibacterial Glass: Yes
Antibacterial Power Button: Yes
Main Board: RK3588
Life of Screen: 50,000 Hours
NTSC: 72%

Interactivity22

Writing Technology: High Precision IR Technology + Material Classification Sensor
Continuous Touch Points: 50
Touch Resolution: 32768x32768px
Response Time: ≤2.5ms
Touch Accuracy: ±1mm
Minimum Object Size: 2mm
Touch Tool: Finger, passive pen, opaque objects
Simultaneous Writing: Yes
Ink In Tools: Yes - LYNX
Pens Included: 2
Pen Type: Dual Recognition Stylus | Super Cool Stylus 2.0
Pen Holder: Integrated magnetic pen holders
Pen Tip Diameter: 3mm/7mm
Pen & Touch Differentiation: Yes
Pen Identities: 2
Palm Rejection: Yes
Annotation Over Any Source: Yes
Classroom Essential Apps: Includes Whiteboard, Annotate, Timer, Media Players, Browser, PDF Reader, Screen Record, Spinner, Voting, Maths Tools
Compatibility*: Windows 11, Linux, Mac, Android, Chrome
Tracking Rate: ≥1m/s
Scan Rate: ≥400hz
Gestures & Edge Swipes: Windows Supported, OSX With additional Driver

Connectivity27

OPS Slot: 1 - Intel Spec 80Pin
HDMI In: 3
HDMI Out: 1
USB-A 2.0: 3
USB Touch (type B): 3
USB A 3.0 (faster data transfer): 2 x USB Front Type A 3.0 with faster data transfer 2 x USB Side Type A 3.0 with faster data transfer
USB C (Video, Audio & Touch): 1 x USB Side Type C with video, audio, touch & network 1 x USB Front Type C with video, audio, touch, network, and 100W charging
USB C (Data Transfer): 1 x USB Top Type C Supports data transfer for top mounted camera
USB C Out: 1 x USB Type C Out with video, audio, touch and network
Display Port In: 1
LAN In (RJ45): 1
LAN Out (RJ45): 1
RS-232: 1
Wake-on-Lan: Yes
Wireless Adapter: 2.0 + WAP
Clevertouch WiFi Module: Yes
Bluetooth: Yes - 5.2
Audio In: 1
Optical Out: 1
Headphone: 1 (3.5mm)
Total touch out ports: 3
NFC Reader / Writer: Integrated
Camera: Optional Extra
Proximity Sensor: Yes
WiFi: IEEE 802.11a/b/g/n/ac/ax with 2 × 2 MIMO (hotspot only) (both 2.4 and 5 GHz bands)
WiFi Speed: Capable of speeds up to 1GBps
WiFi Generation: WiFi 6E

Computing13

Operating System: Android 15
System Version: Lux 13
RAM: 8GB
Internal Storage: 128GB
CPU: Quad Core A76 + Quad Core A55
GPU: Mali G610 MC4
Android Resolution: 4K
Integrated Lux 2 UI: Yes
System Architecture: 64-bit
Google Certification: EDLA Certified (Enterprise Device Licence Agreement)
Access to Google Playstore Apps: Yes (certified)
Access to 0Microsoft Apps: Yes (certified)
Access to Google Cloud Services: Yes (certified)

Power4

Power Requirements: 100 - 240V ~ 50/60Hz 3.5A
Power Consumption (Normal): [65" / 75" / 86"] 89.08W 103.34W 116.75W
Power Consumption (Standby): ≤0.3W
Ultra Quiet Fanless Design: Yes

Operating & Storage Environment5

Operating Temperature: 0˚ to 40˚
Storage Temperature: -20˚ to 60˚
Operating Humidity: 10% to 90% RH
Storage Humidity: 10% to 90% RH
Altitude: Below 5000 metres

Audio10

Dual Front Facing,Bass Enhanced Speakers: 2 x 20W Front Facing + 2x 10W Subwoofer
Audio Out: Yes
SPDIF / Fibre: Yes
Sound Channel: 2.2
Line Array Microphone (noise cancelling): 8-array
Super Wide Sound: Yes
Amplifier Power: 95W
Sound Pickup Angle: 180˚
Sound Pickup Distance: 8M
Frequency Domain: 32kHz

IMPACT Lux 2 Built-In Features15

LYNX™ App With Online Lesson Planning: Yes

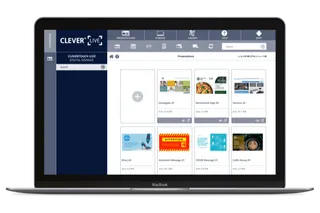

Embedded Digital Signage: Yes
Clevershare™ Mirroring Any Device To The Board: Free for the life of the screen (touch back)
Integrated Personalised Account Profiles: Yes
Cloud Account Access: OneDrive, Google Drive, LYNX Cloud
Embedded Room Booking: Yes
Whiteboard Annotation: Yes
Email Out Direct From Touchscreen: Yes
Scan QR Code For Saving Work: Yes
Alerts and Announcements: Yes
Over-the-Air Updates: Yes
Remote Management Of Touchscreens (MDM): Yes - One year license
CleverLauncher™: Yes
LynxShare™: Yes
LynxCloud™: Yes

Physical Spec5

Panel Dimensions: [65" / 75" / 86"] 1488 x 916 x 86mm 1709 x 1039 x 86mm 1957 x 1178 x 99mmv
Packed Dimensions: [65" / 75" / 86"] 1628 x 185 x 1020mm 1863 x 225 x 1155mm 2110 x 225 x 1304mm
Net Weight: [65" / 75" / 86"] 37.90kg 49.95kg 61.25kg
Packed Weight: [65" / 75" / 86"] 44.5kg 59.9kg 72.8kg
VESA Mount Point: [65" / 75" / 86"] 600 x 400mm 800 x 400mm 800 x 600mm

Inside your Clevertouch Box1

What's In The Box: (1) Clevertouch IMPACT Lux 2 (1) 3M Length HDMI Cable

Compliance & Certification1

Regulatory Certification: CE, FCC, UL, Energy Star & EEC

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about LUX for Enterprise 2 75"

How does the 75-inch model differ from the 65-inch LUX for Enterprise 2?

The 75-inch model has a 1709 x 1039 x 86 mm panel, a 49.95 kg net weight, an 800 x 400 mm VESA pattern and typical power draw of 103.34 W. The 65-inch model measures 1488 x 916 x 86 mm, weighs 37.90 kg, uses a 600 x 400 mm VESA pattern and draws 89.08 W. Both share 4K resolution, Android 15 and the same touch specification. Choose the 75-inch when the room needs a larger writing area and the wall can take the extra weight.

Which rooms in Qatar suit a 75-inch LUX for Enterprise 2?

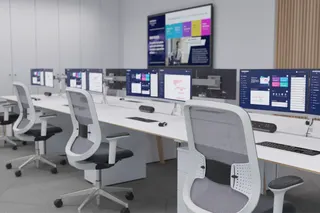

It suits mid-sized boardrooms, executive meeting rooms, training rooms and classrooms where a larger group needs to read the board. For example, a company training room in Lusail or a secondary classroom in Al Sadd can use it for in-person and remote sessions at the same time. If the room is much larger, the 86-inch model in the same series may fit better. If it is smaller, the 65-inch model is the closer match.

How does the touch system handle pens and fingers?

The touch system supports 50 continuous touch points, a response time of 2.5 ms or less and ±1 mm accuracy. It recognises a finger, a passive pen and opaque objects, and it differentiates pen input from touch. Two Super Cool Stylus 2.0 pens with 3 mm and 7 mm tips come in the box, and palm rejection is included. A scan rate of 400 Hz or higher helps with fast handwriting.

Can staff share content from laptops and phones without cables?

Yes. The panel has WiFi 6E on both 2.4 GHz and 5 GHz bands, Bluetooth 5.2 and an integrated NFC reader. Clevershare, the mirroring feature, is listed as free for the life of the screen. NFC lets a user tap a card or fob to load a personal profile on any compatible Clevertouch display. Check your network policy with your IT team before rolling the panel out across the organisation.

Can I add a camera and a computer to the panel?

A top-mounted camera connects through a dedicated USB-C data port on the top edge, but the camera is an optional extra. For a computer, the OPS slot is an Intel-spec 80-pin slot, so a compatible OPS module can be fitted instead of a separate PC. Confirm the exact module with SmartRooms Qatar before ordering. The panel also has three HDMI inputs and a DisplayPort input for laptops and other sources.

Which operating systems work with the touch function?

The compatibility list covers Windows 11, Linux, Mac, Android and Chrome. Windows supports gestures and edge swipes directly, while Mac needs an additional driver for gestures. Built-in Android 15 runs on the panel itself, so a meeting can start without a computer. Offices in Doha that use Windows laptops can connect through HDMI or USB touch and keep their usual workflow.

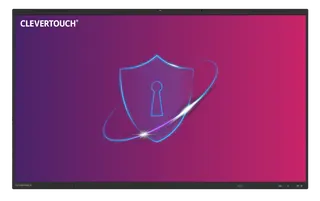

What does EDLA certification mean for IT security?

EDLA stands for Enterprise Device License Agreement, a Google programme that provides advanced Android device security features. The panel is EDLA certified, so Google Play apps can be installed from the screen. Listed security features include password protection, two-step authentication and data encryption, plus remote wipe or lock if a device is lost or stolen. The panel also includes a one-year MDM licence for remote management of the screens.

Will the panel cope with Qatar's summer heat?

The operating temperature range is 0 to 40 °C, with humidity between 10% and 90% RH, and the panel is rated for altitudes below 5,000 metres. Summer temperatures in Qatar can exceed 45°C, so install the panel in an air-conditioned room with stable temperature. Do not place it in a lobby with frequently opened doors, or beside a window that gets direct afternoon sun, until you have confirmed the conditions with the SmartRooms Qatar team.

What power does it need and how much does it draw?

The power requirement is 100 to 240 V, 50/60 Hz, 3.5 A, which covers Qatar's 240 V, 50 Hz mains supply. Typical consumption at the 75-inch size is 103.34 W, and standby is 0.3 W or less. The panel has an ultra-quiet fanless design, so it runs without fan noise in a classroom or boardroom. A 3-metre regional power cable is included, so confirm the plug and socket arrangement with SmartRooms Qatar before ordering.

How should we plan the wall mount and lifting?

Plan for a VESA pattern of 800 x 400 mm. The net weight is 49.95 kg, the packed weight is 59.9 kg and the packed box measures 1863 x 225 x 1155 mm, so two people or a lift should handle the panel. SmartRooms Qatar offers a free site survey to check wall construction, mounting height and cable routes before installation. This matters most on concrete walls and on partitions that need added bracing.

What comes in the box?

The box includes the IMPACT Lux 2 panel, a 3-metre HDMI cable, a 3-metre USB cable (A-B), a 1.5-metre USB-C cable, a 3-metre regional power cable, a remote control with two batteries, two Super Cool Stylus 2.0 pens, a user guide, a quick install guide, a WiFi module and an NFC card. Check the contents against your purchase order when the delivery arrives.

What warranty applies, and how do I request a quote?

The datasheet lists a 5-year warranty as standard, with an optional 7-year warranty available. Warranty terms are set by the manufacturer. To request a quote, send the number of panels, the room type and your mounting plan. SmartRooms Qatar usually responds within one working day and accepts purchase orders (LPOs) from schools, government bodies and companies, with payment by bank transfer, cheque or purchase order.
