LUX for Enterprise 2 86"

What sets the 86-inch model apart in the LUX for Enterprise 2 range

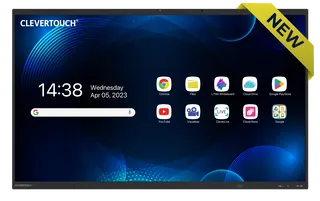

The 86-inch version is the largest size in the LUX for Enterprise 2 range. Its panel measures 1957 x 1178 x 99mm, compared with 1709 x 1039 x 86mm for the 75-inch model. That extra width gives a presentation surface that people at the back of a long boardroom or a tiered lecture hall can read comfortably. The screen is a 4K LCD with 3840 x 2160 resolution, 500 cd/m2 brightness and a 178 degree viewing angle, so people seated well to either side see the same content.

Touch, writing and annotation performance

Touch is handled by high precision IR technology combined with a material classification sensor. The unit supports 50 continuous touch points, a scan rate of 400Hz or more, touch accuracy of ±1mm and a minimum detected object size of 2mm. Two pens are included, with 3mm and 7mm tips, and the system tells pen input apart from finger touch, so one person can write while another annotates with a finger. Palm rejection and annotation over any source are included.

• 50 continuous touch points with ±1mm accuracy
• Two pens with 3mm and 7mm tips and integrated magnetic holders
• Pen and touch differentiation with palm rejection

Connectivity and the built-in computing platform

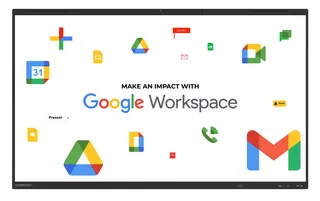

The unit runs Android 15 on a 64-bit architecture with 8GB RAM and 128GB internal storage. It includes an Intel-spec 80-pin OPS slot, which is designed to take a plug-in computing module. Connections include three HDMI inputs, one HDMI output, one DisplayPort input, three USB touch outputs, and a front USB-C port that carries video, audio, touch and network with 100W charging. A top USB-C port supports data transfer for a top-mounted camera, which is sold as an optional extra. Google EDLA certification gives access to Google Play Store apps directly on the screen. Wi-Fi is IEEE 802.11ax (WiFi 6E) with 2 x 2 MIMO on the 2.4 GHz and 5 GHz bands, and Bluetooth 5.2 is included.

Where it fits in Qatar

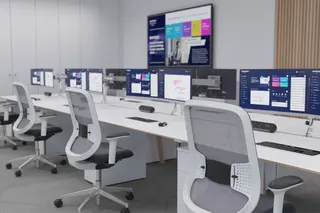

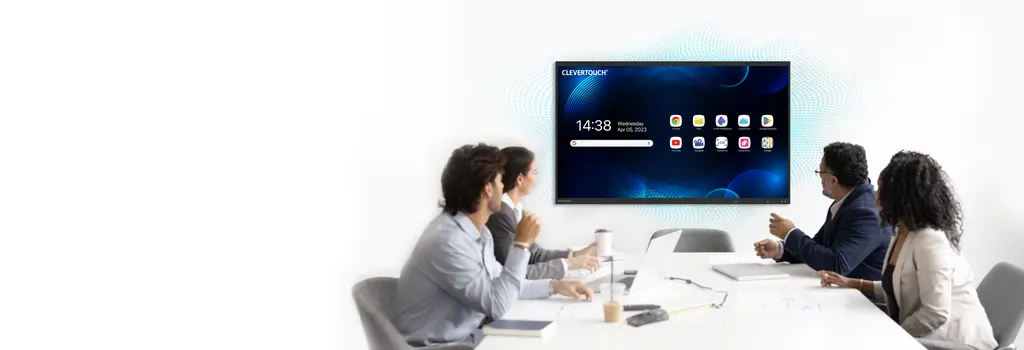

In a university lecture hall in Education City, the 86-inch panel lets a lecturer display slides, annotate diagrams and run software from the front of the room. In a corporate boardroom in West Bay or The Pearl, NFC lets each presenter tap a card or fob to load a personal Clevertouch profile, and the 8-array microphone picks up voices up to 8 metres away for calls with teams abroad. In a hotel conference room in Lusail, the built-in digital signage and room booking features can show the agenda between sessions. The fanless design also keeps fan noise out of quiet rooms.

Planning the installation

At 61.25kg net and 72.8kg packed, the 86-inch unit needs a wall structure rated for that load and a team trained to lift it safely. The VESA mount pattern is 800 x 600mm. The packed carton measures 2110 x 225 x 1304mm, so check doorways, lifts and corridors before delivery. Normal power consumption is 116.75W and standby is 0.3W or less, with a supply rating of 100 to 240V, 50/60Hz, 3.5A. The manufacturer lists an operating temperature of 0 to 40 degrees and humidity of 10% to 90% RH, so the room should stay within that range. A free site survey from SmartRooms Qatar checks wall type, sightlines, power and cable routing before installation.

To receive a quotation for the Clevertouch LUX for Enterprise 2 86-inch, request a quote from SmartRooms Qatar and include the room size, the mounting method and the number of units. Quotations are usually sent within one working day.
