Clevertouch Pro Series 3 86"

Name: Clevertouch Pro Series 3 86-inch 4K Interactive Display
Brand: Clevertouch
SKU: clevertouch-pro-series-3-86
Availability: InStock

Overview

The Clevertouch Pro Series 3 86-inch is a 4K interactive display with a 50-point infrared touch frame, dual stylus support, an OPS slot and Wi-Fi 6E. Its Android-based platform gives access to Google Play, Microsoft apps and video conferencing software. Its speakers and array microphone suit large classrooms and boardrooms in Doha, Lusail and Education City. Request a quote from SmartRooms Qatar.

What the 86-inch model adds to the Pro Series 3 range

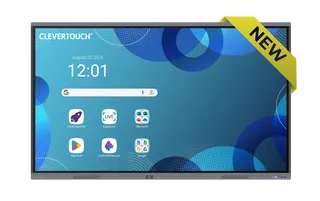

The 86-inch Clevertouch Pro Series 3 is a 4K interactive display built on an IPS panel with direct LED backlighting. It delivers 3840 x 2160 resolution at 60Hz, 450 cd/m2 brightness and a 178° viewing angle, so content stays readable for a large group seated at the sides of a room. The tempered anti-glare glass is rated Mohs level 7 and is 3.2mm thick, which suits rooms with bright ceiling lights or daylight from one side.

The unit runs its own Android-based platform with 16GB RAM and 128GB internal storage, so teams can open apps, whiteboards and cloud files without connecting a separate computer. Google EDLA certification gives access to Google Play, Microsoft apps and Google Cloud services, and the display supports Microsoft Teams, Google Meet and Zoom.

Touch, pens and shared writing

The touch frame uses high precision infrared technology with 50 continuous touch points, ±1mm touch accuracy and a minimum detectable object size of 2mm. Two dual recognition styluses are included, and the display tells pen input apart from finger touch and ignores a resting palm. Simultaneous writing is supported, so a lecturer and a student can annotate at the same time. Integrated magnetic pen holders keep the styluses at hand, and annotation works over any connected source.

Connectivity, audio and room pickup

The connection panel provides three HDMI 2.1 inputs, one HDMI output for cloning content to a second display, a DisplayPort and a VGA input. An OPS slot takes an Intel-specification 80-pin module, and a front USB-C port carries video, audio, touch and network with 65W charging for a laptop. Wi-Fi 6E (802.11 a/b/g/n/ac/ax with 2x2 MIMO) and Bluetooth 5.2 are built in, along with NFC for card login. For wired control, the panel offers LAN in and out and RS-232.

Audio comes from two 25W speakers and a 20W subwoofer. The array microphone picks up sound across a 180° angle at up to 8 metres, which helps when a presenter speaks from several positions in a lecture hall or boardroom.

Where it fits across Qatar

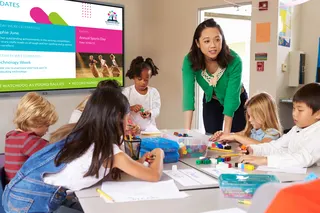

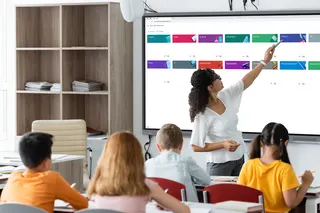

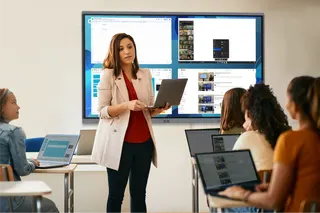

In Education City, a university lecture hall can use the panel as the main teaching surface, with the lecturer annotating slides while a student works through a solution on the same screen. In West Bay, a boardroom for a company with teams in Dubai or London can run video calls through Teams or Zoom while the panel shows shared documents and room booking details. In Lusail, an international school fitting out a large classroom can use CleverLive to show timetables and announcements when the panel is idle.

Planning the installation

The panel measures 1957 x 1171 x 97mm and weighs 55.00kg net, or 70.15kg gross in its packaging. The VESA mounting pattern is 800 x 600mm with M8 x 25mm screws, so the wall or trolley must be checked for load and alignment before the panel arrives. SmartRooms Qatar offers a free site survey to confirm wall structure, access routes and the position of power and data points. The listed operating range is 0 to 40°C, so the panel is best placed in an air-conditioned room rather than a space that heats up in summer, when outdoor temperatures often exceed 45°C. The 100-240V, 50/60Hz input covers Qatar's 240V supply, with a typical draw of 91.89W and under 0.5W on standby.

Quotations are usually issued within one working day. Tell the SmartRooms Qatar team the room, the mounting wall and the number of units, then request a quote for the Clevertouch Pro Series 3 86-inch, with delivery to any of Qatar's eight municipalities and professional installation available.

Highlights

86-inch 4K panel with 3840 x 2160 resolution at 60Hz
50-point infrared touch with ±1mm accuracy and two styluses

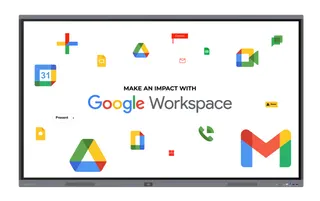

Google EDLA certified with Google Play and Microsoft app access
OPS slot, three HDMI 2.1 inputs and front USB-C with 65W charging

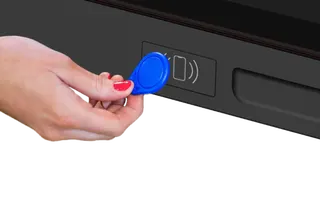

Wi-Fi 6E, Bluetooth 5.2 and integrated NFC card login
Two 25W speakers, 20W subwoofer and 180° array microphone pickup

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

133 specifications · Source: manufacturer · checked Oct 2026

Display19

Diagonal Size: [65" / 75" / 86" / 98"] 4K | 4K | 4K | 4K
Screen Type: [65" / 75" / 86" / 98"] VA - Direct LED Backlight VA - Direct LED Backlight IPS - Direct LED Backlight ADS LCD - Direct LED Backlight
Aspect Ratio: 16:9
Display Colours: 1.07 Billion (10 bit)
Resolution: 4K UHD (3840x2160 @60Hz)
Response Time: 6.5ms
Refresh Rate: 60Hz
LCD Viewing Angle: 178°
Brightness: 450 cd/m2
Contrast Ratio: [65" / 75" / 86" / 98"] 5000:1 | 5500:1 | 1200:1 | 1200:1
Dynamic Contrast Ratio: [65" / 75" / 86" / 98"] 6000:1 | 6000:1 | 6000:1 | 6000:1
DC Dimming (for Flicker Free): Yes
Glass Hardness: Tempered Glass - Mohs Level 7
Glass Thickness: [65" / 75" / 86" / 98"] 3.2mm | 3.2mm | 3.2mm | 4mm
Glass Type: Low Parallax 0mm Air Gap - Heat tempered - Anti Glare & Anti smudge for durability - Super Glide Surface
Main Board: RK3576
Life of Screen: 50,000 hours minimum
NTSC: 72%
Anti-bacterial Power Button: Yes

Interactivity22

Writing Technology: High Precision IR Technology
Continuous Touch Points: 50
Touch Resolution: 32768x32768px
Response Time: ≤2.5ms
Touch Accuracy: ±1mm
Minimum Object Size: 2mm
Touch Tool: Finger, passive pen, opaque objects
Simultaneous Writing: Yes
Ink In Tools: Yes - LYNX
Pens Included: 2
Pen Type: Dual Recognition Stylus
Pen Holder: Integrated magnetic pen holders
Pen Tip Diameter: 3mm/7mm
Pen & Touch Differentiation: Yes
Pen Identities: 2
Palm Rejection: Yes
Annotation Over Any Source: Yes
Classroom Essential Apps: Includes Whiteboard, Annotate, Timer, Media Players, Browser, PDF Reader, Screen Record, Spinner, Compass, Ruler, Protractor, Geo Triangle
Compatibility: Windows 10, Linux, Mac, Android, Chrome
Tracking Rate: ≥1m/s
Scan Rate: 400Hz
Gestures & Edge Swipes: Windows Supported, OSX With additional Driver

Connectivity31

OPS Slot: 1 - Intel Spec 80Pin
HDMI In: 3 (2.1)
HDMI OUT (Clone content from one display to another): 1
USB-A 2.0: 1 (1 USB for system upgrade)
USB Touch (type B): 2 (3.2)
USB A 3.2 (faster data transfer): 2 x Front USB Type A 3.2 with faster data transfer 2 x Side USB Type A 3.2 with faster data transfer
USB C (Video, Audio & Touch): 1 x Front USB Type C with video, audio, touch, network & 65W charging 1 x Side USB Type C with video, audio, touch & network.
LAN In (RJ45): 1
LAN Out (RJ45): 1
RS-232: 1
Wake-on-Lan: Yes
Wireless: Yes
Clevertouch WiFi Module: Yes, intergrated
Bluetooth: Yes 5.2, intergrated
DisplayPort: 1
VGA In: 1
Audio In: 1
Optical Out: 1
Headphone: 1 (3.5mm)
Total touch out ports: 2 (3.2)
NFC Reader / Writer: Yes - integrated
Camera: Optional Extra
Auto brightness sensor: Yes
Proximity Sensor: No
Array Mic: 8 Array Microphone
Sound pickup Angle: 180°
Sound pickup distance: 8m
Frequency Domain: 32kHz
WiFi: IEEE 802.11a/b/g/n/ac/ax with 2 ◊ 2 MIMO (hotspot only) (both 2.4 and 5 GHz bands)
WiFi Generation: WiFi 6E, IPv6 compatible
WiFi Speed: Capable of speeds up to 1Gbps

Audio6

Dual Front Facing, Bass Enhanced Speakers: 2x 25W speakers + 20W Subwoofer
Audio Out: Yes
SPDIF / Fibre: Yes
Sound Channel: 2.1
Line Array Microphone: Yes
Super Wide Sound: Yes

Power4

Power Requirements: [65" / 75" / 86" / 98"] 100-240V~ 50/60Hz 4.0A 100-240V~ 50/60Hz 4.0A 100-240V~ 50/60Hz 5.0A 100-240V~ 50/60Hz 5.0A
Power Consumption (Normal): [65" / 75" / 86" / 98"] 73.88W 72.86W 91.89W 136.73W
Power Consumption (Standby): < 0.5W
Ultra Quiet Fanless Design: Yes

Computing14

Operating System: Android 16
System Version: LUX 16
Google Certification: EDLA Certified (Enterprise Device Licence Agreement)
Access to Google Play Store Apps, Microsoft Apps & Google Cloud Services: Yes (Certified)
Access to Video Conferencing Apps (MS Teams, Google Meet, Zoom etc): Yes
RAM: 16GB
Internal Storage: 128GB
Expandable Storage: 640GB
Total Storage: 640GB (Expandable)
CPU: Quad Core A72 + Quad Core A53
GPU: Mali G52 MC3
Android Resolution: 4K
System Architecture: 64-bit
Integrated LUX UI: Yes

Physical Spec6

Panel Dimensions: [65" / 75" / 86" / 98"] 1488×908×86mm/58.58×35.75×3.38 inch 1709.4×1031×85.5mm/67.29×40.59×3.36 inch 1957×1171×97mm/77.05×46.10×3.82 inch 2219.6×1318.4×89mm/87.40×51.89×3.50 inch
Packed Dimensions: [65" / 75" / 86" / 98"] 1628×1014×185mm/64.09×39.92×7.28 inch 1863×1155×225mm/73.35×45.47×8.86 inch 2110×1304×225mm/83.07×51.34×8.86 inch 2406×1485×280mm/94.72×58.46×11.02 inch
Net Weight: [65" / 75" / 86" / 98"] 35.05kg/77.25lb | 46.75kg/103.18lb | 55.00kg/121.25lb | 84.35kg/186.00lb
Gross Weight: [65" / 75" / 86" / 98"] 41.85kg/92.33lb | 56.55kg/124.77lb 70.15kg/154.78lb | 108.48kg/239.00lb
VESA Mount Point: [65" / 75" / 86" / 98"] 600×400mm/23.62×15.75 inch 800×400mm/31.50×15.75 inch 800×600mm/31.50×23.62 inch 800×600mm/31.50×23.62 inch
Screws for VESA: M8 x 25mm

Operating & Storage Environment5

Operating Temperature: 0˚ to 40˚
Storage Temperature: -20˚ to 60˚
Operating Humidity: 10% to 90% RH
Storage Humidity: 10% to 90% RH
Altitude: Below 5000 metres

Software & Features25

BYOM: Yes
LYNX™ App With Online Lesson Planning: Yes
Handwriting Recognition: Yes - LYNX Pro
Unlimited Multi-Floating Resizable Windows: Yes
Split Screen Support: Yes
Ecosystem of Extensive Apps with Secure and Fast Download: Yes
OpenSDK Support: Yes
Intelligent O&M: Yes
H.264 + H.265: Yes
HD Hardware Encoding and Decoding: Yes

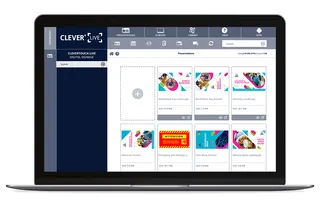

CleverLive™ Embedded Digital Signage: Yes
Clevershare™ Mirroring Any Device To The Board: Free for the life of the screen (touch back)
Miracast (WiFi Direct): Yes
AirPlay: Yes
Chromecast: Yes
Account Profiles: Yes
Cloud Account Access: OneDrive, Google Drive, LYNX Cloud
CleverLive Rooms™ Embedded Room Booking: Yes
Customisable Welcome Page with option to integrate logo, clocks apps and more (CleverLauncher™): Yes
LynxCloud™: Yes
Whiteboard Annotation: Yes
Scan QR Code For Saving Work: Yes
Alerts and Announcements: Yes
Over-the-Air Updates: Yes
Remote Management Of Touchscreens (MDM): Yes - One year license

Inside your Clevertouch Box1

What's In The Box: (1) Clevertouch Pro Series 3 (1) 3M Length HDMI Cable

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about Pro Series 3 86"

Who is the 86-inch Clevertouch Pro Series 3 best suited for?

The 86-inch model suits large teaching and meeting spaces where many people need to see the same content, such as a university lecture hall in Education City or a boardroom in West Bay. Its 3840 x 2160 resolution and 450 cd/m2 brightness keep text legible at distance, and its 50-point touch frame lets several people write or annotate in turn. Smaller rooms may be better served by the 65-inch or 75-inch versions, and a SmartRooms Qatar consultant can help you match the size to the room.

How does the 86-inch model differ from the 65-inch, 75-inch and 98-inch versions?

The 86-inch uses an IPS panel with a 1200:1 contrast ratio. The 65-inch and 75-inch models use VA panels rated 5000:1 and 5500:1, and the 98-inch uses an ADS LCD panel rated 1200:1. The 86-inch has a 3.2mm glass front, an 800 x 600mm VESA pattern and a net weight of 55.00kg. Compare these figures with the other sizes before you choose a size for your wall.

Can it go in a sunlit majlis or lobby near windows during Qatari summers?

Not without air conditioning. The listed operating temperature range is 0 to 40°C, and storage is rated from -20 to 60°C, while summer outdoor temperatures in Doha regularly pass 45°C. Install it in an air-conditioned room, away from direct sun falling on the screen, and confirm the room conditions with the SmartRooms Qatar team during the site survey. Operating humidity is rated at 10% to 90% RH, and altitude up to 5000 metres.

Can it run Microsoft Teams, Google Meet and Zoom without a separate computer?

Yes. The panel's Android-based platform supports video conferencing apps including MS Teams, Google Meet and Zoom, so a boardroom can host calls directly from the display. The unit has 16GB RAM and 128GB internal storage, with expandable storage up to 640GB through its SD card slot. A camera is sold as an optional extra, so if the room needs video capture, include it in your quotation request.

What does the OPS slot do, and which modules fit?

The OPS slot accepts an Intel-specification 80-pin module, which lets you add a computing module inside the display rather than using a separate box. This suits a school or ministry that wants a managed PC built into the room. Module compatibility, operating system and support should be confirmed with SmartRooms Qatar before ordering, because the built-in platform and the OPS module must work together. Ask for the module details in your quotation.

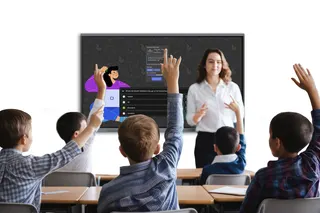

Can two people write on the screen at the same time during a lecture?

Yes. The display supports simultaneous writing and comes with two dual recognition styluses, so a lecturer and a student can annotate together. It separates pen input from touch and provides palm rejection, so a presenter can rest a hand on the glass while writing. Pen tip diameter is 3mm and 7mm, and the LYNX ink tools are included for annotation over any connected source. Try the styluses in a short test before a large lecture series begins.

How do visitors in a boardroom share their screens without cables?

Visitors can use the Clevershare app, or Miracast, AirPlay or Chromecast, to send content to the display. Participants type the code shown on the screen to connect, and the app works with Android, Windows, iOS and Chrome devices. The data lists support for up to 50 wireless devices and up to 9 screens shown at once, with touch-back control included for the life of the screen. This suits a Doha ministry meeting where delegates bring laptops and phones from several agencies.

What wall or trolley preparation does an 86-inch panel need?

Plan for a net weight of 55.00kg and a gross weight of 70.15kg, with a packed size of 2110 x 1304 x 225mm. Use the 800 x 600mm VESA pattern with M8 x 25mm screws, and make sure the wall or stand is rated for that load. Check doorways and lift access before delivery. SmartRooms Qatar provides a free site survey to confirm wall structure, power and data points, and professional installation can follow the quotation.

Can a school or ministry buy several units through an LPO or government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. For a school fitting out several classrooms, send the list of rooms and the mix of 65-inch, 75-inch and 86-inch sizes. The team will return a quotation usually within one working day. Lead times are estimates confirmed in the quotation based on stock.

What warranty applies to the Clevertouch Pro Series 3 86-inch?

The manufacturer lists a warranty of up to 7 years and states that the term and upgrade options vary by region. The panel is covered by the manufacturer's warranty when purchased through SmartRooms Qatar. Ask for the exact warranty terms that apply in Qatar to be confirmed in your quotation. The unit also includes a one-year licence for remote management of touchscreens, which helps when you manage several displays across a campus.
