X5 86"

An 86-inch 4K panel for large rooms

The Clevertouch X5 86-inch is the largest model in the X5 line. Its 4K panel offers 3840 x 2160 resolution at 60Hz, with a 400 cd brightness rating, a 3000:1 contrast ratio and a 5000:1 dynamic contrast ratio. The tempered glass cover is rated Mohs level 7 and is 3mm thick, and the screen has anti-glare and anti-reflection treatment, which helps in rooms with strong daylight.

Viewing angles are rated at 178 degrees both horizontally and vertically, so people seated at the sides of a long table or in the back rows of a lecture hall see the same content. The panel is rated for 50,000 hours of screen life and an operating-hours rating of 7*16h.

Touch, pen and shared writing

The 86-inch X5 uses high precision infrared touch with 40 continuous touch points, a touch resolution of 32768 x 32768 px and touch accuracy of ±1mm across 90% of the screen. Writing starts 2mm above the glass, and the minimum touch object is 3mm. Two pen identities and palm rejection let one person write with the pen while another uses a finger, so group sessions run without accidental marks.

The dual recognition stylus has 3mm and 7mm tips, and integrated magnetic pen holders keep the pens within reach at the frame. Touch works with fingers, passive pens and opaque objects. Annotation works over any source, so a presenter can mark up a laptop screen, a document or a video without closing the file.

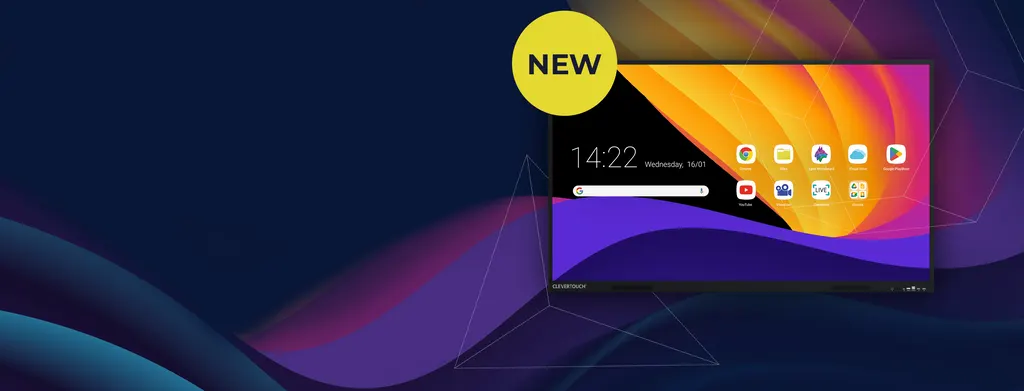

Android 14, storage and connectivity

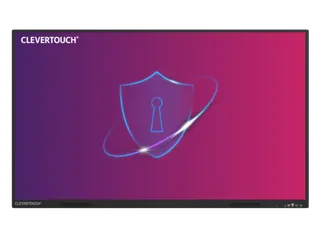

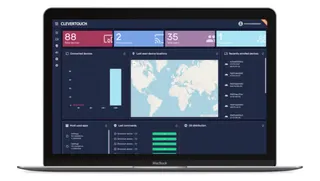

The display runs Android 14 with 8GB RAM and 64GB internal eMMC storage, and the manufacturer lists 576GB total storage with expansion. The Android build carries Enterprise Device Licence Agreement (EDLA) certification, which adds data encryption and device management tools for IT teams. Remote management of touchscreens is listed with a one-year licence.

• Video inputs: three HDMI 2.0 inputs (one front, two rear), one DisplayPort input and one VGA input.
• USB-C: the front port carries video, audio, touch, network and 65W charging, and the side port carries video, audio, touch and network.
• Wireless: WiFi 6E with speeds up to 1Gbps, Bluetooth 5.2 and a Clevertouch WiFi module.
• Expansion: an OPS slot (Intel spec 80-pin) for a compatible plug-in computing module, which is not included in the box.

Where the 86-inch X5 fits in Qatar

Three settings suit this size best.

• Boardrooms in West Bay or Lusail: a leadership team reviews a shared document at a distance, while a visiting presenter connects a laptop to the front USB-C port and charges it at the same time.
• Lecture halls and large classrooms in Education City or Al Sadd: one teacher and several students can annotate the same slide, and the 40 touch points support group work at the board.
• Training centres and government meeting rooms in Msheireb or Doha: presenters can mirror devices from Android, Windows, iOS or Chrome through Clevershare, and the screen can run CleverLive digital signage for welcome messages.

Summer temperatures in Qatar regularly pass 45°C, and this model is rated for operating temperatures of 0˚ to 40˚ with 10% to 90% RH humidity. Install it in an air-conditioned room, keep clear space around the vents and keep the panel away from direct afternoon sun through glass.

Planning the install: weight, wall and power

The net weight is 53.55 kg and the packed weight is 63.75 kg, so the wall mount or floor stand must be rated for that load. The VESA mount point is 800 x 600 mm, fixed with M8 x 25mm screws. The packed box measures 2110 x 225 x 1291 mm, so check the route through doors and lifts before delivery. A free site survey from SmartRooms Qatar confirms the wall structure, access and cable routes before installation.

The power supply accepts 100-240V at 50/60Hz, with a 4.5A rating and typical consumption of 97.5W, falling to 0.5W or less on standby. The fanless design means no fan noise in the room. The box includes a 3M regional power cable, and you can confirm the plug type with the SmartRooms Qatar team when you request your quote.

Request a quote from SmartRooms Qatar for the Clevertouch X5 86-inch. Include your room size, mounting option and number of units, and we will return a quotation with an installation plan, usually within one working day.
