Hikvision DS-D5A75RB/A3 · Price in Qatar

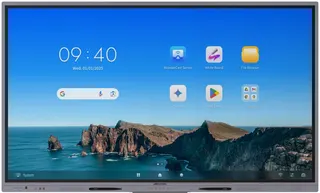

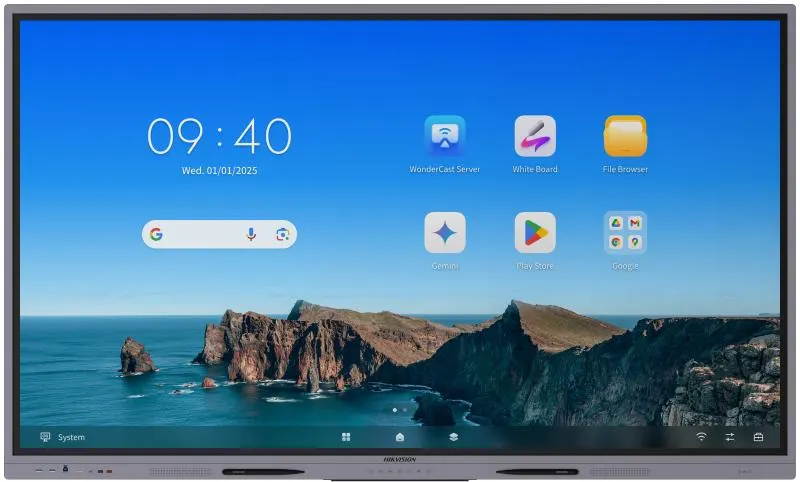

Name: Hikvision DS-D5A75RB/A3 75-inch 4K Interactive Display
Brand: Hikvision
SKU: hikvision-ds-d5a75rb-a3
Availability: InStock

Overview

The Hikvision DS-D5A75RB/A3 is a 75-inch 4K interactive display with IPS panel, up to 50-point touch and built-in Android 16. Anti-glare glass, 400 cd/m² brightness and 2 × 20 W speakers suit classrooms and meeting rooms across Doha. Optional OPS adds Windows for video conferencing. Request a quote from SmartRooms Qatar.

What the DS-D5A75RB/A3 is built to do

The Hikvision DS-D5A75RB/A3 is a 75-inch interactive display from the WonderHub Value Series. It combines a 3840 × 2160 UHD panel and infrared touch with an Android 16 system that runs without a separate computer. The IPS panel has a 16:9 aspect ratio and a 178° viewing angle both horizontally and vertically, so people seated at the sides of a room see the same image. Its anti-glare glass with 25% haze reduces reflections from windows and ceiling lights.

Display and touch facts that matter in practice

Brightness is rated at 400 cd/m², with a 1,200:1 static contrast ratio and 15,000:1 dynamic. The panel supports 10-bit colour depth (8-bit plus FRC), a 60 Hz refresh rate and a 5 ms response time. Touch is infrared with up to 50 simultaneous points, a touch response of 5 ms or less and a touch precision of ±0.5 mm across at least 90% of the touching area. Up to 50 touch points suits group activities where several students work at the board together.

Android, Windows and connectivity

Android 16 with 8 GB memory and 128 GB built-in storage, EDLA certified.
Optional OPS module (195 × 30 × 180 mm) adds a Windows system, which the manufacturer recommends for video conference software.
Three HDMI 2.1 inputs: one at the front and two at the rear, with CEC and ARC support on HDMI1.
Two 1000 Mbps LAN ports at the rear and Wi-Fi 6 (802.11ax, 2 × 2 MIMO) on 2.4 GHz and 5 GHz.
USB ports: two USB 3.0 and two USB 2.0 ports, a front Type-C port with USB 3.0 and 15 W charging, and a TF-card slot.

A built-in network switch chip means you do not need an external switch to share the network connection across the rear LAN ports.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can use the 75-inch screen for whole-class lessons. The front HDMI and USB ports let a teacher connect a tablet or laptop without reaching behind the display.

A government meeting room in West Bay or a company office in Msheireb can use it for bilingual presentations and video calls with colleagues abroad. With 1,200:1 static contrast and 400 cd/m² brightness, the image stays readable in rooms with daylight, though a window should not sit directly behind the screen.

At a training centre in Education City, the display can serve as a shared board for workshops, with multi-point touch letting several participants annotate at the same time.

What to plan before ordering

The panel weighs 41.23 kg net (54.3 kg gross) and measures 1709.84 × 1017.34 mm, so wall mounting needs a solid wall and at least two people. It uses a 600 × 400 mm VESA pattern with four M8 fixing points, and its depth is 95.75 mm without the wall attachment and 124.45 mm with it. The power input is rated 100 to 240 VAC, 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply, and average consumption is below 189 W. The operating range is 0 °C to 40 °C at 10% to 90% RH, so install it in an air-conditioned indoor room rather than where summer heat above 45 °C or dust reaches it. SmartRooms Qatar offers free site surveys to check the wall, power and cable routes before installation.

Request a quote

Send us the number of panels, your room layout and whether you need the optional OPS module. The SmartRooms Qatar team will send a quotation, usually within one working day. We accept purchase orders (LPOs) and government tenders, and the product is covered by the manufacturer's warranty. Request a quote today.

Highlights

75-inch 3840 × 2160 IPS display with 178° viewing angles
Infrared touch with up to 50 simultaneous points
Built-in Android 16 system with 8 GB memory and 128 GB storage
Optional OPS module adds a Windows system
Three HDMI 2.1 inputs and two 1000 Mbps LAN ports
400 cd/m² brightness with anti-glare glass

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

56 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D5A75RB/A3

Display22

Screen Size: 75 inch
Backlight: DLED
Pixel Pitch: 0.143 (H) × 0.429 (V) mm
Resolution: 3840 × 2160 @60 Hz
Brightness: 400 cd/m²
Color Depth: 10 bit (8 bit + FRC)
Display Color: 1.07 B
Response Time: 5 ms
Panel Type: IPS
Contrast Ratio: 1200:1 (Static) 15,000:1 (Dynamic)
Color Gamut: 72% NTSC (CIE1931) (Typ.)
Refresh Rate: 60 Hz
Viewing Angle: 178° (H)/178° (V)
Aspect Ratio: 16:9
Surface Hardness: 9H (Pencil) 7 (Mohs)
Surface Glass: Anti-Glare Glass
Surface Haze: 25% Haze
Glass Bonding Method: Zero Lamination
Display Area: 1650.24 (H) × 928.26 (V) mm
Working Duration: 7 × 16 H
Transmittance: 88% ± 3
Lifespan: 50,000 hours

Touch6

Type: Infrared Touch Screen
Touch Point: Up to 50-point multi-touch
Touch Response Time: ≤ 5 ms
Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
Touch Precision: ± 0.5 mm (≥ 90% touching area)
Touch Resolution: 32768 × 32768

Built-in System6

Operation System: Android 16.0
Memory: 8 GB
Built-in Storage: 128 GB
Processor: Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
GPU: Mali-G52 MC3
HDCP Version: 2.3 & 2.0 & 1.4

Internal Function4

Loudspeaker: Built-in 2 × 20 W
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
NFC: Supports card reader 13.56 MHz, (ISO 14443A/ ISO 14443B)
Light Sensor: Yes

Interface5

Video & Audio Input: HDMI 2.1 TMDS × 3（Front × 1; Rear × 2; Supports HDCP 2.3 & 2.2 & 1.4; HDMI1 Supports CEC&ARC protocol） Audio × 1（Rear）
Video & audio output: Audio × 1（Rear）
Control interface: TOUCH-USB 2.0 × 1（Front × 1） TOUCH-USB 2.0 × 1（Rear × 1） RS232 × 1（Rear）
Network Interface: LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface: USB 3.0 × 2（Front × 2） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Supports USB 3.0, 15 W charging functions) TF-Card Slot × 1（Rear × 1）

Power3

Power Supply: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Average Consumption: < 189 W

Working Environment2

Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 10%~90% RH

General7

VESA: 600 mm × 400 mm (4 × M8-25 mm)

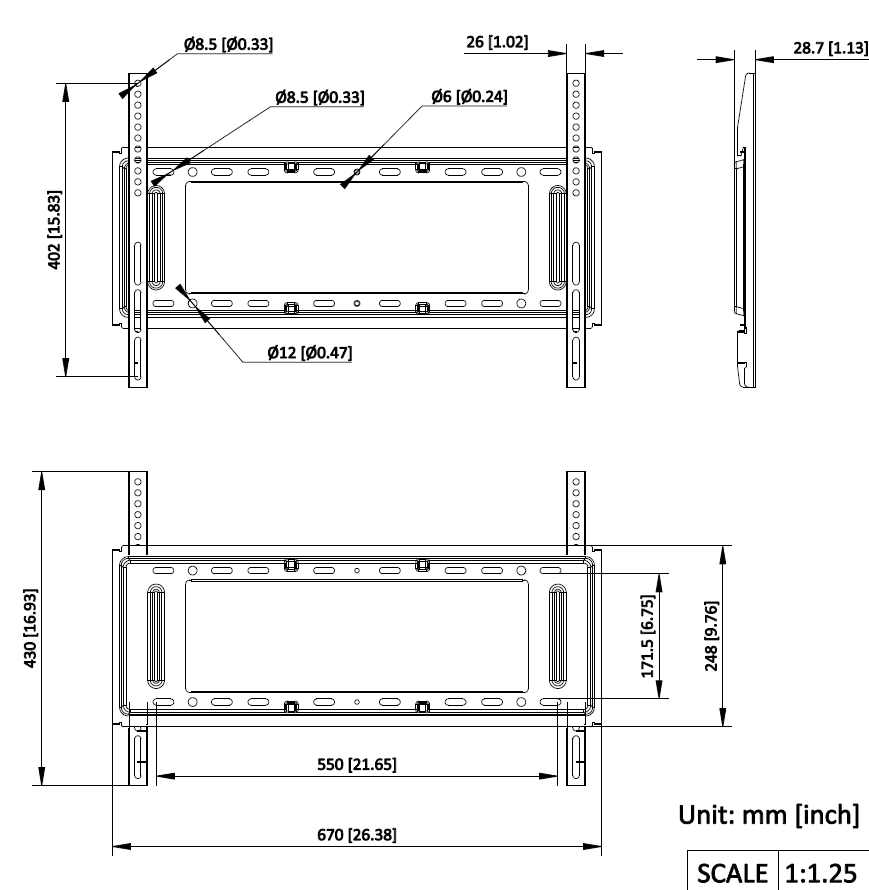

Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, power cable, remote control.
Package Dimensions (W × H × D): 1907.0 × 1160.0 × 223.0 mm
Net Weight: 41.23 ± 0.5 kg
Gross Weight: 54.3 ± 0.5 kg

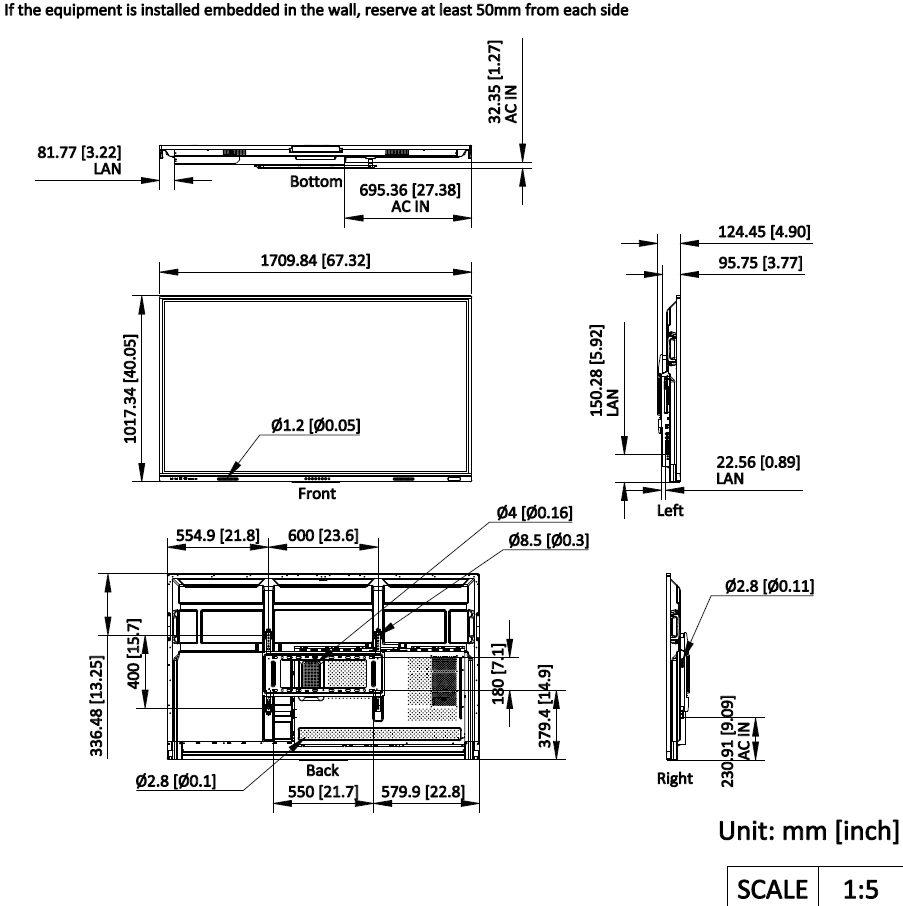

Product Dimensions （With Wall Attachment）: 1709.84 mm × 1017.34 mm × 124.45 mm (W × H × D)
Product Dimensions （Without Wall Attachment）: 1709.84 mm × 1017.34 mm × 95.75 mm (W × H × D)

Downloads

7 files from the manufacturer

PDF Datasheets Leaflet_Wonderhub-Value-G3-Series-_260507.pdf 1.6 MB PDF Datasheets · Opens on manufacturer site DS-D5A75RB_A3_Datasheet_20260728.pdf PDF Manuals & guides User Manual_03db814a.pdf 5.8 MB PDF Manuals & guides · Opens on manufacturer site UD40570B-A_Regulatory-Compliance-and-Safety-Information_Wireless-Product_Class-B_20250822.pdf PDF Brochures Brochure_Value-Series-Interactive-Flat-Panel-Display_20240612.pdf 7.5 MB PNG Drawings & CAD DS-D5A75RB-A3_02.png 69 KB PNG Drawings & CAD DS-D5A75RB-A3_03.png 82 KB

Questions about DS-D5A75RB/A3

Who is the Hikvision DS-D5A75RB/A3 best suited for?

It suits classrooms, lecture rooms and medium-sized meeting rooms where a group needs to see and touch the same screen. The 3840 × 2160 resolution and up to 50-point touch support lessons and collaborative sessions. At 75 inches it fits rooms of moderate size more comfortably than an 86-inch panel, which suits larger lecture halls and boardrooms.

Can it run Windows as well as Android?

Yes. Android 16 is built in, and Windows is available through an optional OPS module measuring 195 × 30 × 180 mm. The manufacturer recommends running video conference software on the Windows system. If your organisation makes video calls from a PC, order the OPS module with the display and state it in your quotation request so the configuration is confirmed.

What resolution and brightness does the screen offer?

The UHD panel runs at 3840 × 2160 at 60 Hz and is rated at 400 cd/m². Static contrast is 1,200:1 and dynamic contrast is 15,000:1. The anti-glare glass with 25% haze reduces reflections from windows and ceiling lights, but the screen should still avoid direct sunlight, which can wash out any display in a bright room.

How many people can touch the screen at the same time?

The infrared touch supports up to 50 simultaneous points, with a touch response time of 5 ms or less. Touch precision is ±0.5 mm across at least 90% of the touching area, and the minimum touch object is 1.5 mm. This suits group problem-solving sessions in a school, or design reviews in a corporate workshop where several people annotate the same content.

Will it work on Qatar's 240 V mains supply?

Yes. The power input is rated 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Average consumption is below 189 W and standby consumption is 0.5 W or less. A power cable is included in the box. Confirm with the SmartRooms Qatar team that the plug suits the socket planned for each room before you request a quote.

Can it be installed in a hot or dusty lobby in summer?

Not without conditioning. The operating range is 0 °C to 40 °C with 10% to 90% RH, and summer temperatures in Qatar can exceed 45 °C. Install the display in an air-conditioned indoor room, and make sure the room stays within the operating range. Dusty entrances and open lobbies are not suitable locations for this model.

Does the display include a camera or microphone?

No. The product data does not list a built-in camera or microphone. For video calls, connect an external camera and microphone through the available USB ports, or use the Windows system if you have the optional OPS module. Confirm which peripherals you plan to use with the SmartRooms Qatar team before placing your order.

What wall and space requirements should I plan for?

The panel weighs 41.23 kg net and 54.3 kg gross, and measures 1709.84 × 1017.34 mm. Depth is 95.75 mm without the wall attachment and 124.45 mm with it. It uses a 600 × 400 mm VESA pattern with four M8 fixing points, and a wall mount bracket is included. A site survey helps confirm the wall can carry the load before installation.

Can a school fitting out several classrooms order multiple units on one LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, and several panels can be listed in one quotation. Each unit comes with a wall mount bracket, remote control, touch pen, power cable and user manual. Schools should plan the wall fixings for each classroom during the free site survey, so installation can follow the purchase order without delay.

How do I connect a laptop for a bilingual meeting?

The display has three HDMI 2.1 inputs, one at the front and two at the rear, so a presenter can connect quickly without reaching behind the screen. The front Type-C port supports USB 3.0 and 15 W charging. HDMI supports HDCP 2.3, 2.2 and 1.4, which covers most protected content. Plan the cable route when placing the display so that the front port remains accessible.

What network options does it offer?

It has two 1000 Mbps LAN ports at the rear and Wi-Fi 6 with 802.11ax and 2 × 2 MIMO on both 2.4 GHz and 5 GHz, in access point and station modes. Supported authentication includes WEP, WPA, WPA2, PSK and 802.1X EAP. A built-in network switch chip removes the need for an external switch, which simplifies cabling in a classroom or meeting room.
