Hikvision DS-D5A75RB/B3 · Price in Qatar

Name: Hikvision DS-D5A75RB/B3 75-inch 4K Interactive Display
Brand: Hikvision
SKU: hikvision-ds-d5a75rb-b3
Availability: InStock

Overview

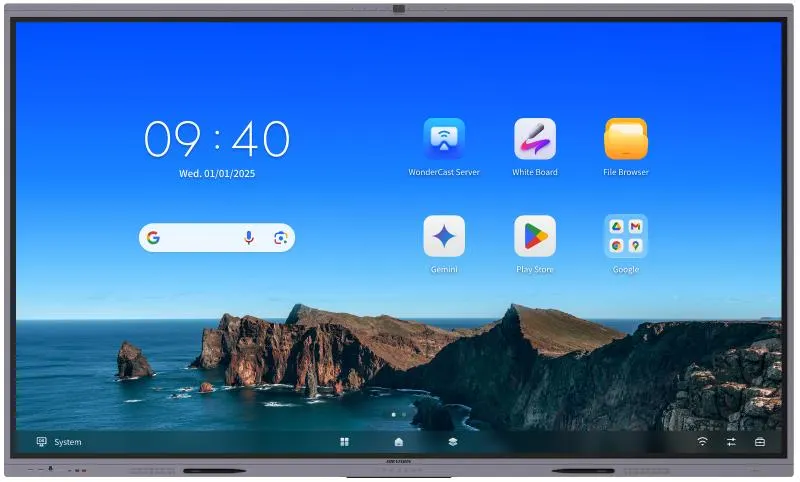

The Hikvision DS-D5A75RB/B3 is a 75-inch 4K interactive display from the WonderHub Value Series, with an IPS panel at 3840 × 2160, infrared touch for up to 50 points, and Android 16.0 built in. It includes a camera, an eight-array microphone and 2 × 20 W speakers, so one unit covers teaching and video calls. Suited to classrooms and meeting rooms in Qatar. Request a quote from SmartRooms Qatar.

What the DS-D5A75RB/B3 is and who it suits

The Hikvision DS-D5A75RB/B3 brings a 75-inch display, touch input, camera, microphone and speakers into one enclosure. It belongs to the WonderHub Value Series and is aimed at classrooms, meeting rooms and training spaces where one screen should handle presenting, annotation and video calls.

Display and touch: the figures that matter

The IPS panel shows 3840 × 2160 (4K UHD) at 60 Hz across a 1650.24 × 928.26 mm display area. Brightness is rated at 400 cd/m², with a static contrast ratio of 1200:1 and a dynamic ratio of 15,000:1. The anti-glare tempered glass has 25% haze and 88% transmittance, which helps cut reflections from windows and ceiling lights. The viewing angle is 178° horizontally and vertically, so people seated at the side can still read the screen. The infrared touch layer registers up to 50 simultaneous points with a response time of 5 ms or less, which suits group work where several people write at once.

Built-in Android, camera and audio

Android 16.0 with 8 GB memory and 128 GB storage
Optional OPS slot (195 × 30 × 180 mm) for a Windows PC; the manufacturer recommends running video conferencing software on the Windows system
Camera: 48 MP for photos and 8 MP for video, up to 4K, with a 93.4° diagonal field of view
Microphone: eight-array omni-directional layout with echo reduction and noise cancellation, rated for a 12 m voice distance
Speakers: 2 × 20 W built in

Where it fits in Qatar

Three realistic setups show where a 75-inch panel works well:

A private school in Al Wakrah equipping a new block of classrooms, where the multi-button front panel and front USB 3.0 ports suit teachers who move between lessons.
A government office in Msheireb whose staff work in Arabic and English and join calls with colleagues abroad, using the built-in camera and microphone.
A training centre in Education City running workshops in a meeting room, connecting laptops through HDMI 2.1 and Wi-Fi 6.

The rated operating range is 0 °C to 40 °C, so install the panel inside air-conditioned rooms rather than corridors or areas with open doors to the outside. Summer temperatures in Qatar can exceed 45 °C, so confirm the room's cooling with your facilities team before choosing a position.

Planning the installation

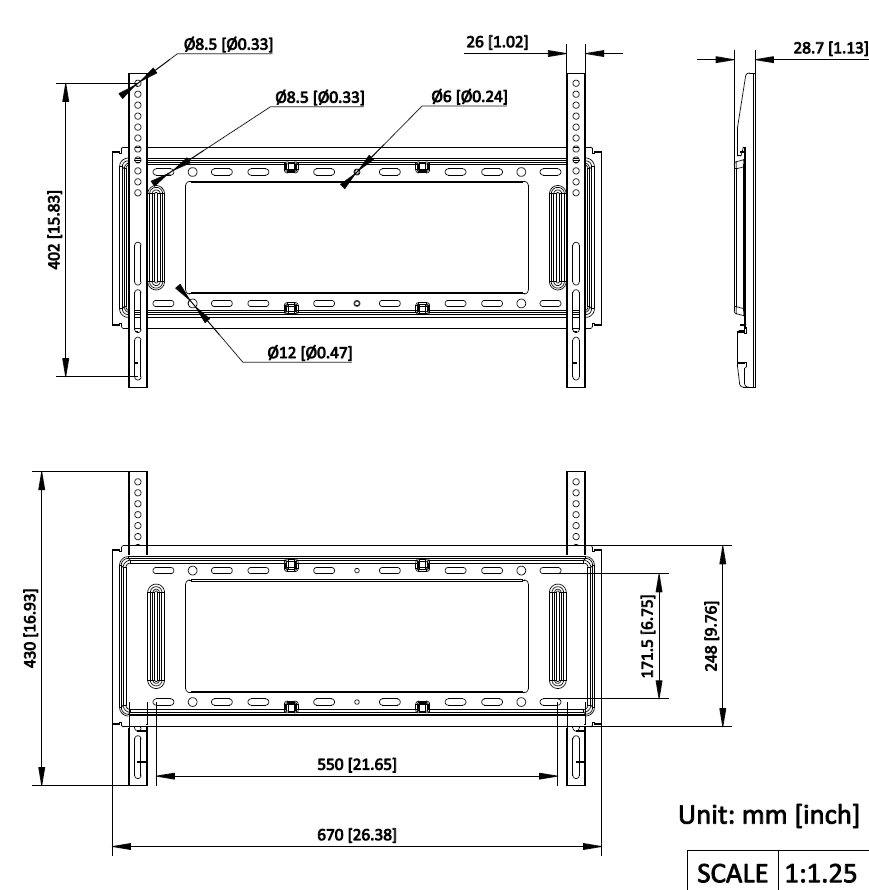

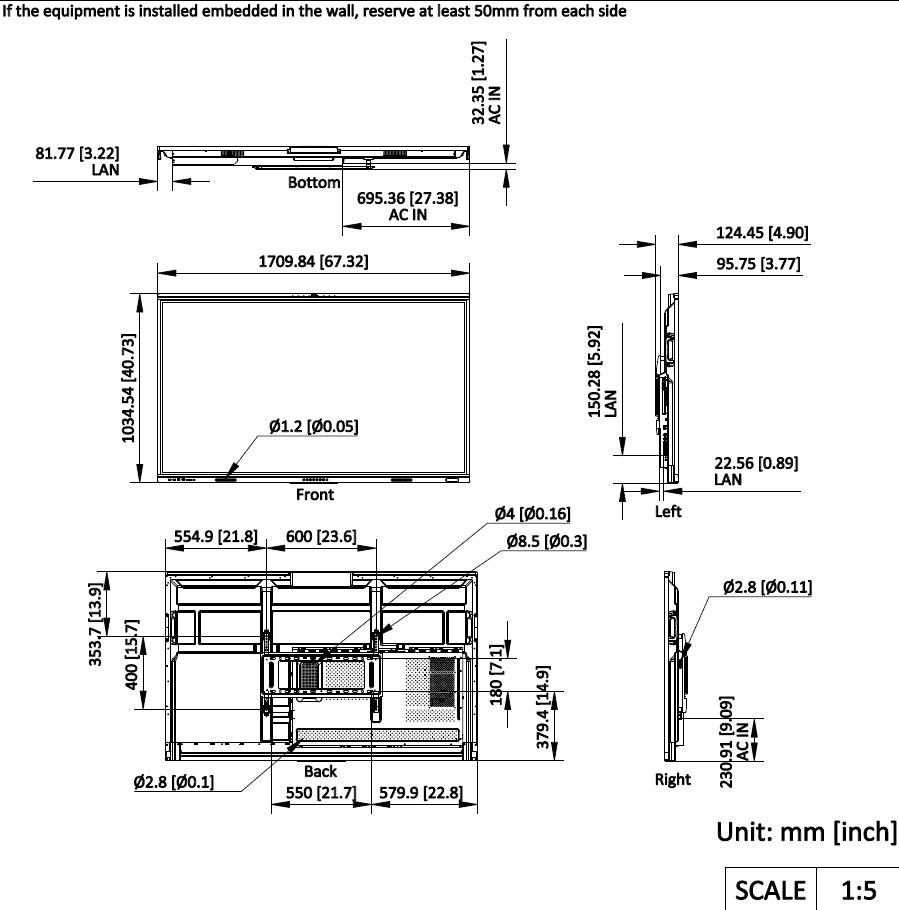

The panel weighs 41.88 kg net and measures 1709.84 × 1034.54 mm, with a depth of 95.75 mm without the wall attachment and 124.45 mm with it. It uses a 600 × 400 mm VESA pattern with four M8 holes, and a wall mount bracket is supplied. A site survey before mounting helps confirm wall structure, power point position and cable routes. Power input is 100 to 240 VAC at 50/60 Hz, with average consumption below 189 W and standby consumption of 0.5 W or less.

Schools and ministries ordering several units can issue a purchase order (LPO) or respond to a government tender, and SmartRooms Qatar delivers to all eight municipalities and provides professional installation. Products are covered by the manufacturer's warranty. Request a quote from SmartRooms Qatar, and our team will confirm the configuration, availability and site survey for your room.

Highlights

75-inch IPS panel at 3840 × 2160 (4K UHD)
Infrared touch with up to 50 points and 5 ms response
Built-in Android 16.0 with 8 GB RAM and 128 GB storage
Optional 195 × 30 × 180 mm OPS slot for a Windows PC
48 MP photo and 8 MP video camera with 8-array microphone
Wi-Fi 6, two 1000 Mbps LAN ports and built-in network switch chip

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D5A75RB/B3

Display22

Screen Size: 75 inch
Backlight: DLED
Pixel Pitch: 0.143 (H) × 0.429 (V) mm
Resolution: 3840 × 2160 @60 Hz
Brightness: 400 cd/m²
Color Depth: 10 bit (8 bit + FRC)
Display Color: 1.07 B
Response Time: 5 ms
Panel Type: IPS
Contrast Ratio: 1200:1 (Static) 15,000:1 (Dynamic)
Color Gamut: 72% NTSC (CIE1931) (Typ.)
Refresh Rate: 60 Hz
Viewing Angle: 178° (H)/178° (V)
Aspect Ratio: 16:9
Surface Hardness: 9H (Pencil) 7 (Mohs)
Surface Glass: Anti-Glare Glass
Surface Haze: 25% Haze
Glass Bonding Method: Zero Lamination
Display Area: 1650.24 (H) × 928.26 (V) mm
Working Duration: 7 × 16 H
Transmittance: 88% ± 3
Lifespan: 50,000 hours

Touch6

Type: Infrared Touch Screen
Touch Point: Up to 50-point multi-touch
Touch Response Time: ≤ 5 ms
Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
Touch Precision: ± 0.5 mm (≥ 90% touching area)
Touch Resolution: 32768 × 32768

Built-in System6

Operation System: Android 16.0
Memory: 8 GB
Built-in Storage: 128 GB
Processor: Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
GPU: Mali-G52 MC3
HDCP Version: 2.3 & 2.2 & 1.4

Camera5

Pixel: Pixel 48 MP for Photos & 8 MP for Video
Camera Function: Supports intelligent switching between Android system, OPS, and PC.
Field Angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
Distortion: ≤ 2.5%
Camera Resolution Ratio: Up to 4K

Microphone5

Specification: Omni-directional 8-array layout
Mic Function: Echo reduction and smart noise-cancellation
Voice Distance: 12 m
Sampling Rate: 48 K
Mic Depth: 16 bit

Internal Function6

Loudspeaker: Built-in 2 × 20 W
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
NFC: Supports card reader 13.56 MHz, (ISO 14443A/ ISO 14443B)
Light Sensor: Yes
Image Processing Technology: Supports 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, and automatic defogging; supports shadow correction.
Audio Processing Technology: Supports dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, digital beam forming, and speech detection.

Interface5

Video & Audio Input: HDMI 2.1 TMDS × 3（Front × 1; Rear × 2; Supports HDCP 2.3 & 2.2 & 1.4; HDMI1 Supports CEC&ARC protocol） Audio × 1（Rear）
Video & audio output: Audio × 1（Rear）
Control interface: TOUCH-USB 2.0 × 1（Front × 1） TOUCH-USB 2.0 × 1（Rear × 1） RS232 × 1（Rear）
Network Interface: LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface: USB 3.0 × 2（Front × 2） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Supports USB 3.0, 15 W charging functions) TF-Card Slot × 1（Rear × 1）

Power3

Power Supply: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Average Consumption: < 189 W

Working Environment2

Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 10%~90% RH

General7

VESA: 600 mm × 400 mm (4 × M8-25 mm)
Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, power cable, remote control.
Package Dimensions (W × H × D): 1907.0 × 1160.0 × 223.0 mm
Net Weight: 41.88 ± 0.5 kg
Gross Weight: 54.85± 0.5 kg
Product Dimensions （With Wall Attachment）: 1709.84 mm × 1034.54 mm × 124.45 mm (W × H × D)
Product Dimensions （Without Wall Attachment）: 1709.84 mm × 1034.54 mm × 95.75 mm (W × H × D)

Downloads

7 files from the manufacturer

PDF Datasheets Leaflet_Wonderhub-Value-G3-Series-_260507.pdf 1.6 MB PDF Datasheets · Opens on manufacturer site DS-D5A75RB_B3_Datasheet_20260728.pdf PDF Manuals & guides User Manual_03db814a.pdf 5.8 MB PDF Manuals & guides · Opens on manufacturer site UD40570B-A_Regulatory-Compliance-and-Safety-Information_Wireless-Product_Class-B_20250822.pdf PDF Brochures Brochure_Value-Series-Interactive-Flat-Panel-Display_20240612.pdf 7.5 MB PNG Drawings & CAD DS-D5A75RB-B3_02.png 69 KB PNG Drawings & CAD DS-D5A75RB-B3_03.png 82 KB

Questions about DS-D5A75RB/B3

What is the Hikvision DS-D5A75RB/B3 and who should buy it?

The DS-D5A75RB/B3 is a 75-inch 4K interactive display in the WonderHub Value Series, with an IPS panel, infrared touch and Android 16.0 built in. It suits schools, training centres and offices that need one screen for teaching, presenting and video calls in a classroom or meeting room. For a larger lecture hall, a bigger panel is usually the better fit. Request a quote and our team will confirm the right size for your room.

Is a 75-inch panel the right size for a classroom or meeting room in Qatar?

For most classrooms and meeting rooms, 75 inches gives a clear view from the back row while leaving space for furniture and movement. A private school in Lusail fitting out a standard classroom would typically look at this size, while a lecture theatre would need something larger. Measure the wall and the longest viewing distance first, then request a quote so the team can check the layout with you.

How do the 400 cd/m² brightness and anti-glare glass help in a room with windows?

The panel is rated at 400 cd/m² and uses anti-glare glass with 25% haze and 88% transmittance. Together these reduce reflections from daylight and ceiling lights, which matters in a meeting room with a window facing the street in West Bay. Position the screen so it does not face a window directly, and use blinds around midday. The SmartRooms Qatar team can advise on placement during a free site survey before installation.

How many people can write on the screen at the same time?

The infrared touch supports up to 50-point multi-touch, with a touch response time of 5 ms or less and a minimum touch object size of 1.5 mm. This suits group work, where several students or participants can annotate, drag and write together. Touch precision is rated at ±0.5 mm across at least 90% of the touching area, which helps with detailed diagrams in a university seminar or a design review.

Can I run Windows video conferencing software on this display?

Yes, with the optional OPS module (195 × 30 × 180 mm). The display has a dual-system design that lets you switch between its built-in Android 16.0 and a Windows PC, and the manufacturer recommends running video conferencing software on the Windows system. Confirm the OPS option when you request your quote, so the configuration matches the software your team already uses for calls with colleagues abroad.

Does it have a camera and microphone for video calls?

Yes. The built-in camera has a 48 MP photo sensor and an 8 MP video sensor, with support up to 4K and a 93.4° diagonal field of view. The eight-array microphone uses echo reduction and smart noise cancellation, with a rated voice distance of 12 m. In a Doha boardroom of typical meeting size, this means remote participants can hear people seated around the table without extra conference microphones.

Which ports are available for laptops and other sources?

The panel has three HDMI 2.1 inputs, one at the front and two at the rear, and HDMI1 supports CEC and ARC. The front has two USB 3.0 ports and a USB-C port that supports USB 3.0 and 15 W charging. The rear adds two USB 2.0 ports, a TF card slot, a second touch USB 2.0 connection, an RS232 port, and audio input and output. List the sources you need before ordering so the port layout matches your room.

Does it need an external network switch?

No. The built-in network switch chip removes the need for an external switch, and two 1000 Mbps LAN ports sit at the rear. Wi-Fi 6 with 2 × 2 MIMO runs on 2.4 GHz and 5 GHz, and the unit also supports Bluetooth 5.4 and NFC card reading at 13.56 MHz. IT managers can plan cabling around the two LAN ports and use Wi-Fi where cable runs are difficult, such as older school buildings.

Can it be installed in a room without air conditioning or near a window?

The rated operating temperature is 0 °C to 40 °C, with humidity between 10% and 90% RH, so install it in an air-conditioned room. Qatar summer temperatures can exceed 45 °C, which makes an unconditioned room or a corridor unsuitable. Keep the panel out of direct sunlight and away from heat sources, and ask the SmartRooms Qatar team to check the room conditions during your site survey.

What wall space and fixings do I need to mount it?

The panel measures 1709.84 × 1034.54 mm and is 95.75 mm deep without the wall attachment, or 124.45 mm with it. It weighs 41.88 kg net and uses a 600 × 400 mm VESA pattern with four M8 holes. A wall mount bracket is supplied. Have the wall structure and fixing points checked before installation, because the panel is heavy and must stay secure through daily classroom use.

What electrical load does it add, and will it run on Qatar mains?

The power input is 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Average consumption is below 189 W, and standby consumption is 0.5 W or less. A power cable is included. Confirm that the supplied cable matches the sockets in your room, and have an electrician check circuit capacity before installation, particularly where several units share one circuit.

Can a school or ministry order several units under an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. For a school fitting out several classrooms, the quotation can list each unit with its wall bracket and installation. Send your room count and room sizes with the request, and the team will usually return a quotation within one working day.
