Hikvision DS-D5A86RB/A3 · Price in Qatar

Name: Hikvision DS-D5A86RB/A3 86-inch 4K Interactive Display
Brand: Hikvision
SKU: hikvision-ds-d5a86rb-a3
Availability: InStock

Overview

The Hikvision DS-D5A86RB/A3 is an 86-inch 4K interactive display from the Value Series, running Android 16 with EDLA certification and a 3840 × 2160 IPS panel. It supports up to 50 touch points, includes a built-in network switch chip, and offers an optional Windows OPS module for video conferencing. Suited to classrooms, lecture halls and meeting rooms across Qatar, it is supplied by quotation. Request a quote.

What the DS-D5A86RB/A3 does for a room

The DS-D5A86RB/A3 is an 86-inch interactive display from Hikvision's WonderHub Value Series. It pairs a 3840 × 2160 IPS panel with a built-in Android 16 system, so teachers and presenters can open apps, annotate content and show files without first connecting a laptop. The unit is EDLA certified.

Panel and touch performance

The panel uses DLED backlighting and is rated at 400 cd/m², with a 1200:1 static contrast ratio and 15,000:1 dynamic contrast. Its 178° horizontal and vertical viewing angles keep content readable for people seated away from the centre of a lecture hall. The surface is anti-glare glass with 25% haze, which helps control reflections from windows and ceiling lights. Touch is infrared, with up to 50 simultaneous points, a response time of 5 ms or less and a minimum touch object of 1.5 mm.

Refresh: 60 Hz with a 5 ms response time
Colour: 10-bit colour depth (8-bit plus FRC) and 72% NTSC gamut
Lifespan: rated at 50,000 hours

Connectivity and the Windows option

Three HDMI 2.1 inputs, one at the front and two at the rear, accept a laptop, a document camera or a media player. HDMI 1 supports CEC and ARC. The front Type-C port supports USB 3.0 and 15 W charging. Two LAN ports run at 1000 Mbps, and Wi-Fi 6 with 2 × 2 MIMO on 2.4 GHz and 5 GHz is built in, along with Bluetooth 5.4 Low Energy. A built-in network switch chip means you do not need a separate external switch for the panel's network connections. The optional OPS module (195 × 30 × 180 mm) adds a Windows system alongside Android, and video conferencing software is recommended to run on Windows.

Where it fits in Qatar

In a public or private primary school in Al Wakrah refitting a classroom, the front multi-button layout suits rooms where several teachers share one panel, and the NFC card reader, which supports ISO 14443A and ISO 14443B cards at 13.56 MHz, can support card-based access if it is integrated with your system.

In a boardroom in West Bay where executives hold calls with teams abroad, the two 20 W speakers and the optional Windows OPS module support video meetings. The OPS module must be specified in the order, so request it in the quotation if you plan to run conferencing software on Windows.

In a training centre in Education City or Lusail setting up a lecture hall, the 86-inch screen provides a large viewing surface for rows of seats, and the 178° viewing angles help people at the sides follow the content.

What to plan for before ordering

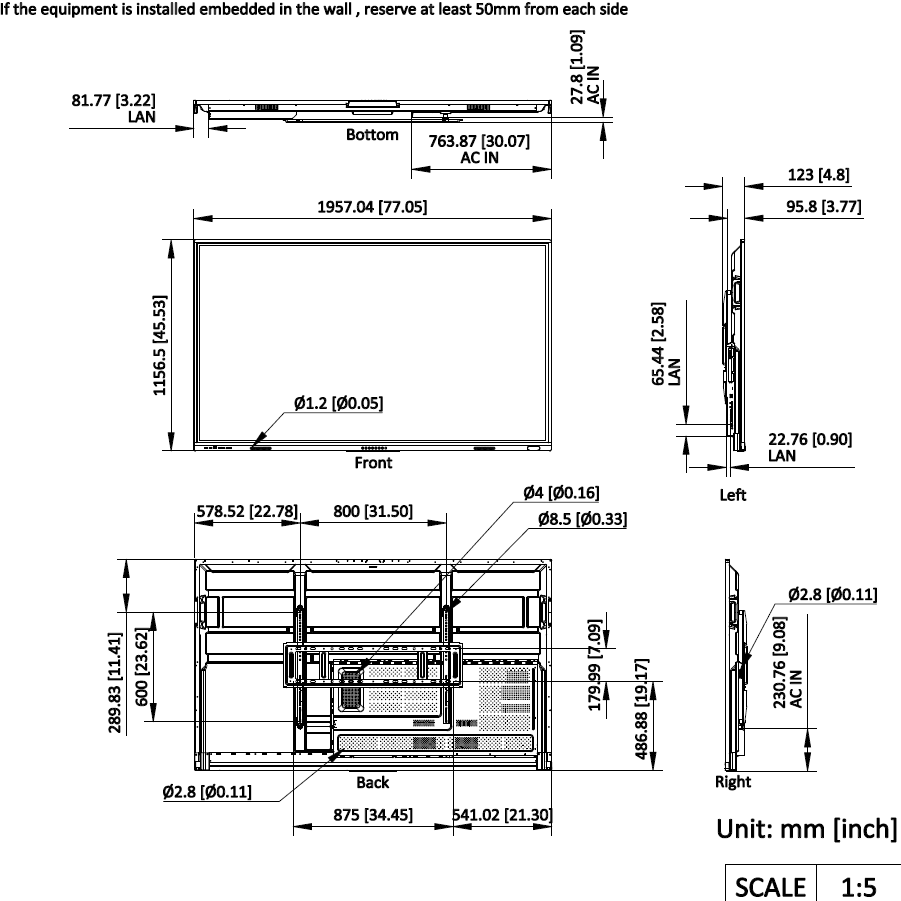

The panel weighs 52.38 kg net and measures 1957.04 × 1156.5 × 123.0 mm with the wall attachment fitted. A wall mount bracket is included, and the VESA pattern is 800 × 600 mm with four M8 fixings. Because the panel is large and heavy, a free site survey before installation checks wall construction, load capacity and access routes. The power supply is rated 100 to 240 VAC at 50/60 Hz, with average consumption under 210 W and standby at 0.5 W or less. The operating range is 0 °C to 40 °C with 10% to 90% humidity, so confirm conditions with the SmartRooms Qatar team if the panel will sit near a window or in a space that heats up in summer. Schools and government buyers often order several units under one LPO, and quotations are usually issued within one working day. Delivery covers all eight municipalities of Qatar.

Send your room dimensions, wall type and quantity, and the SmartRooms Qatar team will prepare a quotation for the DS-D5A86RB/A3. Request a quote today.

Highlights

Android 16 system with EDLA certification
3840 × 2160 UHD IPS panel at 60 Hz
Up to 50-point infrared touch with 5 ms response
Optional OPS module adds a Windows system
Built-in network switch chip and two 1000 Mbps LAN ports
Two 20 W speakers and an NFC card reader

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

56 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D5A86RB/A3

Display22

Screen Size: 86 inch
Backlight: DLED
Pixel Pitch: 0.164 (H) × 0.493 (V) mm
Resolution: 3840 × 2160 @60 Hz
Brightness: 400 cd/m²
Color Depth: 10 bit (8 bit + FRC)
Display Color: 1.07 B
Response Time: 5 ms
Panel Type: IPS
Contrast Ratio: 1200:1 (Static) 15,000:1 (Dynamic)
Color Gamut: 72% NTSC (CIE1931) (Typ.)
Refresh Rate: 60 Hz
Viewing Angle: 178° (H)/178° (V)
Aspect Ratio: 16:9
Surface Hardness: 9H (Pencil) 7 (Mohs)
Surface Glass: Anti-Glare Glass
Surface Haze: 25% Haze
Glass Bonding Method: Zero Lamination
Display Area: 1895.04 (H) × 1065.96 (V) mm
Working Duration: 7 × 16 H
Transmittance: 88% ± 3
Lifespan: 50,000 hours

Touch6

Type: Infrared Touch Screen
Touch Point: Up to 50-point multi-touch
Touch Response Time: ≤ 5 ms
Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
Touch Precision: ± 0.5 mm (≥ 90% touching area)
Touch Resolution: 32768 × 32768

Built-in System6

Operation System: Android 16.0
Memory: 8 GB
Built-in Storage: 128 GB
Processor: Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
GPU: Mali-G52 MC3
HDCP Version: 2.3 & 2.0 & 1.4

Internal Function4

Loudspeaker: Built-in 2 × 20 W
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
NFC: Supports card reader 13.56 MHz, (ISO 14443A/ ISO 14443B)
Light Sensor: Yes

Interface5

Video & Audio Input: HDMI 2.1 TMDS × 3（Front × 1; Rear × 2; Supports HDCP 2.3 & 2.2 & 1.4; HDMI1 Supports CEC&ARC protocol） Audio × 1（Rear）
Video & audio output: Audio × 1（Rear）
Control interface: TOUCH-USB 2.0 × 1（Front × 1） TOUCH-USB 2.0 × 1（Rear × 1） RS232 × 1（Rear）
Network Interface: LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface: USB 3.0 × 2（Front × 2） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Supports USB 3.0, 15 W charging functions) TF-Card Slot × 1（Rear × 1）

Power3

Power Supply: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Average Consumption: < 210 W

Working Environment2

Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 10%~90% RH

General7

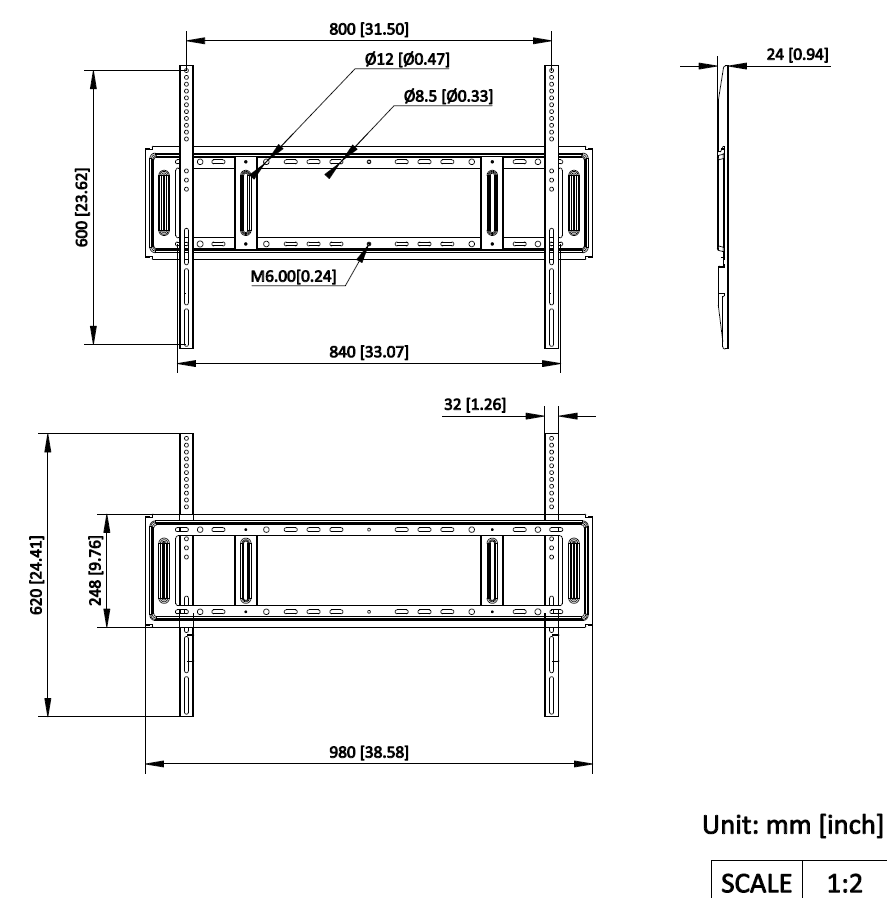

VESA: 800 mm × 600 mm (4 × M8-25 mm)
Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, power cable, remote control.
Package Dimensions (W × H × D): 2157.0 × 1345.0 × 223.0 mm
Net Weight: 52.38 ± 0.5 kg
Gross Weight: 69.89 ± 0.5 kg
Product Dimensions （With Wall Attachment）: 1957.04 mm × 1156.5 mm × 123.0 mm (W × H × D)
Product Dimensions （Without Wall Attachment）: 1957.04 mm × 1156.5 mm × 95.8 mm (W × H × D)

Downloads

7 files from the manufacturer

PDF Datasheets Leaflet_Wonderhub-Value-G3-Series-_260507.pdf 1.6 MB PDF Datasheets · Opens on manufacturer site DS-D5A86RB_A3_Datasheet_20260728.pdf PDF Manuals & guides User Manual_03db814a.pdf 5.8 MB PDF Manuals & guides · Opens on manufacturer site UD40570B-A_Regulatory-Compliance-and-Safety-Information_Wireless-Product_Class-B_20250822.pdf PDF Brochures Brochure_Value-Series-Interactive-Flat-Panel-Display_20240612.pdf 7.5 MB PNG Drawings & CAD DS-D5A86RB-A3_02.png 87 KB PNG Drawings & CAD DS-D5A86RB-A3_03.png 61 KB

Questions about DS-D5A86RB/A3

What is the Hikvision DS-D5A86RB/A3 best suited for?

The DS-D5A86RB/A3 is an 86-inch interactive display built for large classrooms, lecture halls and boardrooms that need a big touch surface. Its 3840 × 2160 resolution and 50-point touch let several people write or annotate at the same time. Panels of this size suit rooms where many people need to read the same content from a distance, such as a training room in Lusail or a conference room in Doha.

Does the panel run both Android and Windows?

It runs Android 16 natively, with 8 GB of memory and 128 GB of built-in storage. Windows is available only through an optional OPS module measuring 195 × 30 × 180 mm, which must be specified with the order. Video conference software is recommended on the Windows system, so a company in West Bay that runs video calls on this panel should request the OPS option in its quotation and confirm the setup with SmartRooms Qatar before ordering.

Can it be used in Qatar's hot summer or in a dusty room?

The stated working temperature is 0 °C to 40 °C, with 10% to 90% relative humidity. Indoor temperatures can rise well above that in rooms with weak cooling during Qatar's summer, so avoid placing the panel next to a sun-facing window or in a space that is not air-conditioned. Ask the SmartRooms Qatar team to review the location during your free site survey before you order.

Does it work with Qatar's mains electricity?

The power supply is rated 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. Average consumption is under 210 W, and standby consumption is 0.5 W or less. A power cable is included in the box. Your electrician should confirm that the cable plug fits the BS 1363 Type G socket outlets used in Qatar and that the circuit can supply the panel.

How does the touch function work, and how many points are supported?

The touch is infrared and supports up to 50 simultaneous points, with a response time of 5 ms or less. The minimum touch object is 1.5 mm, and touch precision is ±0.5 mm across at least 90% of the touching area. A touch writing pen and a remote control are included. Multi-point touch lets groups of students work on the board together, while the pen gives the teacher a second writing option.

Which ports are available for connecting devices?

The panel has three HDMI 2.1 inputs, one at the front and two at the rear, with HDCP 2.3, 2.2 and 1.4 support. It also has two USB 3.0 and two USB 2.0 ports, a front Type-C port with USB 3.0 and 15 W charging, two 1000 Mbps LAN ports, a TF-card slot and an RS232 port. Use the front ports for a visiting laptop or memory stick during lessons and the rear ports for permanent cabling.

Do I need a site survey before wall mounting?

Yes, a site survey is recommended. The panel weighs 52.38 kg net and measures 1957.04 × 1156.5 × 123.0 mm with the wall attachment fitted. The VESA pattern is 800 × 600 mm with four M8 fixings, and a wall mount bracket is included. A survey checks wall construction, load capacity and access routes for moving the panel. SmartRooms Qatar offers free site surveys before you commit to installation.

Is 86 inches the right size for a classroom?

An 86-inch panel suits a large lecture hall, training room or boardroom. In a smaller classroom, a smaller panel may be enough, but if seating rows extend far from the screen, 86 inches gives text and diagrams more presence. The 178° viewing angles help people seated off-centre. Compare the room width and seating distance before choosing, and ask SmartRooms Qatar to check the layout against your room plan.

What is the NFC card reader for?

The panel includes an NFC reader that supports 13.56 MHz cards conforming to ISO 14443A and ISO 14443B. Universities and training centres in Education City or Al Sadd can use it for card-based sign-in or room booking workflows, depending on the system they run. Confirm that your access system uses one of these card standards before ordering, and ask SmartRooms Qatar how the reader can be configured with your existing system.

Can a school order several units under one LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, and quotations are usually issued within one working day. For a school fitting out several classrooms, list each room, its wall type and the number of units in your request so the quotation covers the full project. Payment can be made by bank transfer, cheque or purchase order, and the product is covered by the manufacturer's warranty.
