Hikvision DS-D5A86RB/B3 · Price in Qatar

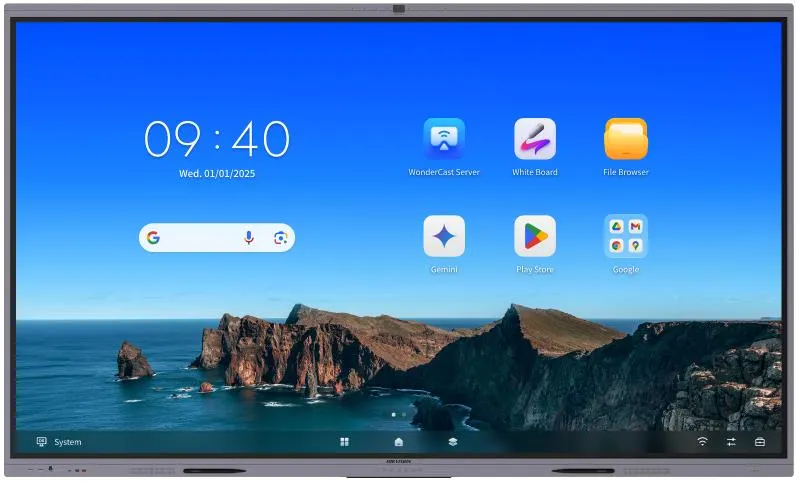

Name: Hikvision DS-D5A86RB/B3 86-inch 4K Interactive Display
Brand: Hikvision
SKU: hikvision-ds-d5a86rb-b3
Availability: InStock

Overview

The Hikvision DS-D5A86RB/B3 is an 86-inch 4K interactive display from the WonderHub Value Series, built for classrooms, meeting rooms and training rooms. It offers a 3840 × 2160 IPS panel with anti-glare glass, up to 50-point infrared touch, Android 16 with 8 GB RAM and 128 GB storage, and a built-in camera and microphone array. Its EDLA certification and optional Windows OPS module suit schools and corporate teams across Qatar.

What the Hikvision DS-D5A86RB/B3 is and who it suits

The Hikvision DS-D5A86RB/B3 is an 86-inch interactive display from the WonderHub Value Series, supplied as one all-in-one unit with the screen, touch layer, processor, camera and speakers integrated into a single chassis. Its 3840 × 2160 IPS panel gives sharp text for lesson material and spreadsheets, and its display area of 1895.04 × 1065.96 mm lets people at the back of a large room read content comfortably. It suits schools, colleges, training centres and corporate meeting rooms that want one screen for teaching, presentations and video calls.

Panel and touch facts that matter in daily use

The panel is rated at 400 cd/m² brightness, with a 1200:1 static contrast ratio and a 15,000:1 dynamic contrast ratio. The anti-glare glass has a 25% haze rating, which reduces reflections from ceiling lights and windows in a classroom or meeting room. Touch uses infrared technology with up to 50 simultaneous points, a touch response time of 5 ms or less, and a minimum touch object of 1.5 mm, so several people can write or drag at once without waiting. The rated lifespan is 50,000 hours.

Android 16 and Windows through an optional OPS module

Android 16 is built in, supported by 8 GB of memory and 128 GB of storage, so teachers can annotate, browse and join calls without connecting a computer. Video conferencing software that needs Windows can run on an optional OPS computer module measuring 195 × 30 × 180 mm, and the manufacturer recommends running video conference software on the Windows side. The OPS module is listed as optional, so include it in your quote if your staff depend on Windows applications.

Camera, microphones and speakers for hybrid meetings

The built-in camera uses a 48 MP sensor for photos and 8 MP for video, with camera resolution up to 4K and a diagonal field angle of 93.4°. An eight-microphone array with a voice pickup distance of 12 m and echo reduction covers a full room without separate conference microphones, while two built-in 20 W speakers provide audio for the space. A built-in network switch chip removes the need for an external switch, and two 1000 Mbps LAN ports plus Wi-Fi 6 with 2 × 2 MIMO on 2.4 GHz and 5 GHz give flexible connection options.

Where it fits in Qatar and what to plan before installation

In Al Wakrah, a private school fitting out new classrooms can mount the panel at a height that lets students in the back row read small text. In West Bay, a corporate boardroom can use it for meetings with teams abroad, and a training centre in Lusail can run hybrid sessions with trainees in the room and online. The unit weighs 52.5 kg net and 72.93 kg gross, so plan for at least two people during lifting and confirm that the wall can carry the load. The VESA pattern is 800 × 600 mm with four M8 fixing points, and a wall mount bracket is included.

The operating temperature range is 0 °C to 40 °C with 10% to 90% relative humidity. Qatar summer temperatures often exceed 45 °C, so keep the display in an air-conditioned room and away from direct sun through windows. Power input is 100 to 240 VAC at 50/60 Hz, with average consumption below 210 W. SmartRooms Qatar offers a free site survey before installation to check the wall, the socket position and the room conditions.

To confirm the right configuration, mounting kit and delivery to all eight municipalities of Qatar, request a quote from SmartRooms Qatar. Quotations are usually returned within one working day, and we accept purchase orders, bank transfer, cheque or purchase order payment.

Highlights

86-inch 3840 × 2160 IPS panel rated at 400 cd/m²
Infrared touch with up to 50 simultaneous points
Built-in Android 16 with 8 GB memory and 128 GB storage
Optional OPS module for Windows, measuring 195 × 30 × 180 mm
48 MP camera and eight-microphone array with 12 m pickup
Built-in network switch chip and Wi-Fi 6 connectivity

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D5A86RB/B3

Display22

Screen Size: 86 inch
Backlight: DLED
Pixel Pitch: 0.164 (H) × 0.493 (V) mm
Resolution: 3840 × 2160 @60 Hz
Brightness: 400 cd/m²
Color Depth: 10 bit (8 bit + FRC)
Display Color: 1.07 B
Response Time: 5 ms
Panel Type: IPS
Contrast Ratio: 1200:1 (Static) 15,000:1 (Dynamic)
Color Gamut: 72% NTSC (CIE1931) (Typ.)
Refresh Rate: 60 Hz
Viewing Angle: 178° (H)/178° (V)
Aspect Ratio: 16:9
Surface Hardness: 9H (Pencil) 7 (Mohs)
Surface Glass: Anti-Glare Glass
Surface Haze: 25% Haze
Glass Bonding Method: Zero Lamination
Display Area: 1895.04 (H) × 1065.96 (V) mm
Working Duration: 7 × 16 H
Transmittance: 88% ± 3
Lifespan: 50,000 hours

Touch6

Type: Infrared Touch Screen
Touch Point: Up to 50-point multi-touch
Touch Response Time: ≤ 5 ms
Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
Touch Precision: ± 0.5 mm (≥ 90% touching area)
Touch Resolution: 32768 × 32768

Built-in System6

Operation System: Android 16.0
Memory: 8 GB
Built-in Storage: 128 GB
Processor: Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
GPU: Mali-G52 MC3
HDCP Version: 2.3 & 2.2 & 1.4

Camera5

Pixel: Pixel 48 MP for Photos & 8 MP for Video
Camera Function: Supports intelligent switching between Android system, OPS, and PC.
Field Angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
Distortion: ≤ 2.5%
Camera Resolution Ratio: Up to 4K

Microphone5

Specification: Omni-directional 8-array layout
Mic Function: Echo reduction and smart noise-cancellation
Voice Distance: 12 m
Sampling Rate: 48 K
Mic Depth: 16 bit

Internal Function6

Loudspeaker: Built-in 2 × 20 W
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
NFC: Supports card reader 13.56 MHz, (ISO 14443A/ ISO 14443B)
Light Sensor: Yes
Image Processing Technology: Supports 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, and automatic defogging; supports shadow correction.
Audio Processing Technology: Supports dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, digital beam forming, and speech detection.

Interface5

Video & Audio Input: HDMI 2.1 TMDS × 3（Front × 1; Rear × 2; Supports HDCP 2.3 & 2.2 & 1.4; HDMI1 Supports CEC&ARC protocol） Audio × 1（Rear）
Video & audio output: Audio × 1（Rear）
Control interface: TOUCH-USB 2.0 × 1（Front × 1） TOUCH-USB 2.0 × 1（Rear × 1） RS232 × 1（Rear）
Network Interface: LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface: USB 3.0 × 2（Front × 2） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Supports USB 3.0, 15 W charging functions) TF-Card Slot × 1（Rear × 1）

Power3

Power Supply: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Average Consumption: < 210 W

Working Environment2

Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 10%~90% RH

General7

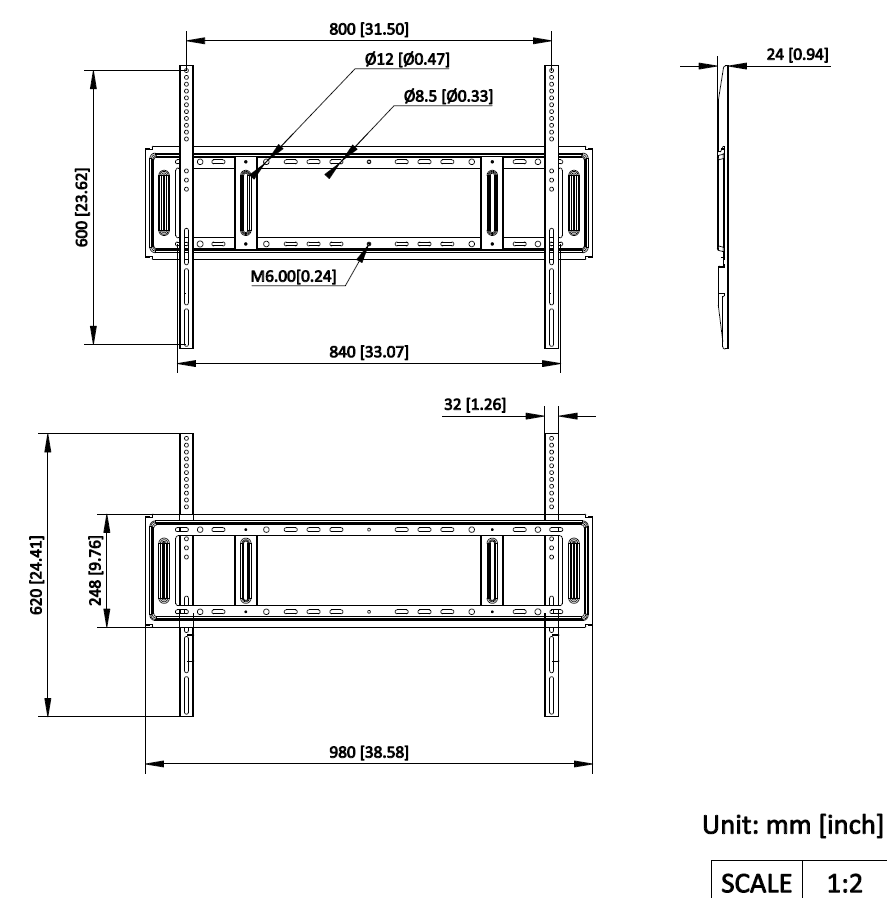

VESA: 800 mm × 600 mm (4 × M8-25 mm)
Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, power cable, remote control.
Package Dimensions (W × H × D): 2157.0 × 1345.0 × 223.0 mm
Net Weight: 52.5 ± 0.5 kg
Gross Weight: 72.93 ± 0.5 kg

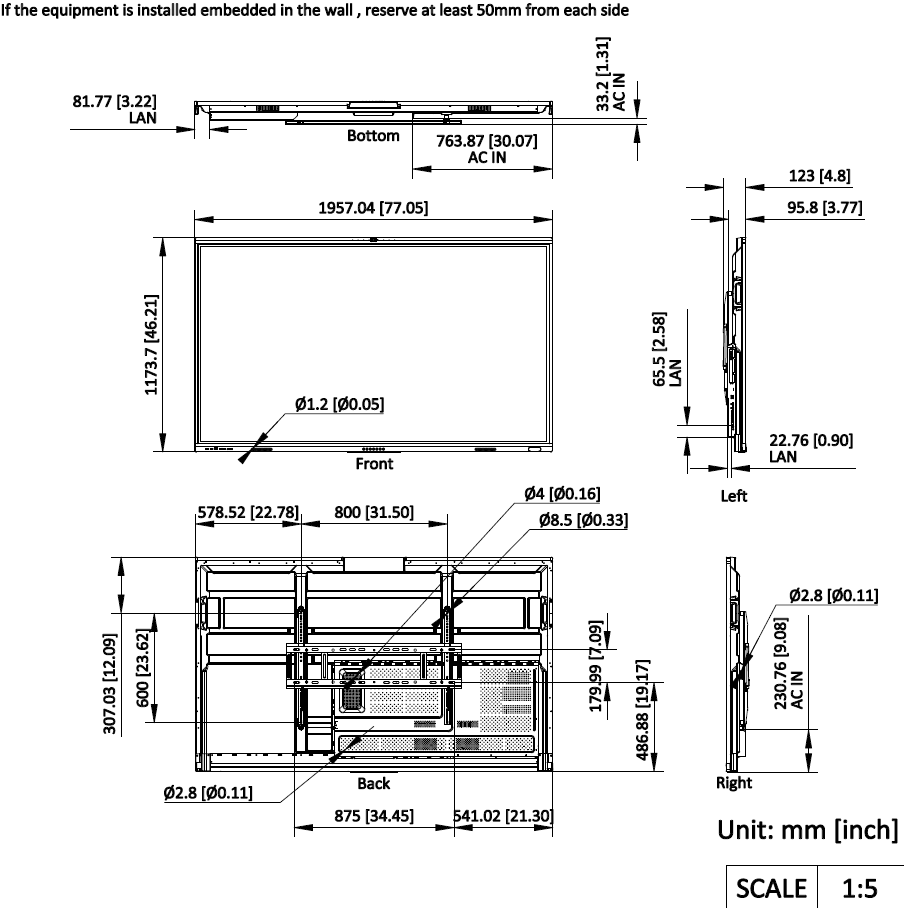

Product Dimensions （With Wall Attachment）: 1957.04 mm × 1173.7 mm × 123.0 mm (W × H × D)
Product Dimensions （Without Wall Attachment）: 1957.04 mm × 1173.7 mm × 95.8 mm (W × H × D)

Downloads

7 files from the manufacturer

PDF Datasheets Leaflet_Wonderhub-Value-G3-Series-_260507.pdf 1.6 MB PDF Datasheets · Opens on manufacturer site DS-D5A86RB_B3_Datasheet_20260728.pdf PDF Manuals & guides User Manual_03db814a.pdf 5.8 MB PDF Manuals & guides · Opens on manufacturer site UD40570B-A_Regulatory-Compliance-and-Safety-Information_Wireless-Product_Class-B_20250822.pdf PDF Brochures Brochure_Value-Series-Interactive-Flat-Panel-Display_20240612.pdf 7.5 MB PNG Drawings & CAD DS-D5A86RB-B3_02.png 61 KB PNG Drawings & CAD DS-D5A86RB-B3_03.png 88 KB

Questions about DS-D5A86RB/B3

Is the Hikvision DS-D5A86RB/B3 suitable for a classroom in a private school?

Yes. The 86-inch panel suits a large classroom or lecture room where students at the back need to read text and diagrams clearly. Touch supports up to 50 points, so several students can work on the screen together, and the built-in camera and microphones support lessons shared with a remote teacher. For a private school in Al Wakrah fitting out new rooms, confirm mounting height and viewing distances during our free site survey before ordering.

What resolution and brightness does the panel offer?

The panel delivers 3840 × 2160 (4K UHD) resolution at 400 cd/m² brightness, with a 1200:1 static contrast ratio and a 16:9 aspect ratio. The anti-glare glass has 25% haze, which helps reduce reflections from ceiling lights and windows. The viewing angle is rated at 178 degrees both horizontally and vertically, so people seated away from the centre of the room see the same content clearly.

How does the touch work and how many touch points are supported?

Touch uses infrared technology with up to 50-point multi-touch, a response time of 5 ms or less, and a minimum touch object of 1.5 mm. Precision is within ±0.5 mm across at least 90% of the touching area. This matters when a group works at the screen together, because each person can write or annotate without waiting for a turn.

Can the display run Windows as well as Android?

Yes, through the optional OPS module, which measures 195 × 30 × 180 mm. The built-in system is Android 16, and the manufacturer recommends running video conference software on the Windows side. Because the OPS module is optional, include it in your quote if your staff rely on Windows-only applications, and confirm the configuration before you order.

What does the built-in Android system provide day to day?

The unit runs Android 16 with 8 GB of memory, quad-core processors and 128 GB of built-in storage. That is enough for annotation, browsing, video calls and approved apps without connecting a laptop. Multi-window and multi-user modes are listed as highlight features, so more than one person can use the screen. If you need a specific third-party app, check compatibility with the SmartRooms Qatar team first.

Does it need an external network switch?

No. A built-in network switch chip removes the need for a separate switch. The rear panel has two 1000 Mbps LAN ports, and Wi-Fi 6 runs 2 × 2 MIMO on 2.4 GHz and 5 GHz with WPA2 and 802.1X EAP authentication support. In a campus or training centre using 802.1X network access, ask your IT team to confirm the access settings before installation.

Will it work in a boardroom in West Bay?

Yes. An 86-inch panel suits a long boardroom table where remote participants need to see the whole room. The eight-microphone array picks up voices from up to 12 m, and two built-in 20 W speakers provide audio across the room. A laptop can connect by HDMI, and you can join the meeting from the Android or Windows side depending on the software you use.

Can it be placed in a summer hall or near a window?

The rated operating range is 0 °C to 40 °C with 10% to 90% relative humidity. Qatar summer temperatures can exceed 45 °C, so keep the display in an air-conditioned room, away from direct sun through windows, and do not install it in an open or unconditioned area. Confirm the room conditions with the SmartRooms Qatar team before fixing the unit to the wall.

How heavy is the unit and what is needed for wall mounting?

The net weight is 52.5 kg and the gross weight is 72.93 kg, so lifting needs at least two people. The VESA pattern is 800 × 600 mm with four M8 fixing points, and a wall mount bracket and hook are included. Depth without the wall attachment is 95.8 mm. Book our free site survey so the wall and fixings are checked before delivery.

What power does it need and how much does it draw?

It accepts 100 to 240 VAC at 50/60 Hz, which covers the 240 V supply used in Qatar, and a power cable is included. Average consumption is below 210 W, and standby consumption is 0.5 W or less. Plan a socket close to the mounting position and confirm the socket type with your electrician before installation.

Which ports are available for connecting devices?

The unit has three HDMI 2.1 inputs, one at the front and two at the rear, plus two USB 3.0 ports at the front and two USB 2.0 ports at the rear. A front USB-C port supports 15 W charging. There are also two TOUCH-USB connections, an RS232 control port and a TF card slot. Use the front ports for a presenter laptop and the rear ports for equipment that stays in the room.

We are a school ordering several units. Can we buy through a purchase order?

Yes. SmartRooms Qatar supplies this model with delivery to all eight municipalities of Qatar, professional installation and free site surveys. We accept purchase orders (LPOs) and government tenders, and quotations are usually provided within one working day. Send us your room list and wall details, and we will quote each unit with its wall mount and an OPS module where needed.
