Hikvision DS-D5B55RB/EL · Price in Qatar

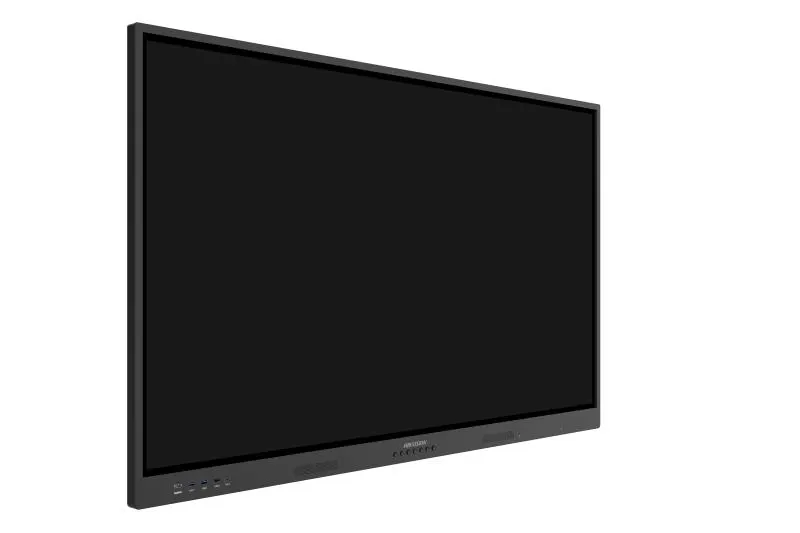

Name: Hikvision DS-D5B55RB/EL 55-inch 4K Interactive Display
Brand: Hikvision
SKU: hikvision-ds-d5b55rb-el
Availability: InStock

Overview

The Hikvision DS-D5B55RB/EL is a 55-inch 4K interactive display with a 3840 × 2160 panel, 40-point infrared touch and Android 13 running on 8 GB of memory with 64 GB of storage. Its 350 cd/m² typical brightness and anti-glare glass suit classrooms, meeting rooms and training areas in Doha, Lusail and Al Khor. It accepts 100 to 240 VAC, and an optional OPS module adds Windows for video conferencing. Request a quote for supply and installation.

What this 55-inch 4K panel is built to do

The DS-D5B55RB/EL is a 55-inch interactive display with a 3840 × 2160 UHD panel, a 16:9 aspect ratio and infrared touch with up to 40 simultaneous touch points. It runs Android 13 with 8 GB of memory and 64 GB of built-in storage, so teaching apps, whiteboard software and web content can run directly on the panel without an external computer. Its 3.2 mm anti-glare glass with 25% surface haze helps keep the image readable under ceiling lights and near windows.

Facts that matter when you compare it

Brightness and contrast: 350 cd/m² typical brightness and a 1,200:1 static contrast ratio, with a 72% NTSC colour gamut.
Touch: infrared with 40-point multi-touch, a touch response time below 5 ms and ±1 mm touch precision across 90% of the touching area.
Connectivity: two HDMI 2.0 inputs, two USB 3.0 ports, two USB 2.0 ports, a Type-C port that supports USB 2.0, two 100 Mbps LAN ports, dual-band Wi-Fi on 2.4 and 5 GHz, Bluetooth 5.2 BLE and an RS232 control port.
Audio: two built-in 20 W speakers and an audio output.
Power: 100 to 240 VAC at 50/60 Hz, with 130 W average consumption and 210 W maximum with the OPS module fitted.

Where it fits in Qatar

A private school in Al Wakrah fitting out primary classrooms will find the 55-inch size suits rooms of moderate size, where the touch surface is within easy reach from the front without the panel dominating the wall. In a meeting room in West Bay or The Pearl, a team that connects to colleagues abroad can present locally from the built-in Android system, while an optional Windows OPS module runs the video conferencing software the manufacturer recommends. A clinic or training centre in Education City could use it in a waiting or induction area, but only in an air-conditioned space, because the panel is rated for 0 °C to 40 °C and Doha summers can push temperatures above 45 °C.

What to plan before installation

The net weight is 24.5 kg and the gross weight is 30 kg, so plan for at least two people to handle the panel, and confirm the wall or bracket can carry that load. The VESA pattern is 400 × 400 mm with four M6 holes, 16 mm deep. Overall product dimensions are 1262.01 × 769.81 × 86.10 mm. Plan a clear route for the power and signal cables, and confirm the room's air conditioning keeps the panel within its 0 °C to 40 °C operating range and 20% to 80% humidity. SmartRooms Qatar offers free site surveys, so the team can check the wall, sightlines and cable routes before you order.

Request a quote

SmartRooms Qatar usually issues quotations within one working day. Send us the number of rooms, the mounting type and whether you need the OPS module, and we will prepare a quote to match your project. Schools and government buyers can order against an LPO or through Monaqasat tenders, with payment by bank transfer, cheque or purchase order. Request a quote today for the DS-D5B55RB/EL.

Highlights

55-inch UHD panel at 3840 × 2160 resolution
40-point infrared touch with under 5 ms response
Android 13 with 8 GB memory and 64 GB storage
Optional 195 × 30 × 180 mm OPS module adds Windows
Two built-in 20 W speakers and Bluetooth 5.2 BLE
Dual-band Wi-Fi, two LAN ports and RS232 control

Classroom fit

At 55″ the farthest student should sit within about 4.1 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

55 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D5B55RB/EL

Display21

Screen Size: 55 inch
Backlight: DLED
Resolution: 3840 × 2160 @60 Hz
Brightness: 350 cd/m² (Typ.)
Display Color: 1.07G
Response Time: 8ms
Panel Type: ADS
Contrast Ratio: 1200:1 (Static)
Color Gamut: 72% NTSC (CIE1931) (Typ.)
Pixel Pitch: 0.315 (H) × 0.315 (V) mm
Refresh Rate: 60 Hz
Viewing Angle: 178°(H)/178°(V)
Aspect Ratio: 16:9
Surface Haze: 25% Haze
Color Depth: 10 bit (8 bit + FRC)
Display Area: 1209.6 mm × 680.4 mm
Working Duration: 7 × 16H
Surface Hardness: 9H (Pencil) 6 (Mohs)
Surface Glass: 3.2 mm Anti-Glare Glass
Transmittance: 88% ± 3
Lifespan: 30,000 hours

Touch6

Type: Infrared Touch Screen
Touch Point: 40-point multi-touch
Touch Response Time: ＜ 5 ms
Minimum Touch Object: ≥ 2.8 mm (≥ 90% touching area)
Touch Precision: ± 1 mm (≥ 90% touching area)
Touch Resolution: 32768 × 32768

Built-in System6

Operation System: Android 13.0
Memory: 8 GB
Built-in Storage: 64 GB
CPU: Cortex-A55 × 4 (1.92 GHz)
HDCP Version: Support 1.4/2.2/2.3
GPU: Mali-G52 MP2 (2EE)

Internal Function5

Loudspeaker: Built-in 2 × 20 W
Speaker Frequency: F0-20Khz
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2
NFC: Support card reader
Light Sensor: Yes

Interface5

Video & Audio Input: HDMI In （HDMI 2.0）× 2, Audio In × 1
Video & Audio Output: Audio Out × 1
Control Interface: TOUCH-USB 2.0 × 2, RS232 × 1
Network Interface: LAN (100 Mbps) × 2 WIFI AP&Station，2.4G/5G WIFI AP：IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP WIFI Station：IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface: USB 2.0 × 2, USB 3.0 × 2, Type-C × 1 (Type-C supports USB 2.0)

Power4

Power Supply: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Max. Consumption: 210 W (with OPS)
Average Consumption: 130 W

Working Environment2

Working Temperature: 0 °C to 40 °C (32 °F to 104°F)
Working Humidity: 20%~80% RH

General5

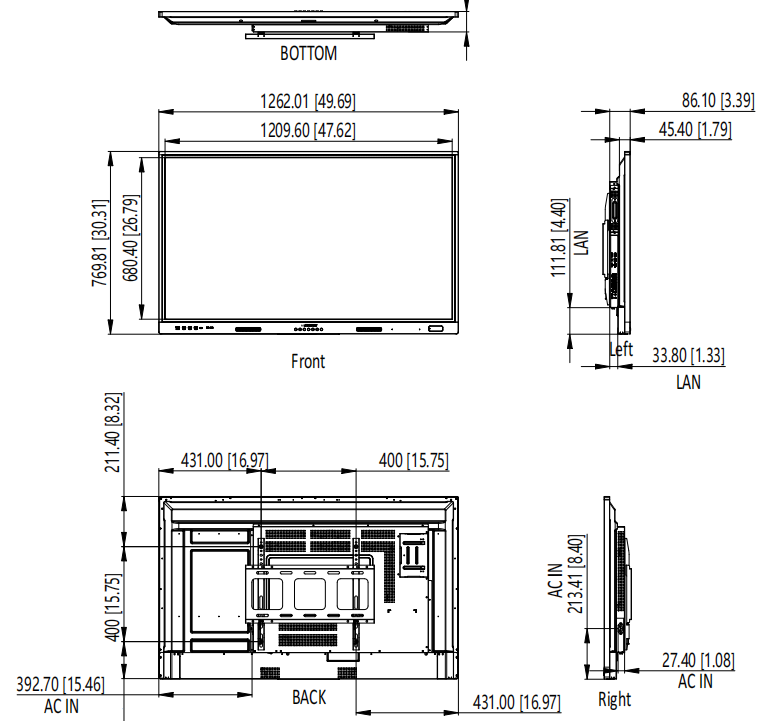

Product Dimensions: 1262.01 mm × 769.81 mm × 86.10 mm
Package Dimensions (W × H × D): 1385 mm × 865 mm × 180 mm
VESA: 400 mm × 400 mm (4 × M6-16 mm)
Net Weight: 24.5 kg
Gross Weight: 30 kg

Downloads

8 files from the manufacturer

PDF Datasheets Leaflet_Wonderhub-Value-G3-Series-_260507.pdf 1.6 MB PDF Datasheets · Opens on manufacturer site DS-D5B55RB_EL_Datasheet_20251011.pdf PDF Manuals & guides User Manual_834cb84b.pdf 3.6 MB PDF Manuals & guides · Opens on manufacturer site UD40570B-A_Regulatory-Compliance-and-Safety-Information_Wireless-Product_Class-B_20250822.pdf PDF Brochures Brochure_Value-Series-Interactive-Flat-Panel-Display_20240612.pdf 7.5 MB PNG Drawings & CAD DS-D5B55RB-EL_02.png 92 KB 4000 Software & firmware · Opens on manufacturer site Firmware_V3.5.4000_260724 4000 Software & firmware · Opens on manufacturer site Firmware_V3.5.4000_260724

Questions about DS-D5B55RB/EL

Who is the DS-D5B55RB/EL best suited for?

It suits classrooms and small meeting rooms where a 55-inch screen is the right size. The 3840 × 2160 panel, 40-point touch and built-in Android 13 let a teacher or presenter write, annotate and play video from one screen. Schools in Doha or Al Rayyan that want interactive teaching without a separate computer will find it a practical fit.

Does it need an external computer to run?

No. The panel runs Android 13 with 8 GB of memory and 64 GB of built-in storage, so apps and whiteboard software can run directly on it. The manufacturer recommends Windows for video conferencing software, which requires the optional 195 × 30 × 180 mm OPS module. Name the module in your enquiry so it appears in the quotation.

What touch specification does this model have?

The touch layer is infrared and supports up to 40 simultaneous touch points, with a touch response time below 5 ms. Touch precision is ±1 mm across 90% of the touching area, and the minimum touch object is 2.8 mm. Several teachers or students can write on the same screen at once.

Is the screen bright enough for a room with large windows in Doha?

Typical brightness is 350 cd/m², and the 3.2 mm glass has an anti-glare finish with 25% surface haze, which reduces reflections from ceiling lights. Direct sunlight through large windows still weakens any screen, so position the panel away from the glare or use blinds. Confirm the lighting during the free site survey.

Can it be installed in an unshaded lobby or outdoor area during summer?

No. The operating range is 0 °C to 40 °C with 20% to 80% relative humidity, and Doha summer temperatures can exceed 45 °C. Install it only in an indoor, air-conditioned space, and check that the cooling capacity of the room can hold the panel within that range before ordering.

What power does it need in Qatar?

The power supply is rated 100 to 240 VAC at 50/60 Hz, which covers the 240 V, 50 Hz mains used in Qatar. Average consumption is 130 W and maximum consumption is 210 W with the OPS module fitted. Standby consumption is 0.5 W or less. Plan a socket near the mounting point and confirm the circuit can carry the maximum load.

What should a school in Al Khor check before wall-mounting one?

The net weight is 24.5 kg and the gross weight is 30 kg. The panel uses a 400 × 400 mm VESA pattern with four M6 holes, 16 mm deep. Its dimensions are 1262.01 × 769.81 × 86.10 mm. Check that the wall can carry the weight, that the bracket matches the pattern and that the space allows the cable runs. SmartRooms Qatar offers a free site survey before you order.

Can a meeting room in West Bay use it for calls with teams abroad?

Yes, but with an external camera and microphone, because this model has no built-in camera or microphone. Connect them through the USB ports, and run the video conferencing software on Windows using the optional OPS module, which the manufacturer recommends for that software. Ask for the OPS module in your quotation request.

Which connections are available for laptops and other devices?

There are two HDMI 2.0 inputs, an audio input and an audio output, two USB 3.0 ports, two USB 2.0 ports and a Type-C port that supports USB 2.0. Two LAN ports run at 100 Mbps, and Wi-Fi covers 2.4 and 5 GHz. The touch function uses two dedicated USB 2.0 touch ports, so your laptop can be connected for display while touch control runs separately.

Can the panel be controlled by a room control system?

It has an RS232 control port for external control, plus two 100 Mbps LAN ports for network connection. It also includes a card reader with NFC support and a light sensor. Confirm the control protocol your system needs with the SmartRooms Qatar team before the quotation is issued, so the right integration method is priced.

Is the panel covered by warranty, and what does SmartRooms Qatar provide?

The product is covered by the manufacturer's warranty. SmartRooms Qatar supplies the panel, delivers to all eight municipalities of Qatar, arranges professional installation and issues quotations usually within one working day. Schools and government buyers can order against an LPO or a Monaqasat tender, and pay by bank transfer, cheque or purchase order.

How does it compare with the motherboard kit variant listed with 8+64G?

The model listing also shows a motherboard kit variant with an 8+64G configuration, matching this model's 8 GB memory and 64 GB storage. The source data does not describe the contents of that kit, so ask the SmartRooms Qatar team to confirm exactly what it includes before comparing it with the complete display.
