DS-D5B65RB/EP
Hikvision DS-D5B65RB/EP 65-inch 4K Interactive Display
- Screen size
- 65 inch
- Resolution
- 3840 × 2160 @60 Hz
- Touch
- Up to 50-point multi-touch
- Memory
- 8 GB + Max 8 GB Virtual RAM
The DS-D5B65RB/EP is a 65-inch interactive display with a 3840 × 2160 UHD panel, 450 cd/m² typical brightness and up to 50-point infrared touch. It runs Android 16 with 8 GB RAM and 128 GB storage, and Windows can be added through an optional OPS module. Suited to classrooms, meeting rooms and training rooms that need one screen for presenting, writing and video calls. Request a quote.
What the DS-D5B65RB/EP offers on a classroom or boardroom wall
The DS-D5B65RB/EP is a 65-inch interactive display with a 3840 × 2160 UHD panel. Its VA panel is rated at 450 cd/m² typical brightness, with 5000:1 static and 30,000:1 dynamic contrast. Viewing angles of 178 degrees horizontally and vertically mean people seated at the sides of a room still see a clear image, which matters in lecture rooms and around long boardroom tables.
The front glass is anti-glare and anti-fingerprint, rated 9H pencil hardness and 25% haze, and is bonded using a zero lamination method. These choices reduce reflections from ceiling lights and keep the surface clean during frequent writing.
Touch, writing and Android 16 in one unit
Infrared touch tracks up to 50 simultaneous points, with a response time of 2 ms or less and a minimum touch object of 1.5 mm. The Android 16 system is EDLA certified and comes with 8 GB of memory and 128 GB of storage. The built-in whiteboard recognises handwriting and graphics and can insert documents, while built-in WonderCast software accepts screen casting from up to nine devices at the same time.
- Built-in 2 × 20 W and 25 W loudspeakers provide the audio output.
- A 13.56 MHz NFC card reader supports ISO 14443A and ISO 14443B cards.
- A light sensor is fitted as standard.
Windows, connectivity and inputs
An optional OPS module measuring 195 × 30 × 180 mm adds a Windows system beside Android. The manufacturer recommends running video conferencing software on the Windows side, which suits teams that regularly connect with colleagues abroad.
Connectivity includes three HDMI 2.1 inputs (one front, two rear), a VGA input, an audio input, one HDMI output and an SPDIF output. The front and rear Type-C ports each deliver 65 W charging and accept DisplayPort 1.4 input. Two 1000 Mbps LAN ports and Wi-Fi 6 with 2×2 MIMO on 2.4 GHz and 5 GHz are built in, and an internal network switch chip removes the need for an external switch.
Where it fits across Qatar
- Classrooms in a private school in Al Wakrah: one panel can cover the display and annotation roles that would otherwise need a projector and a separate whiteboard.
- Meeting rooms in a West Bay office: the Wi-Fi 6 connection and the optional Windows system support video calls with teams in other countries.
- Training rooms at a centre in Education City: the front multi-button layout and the touch pen let instructors annotate during live sessions.
What to plan before ordering

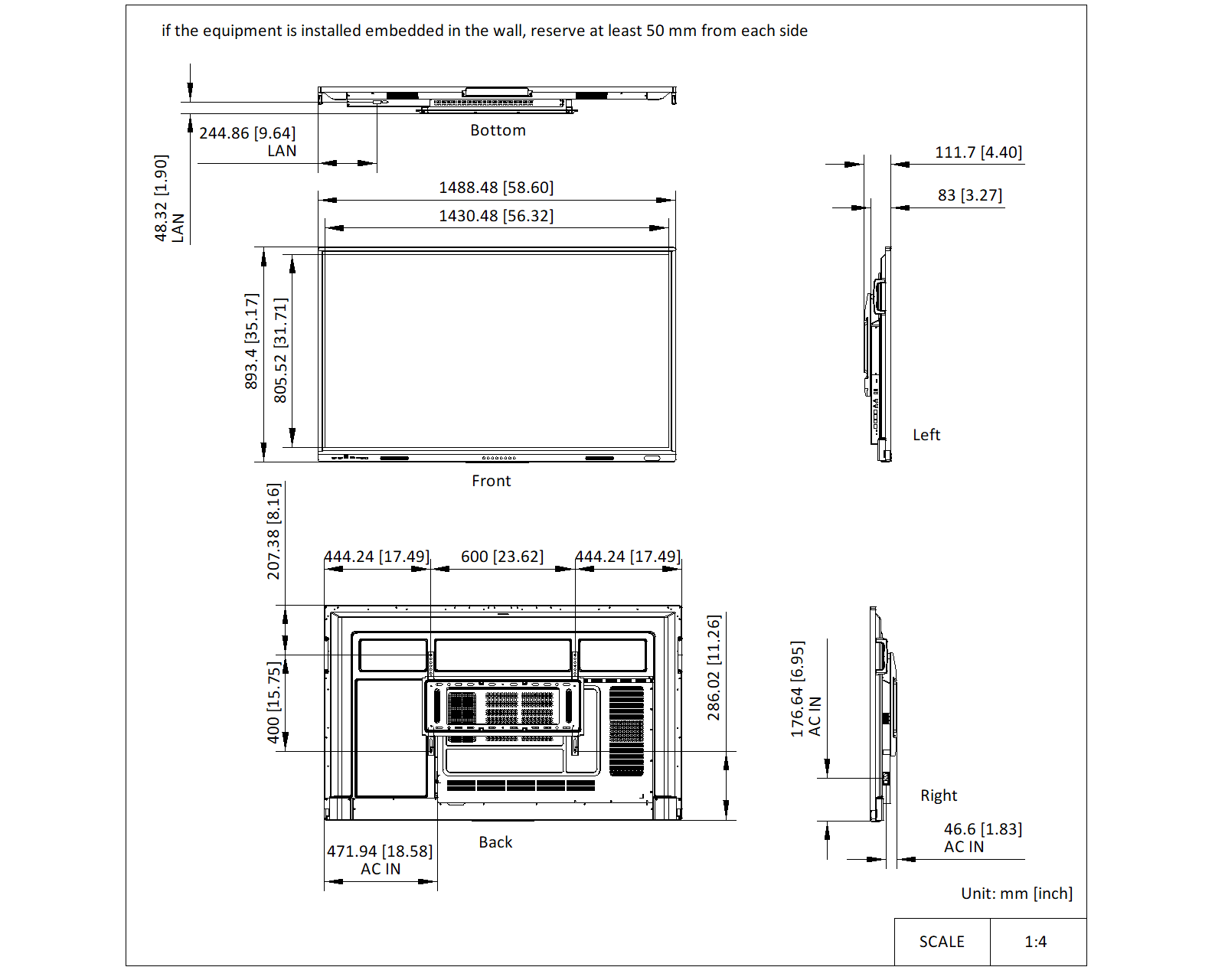

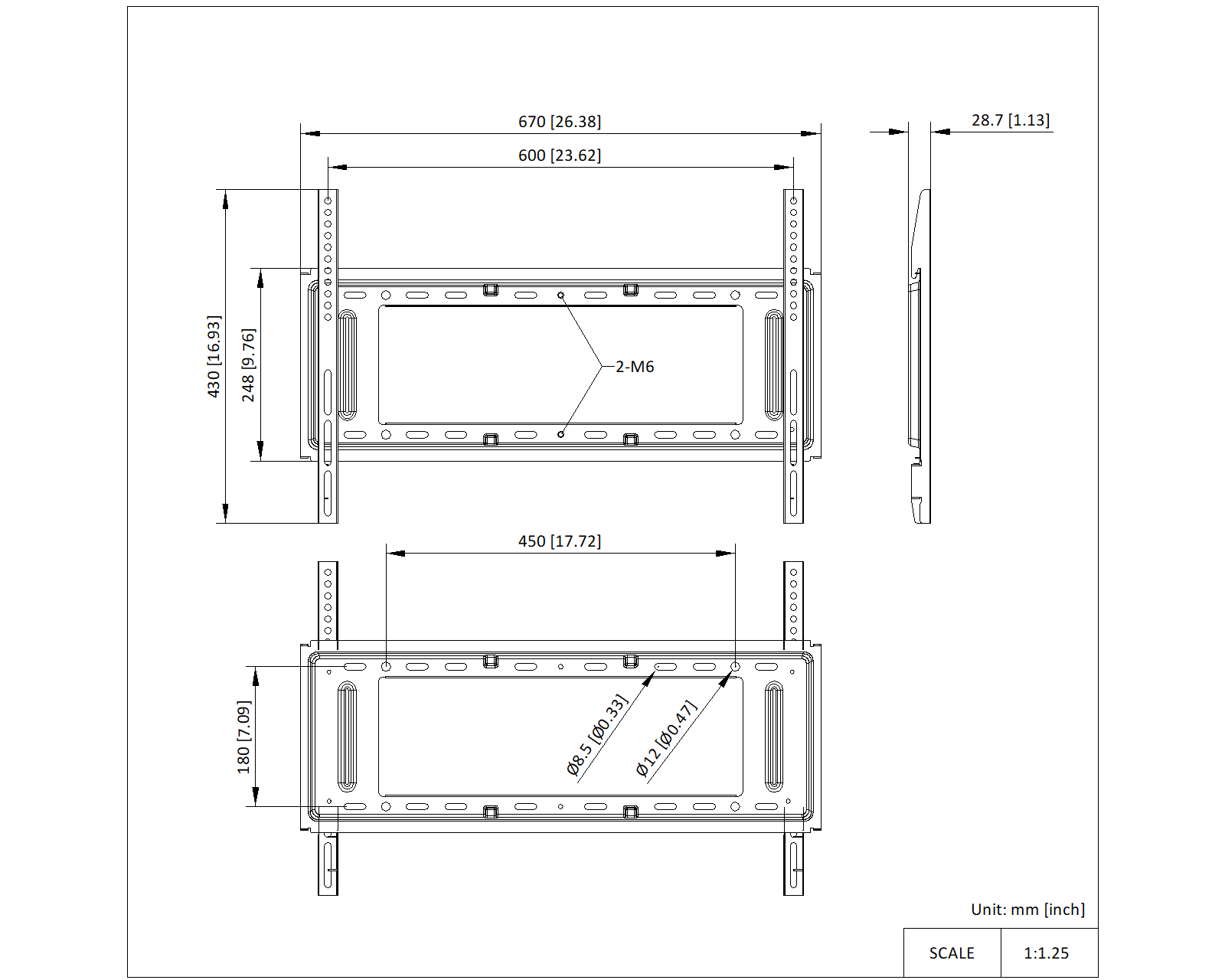

Confirm the environment first. The operating range is 0 °C to 40 °C with 10% to 90% relative humidity, so install the panel in an air-conditioned room away from direct sun and window glare. Measure the wall: the VESA pattern is 600 × 400 mm, the product is 83.0 mm deep without the wall attachment and 111.7 mm with it, and the net weight is 32.2 kg. A wall mount bracket is included. Power is 100 to 240 VAC at 50/60 Hz, with average consumption under 160 W and standby consumption of 0.5 W or less.
For schools and government projects, SmartRooms Qatar supplies and delivers to all eight municipalities, accepts purchase orders (LPOs) and tender paperwork, and offers a free site survey before wall mounting. Send your room list and quantities and request a quote for the DS-D5B65RB/EP. Quotations are usually issued within one working day.
Highlights
- 65-inch VA panel with 3840 × 2160 UHD resolution
- Up to 50-point infrared touch with 2 ms or less response
- Android 16 system, EDLA certified, 8 GB RAM, 128 GB storage
- Optional OPS module adds a Windows system
- Built-in Wi-Fi 6 and two 1000 Mbps LAN ports
- Two Type-C ports with 65 W charging and DisplayPort 1.4 input
Classroom fit
At 65″ the farthest student should sit within about 4.9 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Product Model1
- Product Model
- DS-D5B65RB/EP
Display22
- Screen Size
- 65 inch
- Backlight
- DLED
- Pixel Pitch
- 0.124 (H) × 0.372 (V) mm
- Resolution
- 3840 × 2160 @60 Hz
- Brightness
- 450 cd/m² (Typ.)
- Color Depth
- 10 bit (8 bit + FRC)
- Display Color
- 1.07 G
- Response Time
- 5 ms
- Panel Type
- VA
- Contrast Ratio
- 5000:1 (Static) 30,000:1 (Dynamic)
- Color Gamut
- 72% NTSC (CIE1931) (Typ.)
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H)/178° (V)
- Aspect Ratio
- 16:9
- Surface Hardness
- 9H (Pencil) 7 (Mohs)
- Surface Glass
- Anti-Glare & Anti-Fingerprint glass
- Surface Haze
- 25% Haze
- Glass Bonding Method
- Zero Lamination
- Display Area
- 1428.48 (H) × 803.52 (V) mm
- Working Duration
- 7 × 16 H
- Transmittance
- 88% ± 3
- Lifespan
- 50,000 hours
Touch6
- Type
- Infrared Touch Screen
- Touch Point
- Up to 50-point multi-touch
- Touch Response Time
- ≤ 2 ms
- Minimum Touch Object
- ≥ 1.5 mm (≥ 90% touching area)
- Touch Precision
- ± 0.5 mm (≥ 90% touching area)
- Touch Resolution
- 32768 × 32768
Built-in System7
- Operation System
- Android 16.0
- Memory
- 8 GB + Max 8 GB Virtual RAM
- Built-in Storage
- 128 GB
- Processor
- Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
- GPU
- Mali-G52 MC3
- HDCP Version
- 2.3 & 2.2 & 1.4
- NPU
- 6TOPs
Internal Function8
- Loudspeaker
- Built-in 2 × 20 W + 25 W loudspeaker;
- Bluetooth
- Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
- NFC
- Support card reader 13.56 MHz, (ISO 14443A/ ISO 14443B)
- Light Sensor
- Yes
- AI Function
- AI Assistant, AI Identify, and AI Notes. Free for a 1-year validity period with 6,000 minutes for AI Notes.
- Whiteboard
- Built-in whiteboard supports handwriting recognition, graphics recognition, document insertion, and more.
- ScreenCast
- Built-in WonderCast software supports screen casting for up to 9 devices simultaneously.
- Language Supported
- Simplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali
Interface5
- Video & Audio Input
- HDMI 2.1 TMDS × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.2 & 1.4;HDMI1 Support CEC&ARC protocol） VGA × 1（Rear） Audio × 1（Rear）
- Video & audio output
- HDMI 2.1 TMDS × 1（Rear） Audio × 1（Rear） SPDIF × 1（Rear）
- Control interface
- TOUCH-USB 3.0 × 1（Front × 1） TOUCH-USB 2.0 × 2（Rear × 2） RS232 × 1（Rear）
- Network Interface
- LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface
- USB 3.0 × 3（Front × 2; Rear × 1） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Support USB 3.0, 65 W charging functions; support DP IN 1.4) Type-C × 1 (Rear × 1：Support USB 2.0, 65 W charging functions; support DP IN 1.4)
Power3
- Power Supply
- 100 to 240 VAC, 50/60 Hz
- Standby Consumption
- ≤ 0.5 W
- Average Consumption
- < 160 W
Working Environment2
- Working Temperature
- 0 °C to 40 °C (32 °F to 104 °F)
- Working Humidity
- 10%~90% RH
General7
- VESA
- 600 mm × 400 mm (4 × M8-25 mm)
- Accessory
- Wall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3.5 M HDMI cable (2.0), power cable, remote control, screen cleaning cloth.
- Package Dimensions (W × H × D)
- 1662.0 × 1062.0 × 223.0 mm
- Net Weight
- 32.2 ± 0.5 kg
- Gross Weight
- 45.3 ± 0.5 kg
- Product Dimensions （With Wall Attachment）
- 1488.5 × 893.4 × 111.7 mm
- Product Dimensions （Without Wall Attachment）
- 1488.5 × 893.4 × 83.0 mm
