DS-D5B65RB/FP
Hikvision DS-D5B65RB/FP 65-inch 4K Interactive Display
- Screen size
- 65 inch
- Resolution
- 3840 × 2160 @60 Hz
- Touch
- Up to 50-point multi-touch
- Memory
- 8 GB + Max 8 GB Virtual RAM

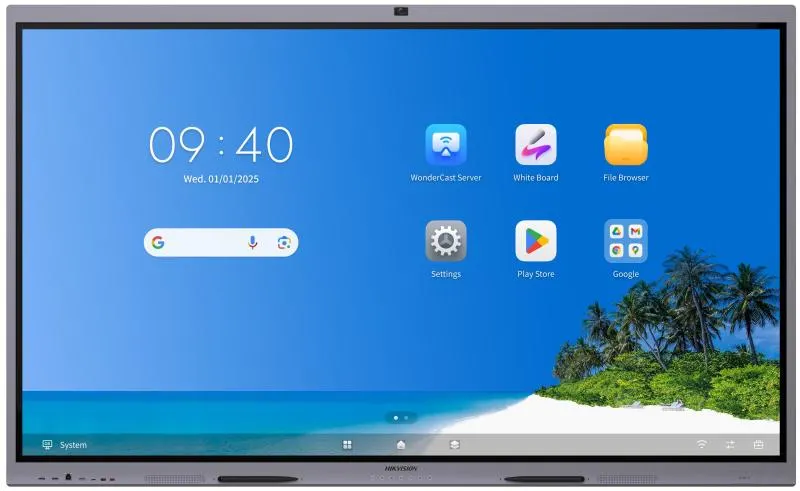

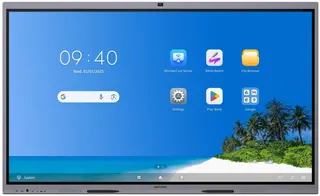

The Hikvision DS-D5B65RB/FP is a 65-inch 4K interactive display from the WonderHub Performance Series. It pairs a 3840 × 2160 VA panel with 50-point infrared touch, an Android 16 system and a built-in camera and eight-array microphone for video calls. Windows can run alongside Android through an optional OPS module. Suited to schools and offices across Qatar that want one display for teaching, presentations and conferencing.
A 65-inch 4K panel for classrooms and meeting rooms
The DS-D5B65RB/FP sits in Hikvision's WonderHub Performance Series as a 65-inch touch display with a 3840 × 2160 resolution on a 16:9 VA panel. Its typical brightness is 450 cd/m², and its anti-glare, anti-fingerprint glass with 25% haze cuts reflections from windows and ceiling lights. The surface is rated 9H by pencil hardness, which suits daily writing and wiping.
The panel offers a 5000:1 static and 30,000:1 dynamic contrast ratio, 178-degree viewing angles and a 5 ms response time. Colour depth is 10-bit (8-bit plus FRC) with 72% NTSC gamut coverage. The panel is listed with a 50,000-hour lifespan and a working duration of 7 × 16 hours.
Touch, writing and the built-in system
The infrared touch layer supports up to 50 simultaneous touch points, with a response time of 2 ms or less and a touch precision of ±0.5 mm across at least 90% of the touching area. Teachers can write with the pen or a finger, and the built-in whiteboard handles handwriting recognition, graphics recognition and document insertion.
Android 16.0 runs on 8 GB of memory with 128 GB of built-in storage and a 6 TOPS NPU, and the unit is EDLA certified. Windows can run alongside Android when the optional OPS module (195 × 30 × 180 mm) is fitted, and the display switches between Android, OPS and external PC sources. Hikvision recommends running video conferencing software on the Windows system.
Video conferencing and connectivity
The built-in camera captures 48 MP photos and 8 MP video up to 4K, with a 93.4-degree diagonal field angle. An omni-directional eight-array microphone is rated for a 12 m voice distance, with echo reduction and noise cancellation, and speaker tracking is among its highlight features. Two 20 W speakers and a 25 W speaker provide the sound.
- Inputs: three HDMI 2.1 inputs (one front, two rear), a VGA input and audio inputs
- USB-C: two Type-C ports with DP IN 1.4 and 65 W charging
- Touch and peripherals: three USB 3.0 and two USB 2.0 ports
- Network: two 1000 Mbps LAN ports and Wi-Fi 6 with a built-in network switch chip
Where it fits in Qatar
A private school in Al Wakrah refitting a science room can use one 65-inch unit where a larger panel would overcrowd the space. The front-mounted multi-button layout and front USB and Type-C ports keep the controls within the teacher's reach.
An engineering consultancy in the Industrial Area or Msheireb can install one in a meeting room that calls teams abroad. The camera and microphone handle the call while documents are shared from a laptop over HDMI, and multi-user mode is listed for several presenters.
A training centre in Education City running sessions in Arabic and English can use the on-screen language list, which includes Arabic and English, and WonderCast, which accepts screen casting from up to nine devices at the same time.
What to plan before ordering

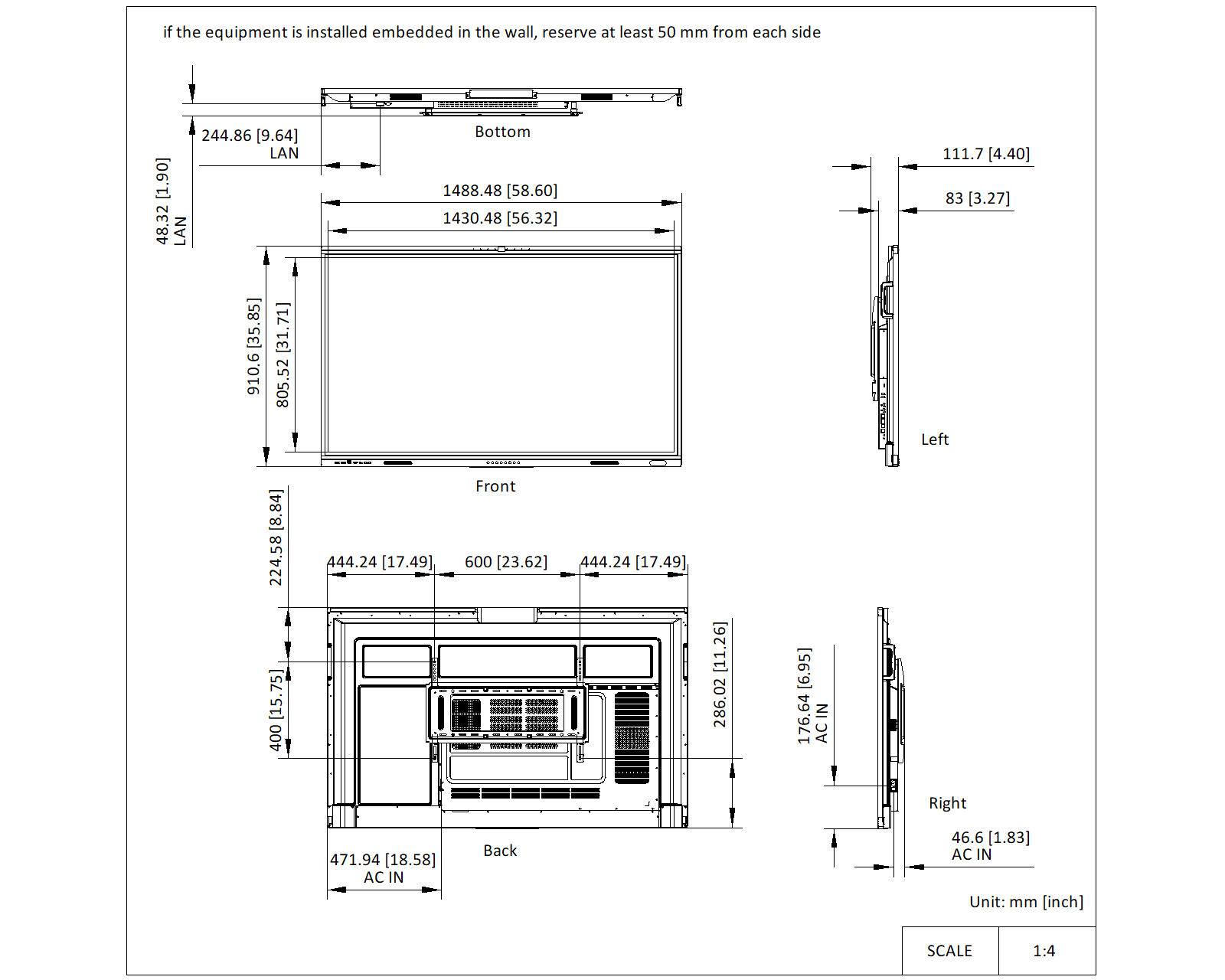

The unit weighs 33.4 kg net (46.5 kg gross) and measures 1488.5 × 910.6 × 83.0 mm without the wall attachment. It uses a 600 × 400 mm VESA pattern, and the box includes a wall mount bracket and hook. Because of its weight, we recommend a free site survey to check wall construction and fixing points before installation.
The operating range is 0 °C to 40 °C at 10% to 90% relative humidity, so confirm the environment with the SmartRooms Qatar team before fitting it in unconditioned spaces or positions exposed to direct sunlight. The power input is 100 to 240 VAC at 50/60 Hz with average consumption below 160 W.
We supply and deliver to all eight municipalities of Qatar, with professional installation. Schools and government buyers can issue a purchase order (LPO) or respond to a government tender, including Monaqasat. Request a quote for the DS-D5B65RB/FP, and we will confirm the details in your quotation, usually within one working day.
Highlights
- Android 16.0 system with EDLA certification
- 3840 × 2160 VA panel with 450 cd/m² typical brightness
- Infrared touch with up to 50 simultaneous points
- Optional OPS slot for Windows alongside Android
- 48 MP camera and eight-array microphone for video calls
- Two 1000 Mbps LAN ports and Wi-Fi 6
Classroom fit
At 65″ the farthest student should sit within about 4.9 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Product Model1
- Product Model
- DS-D5B65RB/FP
Display22
- Screen Size
- 65 inch
- Backlight
- DLED
- Pixel Pitch
- 0.124 (H) × 0.372 (V) mm
- Resolution
- 3840 × 2160 @60 Hz
- Brightness
- 450 cd/m² (Typ.)
- Color Depth
- 10 bit (8 bit + FRC)
- Display Color
- 1.07 G
- Response Time
- 5 ms
- Panel Type
- VA
- Contrast Ratio
- 5000:1 (Static) 30,000:1 (Dynamic)
- Color Gamut
- 72% NTSC (CIE1931) (Typ.)
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H)/178° (V)
- Aspect Ratio
- 16:9
- Surface Hardness
- 9H (Pencil) 7 (Mohs)
- Surface Glass
- Anti-Glare & Anti-Fingerprint glass
- Surface Haze
- 25% Haze
- Glass Bonding Method
- Zero Lamination
- Display Area
- 1428.48 (H) × 803.52 (V) mm
- Working Duration
- 7 × 16 H
- Transmittance
- 88% ± 3
- Lifespan
- 50,000 hours
Touch6
- Type
- Infrared Touch Screen
- Touch Point
- Up to 50-point multi-touch
- Touch Response Time
- ≤ 2 ms
- Minimum Touch Object
- ≥ 1.5 mm (≥ 90% touching area)
- Touch Precision
- ± 0.5 mm (≥ 90% touching area)
- Touch Resolution
- 32768 × 32768
Built-in System7
- Operation System
- Android 16.0
- Memory
- 8 GB + Max 8 GB Virtual RAM
- Built-in Storage
- 128 GB
- Processor
- Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
- GPU
- Mali-G52 MC3
- HDCP Version
- 2.3 & 2.2 & 1.4
- NPU
- 6TOPs
Camera5
- Pixel
- 48 MP for Photos & 8 MP for Video
- Camera Function
- Intelligent switching between Android, OPS, and external PC systems.
- Field Angle
- 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
- Distortion
- ≤ 2.5%
- Camera Resolution Ratio
- Up to 4K
Microphone5
- Specification
- Omni-directional 8-array layout
- Mic Function
- Echo reduction and smart noise-cancellation
- Voice Distance
- 12 m
- Sampling Rate
- 32 K
- Mic Depth
- 16 bit
Internal Function10
- Loudspeaker
- Built-in 2 × 20 W + 25 W loudspeaker;
- Bluetooth
- Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
- NFC
- Support card reader 13.56 MHz, (ISO 14443A/ ISO 14443B)
- Light Sensor
- Yes
- Image Processing Technology
- Support 3D digital noise reduction, face detection, automatic white balance, automatic purple fringing correction, automatic defogging, and shadow correction.
- AI Function
- AI Assistant, AI Identify, and AI Notes. Free for a 1-year validity period with 6,000 minutes for AI Notes.
- Whiteboard
- Built-in whiteboard supports handwriting recognition, graphics recognition, document insertion, and more.
- Audio Processing Technology
- Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
- ScreenCast
- Built-in WonderCast software supports screen casting for up to 9 devices simultaneously.
- Language Supported
- Simplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali
Interface5
- Video & Audio Input
- HDMI 2.1 TMDS × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.2 & 1.4;HDMI1 Support CEC&ARC protocol） VGA × 1（Rear） Audio × 1（Rear）
- Video & audio output
- HDMI 2.1 TMDS × 1（Rear） Audio × 1（Rear） SPDIF × 1（Rear）
- Control interface
- TOUCH-USB 3.0 × 1（Front × 1） TOUCH-USB 2.0 × 2（Rear × 2） RS232 × 1（Rear）
- Network Interface
- LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface
- USB 3.0 × 3（Front × 2; Rear × 1） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Support USB 3.0, 65 W charging functions; support DP IN 1.4) Type-C × 1 (Rear × 1：Support USB 2.0, 65 W charging functions; support DP IN 1.4)
Power3
- Power Supply
- 100 to 240 VAC, 50/60 Hz
- Standby Consumption
- ≤ 0.5 W
- Average Consumption
- < 160 W
Working Environment2
- Working Temperature
- 0 °C to 40 °C (32 °F to 104 °F)
- Working Humidity
- 10%~90% RH
General7
- VESA
- 600 mm × 400 mm (4 × M8-25 mm)
- Accessory
- Wall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3.5 M HDMI cable (2.0), power cable, remote control, screen cleaning cloth.
- Package Dimensions (W × H × D)
- 1662.0 × 1062.0 × 223.0 mm
- Net Weight
- 33.4 ± 0.5 kg
- Gross Weight
- 46.5 ± 0.5 kg
- Product Dimensions （With Wall Attachment）
- 1488.5 × 910.6 × 111.7 mm
- Product Dimensions （Without Wall Attachment）
- 1488.5 × 910.6 × 83.0 mm
