Hikvision DS-D5B75RB/FP · Price in Qatar

Name: Hikvision DS-D5B75RB/FP 75-inch 4K Interactive Display
Brand: Hikvision
SKU: hikvision-ds-d5b75rb-fp
Availability: InStock

Overview

The Hikvision DS-D5B75RB/FP is a 75-inch 4K interactive display with a 3840 × 2160 VA panel, infrared touch supporting up to 50 points, and Android 16.0 built in. Its integrated 48 MP camera, eight-array microphone and speakers suit classrooms, training rooms and boardrooms across Qatar. An optional OPS module adds a Windows system. Request a quote to confirm the right configuration for your room.

What the Hikvision DS-D5B75RB/FP delivers

The DS-D5B75RB/FP is an all-in-one interactive display built around a 75-inch, 16:9 VA panel with 3840 × 2160 resolution. Its typical brightness of 450 cd/m², static contrast of 5000:1 and 178° viewing angles keep content readable for a whole row of students or for people seated at the far end of a boardroom table. Anti-glare, anti-fingerprint glass helps where daylight or ceiling lights would otherwise wash out the screen.

Touch, writing and the built-in Android system

Infrared touch supports up to 50 simultaneous points, with a response time of 2 ms or less and a touch precision of ±0.5 mm across at least 90% of the touching area. The panel runs Android 16.0 with 8 GB of memory and 128 GB of built-in storage, and a built-in whiteboard handles handwriting and graphics recognition. The panel is EDLA certified. An optional 195 × 30 × 180 mm OPS module adds a Windows system alongside Android, and the manufacturer recommends running video conferencing software on the Windows side.

Camera, microphone and connectivity for hybrid meetings

The integrated 48 MP photo and 8 MP video camera captures up to 4K with an 84.5° horizontal field angle, while the eight-array omni-directional microphone is rated for a 12 m voice distance and includes echo reduction and smart noise cancellation. The panel offers three HDMI 2.1 inputs, one at the front and two at the rear, plus an HDMI output, VGA input, two 1000 Mbps LAN ports and Wi-Fi 6. Two Type-C ports provide 65 W charging and DP IN 1.4, one at the front and one at the rear.

Where it fits across Qatar

Classrooms in Al Wakrah or Education City: A 75-inch panel suits a medium classroom where the teacher and students share one board, and the front multi-button layout keeps common controls within easy reach.
Government meeting rooms in Msheireb: Offices working in Arabic and English can use an on-screen language list that includes Arabic, along with the built-in whiteboard for workshops.
Training rooms in the Industrial Area or Lusail: Teams running induction or safety sessions can annotate and share from up to nine devices at once through the built-in WonderCast screen casting.

Summer heat in Qatar matters for placement. The panel's working temperature is 0 °C to 40 °C with 10% to 90% relative humidity, so it belongs in an air-conditioned room rather than a sunlit foyer, a covered outdoor area or a dusty loading bay. Ask the SmartRooms Qatar team to confirm the room's conditions when you request a quote.

What to plan before installation

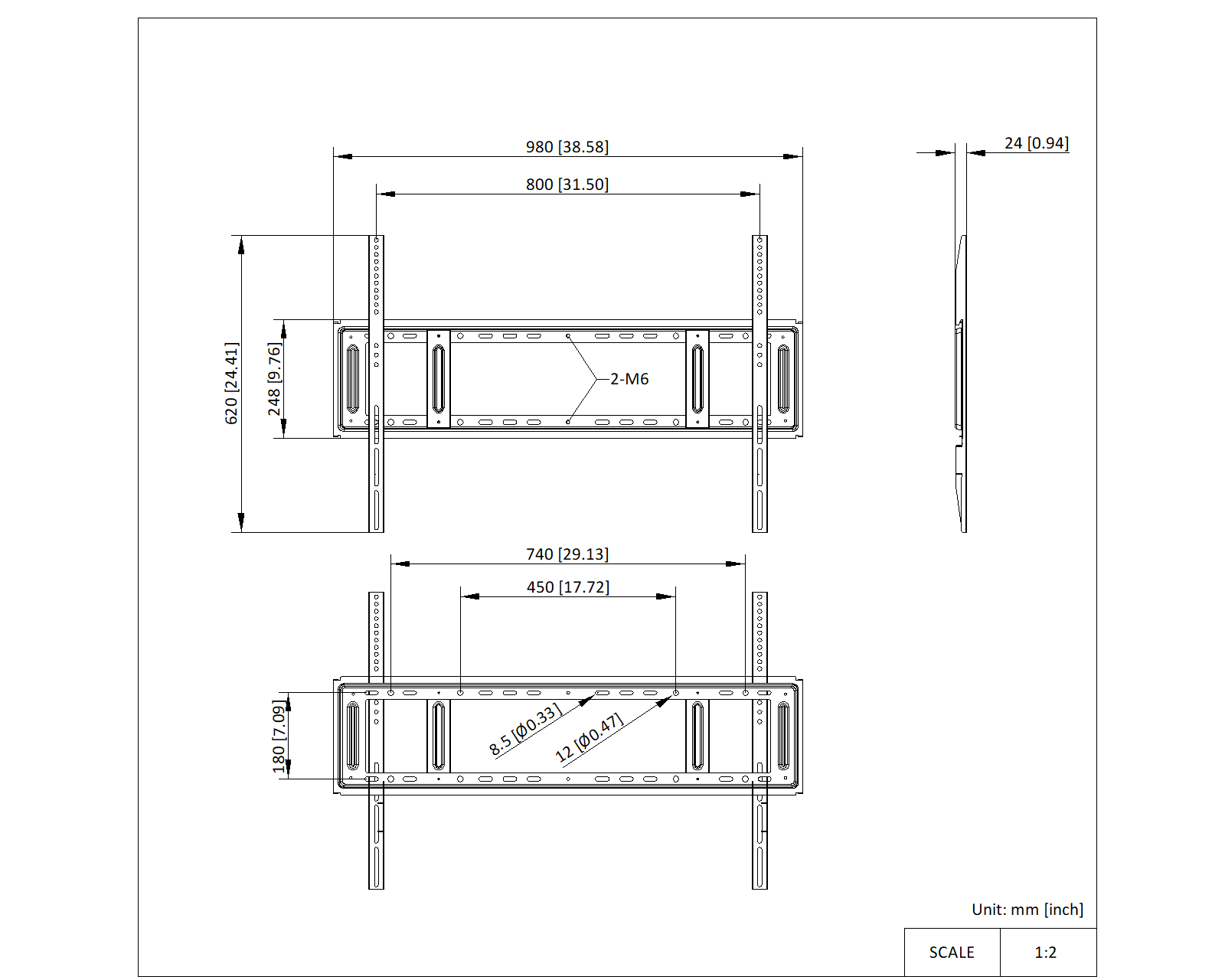

Wall mounting uses a VESA pattern of 800 × 400 mm with four M8 holes at 25 mm, and a wall mount bracket is included.

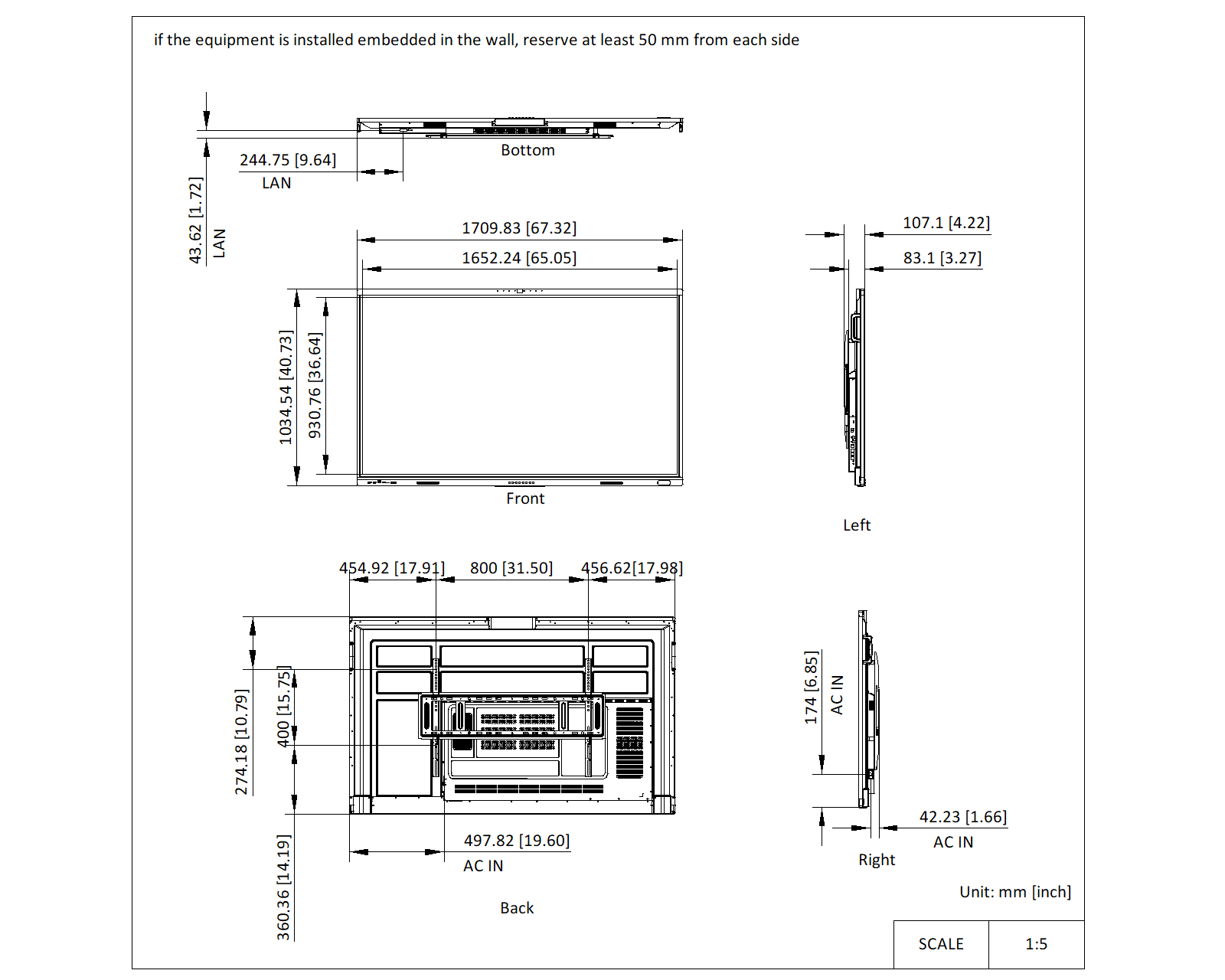

Dimensions are 1709.83 × 1034.54 × 83.1 mm without the wall attachment, and 107.1 mm deep with it.
Net weight is 45.7 kg and gross weight is 63.1 kg, so the wall structure and lifting plan should be checked before delivery.
Power input is 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply, with average consumption under 189 W.

SmartRooms Qatar offers a free site survey before a panel of this size is mounted, along with professional installation across all eight municipalities of Qatar. Request a quote with your room dimensions, wall type and preferred mounting, and we will confirm the configuration and availability with your quotation.

Highlights

75-inch 3840 × 2160 4K VA panel with 16:9 aspect ratio
Infrared touch with up to 50 points and 2 ms or less response
Built-in Android 16.0 with 8 GB memory and 128 GB storage
Optional OPS module adds a Windows system
48 MP camera and eight-array microphone rated to 12 m
Two Type-C ports with 65 W charging and DP IN 1.4

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

73 specifications · Source: manufacturer · checked Oct 2026

Product Model1

Product Model: DS-D5B75RB/FP

Display22

Screen Size: 75 inch
Backlight: DLED
Pixel Pitch: 0.143 (H) × 0.429 (V) mm
Resolution: 3840 × 2160 @60 Hz
Brightness: 450 cd/m² (Typ.)
Color Depth: 10 bit (8 bit + FRC)
Display Color: 1.07 G
Response Time: 5 ms
Panel Type: VA
Contrast Ratio: 5000:1 (Static) 30,000:1 (Dynamic)
Color Gamut: 72% NTSC (CIE1931) (Typ.)
Refresh Rate: 60 Hz
Viewing Angle: 178° (H)/178° (V)
Aspect Ratio: 16:9
Surface Hardness: 9H (Pencil) 7 (Mohs)
Surface Glass: Anti-Glare & Anti-Fingerprint glass
Surface Haze: 25% Haze
Glass Bonding Method: Zero Lamination
Display Area: 1652.24 (H) × 930.26 (V) mm
Working Duration: 7 × 16 H
Transmittance: 88% ± 3
Lifespan: 50,000 hours

Touch6

Type: Infrared Touch Screen
Touch Point: Up to 50-point multi-touch
Touch Response Time: ≤ 2 ms
Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
Touch Precision: ± 0.5 mm (≥ 90% touching area)
Touch Resolution: 32768 × 32768

Built-in System7

Operation System: Android 16.0
Memory: 8 GB + Max 8 GB Virtual RAM
Built-in Storage: 128 GB
Processor: Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
GPU: Mali-G52 MC3
HDCP Version: 2.3 & 2.2 & 1.4
NPU: 6TOPs

Camera5

Pixel: 48 MP for Photos & 8 MP for Video
Camera Function: Intelligent switching between Android, OPS, and external PC systems.
Field Angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
Distortion: ≤ 2.5%
Camera Resolution Ratio: Up to 4K

Microphone5

Specification: Omni-directional 8-array layout
Mic Function: Echo reduction and smart noise-cancellation
Voice Distance: 12 m
Sampling Rate: 32 K
Mic Depth: 16 bit

Internal Function10

Loudspeaker: Built-in 2 × 20 W + 25 W loudspeaker;
Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
NFC: Support card reader 13.56 MHz, (ISO 14443A/ ISO 14443B)
Light Sensor: Yes
Image Processing Technology: Support 3D digital noise reduction, face detection, automatic white balance, automatic purple fringing correction, automatic defogging, and shadow correction.
Audio Processing Technology: Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
AI Function: AI Assistant, AI Identify, and AI Notes. Free for a 1-year validity period with 6,000 minutes for AI Notes.
Whiteboard: Built-in whiteboard supports handwriting recognition, graphics recognition, document insertion, and more.
ScreenCast: Built-in WonderCast software supports screen casting for up to 9 devices simultaneously.
Language Supported: Simplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali

Interface5

Video & Audio Input: HDMI 2.1 TMDS × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.2 & 1.4;HDMI1 Support CEC&ARC protocol） VGA × 1（Rear） Audio × 1（Rear）
Video & audio output: HDMI 2.1 TMDS × 1（Rear） Audio × 1（Rear） SPDIF × 1（Rear）
Control interface: TOUCH-USB 3.0 × 1（Front × 1） TOUCH-USB 2.0 × 2（Rear × 2） RS232 × 1（Rear）
Network Interface: LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface: USB 3.0 × 3（Front × 2; Rear × 1） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Support USB 3.0, 65 W charging functions; support DP IN 1.4) Type-C × 1 (Rear × 1：Support USB 2.0, 65 W charging functions; support DP IN 1.4)

Power3

Power Supply: 100 to 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Average Consumption: < 189 W

Working Environment2

Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 10%~90% RH

General7

VESA: 800 mm × 400 mm (4 × M8-25 mm)
Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), power cable, remote control, screen cleaning cloth.
Package Dimensions (W × H × D): 1907.0 × 1160.0 × 223.0 mm
Net Weight: 45.7 ± 0.5 kg
Gross Weight: 63.1 ± 0.5 kg
Product Dimensions （With Wall Attachment）: 1709.83 × 1034.54 × 107.1 mm
Product Dimensions （Without Wall Attachment）: 1709.83 × 1034.54 × 83.1 mm

Downloads

7 files from the manufacturer

PDF Datasheets Leaflet_Wonderhub-Performance-G2-Series-_20250929.pdf 20.2 MB PDF Datasheets Leaflet_Wonderhub-Performance-G2-Series-_20260507.pdf 1.7 MB PDF Datasheets · Opens on manufacturer site DS-D5B75RB_FP_Datasheet_20260824.pdf PDF Manuals & guides User Manual_ec08dee5.pdf 5.2 MB PNG Drawings & CAD DS-D5B75RB-FP_02.png 67 KB PNG Drawings & CAD DS-D5B75RB-FP_03.png 74 KB PDF Other documents · Opens on manufacturer site Hikvision-Interactive-Flat-Panel-Serial-Port_Control-Command_20251224.pdf

Questions about DS-D5B75RB/FP

Who is the 75-inch DS-D5B75RB/FP best suited to?

It suits a medium-sized classroom, training room or meeting room where a 75-inch screen can be read comfortably by a group. For a larger lecture hall or a boardroom with a long table, a larger screen size may be a better fit, so compare room dimensions before you request a quote.

Can this panel run Windows as well as Android?

Yes, with an optional OPS module. The panel runs Android 16.0 natively, and the optional OPS module measuring 195 × 30 × 180 mm adds a Windows system. The manufacturer recommends running video conferencing software on the Windows side. Confirm whether the OPS module is included in your quotation before ordering.

How accurate and responsive is the touch screen?

The infrared touch screen supports up to 50 touch points, with a response time of 2 ms or less. Touch precision is ±0.5 mm across at least 90% of the touching area, and it recognises touch objects of 1.5 mm or more. That suits detailed annotation when several students write at the same time during group activities.

Will sunlight or ceiling lights in a Doha office make the screen hard to read?

The panel has 450 cd/m² typical brightness, and its anti-glare, anti-fingerprint glass has 25% haze. These features help in rooms with daylight, but avoid placing the screen directly opposite large windows. Review the room layout during the free site survey before mounting, so reflections are managed from the start.

Can I install it in a hot entrance hall or outdoor area in summer?

No. The working temperature range is 0 °C to 40 °C with 10% to 90% relative humidity. Qatar summer temperatures above 45 °C and dust storms make a sunlit foyer, a covered outdoor area or a loading bay unsuitable. Choose an air-conditioned room, and ask SmartRooms Qatar to confirm the exact location before you request a quote.

How good are the camera and microphone for calls with teams abroad?

The 48 MP photo and 8 MP video camera captures up to 4K, with an 84.5° horizontal field angle and distortion of 2.5% or less. The eight-array microphone picks up voices at 12 m and includes echo reduction and noise cancellation. For a meeting in Doha linked with colleagues abroad, this means clearer audio across a table.

Which ports will a laptop and a second source need?

There are three HDMI 2.1 inputs, one at the front and two at the rear, plus VGA and an HDMI output. The front Type-C port supports USB 3.0, 65 W charging and DP IN 1.4, so a laptop can be connected and charged from the front. Three USB 3.0 ports, two USB 2.0 ports and an RS232 port for control are also provided.

Does the panel support Arabic for a ministry or bilingual office in Msheireb?

The supported language list includes Arabic and English, along with many other languages. That helps offices that work in Arabic and English side by side. Specify the language setup you need in your quotation so the handover matches your team's requirements.

How do I plan wall mounting for a panel this heavy?

Mounting uses a VESA pattern of 800 × 400 mm with four M8 holes, and the wall mount bracket and hook are included. The panel weighs 45.7 kg net and 63.1 kg gross, so the wall and fixings need checking first. SmartRooms Qatar offers a free site survey before wall mounting, plus professional installation across Qatar.

Is it compatible with Qatar's 240 V mains supply?

Yes. The power supply is rated 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Average consumption is below 189 W, and standby consumption is 0.5 W or less. A power cable is included with the panel.

What warranty and ordering options apply when a school or ministry buys several units?

Products are covered by the manufacturer's warranty, and we can provide the warranty terms in writing with your quotation. We accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. For a school equipping several new classrooms, every unit can be quoted with the same configuration so the set matches.
