DS-D5B86RB/EP

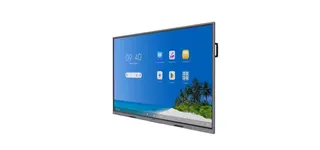

Hikvision DS-D5B86RB/EP 86-inch 4K Interactive Display
- Screen size
- 86 inch
- Resolution
- 3840 × 2160 @60 Hz
- Touch
- Up to 50-point multi-touch
- Memory
- 8 GB + Max 8 GB Virtual RAM
The Hikvision DS-D5B86RB/EP is an 86-inch interactive display with a 3840 × 2160 IPS panel, 450 cd/m² brightness and up to 50-point infrared touch. Its built-in Android 16 system, Wi-Fi 6 and two gigabit LAN ports suit schools, boardrooms and training rooms across Qatar. Request a quote to plan the right model for your room.
A large touch display built around Android 16

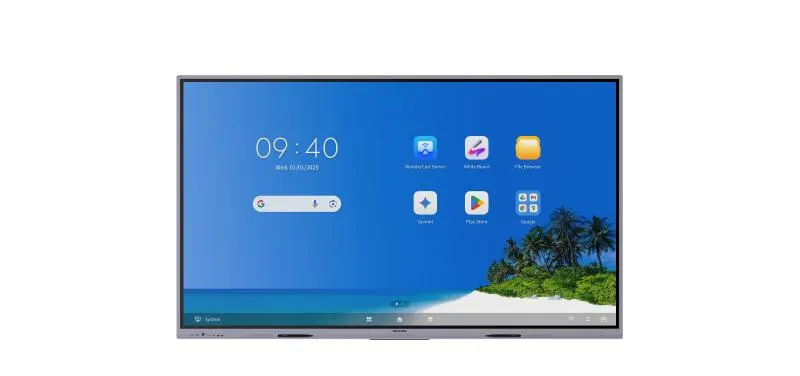

The Hikvision DS-D5B86RB/EP is an 86-inch interactive flat panel with a 3840 × 2160 UHD IPS screen. Its built-in Android 16 system runs apps and whiteboard tools without an external computer, and the system carries EDLA certification. Teachers and presenters can write with the included touch pen or with their fingers, with up to 50 touch points recognised at once.
Specifications that shape everyday use
A typical brightness of 450 cd/m² and a static contrast ratio of 1,200:1 suit well-lit classrooms and meeting rooms where daylight reaches the screen. The anti-glare, anti-fingerprint glass with 25% haze reduces reflections from ceiling lights. A 60 Hz refresh rate and 5 ms response time keep slides, video and handwriting smooth.
Connectivity centres on three HDMI 2.1 inputs, one of them at the front for quick laptop connections. The rear offers an HDMI output, VGA, two USB 3.0 ports and two USB 2.0 ports, while the front and rear USB-C ports each support 65 W charging with DP IN 1.4. Two LAN ports at 1000 Mbps and Wi-Fi 6 (802.11 a/b/g/n/ac/ax) handle wired and wireless networking. A built-in network switch chip means the display does not need a separate external switch.
Built-in loudspeakers rated at 2 × 20 W plus 25 W cover playback in a room without extra audio equipment. The built-in WonderCast software supports screen casting from up to nine devices at the same time.
Where it fits across Qatar
- Classrooms in private and international schools: the multi-button front panel and front-facing ports suit a teacher who connects a laptop from the front of the room.
- Boardrooms in West Bay and Lusail: the 86-inch screen suits ministry and corporate meetings. The source data recommends running video conference software on the Windows system, which an optional OPS module provides.
- Training centres in Education City and Msheireb: the built-in whiteboard, with handwriting and graphics recognition, and screen casting from several devices support group workshops.
What to plan before installation

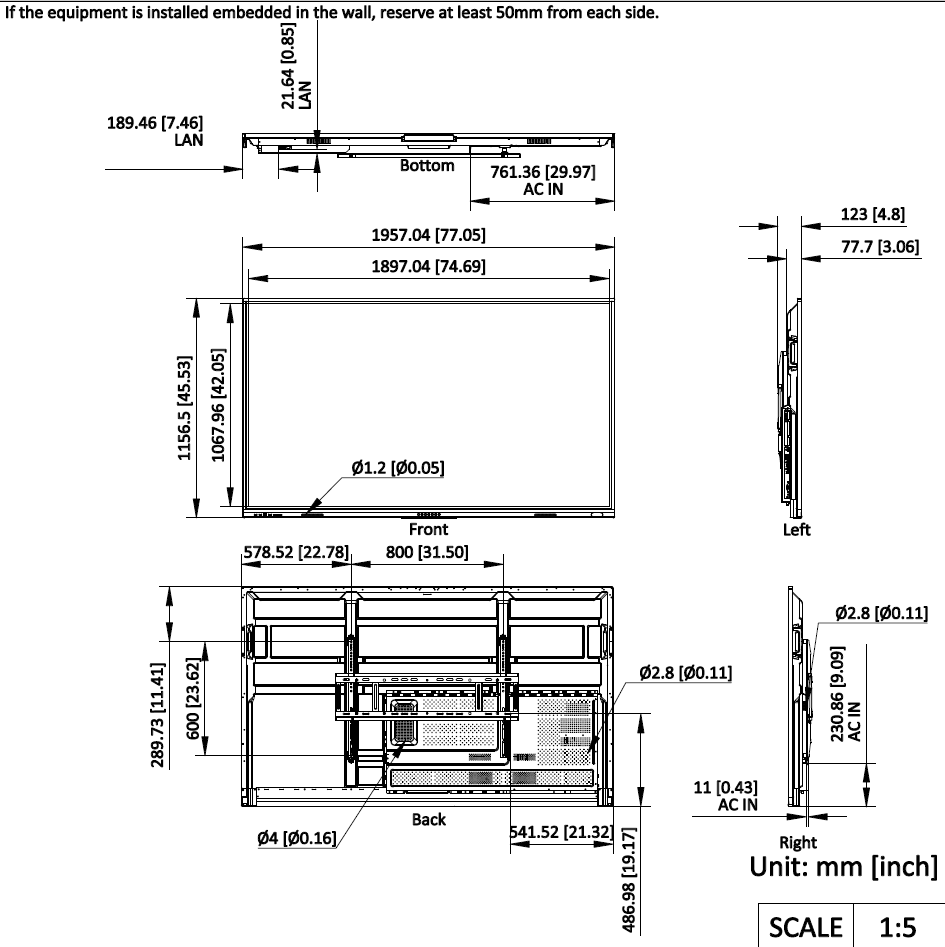

The panel weighs 52.7 kg net and measures 1957.0 × 1156.5 × 77.7 mm without its wall attachment, or 123.0 mm deep with it. It uses an 800 × 600 mm VESA pattern and includes a wall mount bracket. Book a free site survey so that wall strength, bracket position and cable routes are checked before delivery.
The operating range is 0 °C to 40 °C with 10% to 90% humidity, so plan installation in an air-conditioned room, away from windows and direct sunlight. Summer temperatures in Qatar can exceed 45 °C, so confirm the room conditions with the SmartRooms Qatar team. The 100 to 240 VAC input covers Qatar's 240 V, 50 Hz supply, and average consumption is under 210 W.
Organisations ordering several units can use a purchase order (LPO). SmartRooms Qatar delivers to all eight municipalities of Qatar, and quotations are usually issued within one working day. To plan the right setup for your room, request a quote from SmartRooms Qatar.
Highlights
- 86-inch 3840 × 2160 IPS panel at 60 Hz
- Built-in Android 16 system, EDLA certified
- Optional OPS module adds Windows alongside Android
- Infrared touch with up to 50-point multi-touch
- Two USB-C ports with 65 W charging
- Three HDMI 2.1 inputs and Wi-Fi 6 connectivity
Classroom fit
At 86″ the farthest student should sit within about 6.4 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Product Model1
- Product Model
- DS-D5B86RB/EP
Display22
- Screen Size
- 86 inch
- Backlight
- DLED
- Pixel Pitch
- 0.164 (H) × 0.493 (V) mm
- Resolution
- 3840 × 2160 @60 Hz
- Brightness
- 450 cd/m² (Typ.)
- Color Depth
- 10 bit (8 bit + FRC)
- Display Color
- 1.07 G
- Response Time
- 5 ms
- Panel Type
- IPS
- Contrast Ratio
- 1200:1 (Static) 15,000:1 (Dynamic)
- Color Gamut
- 72% NTSC (CIE1931) (Typ.)
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H)/178° (V)
- Aspect Ratio
- 16:9
- Surface Hardness
- 9H (Pencil) 7 (Mohs)
- Surface Glass
- Anti-Glare & Anti-Fingerprint glass
- Surface Haze
- 25% Haze
- Glass Bonding Method
- Zero Lamination
- Display Area
- 1895.04 (H) × 1065.96 (V) mm
- Working Duration
- 7 × 16 H
- Transmittance
- 88% ± 3
- Lifespan
- 50,000 hours
Touch6
- Type
- Infrared Touch Screen
- Touch Point
- Up to 50-point multi-touch
- Touch Response Time
- ≤ 2 ms
- Minimum Touch Object
- ≥ 1.5 mm (≥ 90% touching area)
- Touch Precision
- ± 0.5 mm (≥ 90% touching area)
- Touch Resolution
- 32768 × 32768
Built-in System7
- Operation System
- Android 16.0
- Memory
- 8 GB + Max 8 GB Virtual RAM
- Built-in Storage
- 128 GB
- Processor
- Quad-core Cortex-A72 × 4（2.2 GHz）and quad-core Cortex-A53 × 4（1.8 GHz）
- GPU
- Mali-G52 MC3
- HDCP Version
- 2.3 & 2.2 & 1.4
- NPU
- 6TOPs
Internal Function8
- Loudspeaker
- Built-in 2 × 20 W + 25 W loudspeaker;
- Bluetooth
- Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
- NFC
- Support card reader 13.56 MHz, (ISO 14443A/ ISO 14443B)
- Light Sensor
- Yes
- AI Function
- AI Assistant, AI Identify, and AI Notes. Free for a 1-year validity period with 6,000 minutes for AI Notes.
- Whiteboard
- Built-in whiteboard supports handwriting recognition, graphics recognition, document insertion, and more.
- ScreenCast
- Built-in WonderCast software supports screen casting for up to 9 devices simultaneously.
- Language Supported
- Simplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali
Interface5
- Video & Audio Input
- HDMI 2.1 TMDS × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.2 & 1.4;HDMI1 Support CEC&ARC protocol） VGA × 1（Rear） Audio × 1（Rear）
- Video & audio output
- HDMI 2.1 TMDS × 1（Rear） Audio × 1（Rear） SPDIF × 1（Rear）
- Control interface
- TOUCH-USB 3.0 × 1（Front × 1） TOUCH-USB 2.0 × 2（Rear × 2） RS232 × 1（Rear）
- Network Interface
- LAN (1000 Mbps) × 2（Rear） Wi-Fi AP & Station, 2.4 G/5 G Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface
- USB 3.0 × 3（Front × 2; Rear × 1） USB 2.0 × 2（Rear × 2） Type-C × 1 (Front × 1：Support USB 3.0, 65 W charging functions; support DP IN 1.4) Type-C × 1 (Rear × 1：Support USB 2.0, 65 W charging functions; support DP IN 1.4)
Power3
- Power Supply
- 100 to 240 VAC, 50/60 Hz
- Standby Consumption
- ≤ 0.5 W
- Average Consumption
- < 210 W
Working Environment2
- Working Temperature
- 0 °C to 40 °C (32 °F to 104 °F)
- Working Humidity
- 10%~90% RH
General7
- VESA
- 800 mm × 600 mm (4 × M8-25 mm)
- Accessory
- Wall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3.5 M HDMI cable (2.0), power cable, remote control, screen cleaning cloth.
- Package Dimensions (W × H × D)
- 2157.0 × 1345.0 × 223.0 mm
- Net Weight
- 52.7 ± 0.5 kg
- Gross Weight
- 72.8 ± 0.5 kg
- Product Dimensions （With Wall Attachment）
- 1957.0 × 1156.5 × 123.0 mm
- Product Dimensions （Without Wall Attachment）
- 1957.0 × 1156.5 × 77.7 mm
