DS-D5C65RB/A

What the DS-D5C65RB/A is built to do

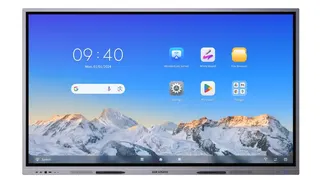

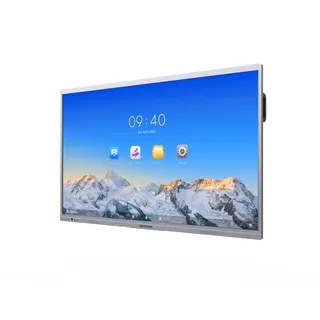

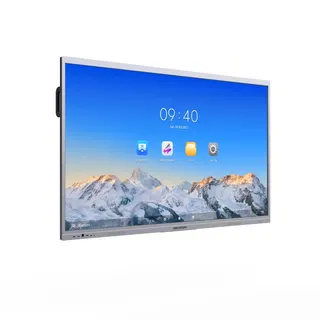

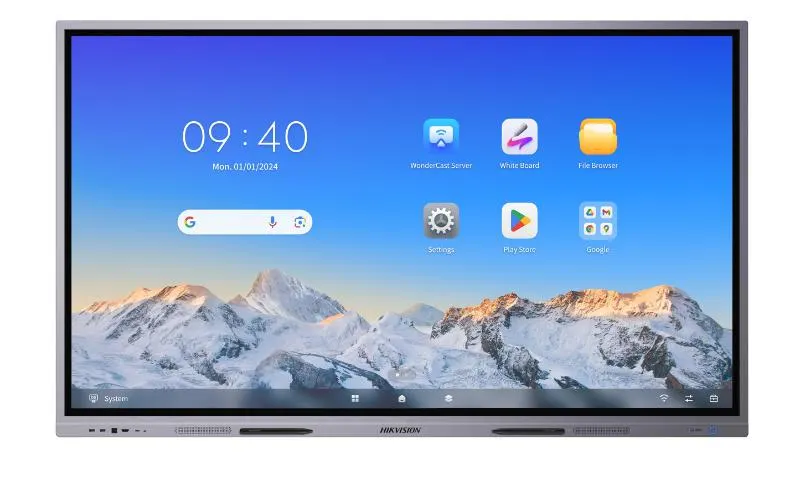

The Hikvision DS-D5C65RB/A is a 65-inch interactive flat panel from the Ultra Series that combines a large screen with touch input and an onboard computer running Android 14.0. The panel is a 16:9 VA type with a 3840 x 2160 resolution at 60 Hz, so text in spreadsheets, slides and engineering drawings stays sharp at close range. Presenters can write, annotate and move content directly on the glass, and the 10-bit colour depth with a 72% NTSC gamut suits presentations that rely on charts and images.

Display and touch performance that matter in daily use

Typical brightness is 400 cd/m² and static contrast is 5000:1. The anti-glare glass has 25% haze and 88% (±3) transmittance, which reduces reflections from windows and ceiling lights without washing out colour. The infrared touch layer supports up to 50 simultaneous points with a response time of 2 ms or less. The minimum touch object is 1.5 mm and touch precision is ±0.5 mm across at least 90% of the touching area. This matters when several people write at once during a workshop or a brainstorm. The rated lifespan is 50,000 hours.

Computing, connectivity and network fit

Android 14.0 runs on 8 GB of memory with 128 GB of built-in storage, so staff and teachers can open apps and files without a separate PC. Where video conferencing software needs a Windows environment, the panel supports a Windows system through an optional OPS module, and the manufacturer recommends running video conferencing software under Windows. The inputs include three HDMI 2.0 ports, one DP 1.2 port, a VGA port and an audio input. Two Type-C ports support DP 1.2 and USB 2.0 with charging, rated at 65 W on the front and 15 W on the side. Four USB 3.0 ports and one USB 2.0 port handle peripherals, while three TOUCH-USB 3.0 ports and one RS232 port serve touch and control links. For networking, the unit provides two 1000 Mbps LAN ports, WiFi 6 (802.11 a/b/g/n/ac/ax) with 2 x 2 MIMO, and a built-in network switch chip that can reduce the number of switches a room needs.

Where it fits in Qatar

• Mid-size boardroom in West Bay or Msheireb: the 65-inch panel suits a meeting room where a small team connects with colleagues abroad and shares 4K documents during the call.
• Classroom in a private school in Al Wakrah: a teacher can write, annotate and play learning content on one screen, with several devices connected through the multiple input ports.
• Training room in Education City or a hotel meeting room in Lusail: the 50-point touch suits workshops where several participants write on the display at the same time.

What to plan before ordering

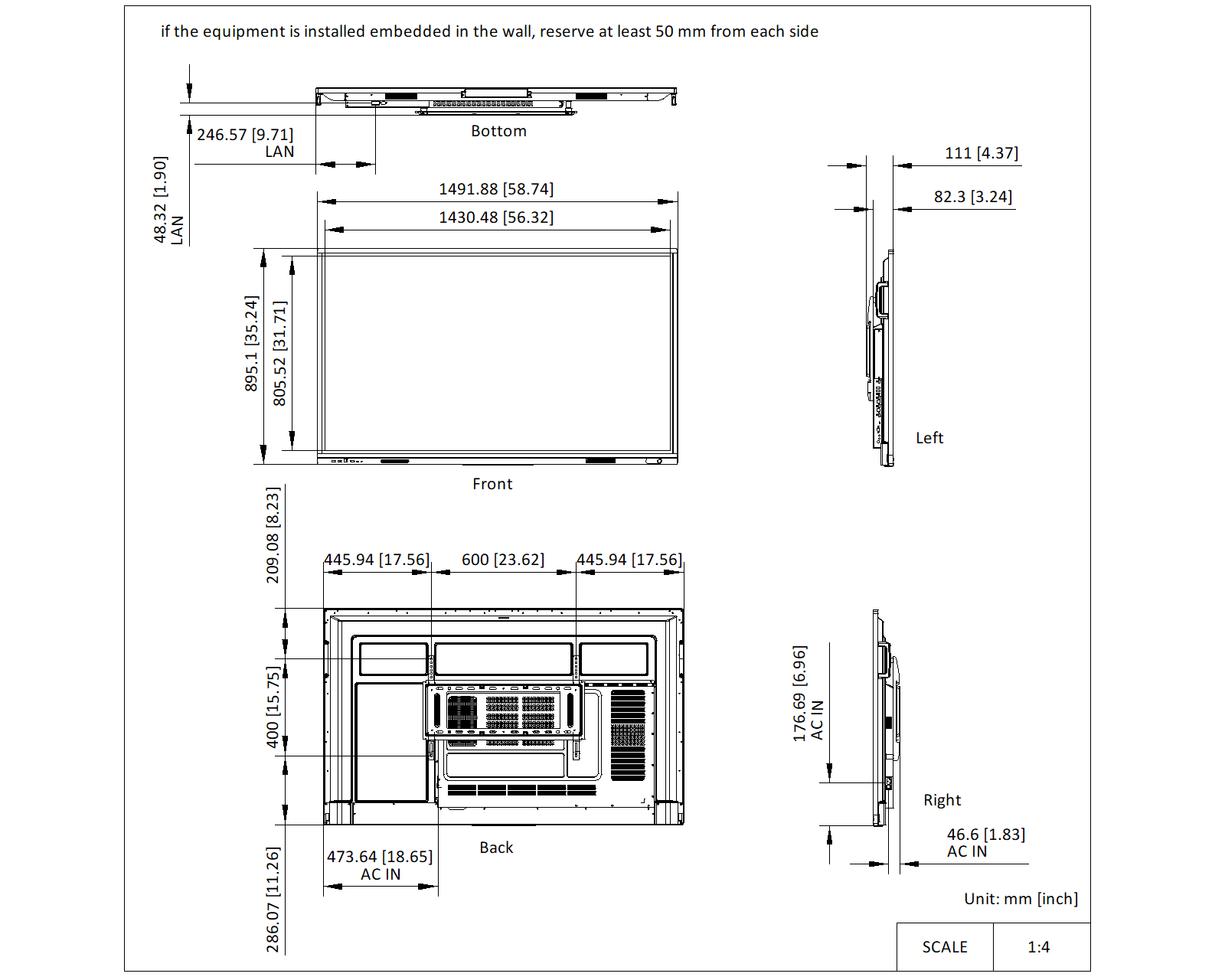

The unit weighs 36.6 kg net and 46.6 kg gross, and measures 1491.88 mm x 895.1 mm x 82.3 mm. It uses a 600 mm x 400 mm VESA pattern with four M8 holes at 25 mm depth, so plan for two people to lift it and check the wall structure before fixing. SmartRooms Qatar offers free site surveys to confirm the wall and cable route. The rated working temperature is 0 °C to 40 °C with 10% to 90% relative humidity, so install it in an air-conditioned indoor room rather than a sunlit foyer, because outdoor summer temperatures in Qatar can exceed 45 °C. The power input is 100 to 240 VAC at 50/60 Hz, with average consumption below 107 W and standby consumption of 0.5 W or less. The box includes a wall mount bracket, hook, user manual, touch pen, a 3 m touch USB cable, a 3.5 m HDMI cable, a power cable and a Bluetooth remote. The source data does not state the plug type, so confirm the socket arrangement with the SmartRooms Qatar team before installation.

Request a quote

Send the room dimensions, intended use and mounting preferences, and the SmartRooms Qatar team will return a quotation, usually within one working day. Ask for a site survey before ordering if the wall or the room layout is still undecided.
