DS-D5C65RB/B
Hikvision DS-D5C65RB/B 65-inch 4K Interactive Display
- Screen size
- 65 inch
- Resolution
- 3840 × 2160 @60 Hz
- Touch
- Up to 50-point multi-touch
- Memory
- 8 GB
The Hikvision DS-D5C65RB/B is a 65-inch 4K interactive display with a 3840 × 2160 panel, 400 cd/m² brightness, anti-glare glass and up to 50-point infrared touch. It runs Android 14, with Windows available through an OPS slot, and has a built-in camera, microphone array and speakers for video calls. It suits classrooms, huddle rooms and boardrooms across Qatar that need one screen for teaching, presenting and meetings.
What the DS-D5C65RB/B does in a room
The DS-D5C65RB/B is a 65-inch interactive display from Hikvision's WonderHub Ultra Series. It combines a 4K touch screen, a camera, a microphone array and loudspeakers in one unit, so a room can run presentations, annotation and video calls without a separate screen, webcam and speakerphone. The 3840 × 2160 resolution at 60 Hz keeps spreadsheets, drawings and small text legible at normal seating distances.
The 16:9 panel uses VA technology with a rated viewing angle of 178° both horizontally and vertically, so people seated at the sides of the room see the same picture.
Display, touch and build figures that matter
Brightness is rated at 400 cd/m² typical, with 5,000:1 static and 30,000:1 dynamic contrast. The anti-glare glass has a 25% haze rating, which softens reflections from ceiling lights and windows. Touch is infrared, with up to 50 simultaneous points, a response of 2 ms or less and a minimum touch object of 1.5 mm.
- Display area: 1428.48 mm × 803.52 mm
- Colour: 10-bit colour depth and 72% NTSC typical gamut
- Panel rating: 50,000-hour lifespan and 7 × 16 hours working duration
- Certification: EDLA certified, with blue light protection support
Where it fits across Qatar
A private school in Al Wakrah fitting out a classroom refresh will find the 65-inch size suits a classroom or small training room where students sit within a few metres of the screen. Android 14.0 runs teaching apps directly, and three HDMI 2.0 inputs let a teacher keep a laptop, a second source and a visualiser connected without swapping cables.
A ministry or authority meeting room in West Bay that holds calls with teams abroad benefits from the 8 MP camera, which has a 93.4° diagonal field of view and supports up to 4K camera resolution. The eight-microphone array includes echo reduction and smart noise cancellation, and is rated for voice pickup up to 12 m. Confirm the room layout with the SmartRooms Qatar team, because pickup and framing depend on seating.
A clinic or consultancy office in Msheireb with a west-facing glass wall needs more planning. The operating range is 0 °C to 40 °C, and Doha summer exterior temperatures can pass 45 °C, so the room has to stay air-conditioned and the panel should sit away from direct afternoon sun.
What to plan before installation

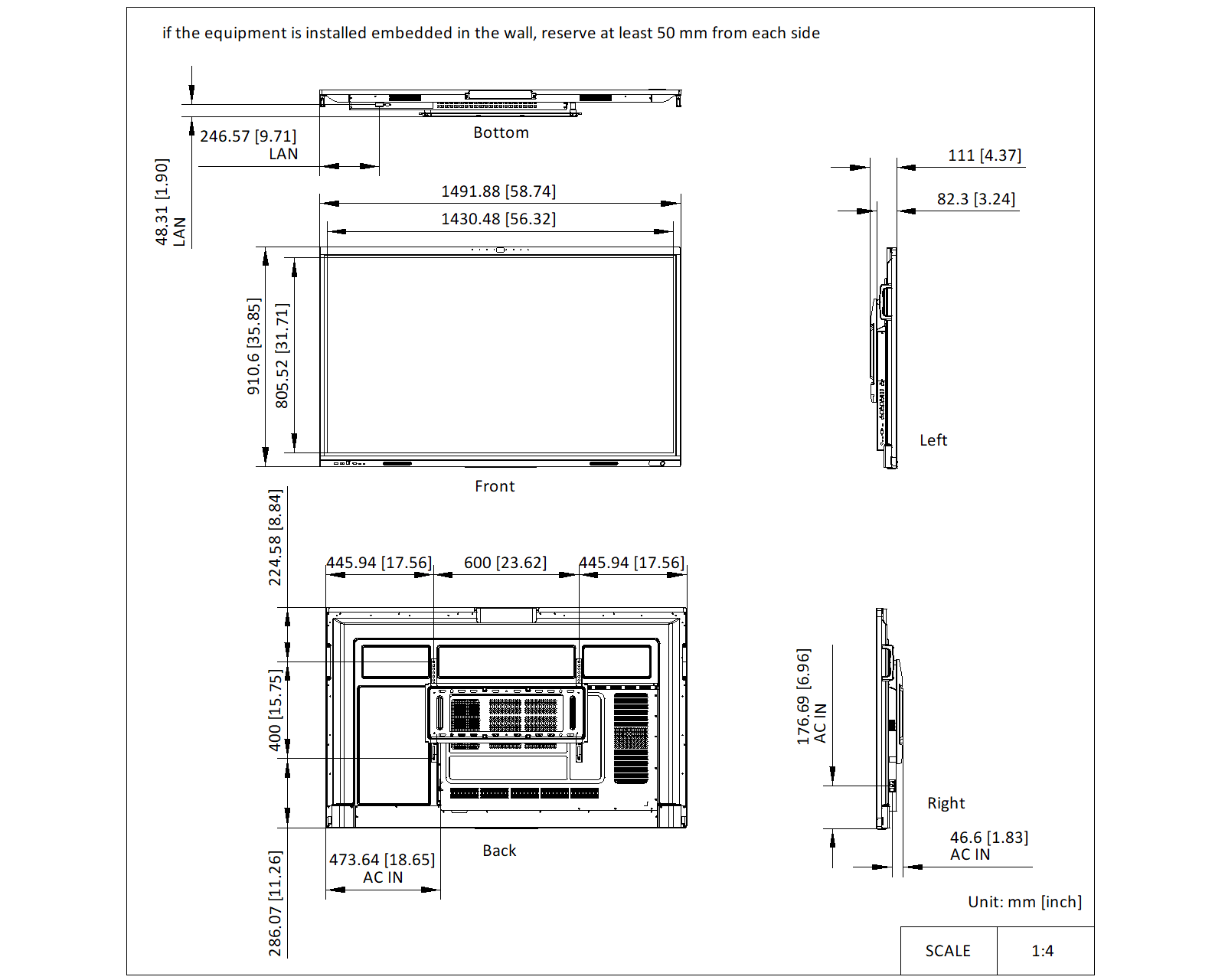

The panel measures 1491.88 × 910.6 × 82.3 mm and weighs 37.6 kg net or 47.6 kg in its 1652 × 1052 × 213 mm package. It uses a 600 × 400 mm VESA pattern with four M8 holes, and a wall-mount bracket is in the box. A free site survey is worth booking before wall mounting so the wall structure, cable routes and sightlines are checked first.
- Power input 100 to 240 VAC, 50/60 Hz, with average consumption under 107 W
- Two 1000 Mbps LAN ports and Wi-Fi 6 with WPA2 and 802.1X EAP support
- Windows needs the optional OPS module, so order it if you run PC software
- Cables supplied: 3.5 m HDMI 2.0 and 3 m touch USB
Send SmartRooms Qatar your room dimensions, mounting wall, network details and the number of units, and the team will return a quotation, usually within one working day. Request a quote for the DS-D5C65RB/B today.
Highlights
- 65-inch 4K UHD panel at 3840 × 2160 and 60 Hz
- Infrared touch with up to 50 simultaneous points
- Android 14.0 with optional Windows via OPS
- Camera rated 48 MP for photos and 8 MP for video
- Eight-microphone array with 12 m voice pickup
- Operating range 0 °C to 40 °C; input 100 to 240 VAC
- Wall mount VESA 600 × 400 mm with bracket included
Classroom fit
At 65″ the farthest student should sit within about 4.9 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Product Model1
- Product Model
- DS-D5C65RB/B
Display22
- Screen Size
- 65 inch
- Backlight
- DLED
- Pixel Pitch
- 0.124（H） × 0.372（V）mm
- Resolution
- 3840 × 2160 @60 Hz
- Brightness
- 400 cd/m² （Typ.）
- Color Depth
- 10 bit
- Display Color
- 1.07 G
- Response Time
- 5 ms
- Panel Type
- VA
- Contrast Ratio
- 5000:1 (Static) 30,000:1 (Dynamic)
- Color Gamut
- 72% NTSC (CIE1931) (Typ.)
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H)/178° (V)
- Aspect Ratio
- 16:9
- Surface Hardness
- 9H (Pencil) 7 (Mohs)
- Surface Glass
- Anti-Glare Glass
- Surface Haze
- 25% Haze
- Glass Bonding Method
- Zero Lamination
- Display Area
- 1428.48mm x 803.52mm
- Working Duration
- 7 × 16 H
- Transmittance
- 88% ± 3
- Lifespan
- 50,000 hours
Touch6
- Type
- Infrared Touch Screen
- Touch Point
- Up to 50-point multi-touch
- Touch Response Time
- ≤ 2 ms
- Minimum Touch Object
- ≥ 1.5 mm (≥ 90% touching area)
- Touch Precision
- ± 0.5 mm (≥ 90% touching area)
- Touch Resolution
- 32768 × 32768
Built-in System6
- Operation System
- Android 14.0
- Memory
- 8 GB
- Built-in Storage
- 128 GB
- Processor
- Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
- GPU
- Mali-G610 MC4
- HDCP Version
- 2.3
Camera5
- Pixel
- Pixel 48MP for Photos & 8 MP for Video
- Camera Function
- Support intelligent switching between Android system, OPS, and PC.
- Field Angle
- 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
- Distortion
- ≤2.5%
- Camera Resolution Ratio
- Up to 4K
Microphone5
- Specification
- Omni-directional 8-array layout
- Mic Function
- Echo reduction and smart noise-cancellation
- Voice Distance
- 12 m
- Sampling Rate
- 32 K
- Mic Depth
- 16 bit
Internal Function6
- Loudspeaker
- Built-in 2 × 20 W+25W loudspeaker;
- Bluetooth
- Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
- NFC
- Support screen mirroring by Android phones
- Light Sensor
- Yes
- Image Processing Technology
- Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction .
- Audio Processing Technology
- Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
Interface5
- Video & Audio Input
- HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
- Video & audio output
- HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
- Control interface
- TOUCH-USB 3.0 × 3, RS232 × 1
- Network Interface
- LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface
- USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
Power3
- Power Supply
- 100 to 240 VAC, 50/60 Hz
- Standby Consumption
- ≤ 0.5 W
- Average Consumption
- < 107W
Working Environment2
- Working Temperature
- 0 °C to 40 °C (32 °F to 104°F)
- Working Humidity
- 10%~90% RH
General6
- VESA
- 600 mm × 400 mm(4 × M8-25 mm)
- Product dimensions
- 1491.88 mm × 910.6 mm × 82.3 mm
- Accessory
- Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
- Package Dimensions (W × H × D)
- 1652 mm ×1052 mm ×213 mm
- Net Weight
- 37.6 kg
- Gross Weight
- 47.6 kg
