DS-D5C75RB/B

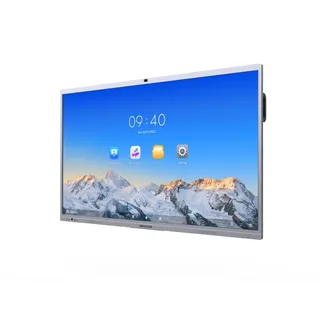

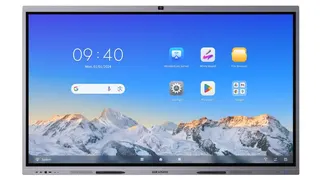

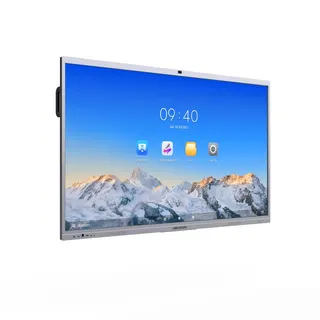

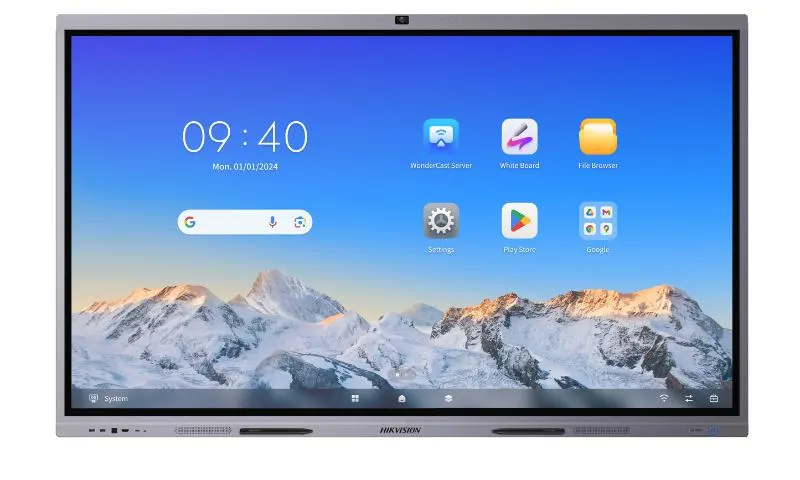

Hikvision DS-D5C75RB/B 75-inch 4K Interactive Display
- Screen size
- 75 inch
- Resolution
- 3840 × 2160 @60 Hz
- Touch
- Up to 50-point multi-touch
- Memory
- 8 GB
The Hikvision DS-D5C75RB/B is a 75-inch 4K interactive display with a 3840 × 2160 UHD panel, infrared touch supporting up to 50 simultaneous points, and Android 14.0 built in. It includes a 48 MP camera, an eight-array microphone and 2 × 20 W + 25 W speakers, so one unit can serve a meeting room, classroom or training room. Windows is available through an optional OPS module. Organisations across Doha and beyond can request a quote.
What this interactive display does
The Hikvision DS-D5C75RB/B is a 75-inch interactive display from the WonderHub Ultra Series. It combines a 3840 × 2160 panel, touch input, a camera, a microphone and speakers in one enclosure, so a room does not need separate conferencing hardware to hold a hybrid meeting. This page covers the DS-D5C75RB/B; the DS-D5C75RB/B(EDLA) variant is listed as a separate model. The panel is a VA type with a 16:9 aspect ratio, a display area of 1650.24 mm × 928.26 mm and a viewing angle of 178° both horizontally and vertically.
Specifications that matter in daily use
- Image: 400 cd/m² typical brightness, 5000:1 static and 30,000:1 dynamic contrast, 10-bit colour depth and a 72% NTSC colour gamut.
- Touch: infrared touch with up to 50 simultaneous points, response of 2 ms or less and touch precision of ±0.5 mm across 90% of the touching area.
- Surface: anti-glare glass with 25% haze, which reduces reflections from windows and ceiling lights in bright rooms.
- Computing: Android 14.0 with 8 GB memory and 128 GB storage. Windows runs through an optional OPS module, and the camera can switch between the Android system, OPS and a PC.
- Connectivity: three HDMI 2.0 inputs, one DisplayPort 1.2 input, VGA, HDMI 2.0 output, four USB 3.0 ports, two Type-C ports, two 1000 Mbps LAN ports and WiFi 6.
Where it fits in Qatar
A 75-inch panel suits a mid-sized meeting room in an office in West Bay or Msheireb. There, a Windows conferencing application running on an OPS module can connect the team with colleagues abroad, while the Android side handles presentations and annotation. In a private school classroom in Al Wakrah, a teacher can write and mark up lessons on the screen while the eight-array microphone picks up pupils' questions from up to 12 m away. A training centre in Education City can run mixed sessions with on-site and remote trainees without a separate camera or speakerphone.
What to plan before ordering

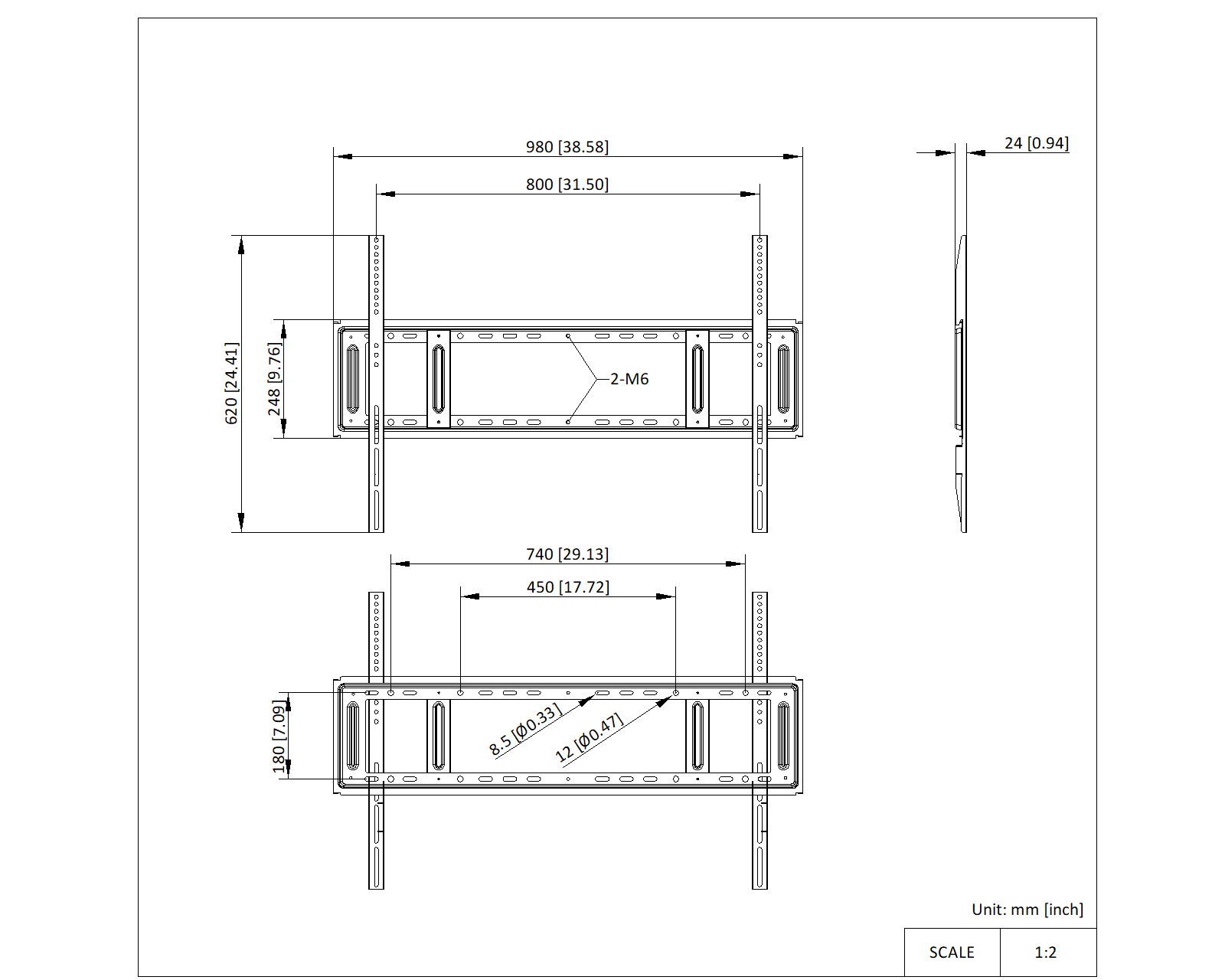

The net weight is 51.23 kg and the gross weight is 67.62 kg, so the wall structure must be checked before mounting. The VESA pattern is 800 mm × 400 mm with four M8 fixings, and a wall mount bracket is included. SmartRooms Qatar offers a free site survey to check the wall, cable routes and the position of the power socket before the unit arrives. The operating range is 0 °C to 40 °C with 10% to 90% relative humidity. Summer temperatures in Qatar can exceed 45 °C, so plan for an air-conditioned room and confirm the environment with the SmartRooms Qatar team before quoting. Accepting the Windows setup also means deciding whether to include the OPS module in the order.
Request a quote for one unit or a full fit-out
SmartRooms Qatar supplies the DS-D5C75RB/B, delivers to all eight municipalities of Qatar and provides professional installation. We accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. Schools fitting out several classrooms, or ministries equipping meeting rooms, can send the room count, wall types and Windows requirements so one quotation covers the whole batch. Request a quote today and tell us where the display will be installed.
Highlights
- 3840 × 2160 UHD resolution on a 75-inch VA panel
- Infrared touch with up to 50 simultaneous points
- Android 14.0 with 8 GB memory and 128 GB storage
- Windows available through an optional OPS module
- 48 MP camera and eight-array microphone with 12 m voice distance
- EDLA certified with a 0 °C to 40 °C operating range
Classroom fit
At 75″ the farthest student should sit within about 5.6 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Product Model1
- Product Model
- DS-D5C75RB/B
Display22
- Screen Size
- 75 inch
- Backlight
- DLED
- Pixel Pitch
- 0.14325(H) × 0.42975(V) mm
- Resolution
- 3840 × 2160 @60 Hz
- Brightness
- 400 cd/m² （Typ.）
- Color Depth
- 10 bit
- Display Color
- 1.07 G
- Response Time
- 5 ms
- Panel Type
- VA
- Contrast Ratio
- 5000:1 (Static) 30,000:1 (Dynamic)
- Color Gamut
- 72% NTSC (CIE1931) (Typ.)
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H)/178° (V)
- Aspect Ratio
- 16:9
- Surface Hardness
- 9H (Pencil) 7 (Mohs)
- Surface Glass
- Anti-Glare Glass
- Surface Haze
- 25% Haze
- Glass Bonding Method
- Zero Lamination
- Display Area
- 1650.24mm x 928.26mm
- Working Duration
- 7 × 16 H
- Transmittance
- 88% ± 3
- Lifespan
- 50,000 hours
Touch6
- Type
- Infrared Touch Screen
- Touch Point
- Up to 50-point multi-touch
- Touch Response Time
- ≤ 2 ms
- Minimum Touch Object
- ≥ 1.5 mm (≥ 90% touching area)
- Touch Precision
- ± 0.5 mm (≥ 90% touching area)
- Touch Resolution
- 32768 × 32768
Built-in System6
- Operation System
- Android 14.0
- Memory
- 8 GB
- Built-in Storage
- 128 GB
- Processor
- Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
- GPU
- Mali-G610 MC4
- HDCP Version
- 2.3
Camera5
- Pixel
- Pixel 48MP for Photos & 8 MP for Video
- Camera Function
- Support intelligent switching between Android system, OPS, and PC.
- Field Angle
- 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
- Distortion
- ≤2.5%
- Camera Resolution Ratio
- Up to 4K
Microphone5
- Specification
- Omni-directional 8-array layout
- Mic Function
- Echo reduction and smart noise-cancellation
- Voice Distance
- 12 m
- Sampling Rate
- 32 K
- Mic Depth
- 16 bit
Internal Function6
- Loudspeaker
- Built-in 2 × 20 W+25W loudspeaker;
- Bluetooth
- Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
- NFC
- Support screen mirroring by Android phones
- Light Sensor
- Yes
- Image Processing Technology
- Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction .
- Audio Processing Technology
- Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
Interface5
- Video & Audio Input
- HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
- Video & audio output
- HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
- Control interface
- TOUCH-USB 3.0 × 3, RS232 × 1
- Network Interface
- LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface
- USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
Power3
- Power Supply
- 100 to 240 VAC, 50/60 Hz
- Standby Consumption
- ≤ 0.5 W
- Average Consumption
- < 150W
Working Environment2
- Working Temperature
- 0 °C to 40 °C (32 °F to 104°F)
- Working Humidity
- 10%~90% RH
General6

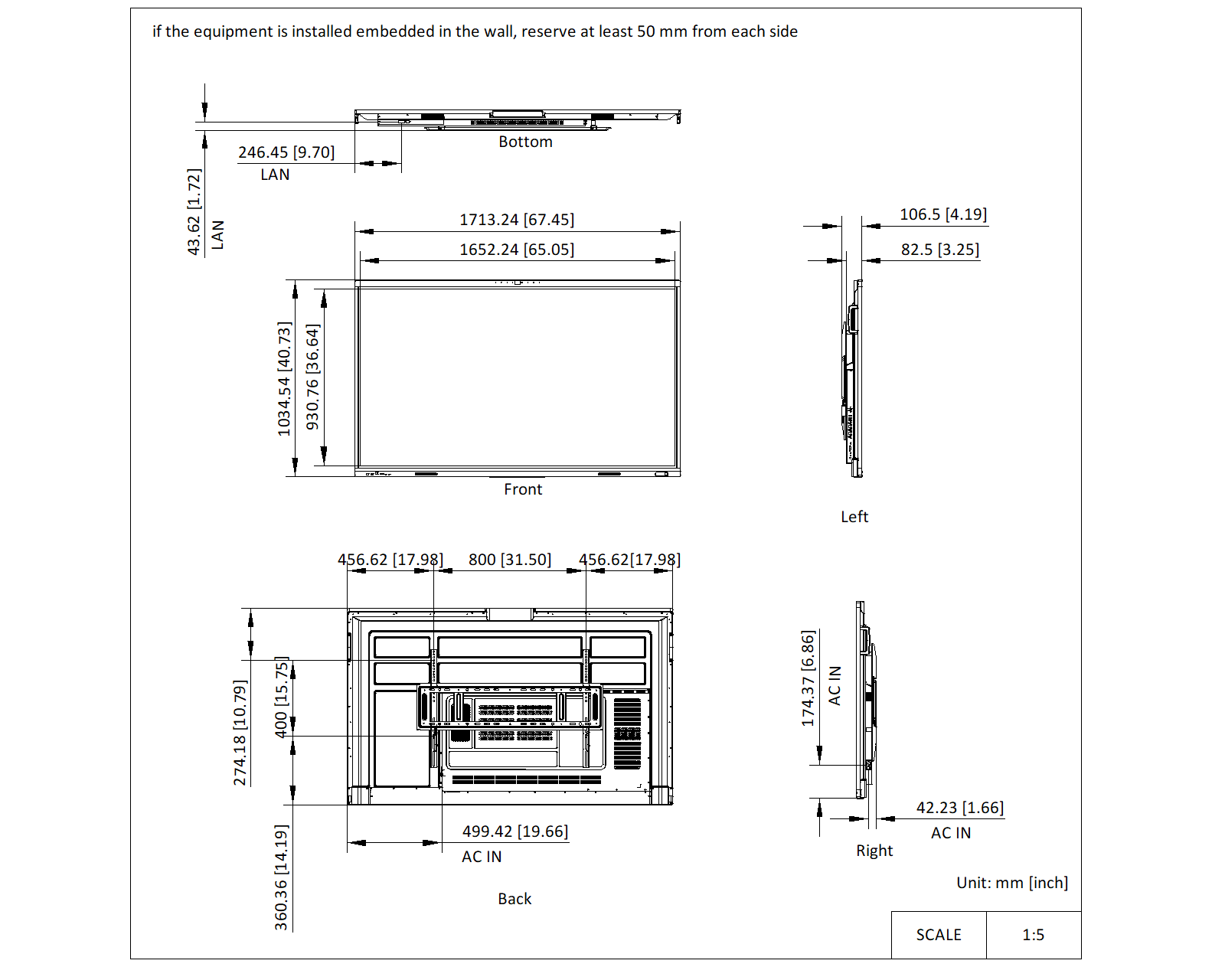

- VESA
- 800 mm × 400 mm （4 × M8-25 mm）
- Product dimensions
- 1713.23 mm × 1034.54 mm × 82.5 mm
- Accessory
- Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
- Package Dimensions (W × H × D)
- 1897 mm × 1150 mm × 213 mm
- Net Weight
- 51.23 kg
- Gross Weight
- 67.62 kg
