DS-D5C86RB/B

An 86-inch 4K panel for shared rooms

The Hikvision DS-D5C86RB/B is part of the WonderHub Ultra Series of interactive flat panels. It combines an 86-inch VA panel at 3840 × 2160 resolution and 60 Hz with a 50-point infrared touch layer and Android 14 built in, so presenters can run slides, annotate and join calls from the screen itself. For a boardroom or lecture room, that keeps everyday sessions on one device.

Image quality and touch response that matter on site

The panel is rated at 400 cd/m² typical brightness, with a 5000:1 static and 30,000:1 dynamic contrast ratio. Its anti-glare glass carries a 25% haze rating and 88% ± 3 transmittance, which softens reflections from windows and ceiling lights, though direct sunlight should still be kept off the screen. Viewing angles of 178° horizontally and vertically keep text readable for people at the ends of a long table.

Touch uses infrared technology with up to 50 simultaneous points, a response time of 2 ms or less and a minimum touch object of 1.5 mm. Precision is ±0.5 mm across at least 90% of the touching area, which suits two teachers or a working group marking up the same lesson or plan.

Connectivity, computing and audio

Inputs include three HDMI 2.0 ports, one DP 1.2, one VGA and an audio input, so a laptop, a PC and a conferencing source can stay connected at the same time. Outputs include HDMI 2.0, SPDIF and audio out. Two Type-C ports carry USB 2.0, DP 1.2 and charging, with 65 W on the front port and 15 W on the side. Four USB 3.0 ports, three USB 3.0 touch connections and an RS232 port support peripherals and control integration. Two 1000 Mbps LAN ports and WiFi 6 with 2×2 MIMO cover wired and wireless networking.

The built-in camera offers a 48 MP photo sensor and an 8 MP video sensor, with video up to 4K. The eight-microphone array picks up voices up to 12 m away, with echo reduction and noise cancellation, and two built-in speakers rated at 20 W and 25 W provide sound for the room. Bluetooth 5.1 BLE and NFC screen mirroring from Android phones round out the wireless options.

Where this 86-inch model fits in Qatar

An 86-inch panel suits a boardroom, a lecture hall or a large training room. In a ministry office in West Bay, a meeting may move between Arabic and English documents on the same screen, while the camera and microphones carry the discussion to colleagues abroad.

At a training centre in Education City, a facilitator can annotate slides in front of a group while remote specialists join from another city. In a large science classroom at a private school in Al Wakrah, the panel gives students a clear view from the back row, and the touch layer lets teachers mark up diagrams without switching devices.

What to plan before installation

• Net weight is 65.13 kg and gross weight 82.6 kg, so confirm the wall or stand can carry it. A free site survey is available before mounting.

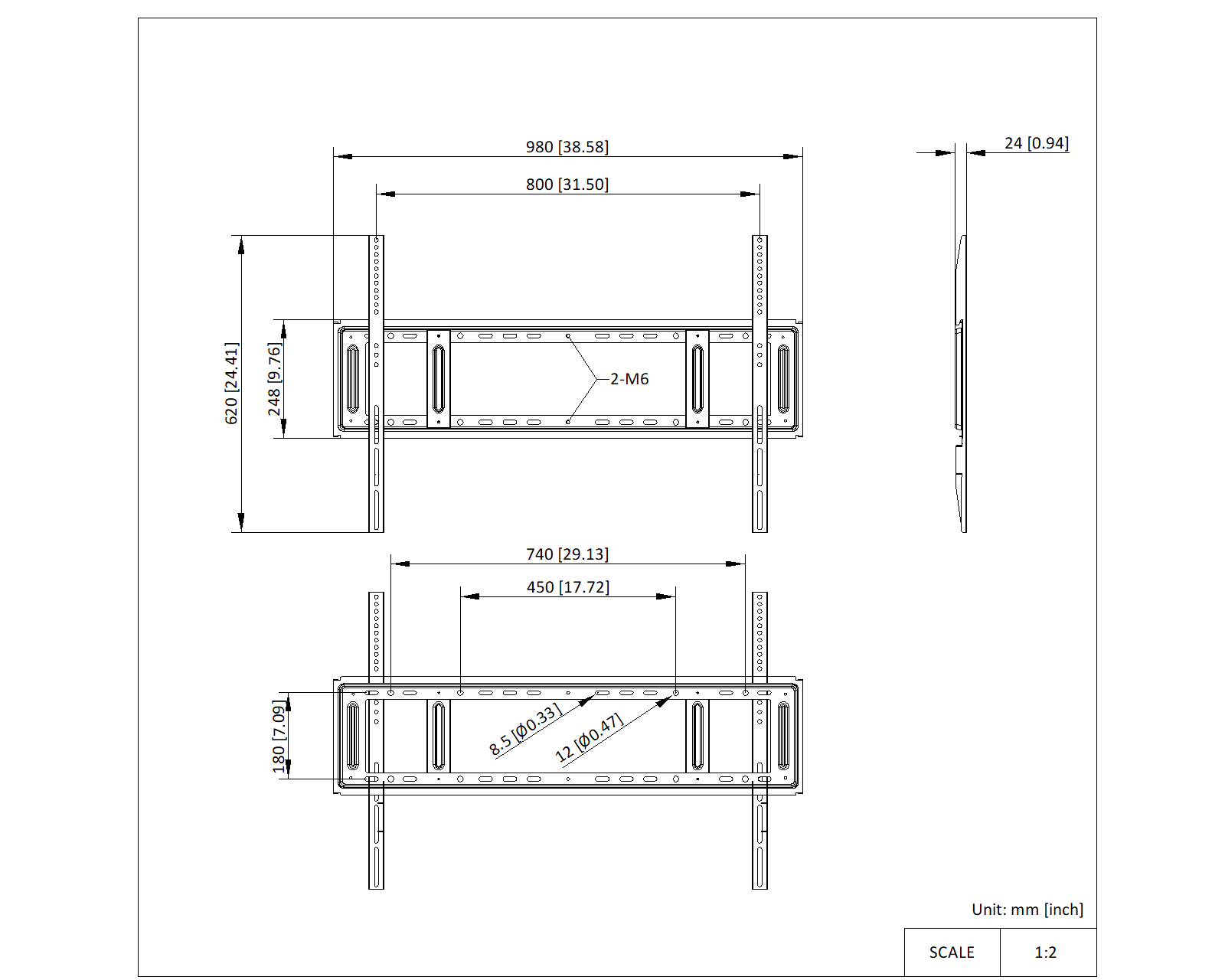

• VESA pattern of 800 × 600 mm with four M8 holes, 25 mm deep.
• Operating range is 0 °C to 40 °C and 10% to 90% RH. In Qatar's summer, when temperatures can pass 45 °C, install it in an air-conditioned room.
• Average consumption under 205 W, standby 0.5 W or less, input 100 to 240 VAC at 50/60 Hz.

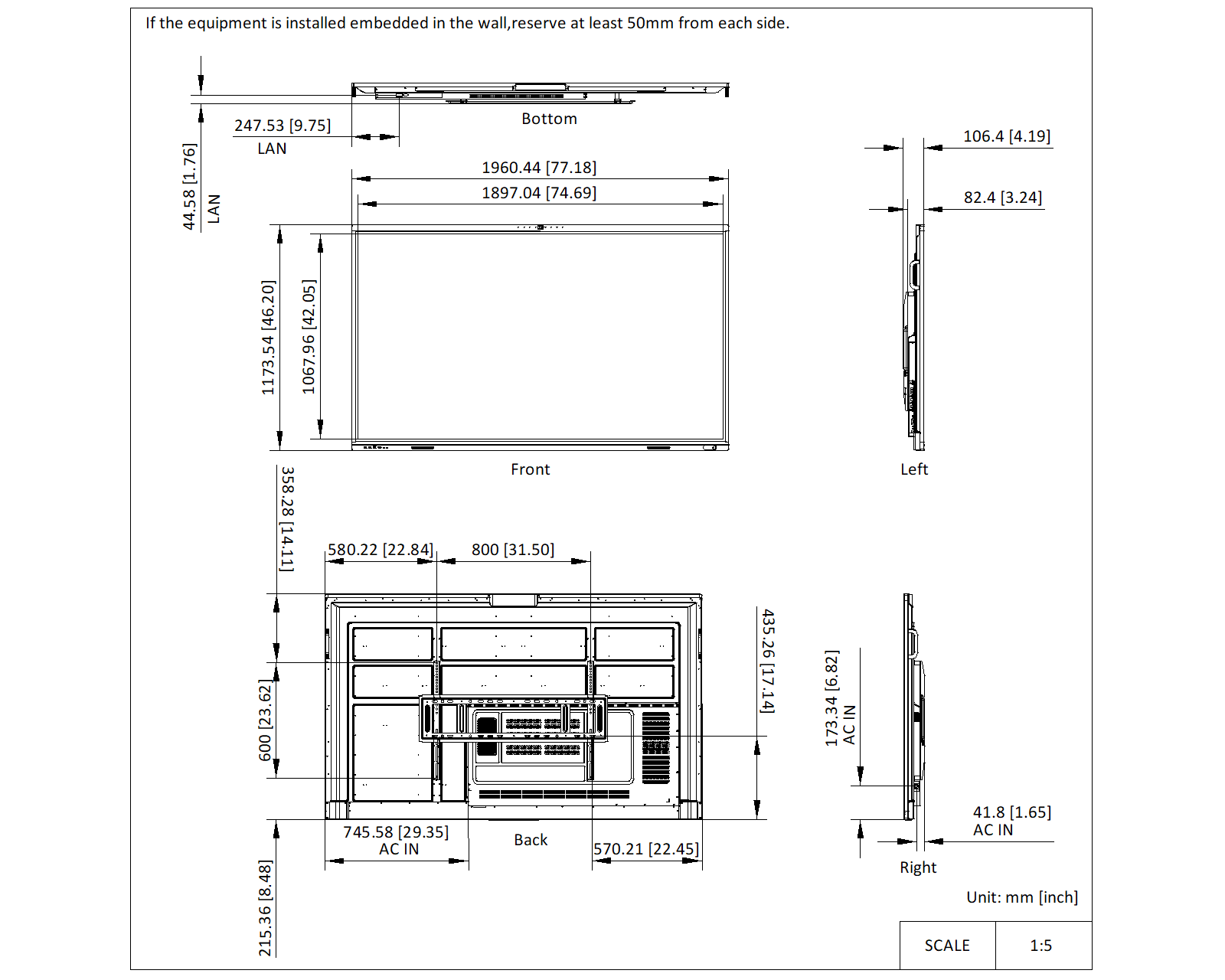

• Dimensions 1960.44 × 1173.74 × 82.4 mm; check doorways and lift access before delivery.

The box includes a wall mount bracket, touch pen, Bluetooth remote, 3.5 m HDMI 2.0 cable, 3 m touch USB cable and power cable. SmartRooms Qatar can supply, deliver and install this panel across Qatar, with quotations usually within one working day. Request a quote and tell us your room size, wall type and whether you need an LPO or tender paperwork.
