TE5513A-B2AG

Sharp 4K touch and zero-gap glass for shared writing

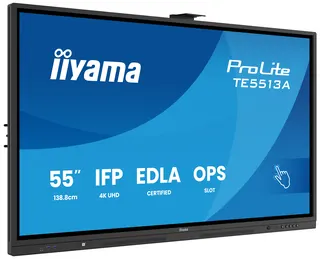

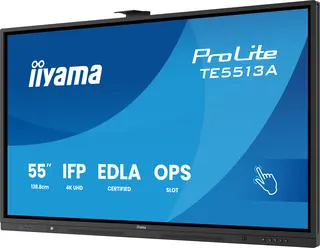

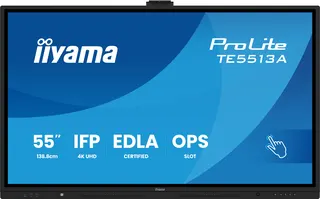

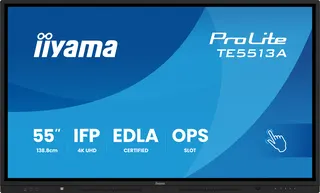

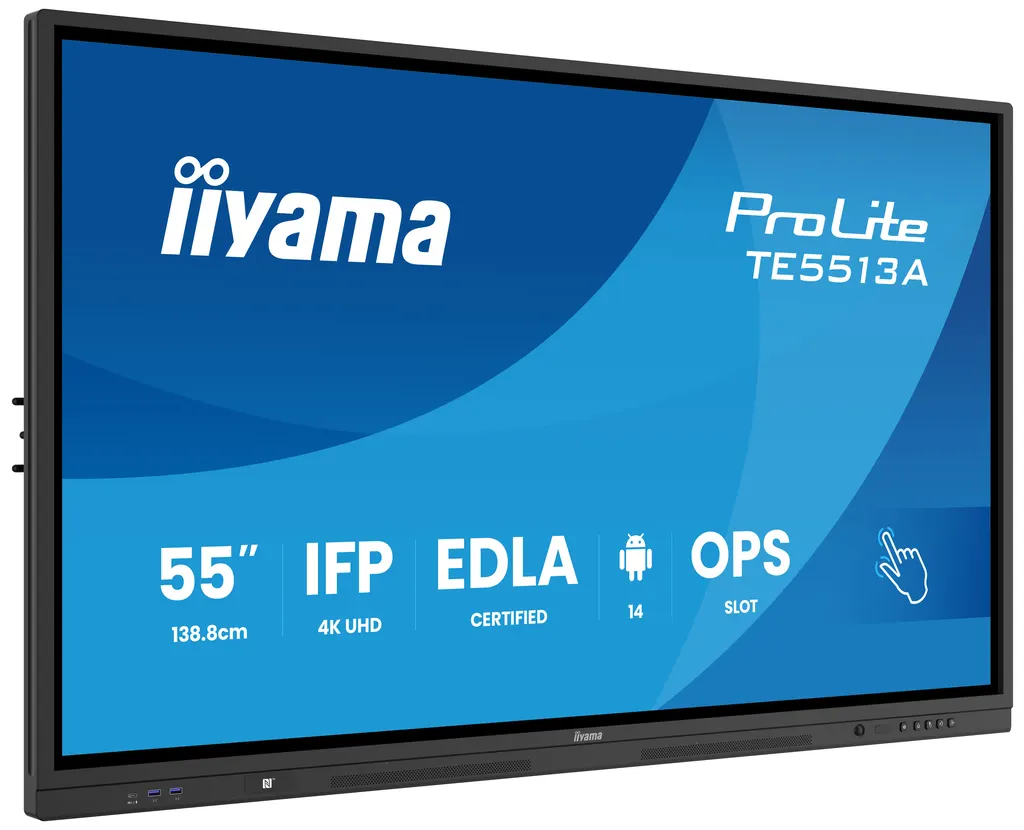

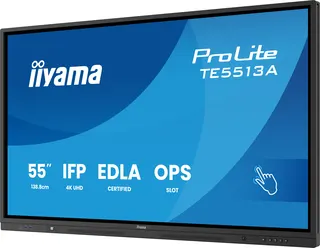

The TE5513A-B2AG is a 55-inch interactive panel with a 54.6-inch diagonal, a native 3840 x 2160 4K UHD IPS display and a 16:9 aspect ratio. Zero-Gap Air Bonding is designed to reduce parallax, the offset that makes ink appear away from the point where a pen or finger touches. The 3.2 mm anti-glare glass is rated 7H for hardness and carries an anti-bacterial coating, which suits rooms where many people touch the same surface.

Touch runs on PureTouch-IR+ with 40 touch points, palm rejection and a 200Hz scan rate. Writing is 10-point on supported operating systems and 32-point under Android, with ±1 mm accuracy and a 5 ms touch response. The panel accepts a stylus, a finger or a gloved hand, and four dual-function touch pens are included.

Android 14 software and wireless sharing

iiWare 21E runs on Android 14 on an RK3576 octa-core processor with 8 GB RAM and 128 GB storage. Google EDLA certification gives staff direct access to Google apps, accounts, files and collaboration tools from the panel itself. Wireless sharing works through iiShare with Windows, iOS and Android devices, and the integrated EShare app adds screen sharing. WiFi-6E, Bluetooth 5.0 and NFC are built in, and the software includes a WhiteBoard app, a browser, a file manager and cloud drive access. iiControl (DMS) lets IT teams manage panels from one place, and the manufacturer states that it is committed to GDPR compliance.

Ports, OPS slot and installation planning

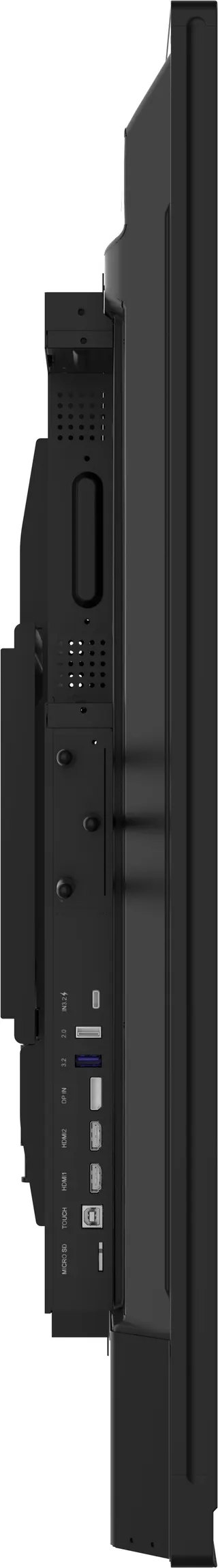

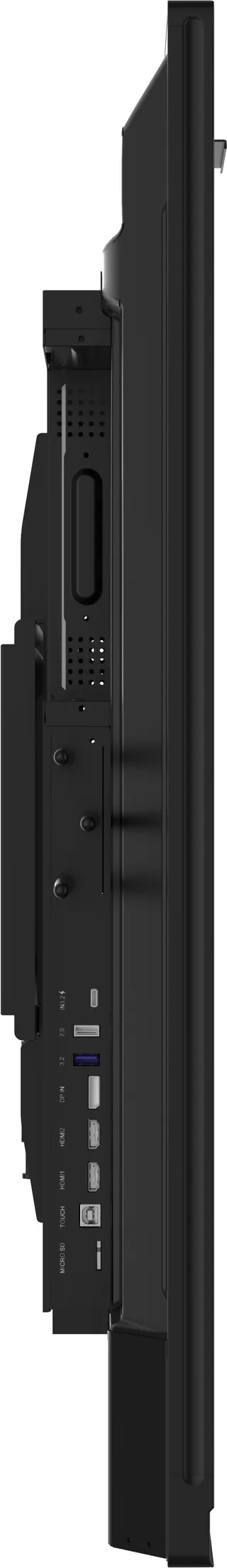

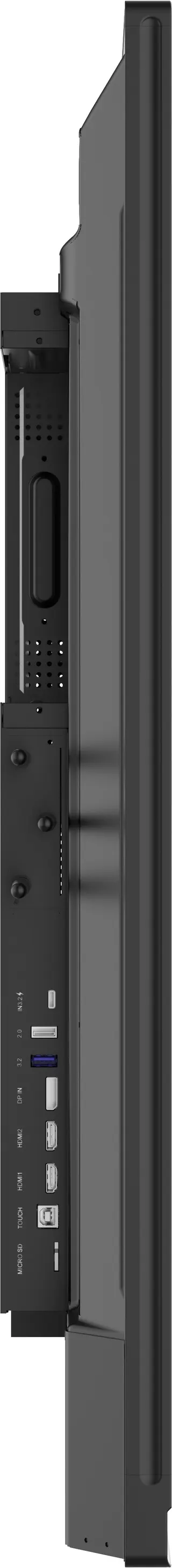

• Inputs: two HDMI 2.0, one DisplayPort 1.2, and two USB-C (front 100W PD, side 65W PD)
• Outputs and control: HDMI and USB-C outputs, two RJ45 LAN ports and RS-232c
• Expansion: an Intel OPS slot; with an OPS PC installed, the front USB-C is rated 65W and the side 15W

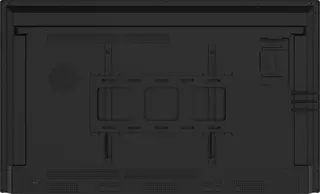

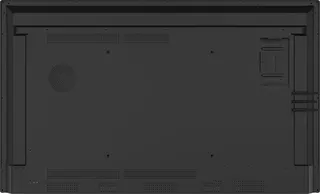

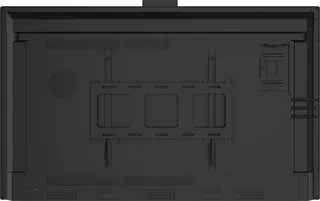

Mounting uses a 400 x 400 mm VESA pattern, and a wall mounting bracket and a webcam mounting bracket are included. The panel measures 1267 x 765.5 x 117.5 mm and weighs 28.7 kg without its box, so a site survey to check wall structure and fixing points before installation is worth arranging. Mobile carts and a wall lift are listed as compatible accessories if the panel needs to move between rooms.

Where it fits in Qatar and what to plan for

In Doha, a private school in Al Wakrah fitting out new classrooms can use the panel for annotated lessons while students share work from tablets through the wireless tools. A government office in Msheireb holding bilingual meetings can open Google documents on the panel and share Arabic and English presentations from staff laptops. A training centre in Education City running all-day workshops should note that the manufacturer recommends no more than 18 hours of use per day, even though the panel is specified for 24/7 operation.

Qatar summers can push outdoor temperatures above 45°C, so the panel belongs in an air-conditioned room away from direct sunlight and glazed walls. Its operating range is 0°C to 40°C. It accepts AC 100 to 240 V input, typically draws 126 W in use and 0.5 W in standby. The included power cables are EU and UK types, 3 m long, so confirm the plug and BS 1363 socket arrangement with the SmartRooms Qatar team before ordering.

Request a quote from SmartRooms Qatar with your room size, mounting position and quantity. We deliver to all eight municipalities of Qatar, offer free site surveys, usually issue quotations within one working day, and accept LPOs, government tenders, and payment by bank transfer, cheque or purchase order.
