TE6513A-B2AG

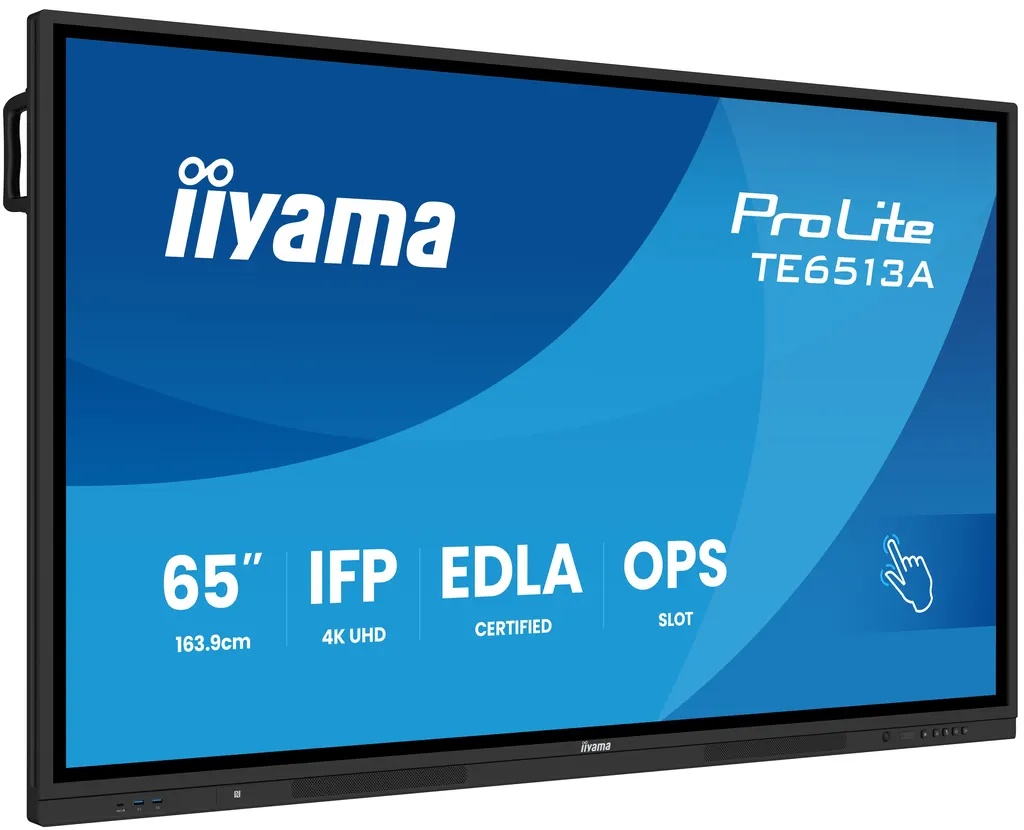

iiyama Prolite TE6513A-B2AG 65-inch Google EDLA Interactive Display
- Screen size
- 64.5" / 163.9cm
- Resolution
- 3840 x 2160 (8.3 megapixel 4K UHD)
- Touch
- PureTouch-IR⁺
- Brightness
- 500 cd/m²
The iiyama TE6513A-B2AG is a 65-inch 4K UHD interactive flat panel with PureTouch-IR+ touch, 40 touch points and palm rejection, running iiWare 21E on Android 14 with Google EDLA certification. Its 3.2mm glass is 7H rated and anti-glare, and it includes an OPS slot for an optional PC. Suited to classrooms, boardrooms and training rooms in Qatar that work across Google and Microsoft 365.
A 65-inch 4K touch display built around Google EDLA

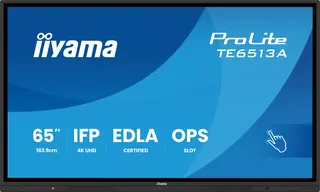

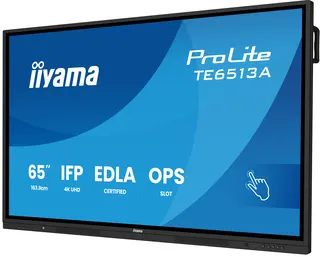

The iiyama Prolite TE6513A-B2AG is a 65-inch interactive display with a 4K UHD IPS panel at 3840 x 2160 resolution. It is built for rooms where one large touchscreen can replace a projector, a whiteboard and a separate meeting setup. Its software, iiWare 21E running on Android 14, carries Google EDLA certification, so Google apps, accounts and files can be opened directly on the panel without a computer.
Display and touch performance that matters in daily use
The screen is rated at 500 cd/m² typical brightness, with a static contrast ratio of 1,200:1 and viewing angles of 178 degrees horizontally and vertically. An 8ms grey-to-grey response time keeps moving content clear. The front glass is 3.2mm thick, rated 7H, with an anti-glare finish and an anti-bacterial coating. Zero-Gap Air Bonding is intended to eliminate parallax, so writing appears exactly where the pen touches.

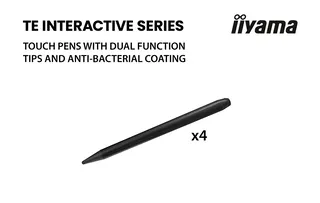

PureTouch-IR+ technology supports up to 40 touch points, with 10-point writing over HID on supported operating systems and 32-point touch on Android. Palm rejection lets a presenter rest a hand on the glass while writing. Touch accuracy is listed at plus or minus 1mm, with a 200Hz scan rate and 5ms touch response. Four dual-function touch pens are included.
Connectivity and expansion for mixed-device rooms
The panel has two HDMI 2.0 inputs, a DisplayPort 1.2 input and two USB-C inputs, with 100W power delivery on the front USB-C port and 65W on the side. Two RJ45 LAN ports auto-switch between PC and Android use. WiFi-6E and Bluetooth 5.0 are built in. The OPS slot accepts an optional OPS PC, such as the OPC51204BC-1 listed as compatible; when one is installed, the front USB-C port is rated at 65W and the side port at 15W.
- Two HDMI 2.0 inputs and DisplayPort 1.2 for laptops and PCs
- USB-C carrying video, data and touch, with front and side ports
- S/PDIF optical and headphone outputs plus 2 x 20W speakers and a 20W subwoofer
- Microphone input and RS-232c control for room systems
Where it fits across Qatar
In a classroom at a public or private school in Al Wakrah or Al Sadd, a 65-inch panel suits a room where students sit close to the screen. Teachers can annotate lessons, play media from built-in playback and share a tablet wirelessly through iiShare, which supports Windows, iOS and Android devices.

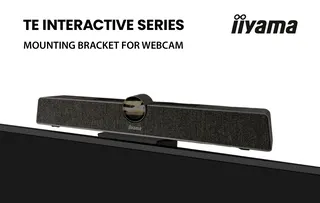

In an office in Lusail or West Bay where teams work in Google Workspace and Microsoft 365 during the same meeting, files can be opened from the panel itself. The front USB-C port offers 100W power delivery for a connected laptop. In a meeting room at a clinic in Doha holding video calls with specialists abroad, a webcam can be fitted to the included webcam mounting bracket.
Planning the installation

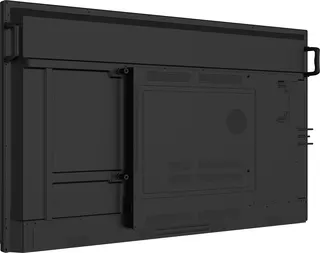

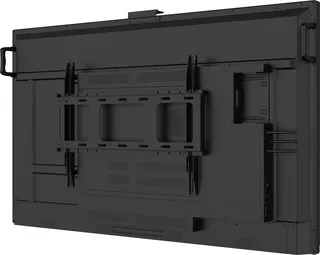

- Wall: VESA 600 x 400mm pattern with a wall mounting bracket included; the panel measures 1489 x 891.5 x 87mm and weighs 39.4kg without its box
- Room climate: operating range is 0°C to 40°C, so keep it in an air-conditioned room, as Qatar summer temperatures can exceed 45°C
- Power: AC 100-240V, 50/60Hz; the supplied cables are EU and UK 3m, so confirm the plug type with our team
- Computer operating system: confirm support for 10-point writing before ordering
SmartRooms Qatar offers a free site survey before any wall mounting, professional installation, and delivery to all eight municipalities of Qatar, with quotations usually within one working day. The product carries a 5-year manufacturer warranty. Request a quote and our team will confirm the configuration, mounting and delivery for your room.
Highlights
- 65-inch 4K UHD IPS panel at 3840 x 2160 resolution
- PureTouch-IR+ touch with 40 touch points and palm rejection
- Google EDLA certified with iiWare 21E on Android 14
- Built-in WiFi-6E and Bluetooth 5.0 connectivity
- OPS slot for an optional PC; 100W front USB-C power delivery
- 5-year manufacturer warranty; 0-40°C operating range
Classroom fit
At 65″ the farthest student should sit within about 4.9 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
DISPLAY CHARACTERISTICS18
- Design
- Thin bezel
- Diagonal
- 64.5", 163.9cm
- Panel
- IPS
- Touch Glass
- Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
- Native resolution
- 3840 x 2160 (8.3 megapixel 4K UHD)
- Aspect ratio
- 16:9
- Panel brightness
- 500 cd/m²
- Brightness
- 500 cd/m² (typ.)
- Light transmittance
- 88%
- Static contrast
- 1200:1
- Response time (GTG)
- 8ms
- Viewing zone
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Colour support
- 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
- Horizontal Sync
- 30 - 135kHz
- Viewable area W x H
- 1428.5 x 803.5mm, 56.2 x 31.6"
- Bezel width (sides, top, bottom)
- 16.5mm, 16.5mm, 41mm
- Pixel pitch
- 0.372mm
- Bezel colour and finish
- black, matte
TOUCH9
- Touch technology
- PureTouch-IR⁺
- Touch points
- 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
- Scan rate
- 200Hz
- Touch response time
- 5ms
- Touch accuracy
- +- 1mm
- Touch method
- stylus, finger, glove (Passive pen, Opaque objects)
- Touch interface
- USB
- Supported operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Palm rejection
- yes
INTERFACES / CONNECTORS / CONTROLS9
- Digital signal input
- HDMI x2 (v2.0) (H1 CEC/ARC / H2 CEC) DisplayPort x1 (v1.2) USB-C x2 ((DP-Alt, Data, Touch) front 100W PD, side 65W PD)
- Audio input
- Mini jack x1 (Microphone)
- Monitor control input
- RS-232c x1 (DSUB 9pin)
- Digital signal output
- HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444) USB-C x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, DP1 Alt Mode, USB-C X1 (3.2 Gen 1, 5 Gbps))
- Audio output
- S/PDIF (Optical) x1 Mini jack x1 (Headphone) Speakers 2 x 20W (Front facing + 20W Subwoofer on the backside)
- Monitor control output
- OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
- HDCP
- 2.2
- USB ports
- x6 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit))
- RJ45 (LAN)
- x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
FEATURES10
- Integrated software
- iiWare 21E (Android 14 OS, Android 16 Q4 2026, featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
- WiFi
- yes (WiFi-6E, Bluetooth 5.0)
- Hardware
- SOC: RK3576 Octo-core A72*4 + A35*4, GPU: Mali G52 MC3, RAM: 8GB, ROM: 128 GB
- Extra
- Ambiant light Sensor, Pen Pick-up Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen
- Max. non-stop operating time
- 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity)
- Media playback
- yes
- Glass thickness
- 3.2mm
- Glass hardness
- 7H
- Housing (bezel)
- metal
- OSD key lock
- yes
GENERAL7
- OSD languages
- EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB, ET, LV, HU, UK
- Control buttons
- Power, Home, Freeze, Volume, Input (source)
- User controls
- general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
- Blue light reducer
- yes
- Flicker free
- 98" not supported
- Plug&Play
- DDC2B
- Warranty
- 5 years (for details and eligible countries please check the Warranty section of our website)
MECHANICAL6
- Orientation
- landscape
- Fanless design
- yes
- VESA mounting
- 600 x 400mm
- Operation temperature range
- 0°C - 40°C
- Storage temperature range
- - 20°C - 60°C
- MTBF
- 50.000 hours (excluding backlight)
ACCESSORIES INCLUDED5
- Cables
- power (EU 3m, UK 3m), USB (3m), HDMI (3m)
- Touch pen
- x4 (Dual function tips)
- Guides
- quick start guide, safety guide
- Other

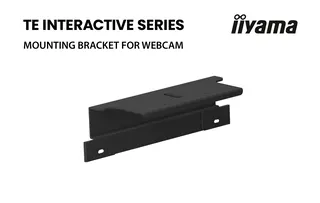

- Wall Mounting Bracket (VESA 600x400), Webcam Mounting Bracket
- Remote control
- yes (batteries included)
POWER MANAGEMENT3
- Power supply unit
- internal
- Power supply
- AC 100 - 240V, 50/60Hz
- Power usage
- 182W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY3
- Regulations
- CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
- Energy efficiency class (Regulation (EU) 2017/1369)
- G
- REACH SVHC
- above 0.1%: Lead
DIMENSIONS / WEIGHT6
- Product dimensions W x H x D
- 1489 x 891.5 x 87mm
- Box dimensions W x H x D
- 1640 x 1010 x 185mm
- Pallet volume
- 4pcs
- Weight (without box)
- 39.4kg
- Weight (with box)
- 48.5kg
- EAN code
- 4948570125739
COMPATIBLE ACCESSORIES1
- Other
- OPC51204BC-1 (OPS Slot PC), MD-CAR2031-B1, MD-WLIFT2031-W1, MD-CART02-S1, UC CAM120ULB-1, UC-CAM10PRO-1, WP-D003C
