TE6513A-B3AG

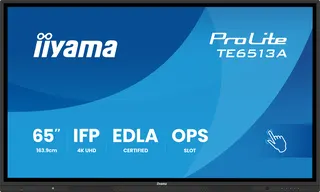

What this 65-inch panel does in a room

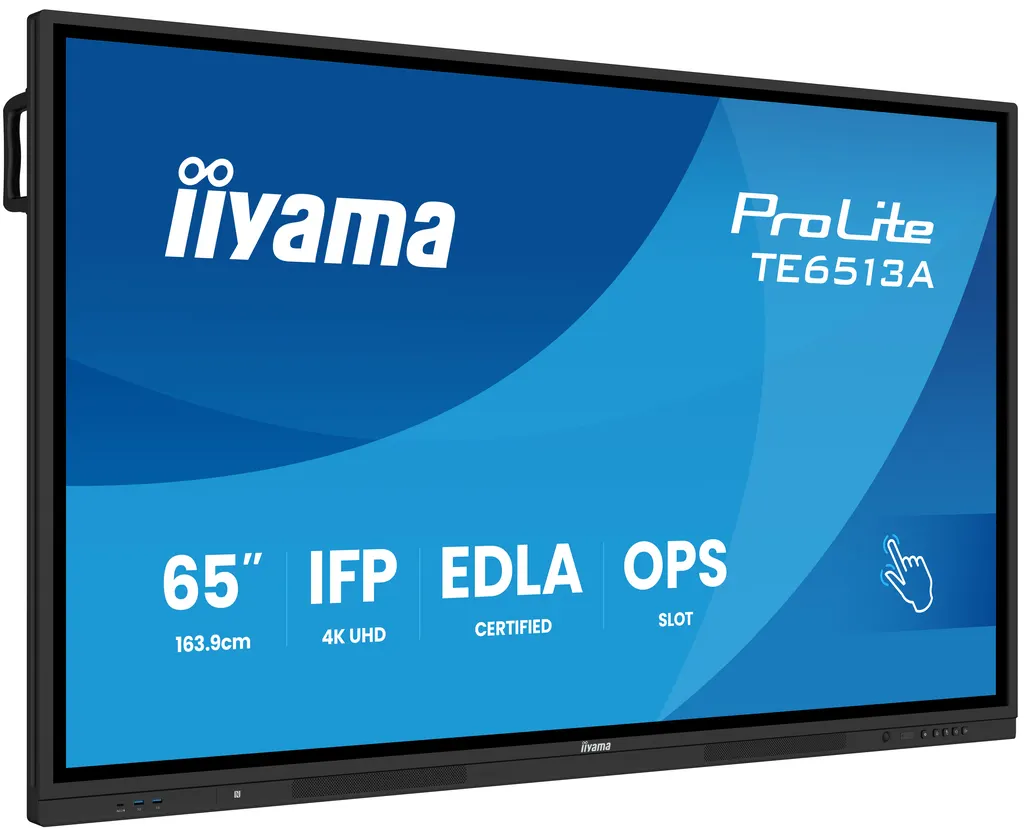

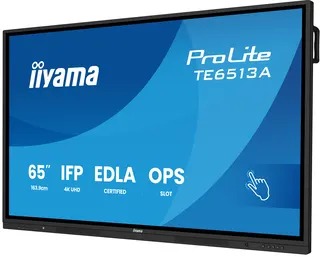

The TE6513A-B3AG is a 65-inch interactive flat panel with a 3840 x 2160 native resolution, giving 4K UHD detail across a viewable area of 1428.5 x 803.5 mm. The IPS panel is rated at 500 cd/m² typical brightness and 1200:1 static contrast, and 178° viewing angles keep content readable from the side of a room, not only from the front row.

The screen is built for writing as much as viewing. The manufacturer says its Zero-Gap Air Bonding removes parallax, the gap that makes ink appear offset from the pen tip. The anti-glare glass is 3.2 mm thick with a 7H hardness rating, which matters where a presenter writes for an hour at a time.

Touch, sensors and daily use

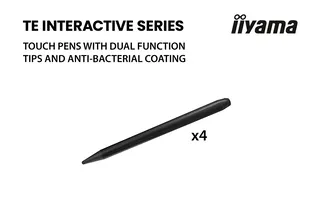

PureTouch-IR+ supports 40 touch points, with 10-point writing on supported operating systems and 32-point touch on Android. Touch accuracy is specified at ±1 mm, with a 200Hz scan rate and 5ms touch response. Palm rejection lets a presenter rest a hand on the glass while writing, and the panel accepts a stylus, a finger or a gloved hand. Four dual-tip touch pens are included.

An ambient light sensor, a pen pick-up sensor and a PIR motion sensor are built in, and the chassis is fanless with a metal bezel.

Software, Google EDLA and Microsoft 365

iiWare 21E runs on Android 14 and brings together Google EDLA, iiControl DMS, a whiteboard, a web browser, file manager, cloud drives and iiShare for wireless connection from Windows, iOS and Android devices. The built-in EShare app adds another route for wireless screen sharing. The hardware is an RK3576 octa-core processor with 6GB of RAM and 128 GB of storage.

The manufacturer states that Google EDLA gives access to Google apps, accounts, files and collaborative tools on the panel, and that the panel integrates with the Microsoft 365 suite, which suits organisations working across both platforms. The manufacturer also states that iiControl DMS is committed to GDPR compliance, useful when many screens are managed from one place.

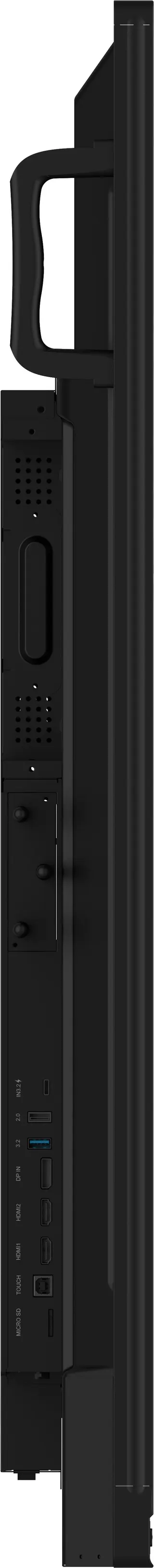

Ports that matter for classrooms and meeting rooms

• Two HDMI 2.0 inputs, one DisplayPort 1.2 input and two USB-C inputs, front 100W PD and side 65W PD
• HDMI 2.0 and USB-C outputs for passing the signal to a second display
• Two RJ45 LAN ports, RS-232c control, a microphone input and six USB ports
• Two 20W speakers, a 20W rear subwoofer, headphone and optical S/PDIF output
• Intel OPS 80-pin slot for an optional OPS PC, with HDCP 2.2 support

Where it fits in Qatar

A public school in Al Wakrah fitting out new classrooms can use the 65-inch size in a room where the teacher writes at the board and students work in small groups. The wide viewing angle helps students at the sides, and wireless sharing lets them put work on the screen from their own devices.

A ministry team in Msheireb can share documents from Google or Microsoft 365 during a meeting and annotate them directly on the glass. In a training centre in Education City, one display can serve as the main screen for hands-on sessions, with the OPS slot available if the centre wants a PC built into the panel.

What to plan before ordering

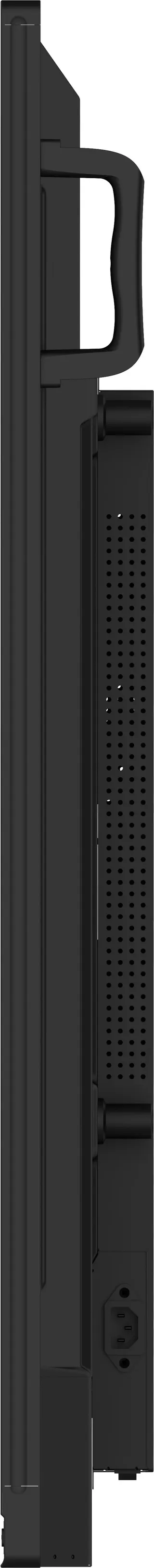

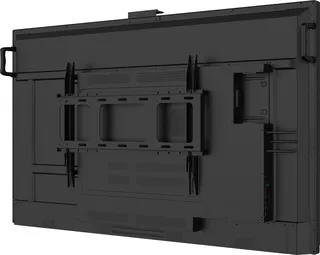

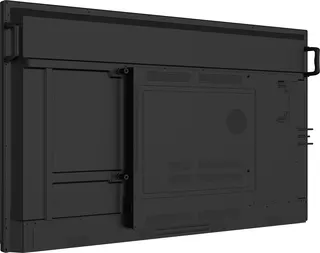

The panel measures 1489 x 891.5 x 87 mm and weighs 39.4 kg without its box, or 48.5 kg boxed. The included wall bracket follows the 600 x 400 mm VESA pattern. A wall survey should confirm the structure, fixing points and clearance, and installation needs at least two people to lift and hang the panel safely.

Plan the room climate as well. The operating range is 0°C to 40°C, and Qatar summers regularly pass 45°C outdoors, so the room should be air-conditioned and the panel kept out of direct sun from windows. The power supply accepts 100 to 240 V at 50/60 Hz, typically draws 144W, and the box includes EU and UK 3-metre power cables. The manufacturer rates the components for 24/7 operation but recommends no more than 18 hours per day. The panel carries a 5-year manufacturer warranty, subject to the manufacturer's terms.
