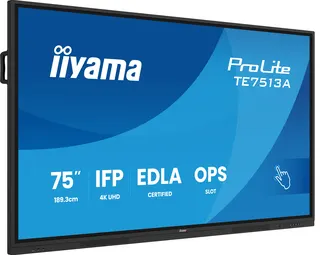

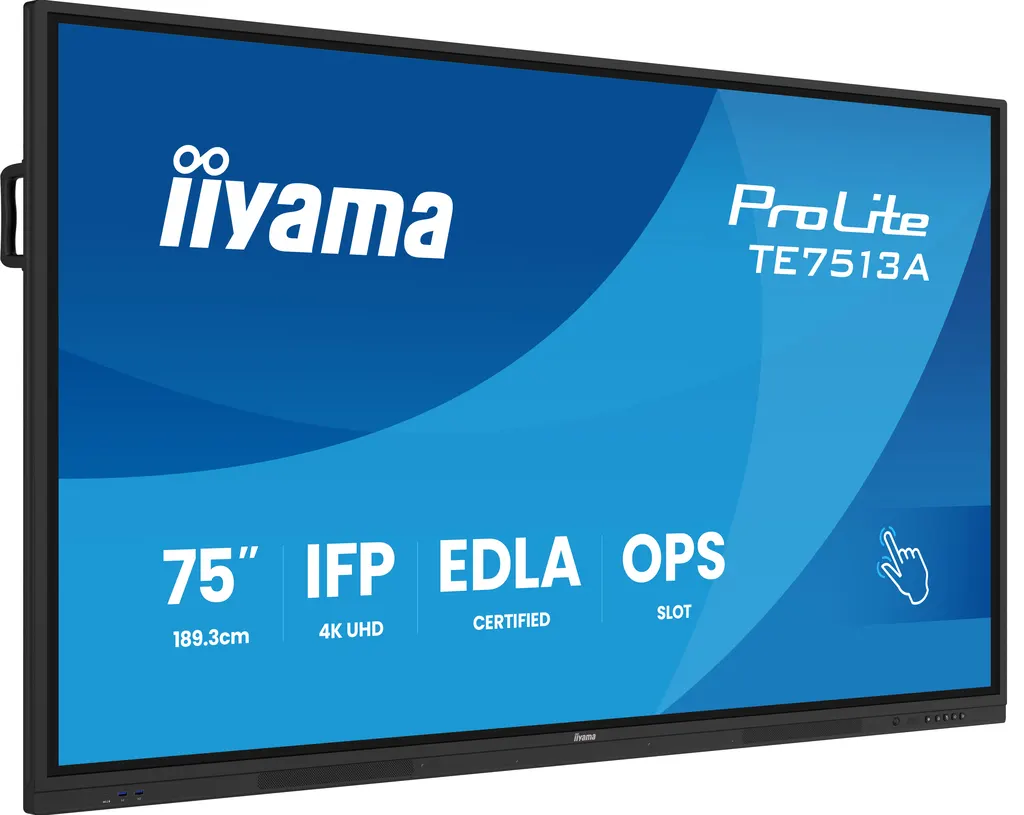

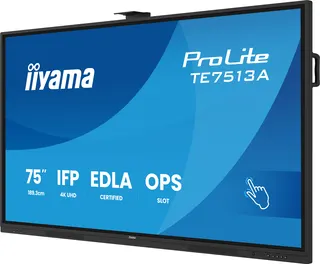

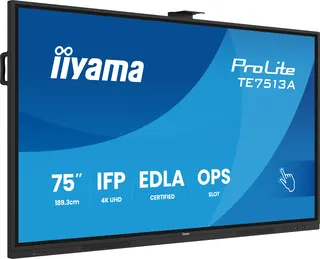

TE7513A-B2AG

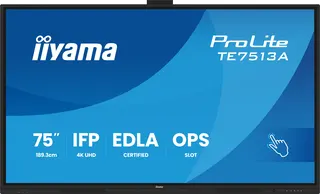

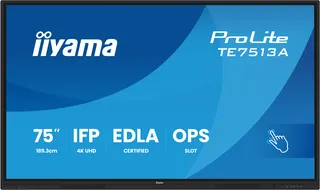

A 75-inch 4K panel built for shared screens

The iiyama TE7513A-B2AG is a 75-inch interactive flat panel for classrooms, boardrooms and training rooms that need one large, shared display. Its 4K UHD (3840 x 2160) IPS screen offers 500 cd/m² typical brightness and a static contrast ratio of 1200:1, with 178-degree horizontal and vertical viewing angles. The viewable area measures 1650 x 928 mm, and the 16.5 mm side and top bezels keep the picture close to the edges.

Zero-Gap Air Bonding removes most of the air gap between the touch glass and the LCD, which reduces the offset that makes ink appear to drift from the pen tip. The anti-glare, anti-bacterial glass is 3.2 mm thick and rated 7H, a practical choice for rooms with windows and strong overhead lighting.

Touch performance and writing

PureTouch-IR+ touch runs at a 200Hz scan rate with a 5 ms touch response time, and palm rejection lets a presenter rest a hand on the glass while writing. Four dual-function pen tips are included, and a pen pick-up sensor is fitted. Teachers can mark up documents and presenters can sketch over slides without the screen reacting to the side of the hand.

Software, connectivity and Google integration

The panel runs iiWare 21E on Android 14 and is Google EDLA certified, so staff can reach Google apps, accounts, files and collaboration tools directly on the screen. The manufacturer also states that it integrates with the Microsoft 365 suite. Wireless sharing comes through iiShare and the built-in EShare app, which support Windows, iOS and Android devices, and WiFi-6E with Bluetooth 5.0 provides the wireless links. The system has an octa-core RK3576 processor, 8 GB RAM and 128 GB storage.

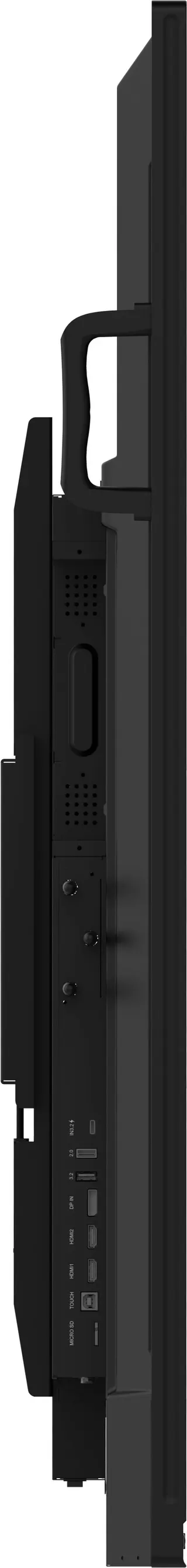

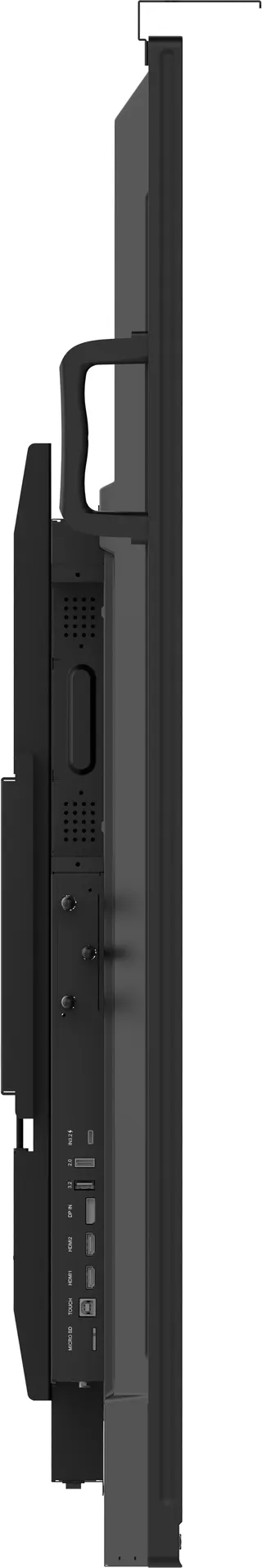

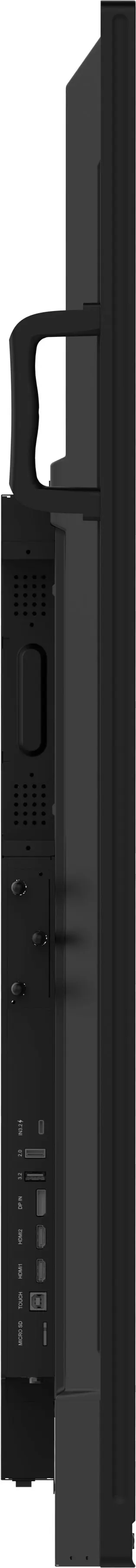

• Two HDMI 2.0 inputs, one DisplayPort 1.2 input and two USB-C inputs (front 100W PD, side 65W PD)
• One HDMI 2.0 output and one USB-C output
• One OPS slot for an optional Intel OPS PC
• Two RJ45 LAN ports (IN/OUT) with automatic switching for PC and Android
• RS-232C control, microphone input, headphone jack and optical S/PDIF output
• Five USB ports for media, peripherals and storage

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can use the panel for daily lessons, with the four pens for student work and iiControl DMS so the school IT team can manage the units centrally. A consultancy in West Bay with a boardroom that holds calls with teams abroad can receive presenters' screens wirelessly and add a webcam from the compatible accessories the manufacturer lists. A training centre in Education City or the Industrial Area can install a compatible OPS PC in the slot, so the panel runs its own applications during workshops.

Planning the installation

• Weight: 51.8 kg without box, 63 kg with box
• Product size: 1710 x 1016 x 87 mm

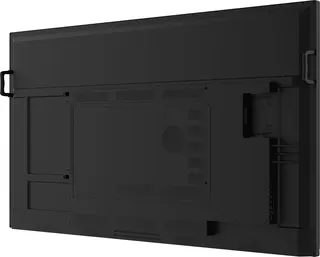

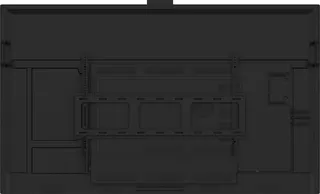

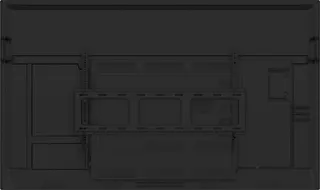

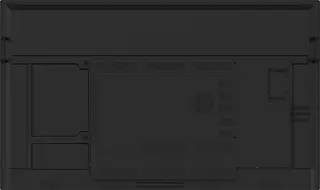

• VESA 800 x 400 mm wall mounting bracket included
• Operating range 0°C to 40°C, so keep it in air-conditioned indoor rooms
• Power: AC 100-240V, 50/60Hz, 217W typical, 0.5W standby

Because the panel weighs over 50 kg, arrange a free site survey before fixing any bracket, check the wall structure and plan for at least two people to lift it. Schools and government offices can issue a purchase order (LPO) or take part in a tender, and payment can be made by bank transfer, cheque or purchase order.

Request a quote for the iiyama TE7513A-B2AG and SmartRooms Qatar will confirm the configuration, the estimated lead time and the installation scope for your site.
