TE7515A-B2AG

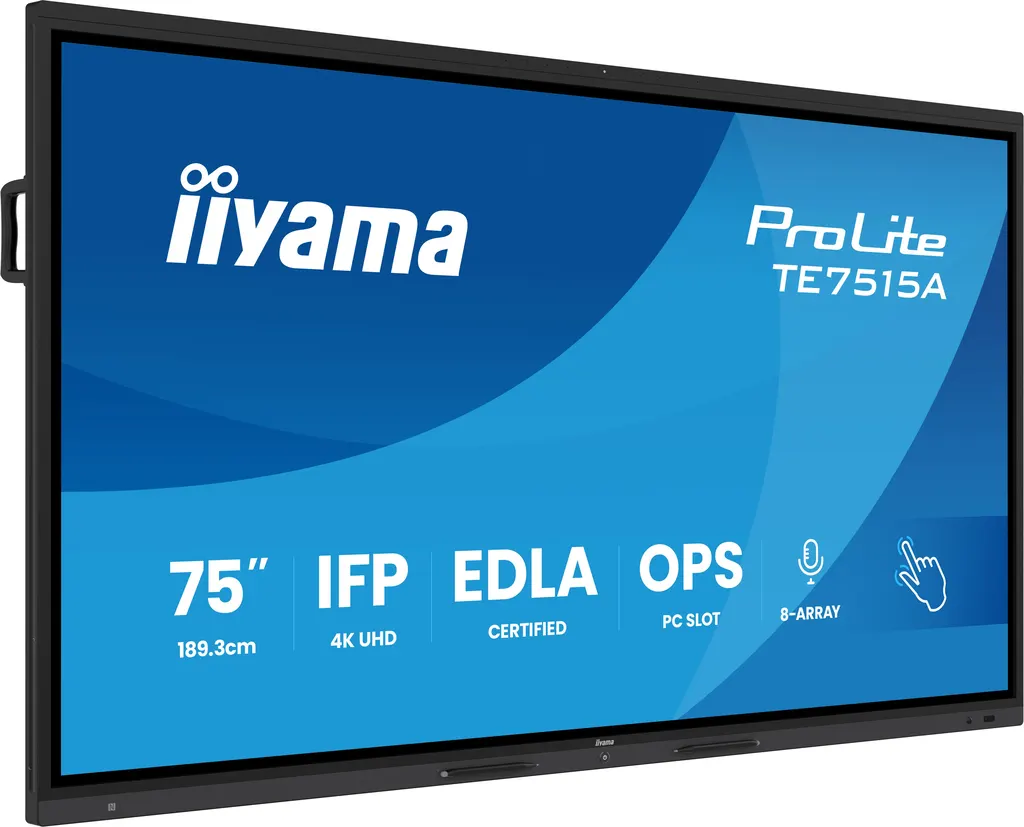

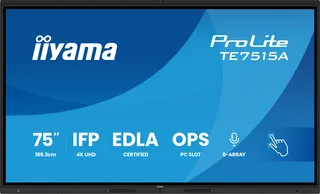

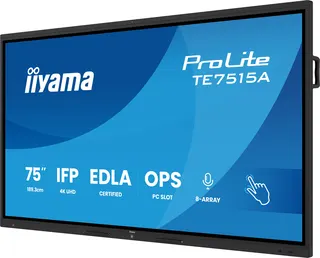

iiyama ProLite TE7515A-B2AG 75-inch 4K UHD Interactive Flat Panel
- Screen size
- 75" / 189.3cm
- Resolution
- 3840 x 2160 (8.3 megapixel 4K UHD)
- Touch
- DeepContrast-IR++
- Brightness
- 550 cd/m²
The iiyama ProLite TE7515A-B2AG is a 75-inch 4K UHD interactive flat panel built for classrooms and boardrooms. It combines a 3840 x 2160 VA panel with 550 cd/m² brightness, 40-point touch with palm rejection, Android 14 with Google EDLA certification, and built-in WiFi 6E. Its OPS slot and dual HDMI and DisplayPort inputs suit Qatari schools and offices that need one screen for presenting, teaching and wireless collaboration.
What the TE7515A-B2AG is built to do
The iiyama ProLite TE7515A-B2AG is a 75-inch interactive flat panel that puts a 4K touch surface at the centre of a classroom, meeting room or training suite. Its 3840 x 2160 VA panel delivers 8.3 megapixels, so text, spreadsheets and engineering drawings stay sharp when projected across a whole room. The front is free of buttons apart from a single power key, and the bottom bezel houses front-facing speakers, which keeps the wall clean and the audio close to the presenter.
Display and touch performance that matter in a teaching room
Panel brightness is rated at 550 cd/m², with a static contrast ratio of 5000:1 and a 6.5ms grey-to-grey response time. The screen uses optical bonding and anti-glare glass with an anti-bacterial coating, which helps in rooms with windows or strong overhead lighting. Touch runs on DeepContrast-IR++ technology with 40 touch points, a 200Hz scan rate and 5ms touch response, rated at plus or minus 1mm accuracy. Palm rejection lets a teacher rest a hand on the glass while writing, and 32-point writing is supported on Android.
Connectivity, OPS slot and Android software
The panel runs iiWare 21E on Android 14 with Google EDLA certification, so Google apps, accounts and files can be used directly on the display. Inputs include two HDMI 2.0 ports, one DisplayPort 1.2 and a USB-C port that carries video, touch and up to 100W power delivery. Two RJ45 LAN ports switch automatically between PC and Android sources, and built-in WiFi 6E and Bluetooth 5.0 support wireless use. An Intel OPS slot accepts an optional OPS PC module, and the RS-232c port allows control from a room system.
Where it fits in Qatar
A private school in Al Sadd fitting out a new classroom can use the 75-inch screen for whole-class teaching, with the microphone array picking up voices across the room. Teachers can open lesson files and web resources on the Android side without a separate computer, while a laptop connects over HDMI or USB-C. In a West Bay meeting room, the USB-C connection and 8-array microphone with 8m voice pickup support calls with teams abroad when paired with a compatible camera. In Msheireb, a government office or training centre can use iiControl (DMS) for device management across its screens.
What to plan before ordering

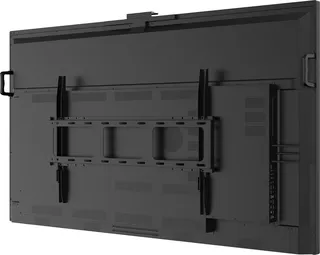

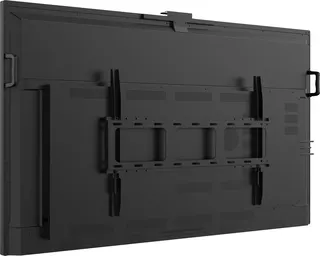

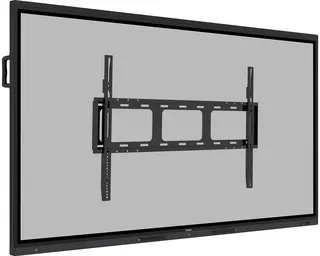

At 54.6kg without packaging and 1710.2 x 1036.3 x 87.1mm, the panel needs a wall structure rated for its weight and a mount matching its 800 x 400mm VESA pattern. A wall mounting bracket for that pattern is included. The operating temperature range is 0°C to 40°C, so the panel should sit in an air-conditioned room away from direct sunlight and hot windows, particularly during Qatar summers above 45°C. The manufacturer rates the panel for 24/7 operation but recommends no more than 18 hours a day. Typical power draw is 191W. The supplied power cables are EU and UK types, so check the plug fit against Qatar's BS 1363 sockets before ordering.
A free site survey before installation lets our team confirm wall loading, mounting height, cable routing and power points. The panel carries a five-year manufacturer warranty. Request a quote from SmartRooms Qatar and we will confirm lead times with your quotation, along with the mount, cables and any compatible accessories such as the OPS PC and cameras listed by the manufacturer.
Highlights
- 75-inch 4K UHD (3840 x 2160) VA panel with 550 cd/m² brightness
- 40-point touch with DeepContrast-IR++ and palm rejection
- Android 14 with Google EDLA certification and iiWare 21E
- Built-in WiFi 6E, Bluetooth 5.0 and two RJ45 LAN ports
- Intel OPS slot for an optional OPS PC module
- Five-year manufacturer warranty and included VESA 800 x 400mm wall bracket
Classroom fit
At 75″ the farthest student should sit within about 5.6 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
DISPLAY CHARACTERISTICS16
- Design
- Thin bezel
- Diagonal
- 75", 189.3cm
- Panel
- VA
- Touch Glass
- Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Optical Bonding
- Native resolution
- 3840 x 2160 (8.3 megapixel 4K UHD)
- Aspect ratio
- 16:9
- Panel brightness
- 550 cd/m²
- Static contrast
- 5000:1
- Response time (GTG)
- 6.5ms
- Viewing zone
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Colour support
- 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
- Horizontal Sync
- 30 - 135kHz
- Viewable area W x H
- 1650 x 928mm, 65 x 36.5"
- Bezel width (sides, top, bottom)
- 16.7mm, 34.3mm, 46.7mm
- Pixel pitch
- 0.430mm
- Bezel colour and finish
- black, matte (sandblasted oxidation)
TOUCH9
- Touch technology
- DeepContrast-IR++
- Touch points
- 40, 32pt writing (HID, only with supported OS, 32pt Touch with Android)
- Scan rate
- 200Hz
- Touch response time
- 5ms
- Touch accuracy
- +- 1mm
- Touch method
- stylus, finger, glove (Passive pen, Opaque objects)
- Touch interface
- USB
- Supported operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Palm rejection
- yes
INTERFACES / CONNECTORS / CONTROLS10
- Digital signal input
- HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1) DisplayPort x1 (1.2, max. 3840x2160 @60Hz) USB-C x1 (2.0, 480Mbps), 3840x2160 @60Hz (YUV444/ RGB444), DP 1.2 Alt mode, PD 100W, Data, Touch)
- Audio input
- Mini jack x1 (Microphone)
- Monitor control input
- RS-232c x1 (DSUB 9pin)
- Digital signal output
- HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444) USB-C x1 (2.0, 480Mbps), 3840x2160 @60Hz (YUV444/ RGB444), DP 1.2 Alt mode)
- Audio output
- S/PDIF (Optical) x1 Mini jack x1 (Headphone) Speakers 2 x 20W (2x 20W Front facing + 1x 20W Subwoofer on backside)
- Monitor control output
- OPS Slot x1 (Intel OPS 80pin)
- HDCP
- 2.2
- USB ports
- x4 (media playback / peripherals / storage – side: 2x 3.2 (Gen 1, 5Gbit), 1x 2.0 (Android only), 1x USB-C IN 2.0 (480Mbps, 100W PD))
- RJ45 (LAN)
- x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
- Microphone
- 8-Array (8m voice-pickup)
FEATURES12
- Integrated software
- iiWare 21E (Android 14 OS, Android 16 Q4 2026) featuring Google EDLA, iiControl (DMS), Whiteboard, iiBrowser, file manager, cloud drives and iiShare, plus EShare for wireless connection with Windows/iOS/Android devices
- WiFi
- yes (Built-in WiFi-6E, Bluetooth 5.0)
- Hardware
- CPU: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8GB, ROM: 128GB
- Extra
- Sensors: Ambient light, NFC Reader, PIR Motion, Pen Pick-up; Slot for optional OPS PC, Micro SD card slot, 4x Touch pen
- Kiosk mode
- yes
- PiP
- yes
- Max. non-stop operating time
- 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity.)
- Media playback
- yes
- Glass thickness
- 3.2mm
- Glass hardness
- 7H
- Housing (bezel)
- metal
- OSD key lock
- yes
GENERAL7
- OSD languages
- EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB, HU, UK
- Control buttons
- Power (press and hold 3-5 seconds), Home (shortcut on screen): Short press Power button
- User controls
- personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on sou
- Blue light reducer
- yes
- Flicker free
- yes
- Plug&Play
- DDC2B
- Warranty
- 5 years (for details and eligible countries please check the Warranty section of our website)
MECHANICAL6
- Orientation
- landscape
- Fanless design
- yes
- VESA mounting
- 800 x 400mm
- Operation temperature range
- 0°C - 40°C
- Storage temperature range
- - 20°C - 60°C
- MTBF
- 50.000 hours (excluding backlight)
ACCESSORIES INCLUDED5
- Cables
- power (EU 3m, UK 3m), USB (3m), HDMI (3m)
- Touch pen
- x4 (Dual function tips)
- Guides
- quick start guide, safety guide
- Other

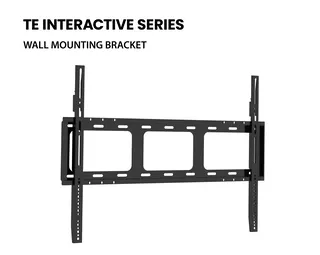

- Wall Mounting Bracket (VESA 800x400), Webcam Mounting Bracket, Cable ties (6pcs)
- Remote control
- yes (batteries included)
POWER MANAGEMENT3
- Power supply unit
- internal
- Power supply
- AC 100 - 240V, 50/60Hz
- Power usage
- 191W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY4
- Regulations
- CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS)
- Energy efficiency class (Regulation (EU) 2017/1369)
- G
- EPEAT
- EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Bronze certification means the monitor meets all required criteria. EPEAT Bronze is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country.
- REACH SVHC
- above 0.1%: Lead
DIMENSIONS / WEIGHT6
- Product dimensions W x H x D
- 1710.2 x 1036.3 x 87.1mm
- Box dimensions W x H x D
- 1860 x 1125 x 185mm
- Pallet volume
- 6pcs
- Weight (without box)
- 54.6kg
- Weight (with box)
- 67.6kg
- EAN code
- 4948570127498
COMPATIBLE ACCESSORIES1
- Other
- MD-CAR2031-B1, MD-WLIFT2031-W1, UC-CAM10PRO-1, UC CAM120ULB-1, OPC51204BC-1, WP-D003C
