TE8613A-B2AG

An 86-inch 4K panel for rooms that share and annotate

The TE8613A-B2AG is an 86-inch interactive flat panel with a 3840 x 2160 IPS screen, 500 cd/m² typical brightness and a 1200:1 static contrast ratio. Its 10-bit colour processing (8-bit with Hi-FRC) and 178° viewing angle keep diagrams, spreadsheets and video readable for people seated at the sides of a large room. The 16:9 format suits presentation slides and shared documents.

Touch, writing and palm rejection for teaching and presenting

PureTouch-IR+ provides 40 touch points, with 10-point writing on supported operating systems and 32-point touch under Android. A 200Hz scan rate and 5ms touch response support fast, precise annotation, with touch accuracy rated at ±1mm. Palm rejection lets a presenter rest a hand on the glass while writing. The anti-glare glass with anti-gloss treatment reduces reflections from windows and ceiling lights, and the anti-bacterial coating suits shared touch surfaces. Four dual-function touch pens are included.

Android 14, Google EDLA and wireless sharing

The panel runs iiWare 21E on Android 14 and is Google EDLA certified, so Google apps, accounts, files and collaborative tools can be opened directly on the display without a separate computer. The manufacturer also states integration with the Microsoft 365 suite. iiShare connects Windows, iOS and Android devices wirelessly, and the integrated EShare app handles screen sharing. The hardware uses an RK3576 processor with 8 GB RAM and 128 GB storage. Wi-Fi and Bluetooth 5.0 are built in, and two RJ45 LAN ports work as IN/OUT with automatic switching for PC and Android.

Ports, audio and the OPS slot

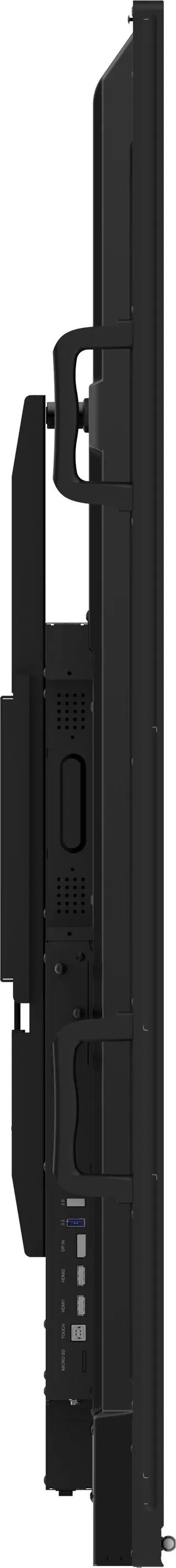

Inputs include two HDMI 2.0 ports, a DisplayPort 1.2 input, and two USB-C ports with power delivery: 100W at the front and 65W at the side. Six USB ports handle media playback, peripherals and storage, and an RS-232c port provides external control. Outputs include HDMI 2.0, USB-C, S/PDIF optical and a headphone jack. The two 20W front speakers are paired with a 20W subwoofer at the back. The Intel OPS 80-pin slot accepts an OPS PC module, and the OPC51204BC-1 is listed as a compatible option.

Where it fits in Qatar

In a university or training centre in Education City, a lecturer can open Google materials and annotate them on the glass during a lecture in a large hall. In a boardroom in West Bay or Lusail, a team in Doha can share a laptop or phone wirelessly, and a webcam can be mounted on the included bracket for calls with colleagues abroad. In a hotel lobby or retail space, kiosk mode and media playback let the panel run content, provided the room stays within the rated temperature range.

What to plan before ordering

• Wall structure: the panel weighs 63.8 kg without its box and 76.5 kg packed.
• Dimensions: 1955.6 x 1154 x 87.1 mm, with VESA 800 x 600 mm mounting and a wall bracket included.
• Environment: the operating range is 0°C to 40°C, so keep it out of direct sun and unconditioned areas.
• Power: AC 100-240V, 282W typical and 0.5W standby. Confirm the plug type with your electrician.
• Usage: rated for 24/7 operation, but the manufacturer recommends no more than 18 hours per day.

Ordering from SmartRooms Qatar

SmartRooms Qatar supplies the TE8613A-B2AG across all eight municipalities of Qatar, with professional installation and free site surveys. The panel is covered by the manufacturer's 5-year warranty. Purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order are all accepted. Request a quote and our team will usually reply within one working day, with lead times confirmed on the quotation.
