iiyama Interactive Flat Panels Current

TE8615A-B2AG

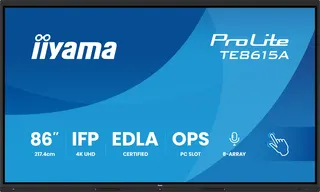

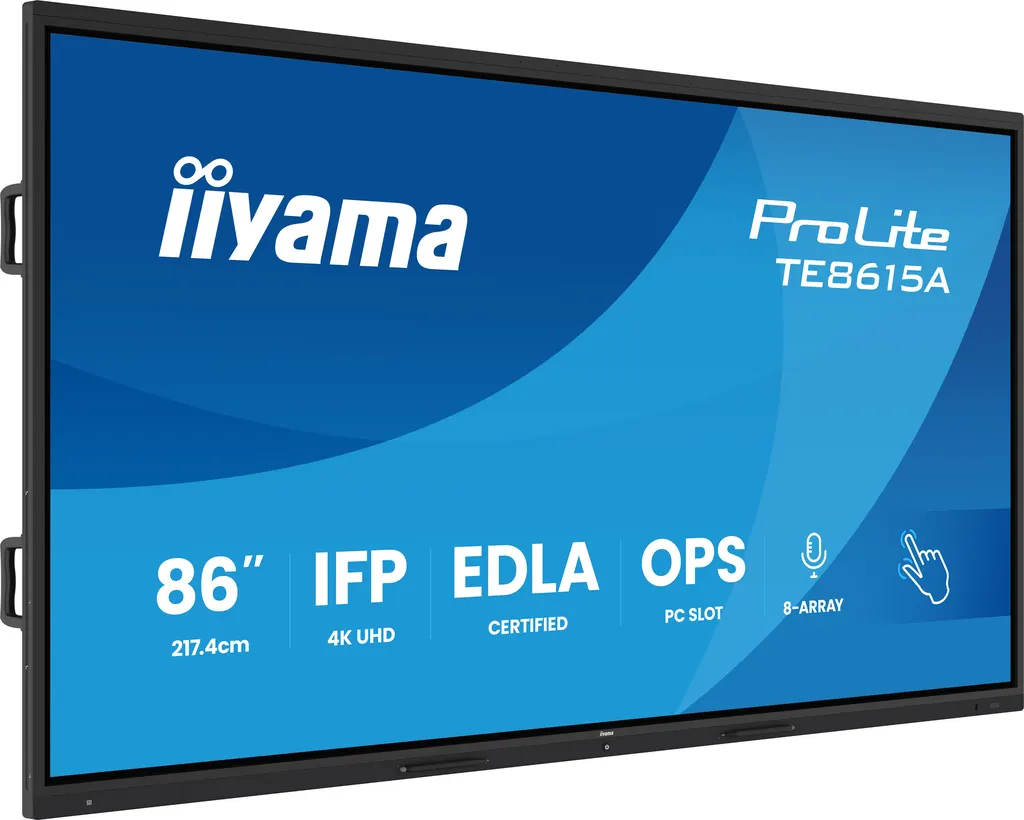

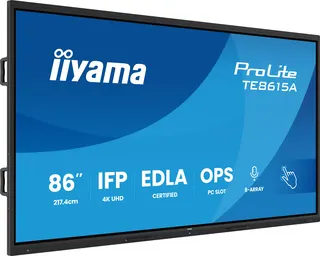

iiyama ProLite TE8615A-B2AG 86-inch 4K UHD Interactive Flat Panel

Screen size: 85.6" / 217.4cm
Resolution: 3840 x 2160 (8.3 megapixel 4K UHD)
Touch: DeepContrast-IR++
Brightness: 550 cd/m²

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

XLSXDownload datasheet

Overview

The iiyama ProLite TE8615A-B2AG is an 86-inch 4K UHD interactive flat panel for classrooms, lecture halls and boardrooms across Qatar. It pairs an IPS display rated at 550 cd/m² with DeepContrast-IR++ touch, Android 14 running Google EDLA-certified software, built-in WiFi 6E and an OPS slot for an optional PC. Request a quote from SmartRooms Qatar for supply, installation and LPO purchasing.

An 86-inch 4K touch panel built on Android 14

The iiyama ProLite TE8615A-B2AG is an 86-inch interactive display with a 3840 x 2160 native resolution and an IPS panel rated at 550 cd/m² brightness, 1200:1 static contrast and 5000:1 dynamic contrast. It runs iiWare 21E on Android 14 and is Google EDLA certified, so Google accounts, apps and files can be opened directly on the screen, and the manufacturer also states compatibility with the Microsoft 365 suite.

Specifications that matter in daily teaching and meetings

Touch is handled by DeepContrast-IR++ with 40 touch points and 32-point writing under Android, at a 200 Hz scan rate and 5 ms touch response. Palm rejection lets a presenter rest a hand on the glass while writing. Optical bonding removes the air gap between the glass and the LCD, which reduces parallax so the ink stays close to the pen tip. The anti-glare glass is 3.2 mm thick with 7H hardness and an anti-bacterial coating. The 8-array microphone picks up voices up to 8 metres away, and two 20 W front-facing speakers are paired with a 20 W subwoofer at the back.

Connectivity, OPS and control

Video inputs: two HDMI 2.0 ports, one DisplayPort 1.2 and a USB-C input that carries video, touch data and 100 W power delivery.
Network and control: built-in WiFi 6E and Bluetooth 5.0, two RJ45 LAN ports and an RS-232c port for control systems.
Expansion: an Intel OPS 80-pin slot for an optional OPS PC, four USB ports, a micro SD slot and a 1000 Mbit LAN with automatic PC and Android switching.

Wireless screen sharing through the built-in EShare app works with Windows, iOS and Android devices, and iiControl (DMS) supports central management when several panels are deployed.

Where it fits in Qatar

In a private school in Al Wakrah fitting out new classrooms, the 86-inch format gives a full class a readable writing surface, and the pen holders and four included touch pens keep writing tools at the front of the room. In a boardroom in West Bay, the speakers, microphone and HDMI and USB-C inputs support meetings that connect Doha with teams abroad. A training centre in Msheireb can use the panel for lessons and presentations, but the OSD language list does not include Arabic, so confirm menu language needs with the SmartRooms Qatar team before ordering.

What to plan for before installation

The panel weighs 68 kg without its box and 82.7 kg with it, and its product dimensions are 1955.6 x 1174.3 x 87.1 mm. The wall must carry that load and support the VESA 800 x 600 mm pattern. A wall-mounting bracket for that pattern is included. The operating temperature range is 0°C to 40°C, so install it in an air-conditioned room away from windows and sunlit lobbies, where Qatar's summer heat can exceed that range. The manufacturer recommends no more than 18 hours of use per day for longevity, although the components are rated for 24/7 operation. Typical power use is 300 W, with 0.5 W on standby. The manufacturer's warranty is five years, subject to its eligibility terms.

SmartRooms Qatar offers free site surveys, so the wall, the viewing distance and the power and data routing can be checked before the panel is fixed in place. Quotations are usually issued within one working day.

Request a quote for the TE8615A-B2AG

Request a quote from SmartRooms Qatar for supply, delivery to all eight municipalities of Qatar, professional installation and purchase through an LPO or government tender. Send us your room size and mounting wall and we will prepare a quotation for your site.

Highlights

86-inch 4K UHD IPS panel with 3840 x 2160 native resolution
Android 14 with Google EDLA certification and iiWare 21E
DeepContrast-IR++ touch with 40 points and palm rejection
Built-in WiFi 6E, Bluetooth 5.0 and PIR motion sensor
Intel OPS slot, HDMI 2.0, DisplayPort 1.2 and 100 W USB-C
Five-year manufacturer warranty and 0°C to 40°C operating range

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

80 specifications · Source: manufacturer · checked Oct 2026

DISPLAY CHARACTERISTICS18

Design: Thin bezel
Diagonal: 85.6", 217.4cm
Panel: IPS
Touch Glass: Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Optical Bonding
Native resolution: 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio: 16:9
Panel brightness: 550 cd/m²
Light transmittance: 88%
Static contrast: 1200:1
Dynamic contrast: 5000:1
Response time (GTG): 8ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support: 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync: 30 - 135kHz
Viewable area W x H: 1895 x 1066mm, 74.6 x 42"
Bezel width (sides, top, bottom): 16.5mm, 16.5mm, 41mm
Pixel pitch: 0.493mm
Bezel colour and finish: black, matte (sandblasted oxidation)

TOUCH9

Touch technology: DeepContrast-IR++
Touch points: 40, 32pt writing (HID, only with supported OS, 32pt Touch with Android)
Scan rate: 200Hz
Touch response time: 5ms
Touch accuracy: +- 1mm
Touch method: stylus, finger, glove (Passive pen, Opaque objects)
Touch interface: USB
Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection: yes

INTERFACES / CONNECTORS / CONTROLS9

Digital signal input: HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1) DisplayPort x1 (1.2, max. 3840x2160 @60Hz) USB-C x1 (2.0, 480Mbps), 3840x2160 @60Hz (YUV444/ RGB444), DP 1.2 Alt mode, PD 100W, Data, Touch)
Audio input: Mini jack x1 (Microphone)
Monitor control input: RS-232c x1 (DSUB 9pin) RJ45 (LAN) x2
Digital signal output: HDMI x1 (USB-C X1 (3.2, Gen 1, 5 Gbps), 3840 x 2160 @60Hz (YUV444 / RGB 444), DP 1.2 Alt Mode) USB-C x1 (2.0, 480Mbps), 3840x2160 @60Hz (YUV444/ RGB444), DP 1.2 Alt mode)
Audio output: S/PDIF (Optical) x1 Mini jack x1 (Headphone) Speakers 2 x 20W (Front facing + 20W Subwoofer on backside)
Monitor control output: OPS Slot x1 (Intel OPS 80pin)
USB ports: x4 (media playback / peripherals / storage – side: 2x 3.2 (Gen 1, 5Gbit), 1x 2.0 (Android only), 1x USB-C IN 2.0 (480Mbps, 100W PD))
RJ45 (LAN): x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
Microphone: 8-Array (8m voice-pickup)

FEATURES12

Integrated software: iiWare 21E (Android 14 OS, Android 16 Q4 2026) featuring Google EDLA, iiControl (DMS), Whiteboard, iiBrowser, file manager, cloud drives and iiShare, plus EShare for wireless connection with Windows/iOS/Android devices
WiFi: yes (Built-in WiFi-6E, Bluetooth 5.0)
Hardware: CPU: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 RAM: 8GB, ROM: 128GB
Extra: Sensors: Ambient light, NFC Reader, PIR Motion, Pen Pick-up; Slot for optional OPS PC, Micro SD card slot, 4x Touch pen
Kiosk mode: yes
PiP: yes
Max. non-stop operating time: 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity.)
Media playback: yes
Glass thickness: 3.2mm
Glass hardness: 7H
Housing (bezel): metal
OSD key lock: yes

GENERAL7

OSD languages: EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB
Control buttons: Power (press and hold 3-5 seconds), Home (shortcut on screen): Short press Power button
User controls: personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, sharpness, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, p
Blue light reducer: yes
Flicker free: yes
Plug&Play: DDC2B
Warranty: 5 years (for details and eligible countries please check the Warranty section of our website)

MECHANICAL6

Orientation: landscape
Fanless design: yes

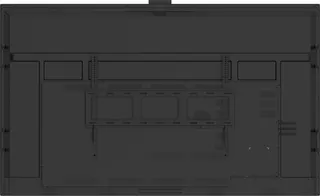

VESA mounting: 800 x 600mm
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - %2°C
MTBF: 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED5

Cables: power (EU 3m, UK 3m), USB (3m), HDMI (3m)

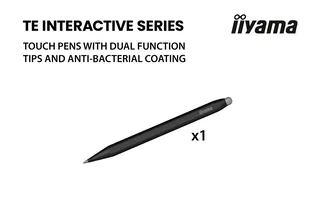

Touch pen: x4 (Dual function tips)
Guides: quick start guide, safety guide

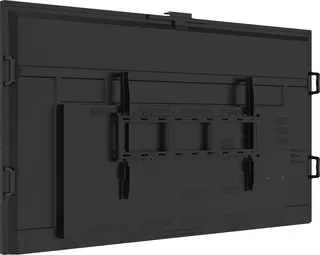

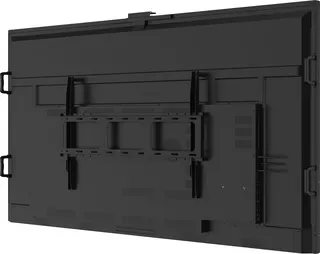

Other: Wall Mounting Bracket (VESA 800x600), Webcam Mounting Bracket, Cable ties (6pcs)
Remote control: yes (batteries included)

POWER MANAGEMENT3

Power supply unit: internal
Power supply: AC 100 - 240V, 50/60Hz
Power usage: 300W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY4

Regulations: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS)
Energy efficiency class (Regulation (EU) 2017/1369): G
EPEAT: EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Bronze certification means the monitor meets all required criteria. EPEAT Bronze is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country.
REACH SVHC: above 0.1%: Lead

DIMENSIONS / WEIGHT6

Product dimensions W x H x D: 1955.6 x 1174.3 x 87.1mm
Box dimensions W x H x D: 2095 x 1265 x 185mm
Pallet volume: 6pcs
Weight (without box): 68kg
Weight (with box): 82.7kg
EAN code: 4948570127504

COMPATIBLE ACCESSORIES1

Other: MD-CAR2031-B1, MD-WLIFT2031-W1, UC-CAM10PRO-1, UC CAM120ULB-1, OPC51204BC-1, WP-D003C

Downloads

12 files from the manufacturer

XLSX Datasheets TE8615A-B2AG_Specifications.xlsx 11 KB PDF Datasheets TE8615A-B2AG_datasheet.pdf 1.3 MB PDF Manuals & guides ESHARE User Guide_V7.3_(20220906b)-e.pdf 2.5 MB PDF Manuals & guides TE65_75_8615A-B2AG-usermanual-e.pdf 10.1 MB PDF Drawings & CAD TE8615A--B1AG_Drawing.pdf 1.6 MB ZIP Drawings & CAD · Opens on manufacturer site TE8615A-B1AG.zip PDF Certificates & compliance TE8615A-B2AG EU Energy Label (2593868).pdf 72 KB PDF Certificates & compliance TE8615A-B2AG UK Energy Label (2593868).pdf 29 KB ZIP Software & firmware · Opens on manufacturer site Mac OS Driver for OS version 10 & 11_UPDD_06_00_729.zip PDF Other documents TE8615A-B2AG.pdf 318 KB ZIP Other documents · Opens on manufacturer site MAC AIR update to MACOS V11.6_UPDD_06_00_717.zip ZIP Other documents · Opens on manufacturer site TExx15A_RS232_RJ45_website.zip

Questions about TE8615A-B2AG

Is the TE8615A-B2AG the right size for a lecture hall in Education City?

The 86-inch diagonal (85.6 inches, 217.4 cm) gives a large writing and display surface for a lecture hall or seminar room where students sit several rows back. The viewable area is 1895 x 1066 mm, and the viewing angle is 178 degrees horizontal and vertical. Because the panel weighs 68 kg without its box, plan the wall and mounting before ordering, and SmartRooms Qatar can arrange a free site survey to check the room.

Can staff in a West Bay office sign in to Google and Microsoft 365 on this panel?

Yes. The panel runs iiWare 21E on Android 14 and is Google EDLA certified, so Google accounts, apps, files and collaborative tools can be accessed directly on the screen. The manufacturer also states that it works with the Microsoft 365 suite. Staff can share a presentation from their own Windows, iOS or Android device through the built-in EShare app without a cable.

How responsive is the touch when a teacher writes in an Al Wakrah classroom?

DeepContrast-IR++ touch supports 40 touch points and 32-point writing under Android, with a 200 Hz scan rate, 5 ms touch response and accuracy of plus or minus 1 mm. Palm rejection lets the teacher rest a hand on the glass while writing. The panel accepts a stylus, a finger and a gloved hand, and four dual-function touch pens are included, so several teachers can share the board.

Will the picture stay clear in a sunny Lusail meeting room with large windows?

The panel has a brightness of 550 cd/m², a native resolution of 3840 x 2160 and a pixel pitch of 0.493 mm. Its anti-glare glass with anti-gloss treatment reduces reflections, and the viewing angle is 178 degrees. For a room with a glazed wall, we recommend a site survey to check the position of the panel relative to the windows, because direct sunlight can still affect any display.

Can we connect a laptop, a PC and a video conferencing camera at the same time?

The panel has two HDMI 2.0 inputs, one DisplayPort 1.2 input and a USB-C input that carries video, touch data and 100 W power delivery to charge a laptop. It also offers an HDMI output and a USB-C output, two RJ45 LAN ports, and four USB ports. The source data lists the UC-CAM10PRO-1 and UC CAM120ULB-1 camera models as compatible accessories, so confirm the exact camera you need with your quotation.

What is the OPS slot for, and does it need an extra PC?

The Intel OPS 80-pin slot takes an optional OPS PC module, so a computer can sit inside the display rather than on the desk. The settings include an option to boot the OPS PC with the system, which helps when the panel is in a meeting room with a shared PC. The OPS PC is optional and is not included with the panel.

How heavy is the panel and what wall does it need?

The product weighs 68 kg without its box and 82.7 kg with it, and its product dimensions are 1955.6 x 1174.3 x 87.1 mm. It uses a VESA 800 x 600 mm mounting pattern, and a wall-mounting bracket for that pattern is included. Plan for a structurally sound wall and at least two installers. A free site survey from SmartRooms Qatar can confirm the wall and the cable routing before installation.

Can it be used in an outdoor area, a sunlit lobby or an unconditioned store room?

No. The operating temperature range is 0°C to 40°C, so the panel is designed for indoor, air-conditioned rooms. Summer temperatures in Doha often exceed 45°C, so avoid sunlit lobbies, glazed walls and any space without climate control. Confirm your room conditions with the SmartRooms Qatar team before ordering, and ask for a quote that includes an air-conditioned installation location.

Does the panel support Arabic menus for a bilingual office or school?

The OSD language list includes English, German, French, Spanish, Italian, Russian, Czech, Dutch, Polish, Catalan, Swedish, Finnish, Danish and Norwegian, but Arabic is not listed. A bilingual office or school should confirm the menu language and the language of the apps it plans to use before ordering. The SmartRooms Qatar team can check the current options for this model as part of your quotation.

Is it compatible with Qatar's 240 V mains supply?

The internal power supply accepts AC 100 to 240 V at 50 or 60 Hz, which includes Qatar's 240 V, 50 Hz mains. Typical power use is 300 W, with 0.5 W in standby and 0.3 W in off mode. The package includes a 3 m power cable for the EU plug and a 3 m cable for the UK plug. The plug or adapter for BS 1363 Type G sockets should be confirmed with your quotation.

Does the manufacturer warranty cover the panel, and what is the energy rating?

The manufacturer states a five-year warranty, with eligible countries and details listed on its website, so check the terms for Qatar when you request a quote. The panel is rated energy class G under EU Regulation 2017/1369 and carries an EPEAT Bronze certification where iiyama registers the product. SmartRooms Qatar supplies the panel with delivery to all eight municipalities and professional installation.

Can a government ministry or public body buy this panel through a tender?

Yes. SmartRooms Qatar supports purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. For a ministry or public body buying one 86-inch panel for a meeting room, we provide a quotation that lists the panel, mounting bracket and included accessories, and we can deliver to any of the eight municipalities of Qatar.

Is the TE8615A-B2AG suitable for an office with several meeting rooms that need the same setup?

Yes, the panel suits meeting rooms that need the same setup, because the same control options are available across units. The iiControl (DMS) software supports central management, and the RS-232c port and two RJ45 LAN ports allow control from a room system. For several units, send the room list with the wall details and request one quotation covering all units and installation.
