TE9813A-B2AG

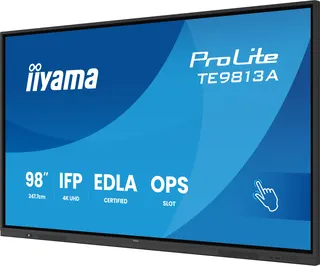

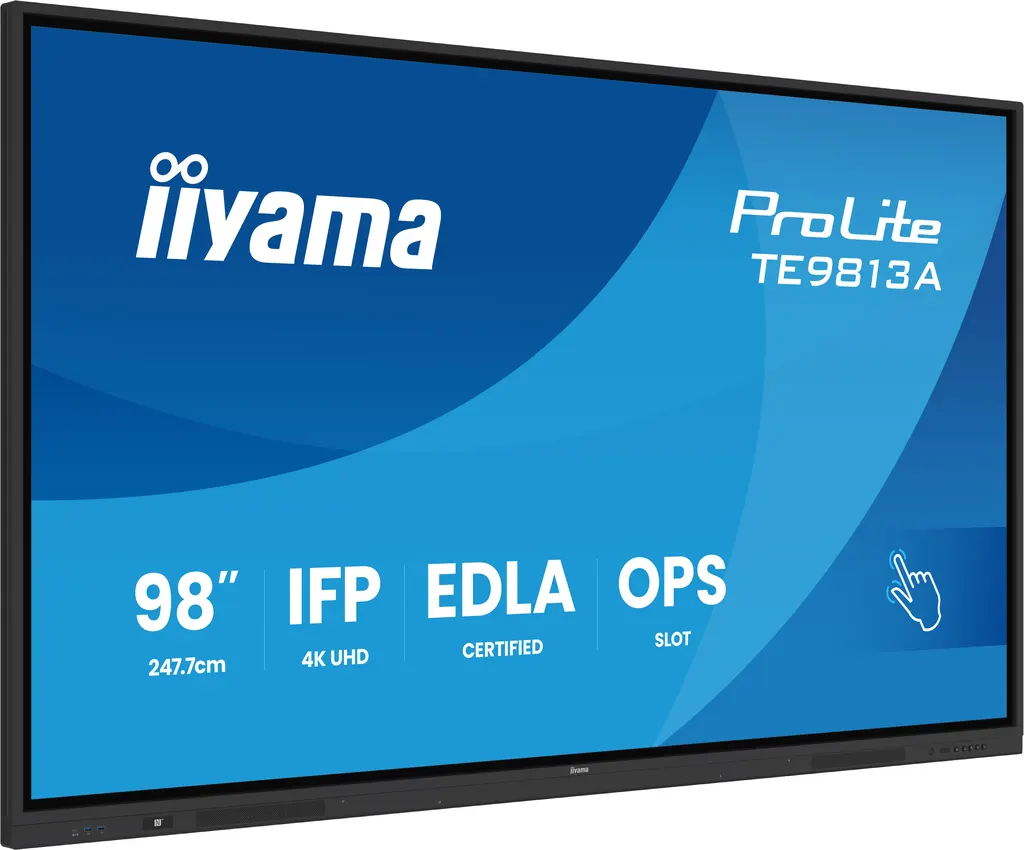

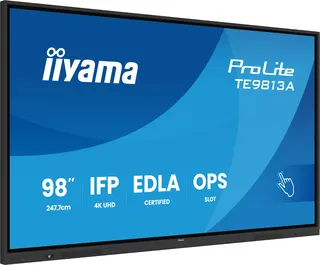

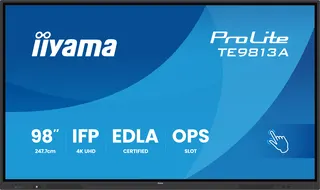

iiyama ProLite TE9813A-B2AG 98-inch Google EDLA Interactive Flat Panel

Screen size: 97.5" / 247.7cm
Resolution: 3840 x 2160 (8.3 megapixel 4K UHD)
Touch: PureTouch-IR⁺
Brightness: 500 cd/m²

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

XLSXDownload datasheet

Overview

The iiyama TE9813A-B2AG is a 98-inch 4K UHD interactive flat panel with Google EDLA certification, Android 14 and a 40-point touch surface. It pairs a 3840 x 2160 IPS panel rated at 500 cd/m² with an OPS slot, dual HDMI, DisplayPort and USB-C inputs. Built for boardrooms, lecture halls and large classrooms in Doha and beyond, it suits organisations that need one screen for presenting, annotating and sharing work wirelessly.

Display performance for close-range work

The TE9813A-B2AG uses an IPS panel at 3840 x 2160, which is 8.3 megapixels of 4K UHD detail. Its diagonal is 97.5 inches (247.7 cm) and the pixel pitch is 0.562 mm, so text stays readable for people sitting at the back of a room. Typical brightness is 500 cd/m², static contrast is 1,200:1, response time is 8 ms and viewing angles are 178 degrees horizontally and vertically.

The 4 mm glass carries a 7H hardness rating and an anti-glare, anti-gloss and anti-bacterial coating. Zero-Gap Air Bonding reduces the gap between the glass and the LCD, which limits the offset between a pen tip and the ink it draws. Colour is listed as 10-bit (8-bit with Hi-FRC) with NTSC 72% coverage.

Touch, software and wireless sharing

PureTouch-IR+ supports 40 touch points and 32-point writing where the operating system allows it. The scan rate is 200 Hz, touch response is 5 ms and touch accuracy is within ±1 mm. Input works with a stylus, a finger or a gloved hand, and palm rejection lets a presenter rest a hand on the glass while writing. Four dual-tip touch pens are included.

The panel runs iiWare 21E on Android 14 with Google EDLA certification, giving staff direct access to Google apps, accounts, files and collaborative tools on the screen. The manufacturer also states compatibility with the Microsoft 365 suite. Wi-Fi 6E and Bluetooth 5.0 handle connectivity. iiShare and the integrated EShare app support wireless screen sharing from Windows, iOS and Android devices. iiControl (DMS) gives IT teams one place to manage displays across a campus or office estate, and the manufacturer states it maintains GDPR compliance.

Ports and expansion for meeting rooms and classrooms

HDMI 2.0 x2, DisplayPort 1.2 and USB-C x2 inputs, with 100W PD on the front port and 65W PD on the side
HDMI and USB-C outputs, plus two RJ45 LAN ports at 1000 Mbps that switch automatically between PC and Android
Intel OPS 80-pin slot, with the OPC51204BC-1 OPS slot PC listed as a compatible accessory
Microphone input, headphone output, S/PDIF optical output and RS-232c control

In a lecture hall at Education City, the panel can display a lecturer's laptop and let students see notes written live. In a West Bay boardroom, a team working in Arabic and English can present from a laptop, annotate a shared document and join a call with colleagues abroad, using the compatible camera accessories listed in the specification.

Planning the installation in Qatar

The panel weighs 109.6 kg without packaging and 132.2 kg in its box, and measures 2235.4 x 1326 x 103 mm. That calls for a wall rated for the load or a suitable stand. The VESA pattern is 800 x 600 mm and a wall mounting bracket is included. The rated operating range is 0 to 40°C. Summer temperatures in Qatar regularly exceed 45°C, so the panel belongs in an air-conditioned room away from direct sunlight, and the SmartRooms Qatar team should confirm the environment before installation. The power input is 100 to 240 V AC with typical consumption of 303 W. The manufacturer rates it for 24/7 operation but recommends no more than 18 hours a day.

SmartRooms Qatar supplies the panel, delivers to all 8 municipalities, arranges professional installation and offers a free site survey before any wall mounting. Quotations are usually issued within one working day, and we accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Request a quote with your room size, mounting wall and intended use, and we will confirm the stock position and scope with the quotation.

Highlights

98-inch 4K UHD IPS panel at 3840 x 2160 resolution
40-point touch with 32-point writing and palm rejection
Zero-Gap Air Bonding glass designed to reduce parallax
Google EDLA certified iiWare 21E running Android 14
HDMI 2.0, DisplayPort 1.2 and USB-C inputs with 100W PD
OPS slot, PIR motion sensor and 5-year manufacturer warranty

Classroom fit

At 98″ the farthest student should sit within about 7.3 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

77 specifications · Source: manufacturer · checked Oct 2026

DISPLAY CHARACTERISTICS18

Design: Thin bezel
Diagonal: 97.5", 247.7cm
Panel: IPS
Touch Glass: Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
Native resolution: 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio: 16:9
Panel brightness: 500 cd/m²
Brightness: 500 cd/m² (typ.)
Light transmittance: 88%
Static contrast: 1200:1
Response time (GTG): 8ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support: 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync: 30 - 135kHz
Viewable area W x H: 2159 x 1214mm, 74.6 x 42"
Bezel width (sides, top, bottom): 16.5mm, 16.5mm, 41mm
Pixel pitch: 0.562mm
Bezel colour and finish: black, matte

TOUCH9

Touch technology: PureTouch-IR⁺
Touch points: 40, 32pt writing (HID, only with supported OS, 32pt Touch with Android)
Scan rate: 200Hz
Touch response time: 5ms
Touch accuracy: +- 1mm
Touch method: stylus, finger, glove (Passive pen, Opaque objects)
Touch interface: USB
Supported operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection: yes

INTERFACES / CONNECTORS / CONTROLS9

Digital signal input: HDMI x2 ((v2.0) (H1 CEC/ARC / H2 CEC)) DisplayPort x1 (v1.2) USB-C x2 ((DP-Alt, Data, Touch) front 100W PD, side 65W PD)
Audio input: Mini jack x1 (Microphone)
Monitor control input: RS-232c x1 (DSUB 9pin)
Digital signal output: HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444) USB-C x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, DP1 Alt Mode, USB-C X1 (3.2 Gen 1, 5 Gbps))
Audio output: S/PDIF (Optical) x1 Mini jack x1 (Headphone) Speakers 2 x 20W (Front facing + 20W Subwoofer on the backside)
Monitor control output: OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 15W, side: 100W)
HDCP: 2.2
USB ports: x5 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit))
RJ45 (LAN): x2 (IN / OUT, Auto switch for PC & Android, 1000MB)

FEATURES10

Integrated software: iiWare 21E (Android 14 OS, Android 16 Q4 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
Hardware: SOC: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 RAM: 8GB, ROM: 128GB
Extra: Ambiant light Sensor, Pen Pick-up Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen
Kiosk mode: yes
Max. non-stop operating time: 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity)
Media playback: yes
Glass thickness: 4mm
Glass hardness: 7H
Housing (bezel): metal
OSD key lock: yes

GENERAL7

OSD languages: EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB, ET, LV, LT, HU, UK
Control buttons: Power, Home, Freeze Volume, Input (source)
User controls: general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Blue light reducer: yes
Flicker free: 98" not supported
Plug&Play: DDC2B
Warranty: 5 years (for details and eligible countries please check the Warranty section of our website)

MECHANICAL6

Orientation: landscape
Fanless design: yes
VESA mounting: 800 x 600mm
Operation temperature range: 0°C - 40°C
Storage temperature range: - 20°C - %2°C
MTBF: 50.000 hours (excluding backlight)

ACCESSORIES INCLUDED5

Cables: power (EU 3m, UK 3m), USB (3m), HDMI (3m)
Touch pen: x4 (Dual function tips)
Guides: quick start guide, safety guide

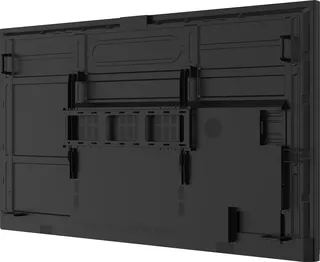

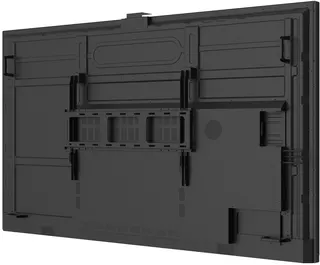

Other: Wall Mounting Bracket (VESA 800x600), Webcam Mounting Bracket
Remote control: yes (batteries included)

POWER MANAGEMENT3

Power supply unit: internal
Power supply: AC 100 - 240V, V, 50/%4Hz
Power usage: 303W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY3

Regulations: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
Energy efficiency class (Regulation (EU) 2017/1369): G
REACH SVHC: above 0.1%: Lead

DIMENSIONS / WEIGHT6

Product dimensions W x H x D: 2235.4 x 1326 x 103mm
Box dimensions W x H x D: 2360 x 1445 x 280mm
Pallet volume: 4pcs
Weight (without box): 109.6kg
Weight (with box): 132.2kg
EAN code: 4948570125760

COMPATIBLE ACCESSORIES1

Other: OPC51204BC-1 (OPS Slot PC), MD-CAR2031-B1, MD-WLIFT2031-W1, UC CAM120ULB-1, UC-CAM10PRO-1, WP-D003C

Downloads

11 files from the manufacturer

XLSX Datasheets TE9813A-B2AG_Specifications.xlsx 10 KB PDF Datasheets TE9813A-B2AG_datasheet.pdf 1.6 MB PDF Manuals & guides TE55_65_75_86_9813A-B2AG-UM-usermanual-e.pdf 12.3 MB PDF Drawings & CAD TE9813A-B2AG.pdf 318 KB ZIP Drawings & CAD · Opens on manufacturer site TE9813A.zip PDF Certificates & compliance TE9813A-2AG CE DoC.pdf 4.1 MB PDF Certificates & compliance TE9813A-B2AG EU Energy Label (2563354).pdf 72 KB PDF Certificates & compliance TE9813A-B2AG UK Energy Label (2563354).pdf 30 KB ZIP Software & firmware · Opens on manufacturer site TE13A-TE15A_MAC_OS_DRIVERS_UPDD_07_01_170.zip PDF Other documents TE9813A-B2AG.pdf 318 KB ZIP Other documents · Opens on manufacturer site TExx13A-B2_B3_RS232_RJ45_website.zip

Questions about TE9813A-B2AG

Who is the TE9813A-B2AG best suited to in Qatar?

It suits organisations that need one large screen for presenting, annotating and joining calls, such as a university lecture hall in Education City, a corporate boardroom in West Bay or a large classroom in an international school. The 98-inch 4K IPS panel gives a wide audience a sharp view, and the 40-point touch surface lets several people write on it at the same time.

Does the panel run Google apps without a separate PC?

Yes. The panel runs iiWare 21E on Android 14 with Google EDLA certification, so staff can access Google apps, accounts, files and collaborative tools directly on the screen. The manufacturer also states compatibility with the Microsoft 365 suite. If you prefer a Windows PC module, the OPS slot accepts the OPC51204BC-1 OPS slot PC listed as compatible.

How does touch connect to a laptop, and which operating systems are supported?

Touch connects over USB, and the manufacturer describes the panel as plug and play with Windows and Linux. Full 32-point writing depends on a supported operating system, and the driver instruction file in the downloads section lists the details. Check that file against your laptop's operating system before ordering, especially for a fleet of mixed devices.

How accurate is the touch, and can staff write with gloves on?

Touch accuracy is within ±1 mm, touch response is 5 ms and the scan rate is 200 Hz. The panel accepts a stylus, a finger or a gloved hand, and palm rejection stops a resting hand from leaving marks. This suits a training room where staff wear protective gloves, such as an industrial site induction room near Mesaieed or Ras Laffan.

Can it be wall-mounted, and how much does it weigh?

It weighs 109.6 kg without packaging and 132.2 kg in its box, and measures 2235.4 x 1326 x 103 mm. The VESA pattern is 800 x 600 mm and a wall mounting bracket is included. Because of this weight, a free site survey before mounting is strongly advisable so the wall or structure can be checked for the load.

Will it cope with Qatar's summer heat if placed near a window?

The rated operating range is 0 to 40°C, and summer temperatures in Qatar often pass 45°C. Install it in an air-conditioned room, away from direct sunlight and window glare, and keep it clear of hot equipment. Confirm the room's conditions with the SmartRooms Qatar team before installation, particularly for rooms facing west toward the afternoon sun.

How many hours a day can it run in a public area?

The components are rated for 24/7 operation, but the manufacturer recommends not exceeding 18 hours per day for optimal product longevity. Kiosk mode and media playback are built in, so a hotel lobby in Msheireb or a mall information point can run looping content. Plan operating hours and any screen-off schedule with this limit in mind.

Which ports do I need for a laptop and a video conferencing system?

The panel has two HDMI 2.0 inputs, a DisplayPort 1.2 input and two USB-C inputs, with the front USB-C port providing 100W power delivery for charging a laptop while it displays. A microphone input, RS-232c control and two RJ45 LAN ports are also provided. Many meeting rooms in Doha that connect to teams abroad use the front USB-C port for both video and charging.

Is 98 inches too large for a standard classroom?

A 98-inch panel suits a lecture hall, auditorium or large boardroom where viewers sit several metres back. In a standard classroom it may dominate the wall and require a deep room for comfortable viewing distance. Measure the room, check the wall load and confirm the viewing distance before deciding. SmartRooms Qatar can advise on sizing during the free site survey.

What is included in the box?

The package includes four dual-function touch pens, a remote control with batteries, power cables for EU and UK plugs (3 m each), a 3 m USB cable, a 3 m HDMI cable, a VESA 800 x 600 wall mounting bracket, a webcam mounting bracket, a quick start guide and a safety guide. Confirm that the supplied power cable suits the BS 1363 sockets in your building.

What warranty applies, and what does SmartRooms Qatar provide?

The manufacturer lists a 5-year warranty, and the eligibility details are on its warranty page. SmartRooms Qatar supplies the panel under that warranty, delivers to all 8 municipalities, and arranges professional installation. Quotations are usually issued within one working day. Request a quote with your room details and mounting plan so the scope is confirmed in writing.

Can a government ministry or school buy it on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. For a school ordering several units for classrooms, the quotation can list each panel, its wall bracket and the installation scope, so the LPO matches the approved budget and the delivery plan.
