INF8610

What the 86-inch INF8610 is built for

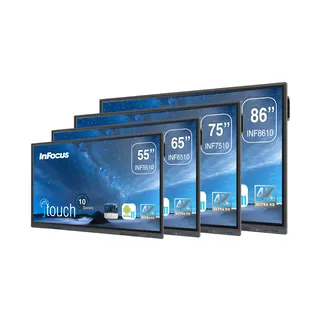

The INF8610 is the 86-inch member of the InFocus JTouch 10 Series. It combines the touch screen, speakers, Android 11 operating system and wireless module in one unit, so a room needs power, a network connection and the source devices you choose to connect. Its viewable area of 1897 x 1098 mm lets a group read a shared document from the back row.

Screen, touch and the figures that matter

• Native 4K: 3840 x 2160 pixels on a 16:9 D-LED panel.
• Brightness and contrast: 400 cd/m2 maximum, 1,200:1 contrast and 5,000:1 dynamic contrast.
• Glass: 3.2 mm anti-glare glass rated 7 on the Mohs scale.
• Touch: infrared, up to 40 touch points, typical response under 10 ms.

Anti-glare glass reduces reflections from ceiling lights and windows that flatten colour and make text hard to read. The 400 cd/m2 rating is the figure to weigh against your room, since a sunlit meeting room needs more careful placement than a dim lecture theatre. Touch accuracy is plus or minus 1.5 mm, and the panel registers single touches from objects larger than 3 mm, so handwriting and annotations stay precise.

Android 11, wireless sharing and optional Windows

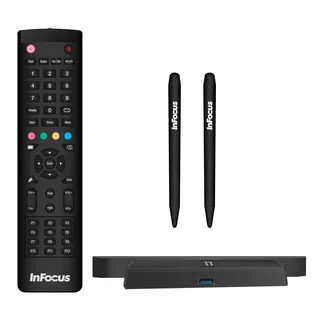

The panel runs Android 11 on an Amlogic T982 processor with a quad-core ARM Cortex-A55 CPU at 1.4 GHz, 4 GB of RAM and 32 GB of storage. Preloaded tools include a whiteboard, annotation, a browser, WPS Office and LightCast3 for casting. Wireless connectivity covers Wi-Fi 802.11a, n, ac and ax and Bluetooth 2.1 to 5, and the box includes a WiFi module.

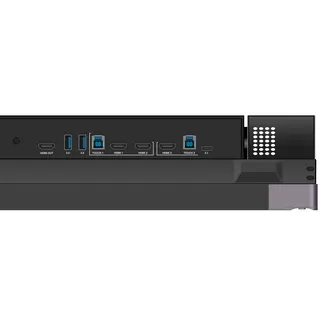

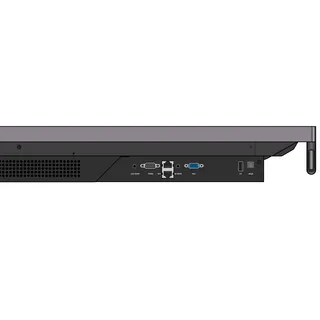

An optional OPS module adds a Windows environment to the same panel. The two listed configurations are an Intel Core i5-1135G7 with 8 GB RAM and 256 GB storage, and an Intel Core i7-1165G7 with 16 GB RAM and 256 GB storage. Ports include two HDMI 2.0 inputs, one HDMI 2.0 with ARC, VGA, USB-C, four USB-A 3.0 ports, two USB-B ports and an RJ45 LAN port.

Where the INF8610 fits across Qatar

A boardroom in West Bay or Msheireb that runs calls with teams abroad can share and annotate a presentation on the 86-inch screen while several people stand at the glass. A private school in Al Wakrah fitting out a new language room can give a class one large surface for group work. An engineering firm in the Industrial Area or Mesaieed can review drawings with a client without printing them.

The operating range is 0 to 40 °C, with storage from -20 to 60 °C. Qatar summer temperatures can exceed 45 °C, so the INF8610 belongs in an air-conditioned indoor room, not a sunroom, an outdoor pavilion or an unconditioned space. Confirm the room conditions with the SmartRooms Qatar team before choosing a location.

Planning the installation and power

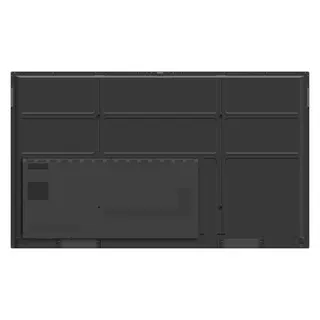

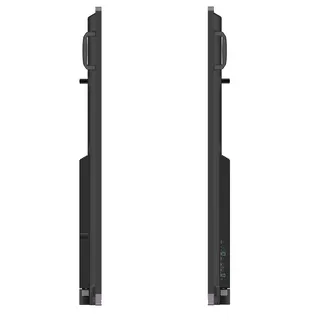

The unit measures 1957 x 86 x 1160 mm and weighs 64.6 kg, with a shipping weight of 82.3 kg. Plan a wall or stand rated for that load, matched to the 800 x 600 VESA pattern. SmartRooms Qatar offers a free site survey to check wall construction, outlet position and cable routes before installation. The power supply accepts 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains, with maximum consumption of 550 W.

To request a quote, send the room type, number of units, wall or stand arrangement and whether you need the Windows OPS option. The team usually replies with a quotation within one working day. Schools, ministries and companies can order on a purchase order or LPO, and government tenders, including Monaqasat, are supported.
